Overview

Features and Benefits

  • Integrated Precision Reference
    • 2.5V Full Scale 10ppm/°C (LTC2630-L)
    • 4.096V Full Scale 10ppm/°C (LTC2630-H)
  • Maximum INL Error: 1 LSB (LTC2630A-12)
  • Low Noise: 0.7mVP-P, 0.1Hz to 200kHz
  • Guaranteed Monotonic over Temperature
  • Selectable Internal Reference or Supply as Reference
  • 2.7V to 5.5V Supply Range (LTC2630-L)
  • Low Power Operation: 180µA at 3V
  • Power Down to 1.8µA Maximum (C and I Grades)
  • Power-on Reset to Zero or Midscale Options
  • SPI Serial Interface
  • Double-Buffered Data Latches
  • Tiny 6-Lead SC70 Package

Product Details

The LTC2630 is a family of 12-, 10-, and 8-bit voltage output DACs with an integrated, high-accuracy, low-drift reference in a 6-lead SC70 package. It has a rail-to-rail output buffer and is guaranteed monotonic.

The LTC2630-L has a full-scale output of 2.5V, and operates from a single 2.7V to 5.5V supply. The LTC2630-H has a full-scale output of 4.096V, and operates from a 4.5V to 5.5V supply. Each DAC can also operate in supply as reference mode, which sets the full-scale output to the supply voltage.

The parts use a simple SPI/MICROWIRE™ compatible 3-wire serial interface which operates at clock rates up to 50MHz.

The LTC2630 incorporates a power-on reset circuit. Options are available for reset to zero or reset to midscale after power-up.

Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Automatic Test Equipment
  • Portable Equipment
  • Automotive

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

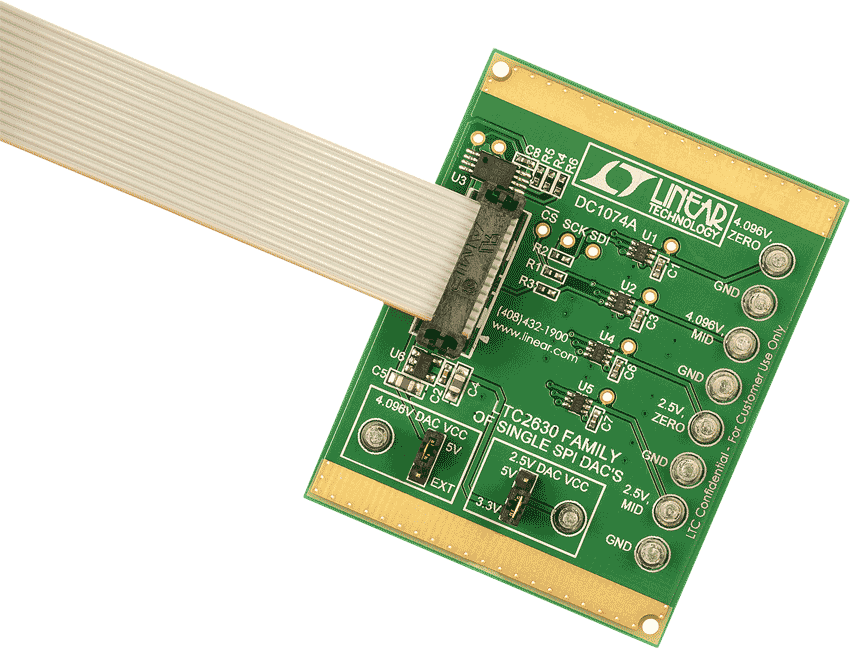

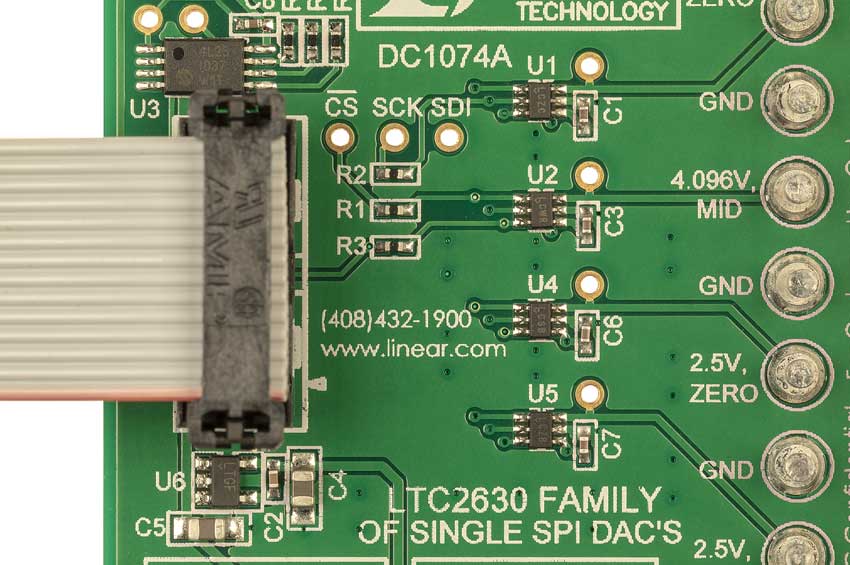

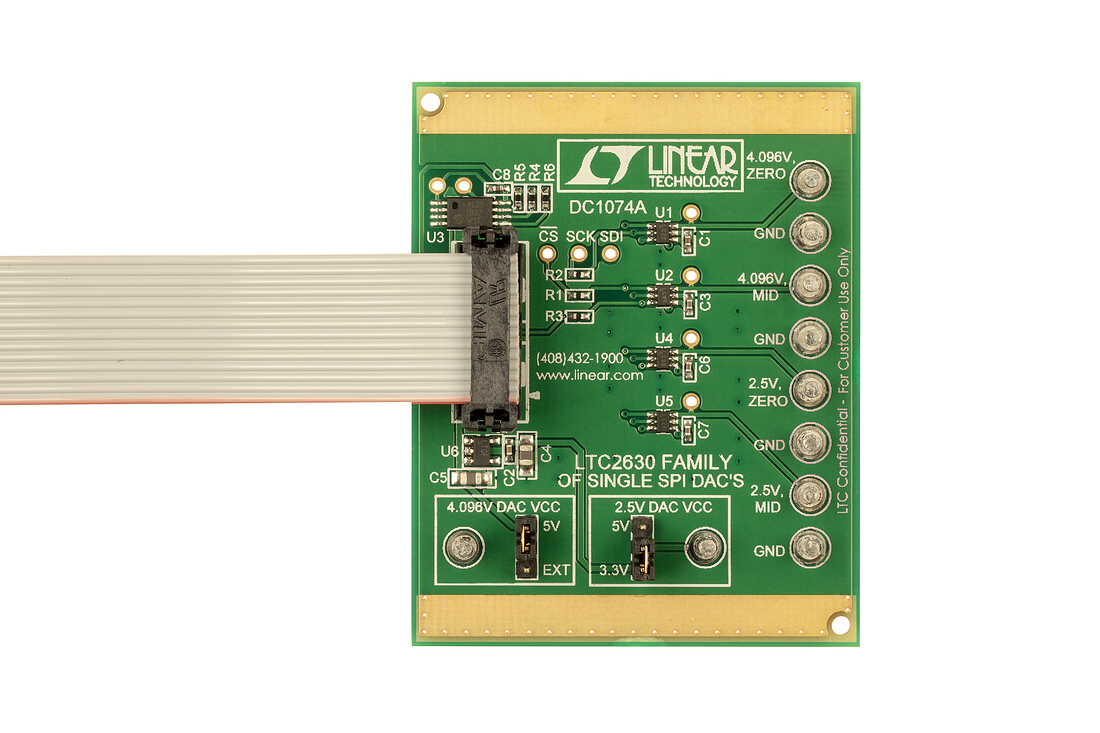

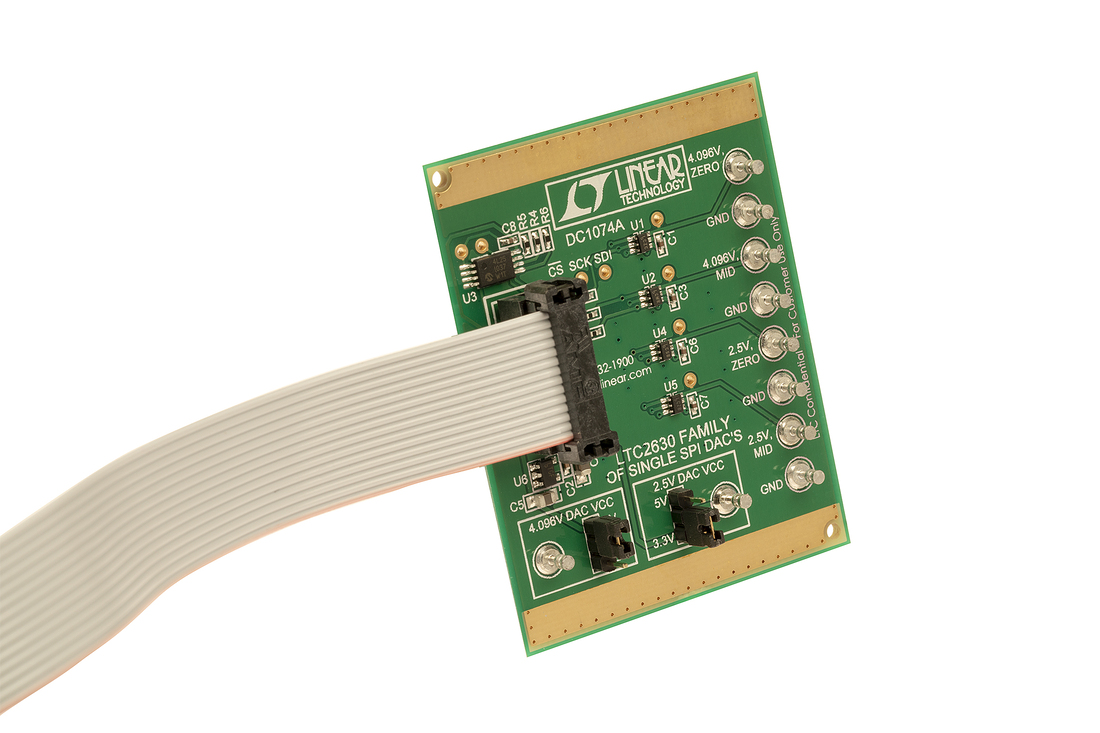

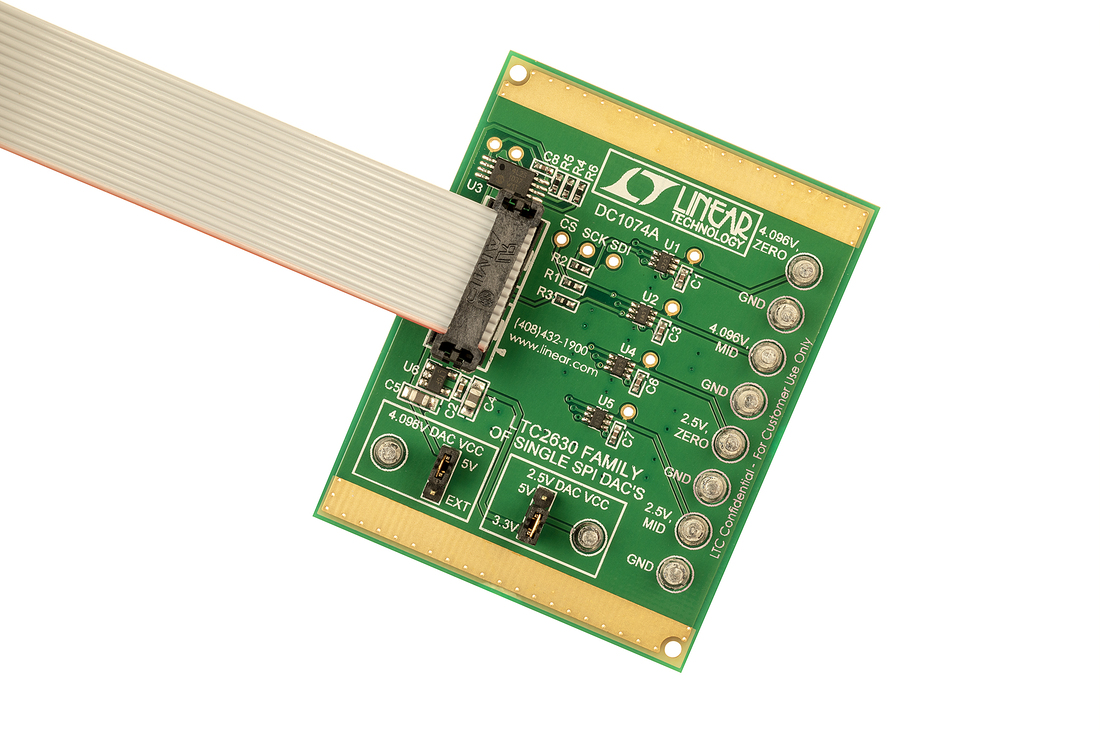

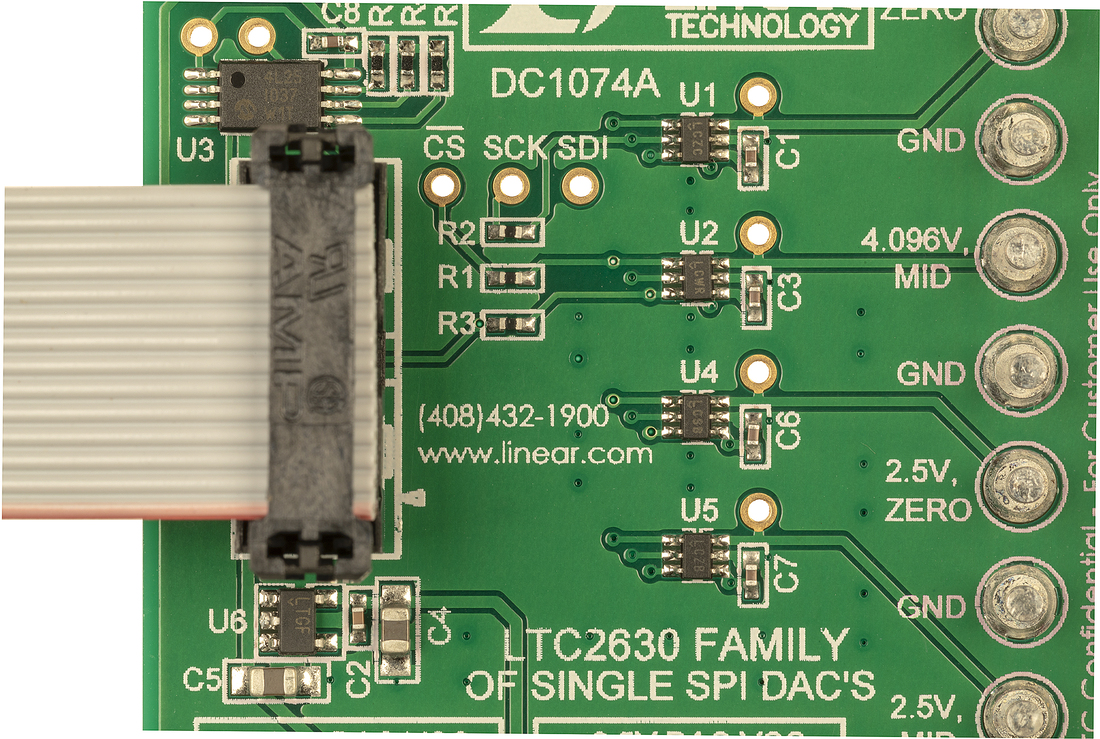

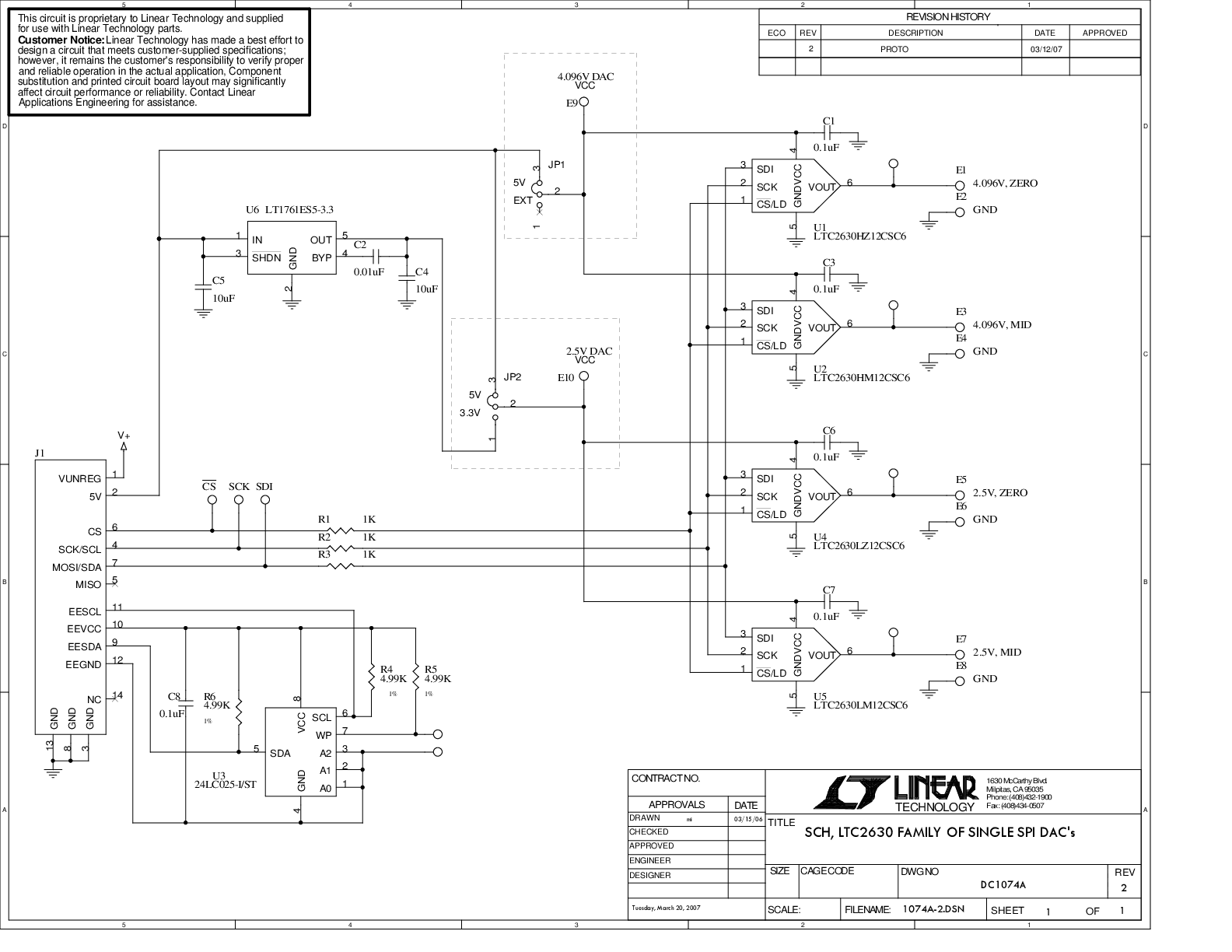

Evaluation Kits (1)
