LTC2473
Selectable 208sps/833sps, 16-Bit I2C ΔΣ ADCs with 10ppm/°C Max Precision Reference
Show More
Not the part you were looking for?
5
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 16-Bit Resolution

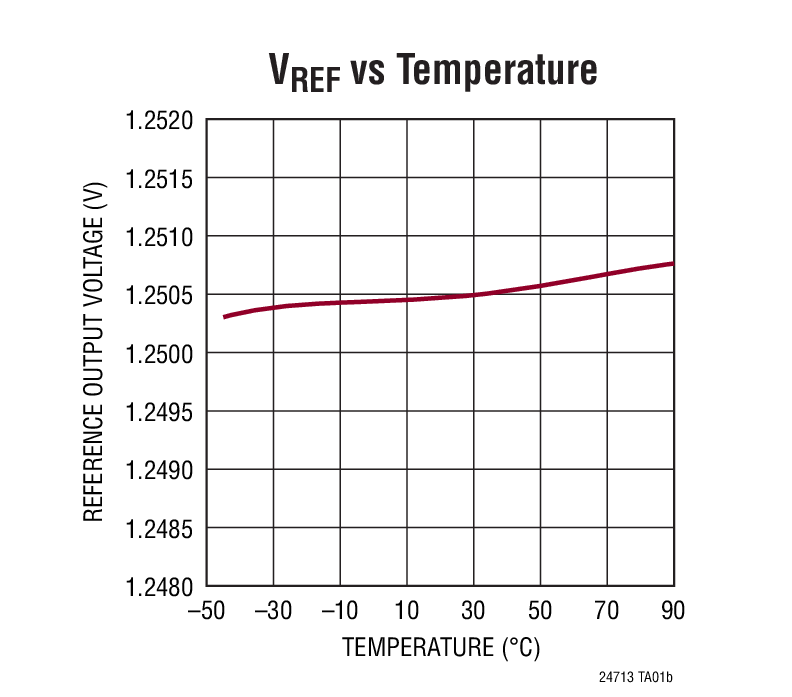

- Internal, High Accuracy Reference—10ppm/°C (Max)
- Single-Ended (LTC2471) or Differential (LTC2473)
- Selectable 208sps/833sps Output Rate
- 1mV Offset Error
- 0.01% Gain Error
- Single Conversion Settling Time Simplifies Multiplexed Applications
- Single-Cycle Operation with Auto Shutdown
- 3.5mA (Typ) Supply Current
- 2μA (Max) Sleep Current
- Internal Oscillator—No External Components Required
- I2C Interface

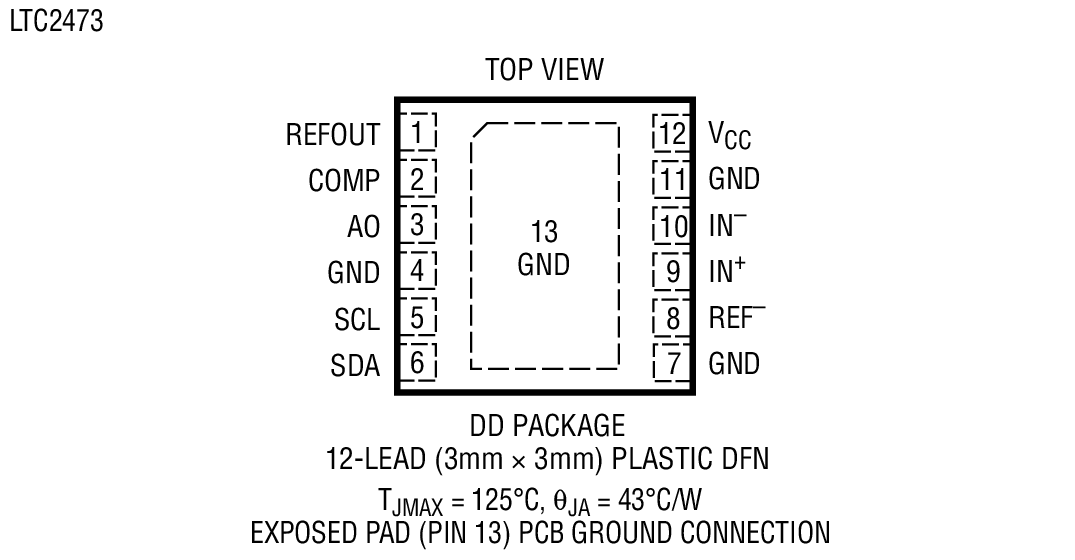

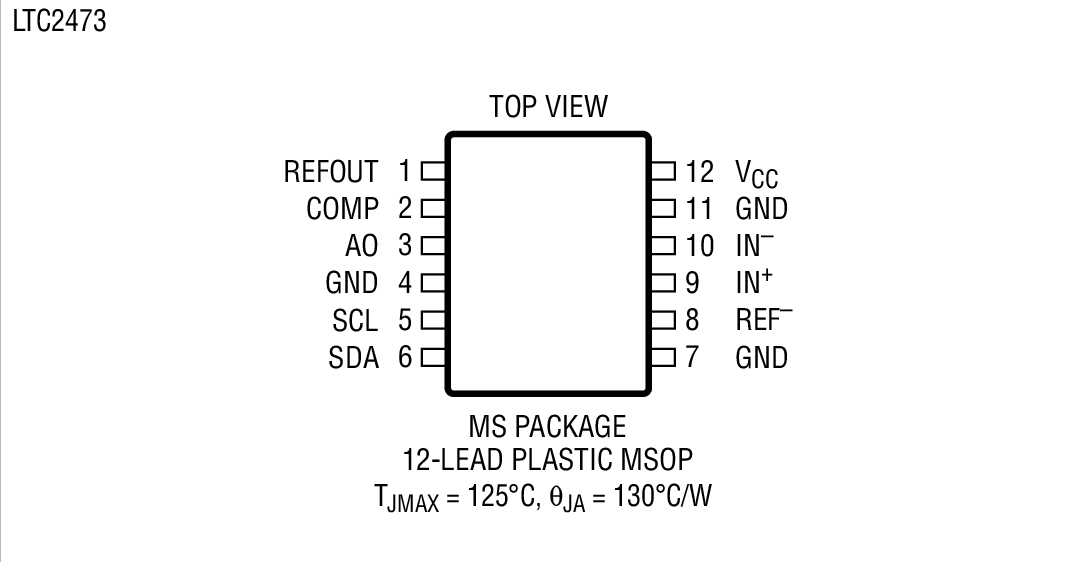

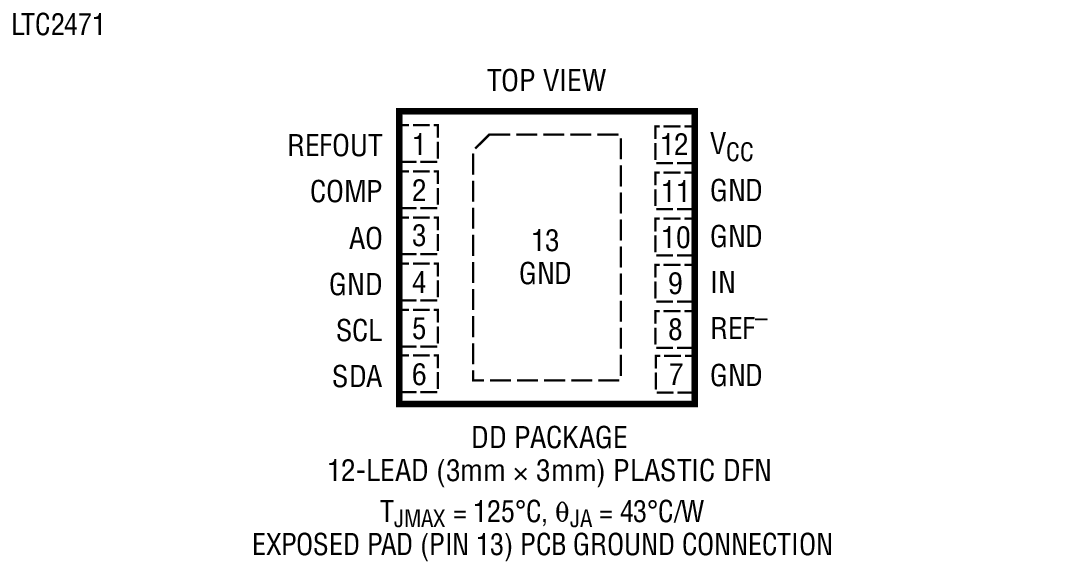

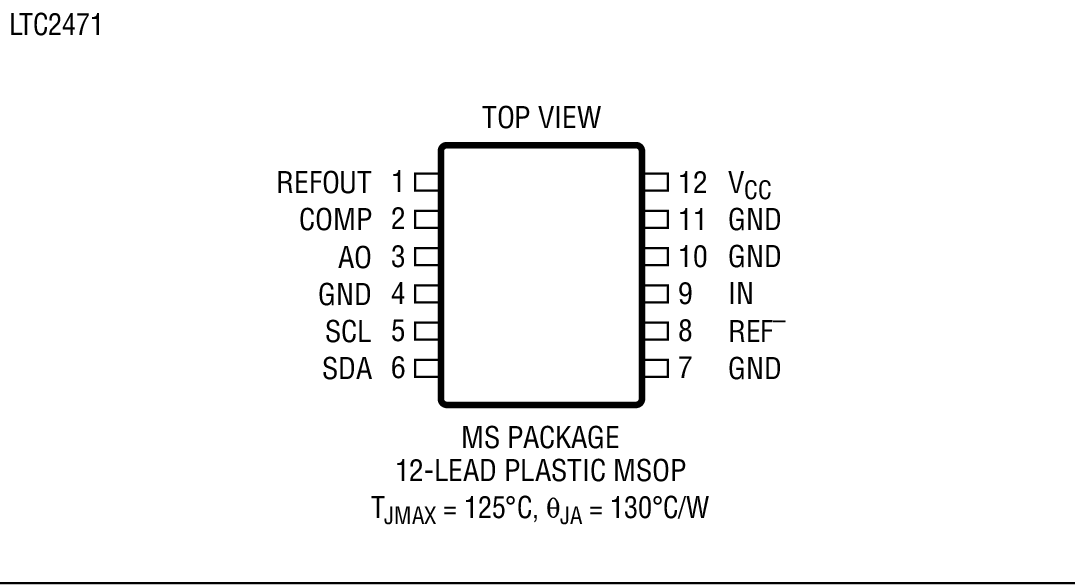

- Small 12-Lead, 3mm × 3mm DFN and MSOP Packages
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

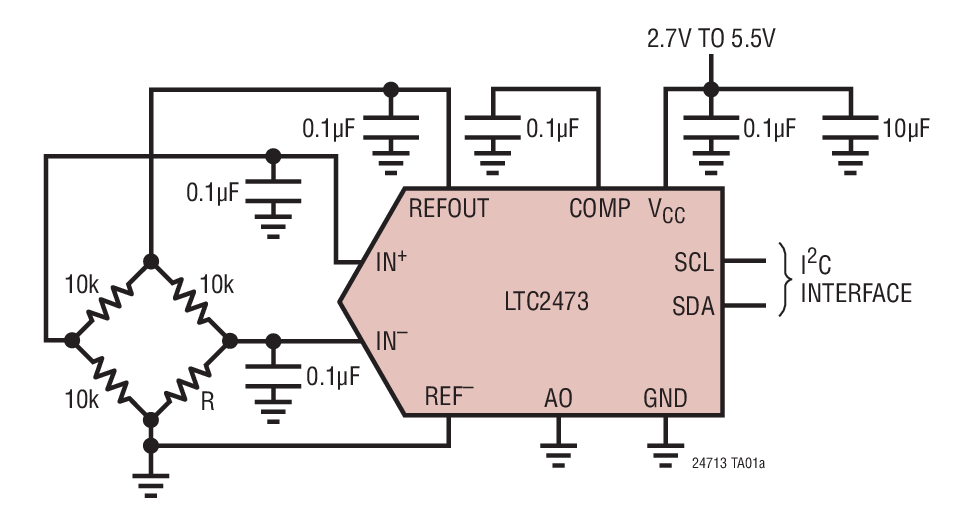

The LTC2471/LTC2473 are small, 16-bit analog-to-digital converters with an integrated precision reference and a selectable 208sps or 833sps output rate. They use a single 2.7V to 5.5V supply and communicate through an I2C Interface. The LTC2471 is single-ended with a 0V to VREF input range and the LTC2473 is differential with a ±VREF input range. Both ADCs include a 1.25V integrated reference with 2ppm/°C drift performance and 0.1% initial accuracy. The converters are available in a 12-pin DFN 3mm × 3mm package or an MSOP-12 package. They include an integrated oscillator and perform conversions with no latency for multiplexed applications. The LTC2471/LTC2473 include a proprietary input sampling scheme that reduces the average input current several orders of magnitude when compared to conventional delta sigma converters.
Following a single conversion, the LTC2471/LTC2473 automatically power down the converter and can also be configured to power down the reference. When both the ADC and reference are powered down, the supply current is reduced to 200nA.
The LTC2471/LTC2473 include a user selectable 208sps or 833sps output rate and due to a large oversampling ratio (8,192 at 208sps and 2,048 at 833sps) have relaxed anti-aliasing requirements.
Applications
- System Monitoring
- Environmental Monitoring
- Direct Temperature Measurements
- Instrumentation
- Industrial Process Control
- Data Acquisition
- Embedded ADC Upgrades
5
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC2473
Documentation
Filters
1 Applied
-
All
-
Reliability Data
-
Data Sheet
-
User Guide
-
All
-
English
-
Japanese
Data Sheet
2
Reliability Data
1
31.35 K
User Guide
1
313.00K
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Product Selector Card 2
Device Drivers 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC2473CDD#PBF |
12-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC2473CDD#TRPBF |
12-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC2473CMS#PBF |
12-Lead MSOP
|
|
|
| LTC2473CMS#TRPBF |
12-Lead MSOP
|
|
|
| LTC2473IDD#PBF |
12-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC2473IDD#TRPBF |
12-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC2473IMS#PBF |
12-Lead MSOP
|
|
|
| LTC2473IMS#TRPBF |
12-Lead MSOP
|
|
- LTC2473CDD#PBF
- Pin/Package Drawing
-
12-Lead DFN (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473CDD#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473CMS#PBF
- Pin/Package Drawing
-
12-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473CMS#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473IDD#PBF
- Pin/Package Drawing
-
12-Lead DFN (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473IDD#TRPBF
- Pin/Package Drawing
-
12-Lead DFN (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473IMS#PBF
- Pin/Package Drawing
-
12-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- LTC2473IMS#TRPBF
- Pin/Package Drawing
-
12-Lead MSOP
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC2473CMS#PBF
PRODUCTION
LTC2473CMS#TRPBF
PRODUCTION
LTC2473IMS#PBF
PRODUCTION
LTC2473IMS#TRPBF
PRODUCTION
Feb 4, 2020
- 20_0129
Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
LTC2473CMS#PBF
PRODUCTION
LTC2473CMS#TRPBF
PRODUCTION
LTC2473IMS#PBF
PRODUCTION
LTC2473IMS#TRPBF
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jun 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC2473CMS#PBF
PRODUCTION
LTC2473CMS#TRPBF
PRODUCTION
LTC2473IMS#PBF
PRODUCTION
LTC2473IMS#TRPBF
PRODUCTION
Feb 4, 2020
- 20_0129
Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC
LTC2473CMS#PBF
PRODUCTION
LTC2473CMS#TRPBF
PRODUCTION
LTC2473IMS#PBF
PRODUCTION
LTC2473IMS#TRPBF
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
| Parts | Product Life Cycle | Description | ||
|---|---|---|---|---|
|
Current Sense Amplifiers1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Quad I2C Voltage, Current and Temperature Monitor |
|||
|
I²C Isolators1 |
||||
|
PRODUCTION |
SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power |
|||
|
Precision Resistor Network1 |
||||
|
RECOMMENDED FOR NEW DESIGNS |
Quad Matched Resistor Network |
|||
|
Serial Bus Buffers, Extenders, and Accelerators1 |
||||
|
PRODUCTION |
Dual I2C/SMBus Address Translator |
|||
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
DC1716A

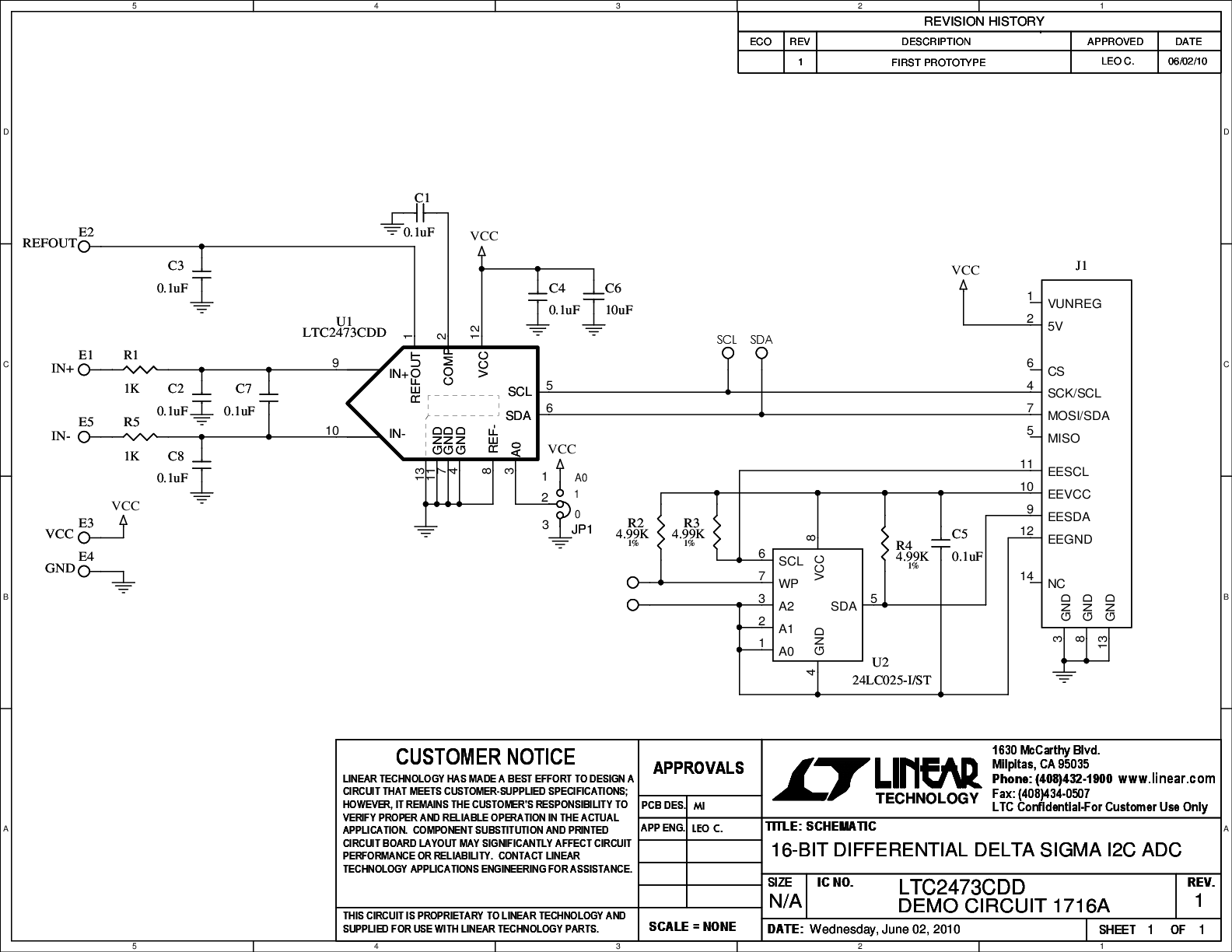

LTC2473 Demo Board | Selectable 208sps/833sps, 16-Bit I2C Delta Sigma ADCs with 10ppm/C Max Precision Reference, (Requires DC2026)
