LTC2420

20-Bit µPower No Latency ∆Σ ADC in SO-8

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $5.30
Features
  • 20-Bit ADC in SO-8 Package
  • 8ppm INL, No Missing Codes at 20 Bits
  • 4ppm Full-Scale Error
  • 0.5ppm Offset
  • 1.2ppm Noise
  • Digital Filter Settles in a Single Cycle. Each Conversion Is Accurate, Even After an Input Step
  • Fast Mode: 16-Bit Noise, 12 Bits TUE at 100sps
  • Internal Oscillator—No External Components Required
  • 110dB Min, 50Hz/60Hz Notch Filter
  • Reference Input Voltage: 0.1V to VCC
  • Live Zero—Extended Input Range Accommodates 12.5% Overrange and Underrange
  • Single Supply 2.7V to 5.5V Operation
  • Low Supply Current (200µA) and Auto Shutdown
  • Pin Compatible with 24-Bit LTC2400
Additional Details
show more Icon

The LTC2420 is a micropower 20-bit A/D converter with an integrated oscillator, 8ppm INL and 1.2ppm RMS noise that operates from 2.7V to 5.5V. It uses delta-sigma technology and provides a digital filter that settles in a single cycle for multiplexed applications. Through a single pin, the LTC2420 can be configured for better than 110dB rejection at 50Hz or 60Hz ±2%, or it can be driven by an external oscillator for a user-defined rejection frequency in the range 1Hz to 800Hz. The internal oscillator requires no external frequency setting components.

The converter accepts any external reference voltage from 0.1V to VCC. With its extended input conversion range of –12.5% VREF to 112.5% VREF, the LTC2420 smoothly resolves the offset and overrange problems of preceding sensors or signal conditioning circuits.

The LTC2420 communicates through a flexible 3-wire digital interface which is compatible with SPI and MICROWIRE protocols.

Applications

  • Weight Scales
  • Direct Temperature Measurement
  • Gas Analyzers
  • Strain-Gage Transducers
  • Instrumentation
  • Data Acquisition
  • Industrial Process Control
  • 4-Digit DVMs
Part Models 4
1ku List Price Starting From $5.30

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2420CS8#PBF
  • HTML
  • HTML
LTC2420CS8#TRPBF
  • HTML
  • HTML
LTC2420IS8#PBF
  • HTML
  • HTML
LTC2420IS8#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 12, 2022

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC2420CS8#PBF

PRODUCTION

LTC2420CS8#TRPBF

PRODUCTION

LTC2420IS8#PBF

PRODUCTION

LTC2420IS8#TRPBF

PRODUCTION

Jun 16, 2021

- 21_0026

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC2420CS8#PBF

PRODUCTION

LTC2420CS8#TRPBF

PRODUCTION

LTC2420IS8#PBF

PRODUCTION

LTC2420IS8#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 12, 2022

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LTC2420CS8#PBF

PRODUCTION

LTC2420CS8#TRPBF

PRODUCTION

LTC2420IS8#PBF

PRODUCTION

LTC2420IS8#TRPBF

PRODUCTION

Jun 16, 2021

- 21_0026

arrow down

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LTC2420CS8#PBF

PRODUCTION

LTC2420CS8#TRPBF

PRODUCTION

LTC2420IS8#PBF

PRODUCTION

LTC2420IS8#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 2

reference details image

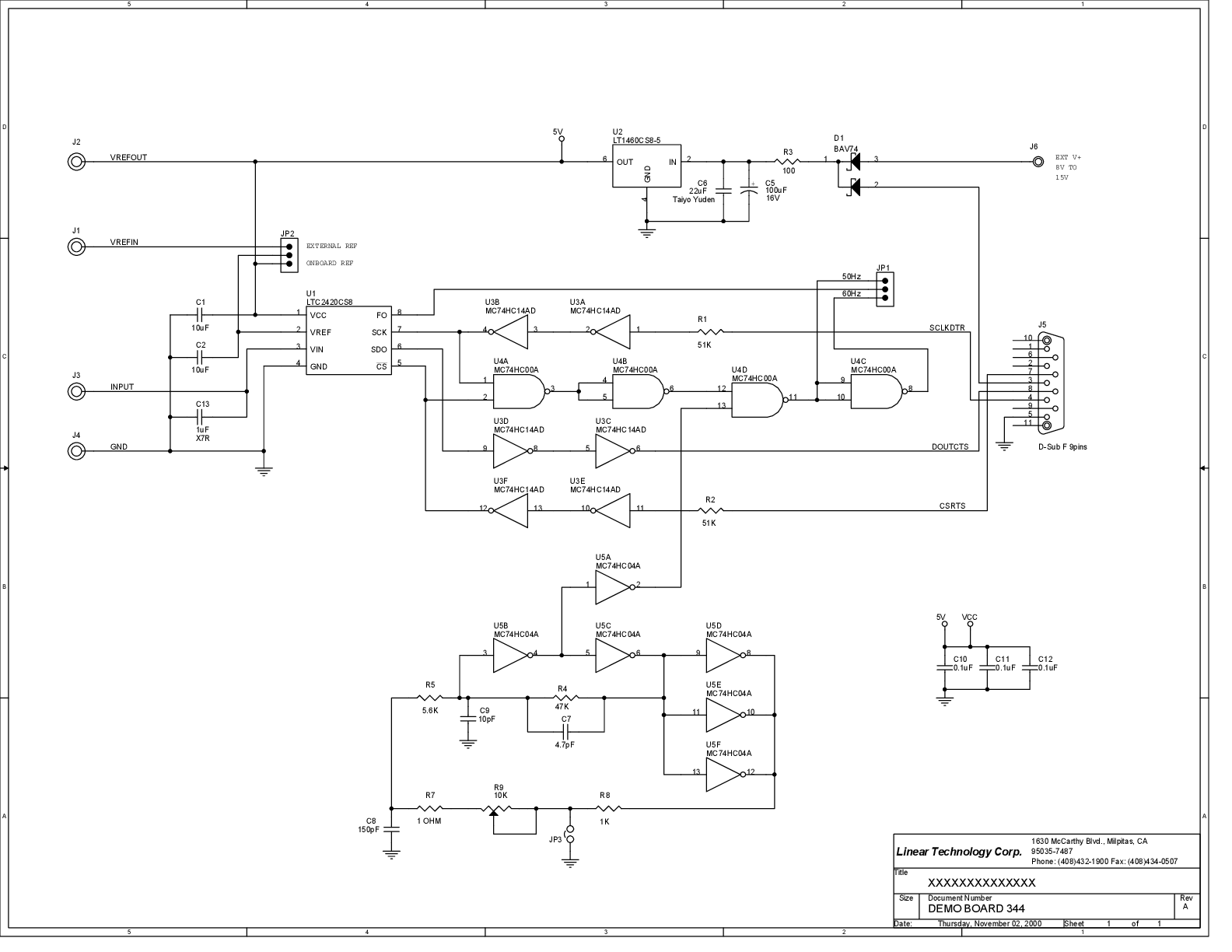

DC344A

LTC2420CS8 | 20 Bit Delta Sigma ADC with Turbo Mode (with Diskette, Requires Win95/98)

reference details image

EVAL-LTC2420-EBZ

Evaluating the LTC2420 20-Bit, μPower, No Latency, ΔΣ ADC

zoom

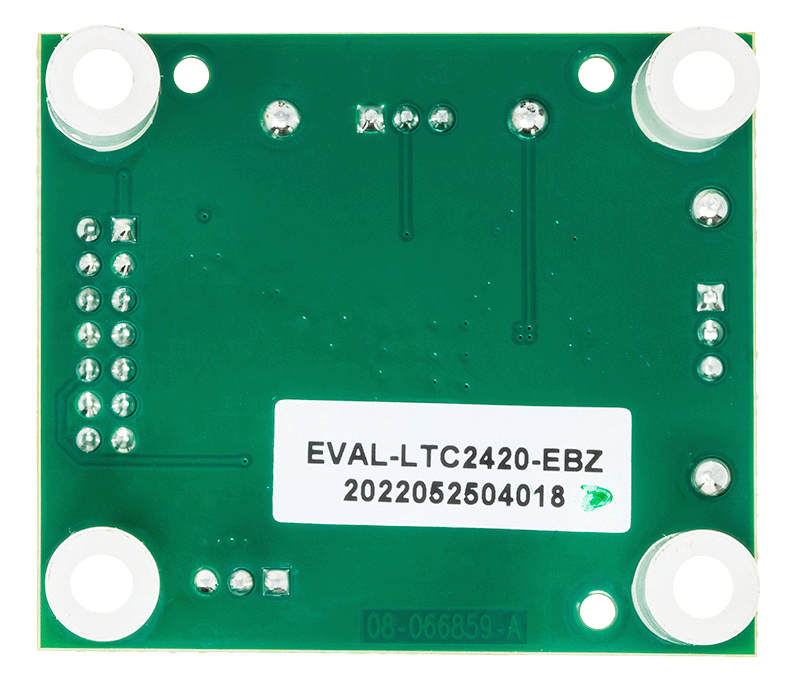

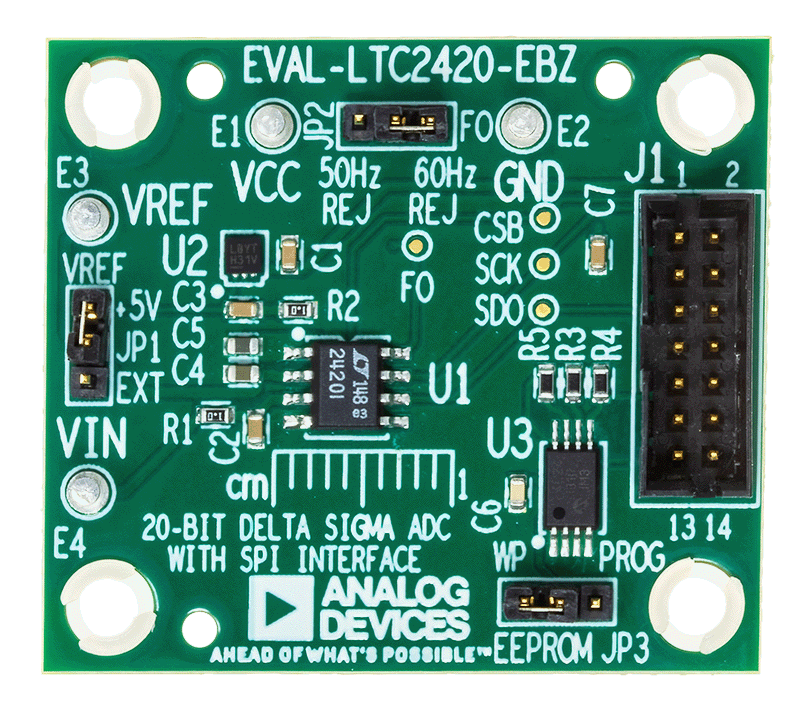

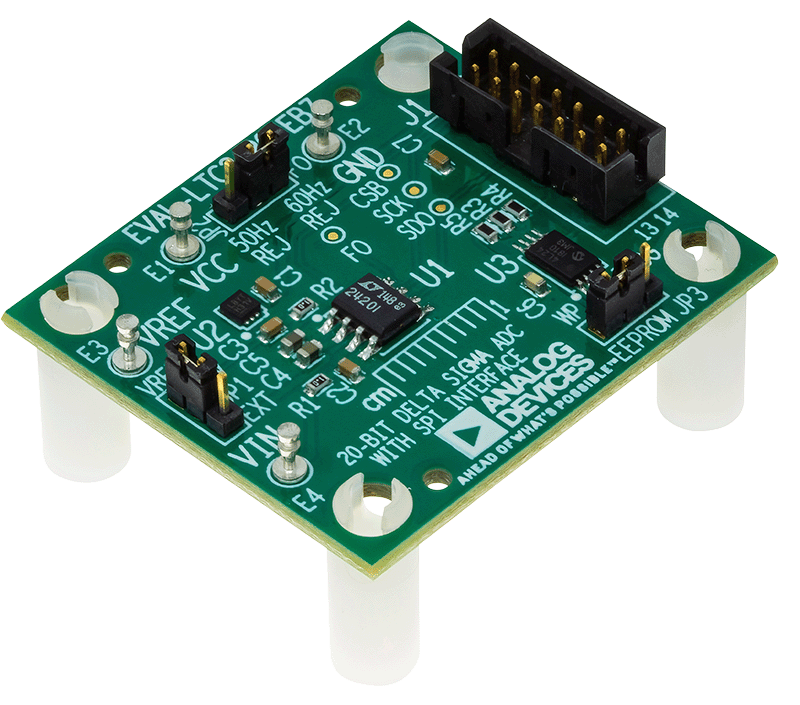

EVAL-LTC2420-EBZ

Evaluating the LTC2420 20-Bit, μPower, No Latency, ΔΣ ADC

Evaluating the LTC2420 20-Bit, μPower, No Latency, ΔΣ ADC

Features and Benefits

  • Fully featured evaluation board for the LTC2420
  • QuikEval evaluation software compatible

Product Detail

The EVAL-LTC2420-EBZ is a fully featured evaluation board that evaluates the LTC2420, a 20-bit, μPower, no latency, ΔΣ analog-to-digital converter (ADC).

The EVAL-LTC2420-EBZ uses QuikEval evaluation software to provide an intuitive graphical user interface (GUI) that configures and controls the LTC2420 using the serial peripheral interface (SPI).

The LTC2420 is used for various data acquisition applications such as weigh scales or gas analyzers. The LTC2420 accepts any external reference voltage from 0.1 V to VCC and can be configured to reject 50 Hz or 60 Hz interference.

For full specifications on the LTC2420, see the LTC2420 data sheet, which must be consulted with the user guide when using the EVAL-LTC2420-EBZ.
