LTC2054

PRODUCTION

Single Micropower Zero-Drift Operational Amplifiers

Part Models: 16
1ku List Price: Starting From $1.32

Viewing:

Overview

Supply Current 150μA (Max per Amplifier)
Guaranteed from –40°C to 85°C
Offset Voltage 3μV (Max, –40°C to 85°C)

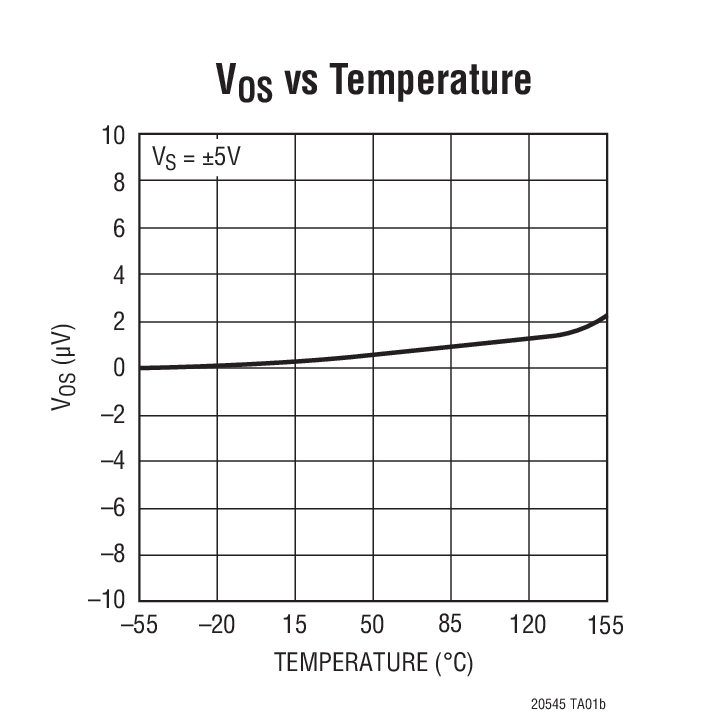

Offset Voltage Drift 30nV/°C (Max, –40°C to 85°C)
Guaranteed Specifications from –55°C to 150°C (LTC2054MP)
Common Mode Input Range from V^– to V⁺ – 0.5V
Output Swings Rail-to-Rail
Voltage Gain: 140dB (Typ)
PSRR and CMRR: 130dB (Typ)
Input Bias Current: 1pA (Typ, 25°C)
Noise: 1.6μV_P-P (0.01Hz to 10Hz Typ)
Supply Operation:
- 2.7V to 6V (LTC2054/LTC2055)
- 2.7V to ±5.5V (LTC2054HV/LTC2055HV)

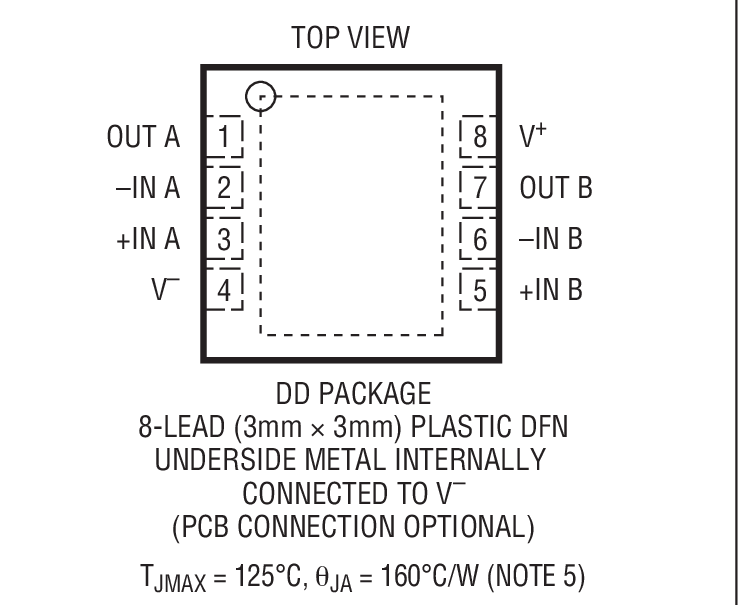

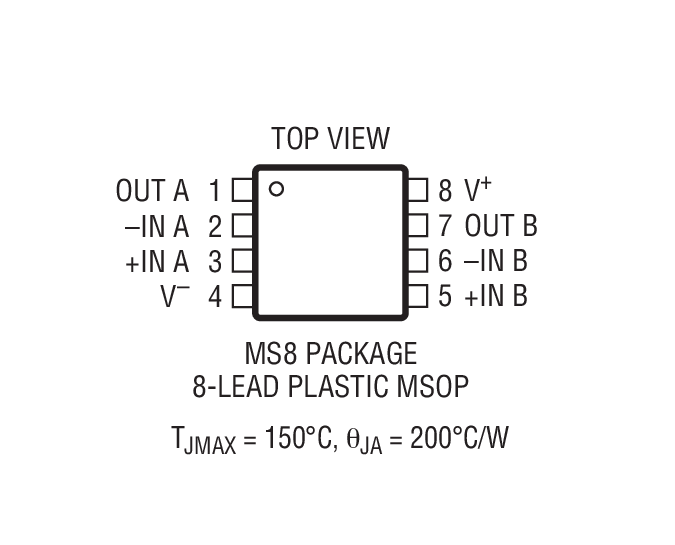

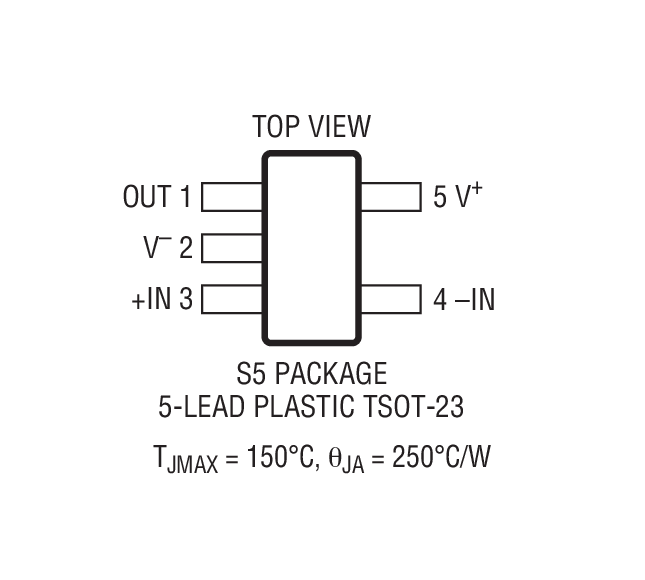

Low Profile (1mm) SOT-23, MS8 and 3mm × 3mm × 0.8mm DFN Packages

The LTC2054/LTC2055 are low power, low noise, single/dual, zero-drift operational amplifiers with an extended temperature version (LTC2054MP) that has guaranteed specifications from –55°C to 150°C. They are available in SOT-23 (ThinSOT^™) and MS8 packages. For space limited applications, the LTC2055 is also available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN). They operate from a single 2.7V minimum supply and support ± 5V applications. The current consumption is typically 150μA for the LTC2054 and 130μA/amp for the LTC2055.

The LTC2054/LTC2055, despite their miniature size, feature uncompromising DC performance. The maximum input offset voltage and offset drift are 3.0μV and 30nV/°C over the –40°C to 85°C industrial temperature range. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of 130dB (typ).

The input common mode voltage ranges from the negative supply up to typically 0.5V below the positive supply. The open-loop gain is typically 140dB. The LTC2054/LTC2055 also feature a 1.6μV_P-P DC to 10Hz noise and a 500kHz gain-bandwidth product.

Applications

Thermocouple Amplifiers
Electronic Scales
Medical Instrumentation
Strain Gauge Amplifiers
High Resolution Data Acquisition
DC Accurate RC Active Filters
Low Side Current Sense
Battery-Powered Systems

Part Models: 16
1ku List Price: Starting From $1.32

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2054CS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054CS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVCS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVCS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVHS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVHS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVMPS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054HVMPS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054IS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054MPS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2054MPS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Matched Resistors & Transistors 1
LT5400	RECOMMENDED FOR NEW DESIGNS	Quad Matched Resistor Network
Protection Switches & Controllers 1
LT4356MP-1 LT4356MP-2		Surge Stopper

Parts	Product Life Cycle	Description
LTC2063	RECOMMENDED FOR NEW DESIGNS	2µA Supply Current, Low I_B, Zero-Drift Operational Amplifiers
LTC2066	RECOMMENDED FOR NEW DESIGNS	10μA Supply Current, Low I_B, Zero-Drift Operational Amplifier
ADA4528-1	PRODUCTION	Precision, Ultralow Noise, RRIO, Zero-Drift Single Op Amp

Tools & Simulations

LTspice 1

LTC6090/LTC2054 Demo Circuit - µVolt Preamplifier for a Digital Voltmeter

Models for the following parts are available in LTspice:

LTC2054

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LTC6102, LT6100, LT1787, LTC2054, and LTC2439-1 (Requires DC590B) | Demo Board

Buy Now View Details

Product Details

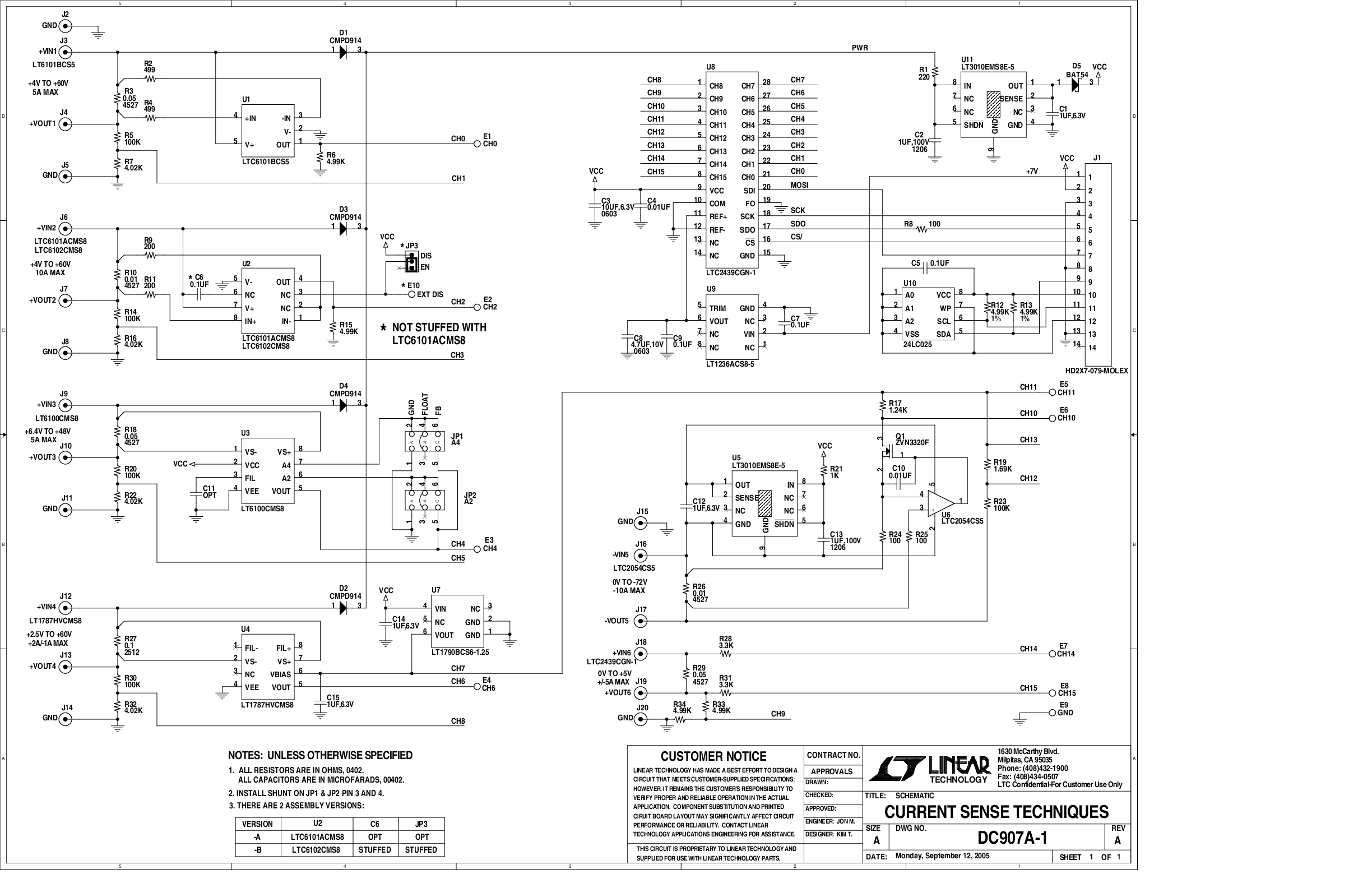

DC907A-B Demo Board for:

LTC2054 Single Micropower Zero-Drift Operational Amplifiers
LTC6102 Precision Zero Drift Current Sense Amplifier
LT1787 Precision, High Side Current Sense Amplifiers
LT6100 Precision, Gain Selectable High Side Current Sense Amplifier
LTC2439-1 8-/16-Channel 16-Bit No Latency Delta Sigma ADC
