LTC1458

PRODUCTION

LTC1458

Quad 12-Bit Rail-to-Rail Micropower DACs

PRODUCTION

Functional Block Diagram: Quad 12-Bit Rail-to-Rail DAC slide

Differential Nonlinearity vs Input Code slide

Functional Block Diagram: Quad 12-Bit Rail-to-Rail DAC

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 17

1ku List Price Starting From $14.58

Features

Quad 12-Bit DAC
Buffered True Rail-to-Rail Voltage Output
Maximum DNL Error: 0.5LSB
5V Operation, I_CC: 1.1mA Typ (LTC1458)
3V Operation, I_CC: 800µA Typ (LTC1458L)
Internal or External Reference Operation
Settling Time: 14µs to ±0.5LSB
Schmitt Trigger On Clock Input Allows Direct Optocoupler Interface
Power-On Reset and CLR Pin
SSOP-28 Package
3-Wire Cascadable Serial Interface with 250kHz Update Rate
Low Cost

Additional Details

The LTC1458/LTC1458L are complete single supply, quad rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in SO-28 and SSOP-28 packages.They include an output buffer amplifier with variable gain (×1 or ×2) and an easy-to-use 3-wire cascadable serial interface.

The LTC1458 has an on-board reference of 2.048V and a full-scale output of 4.095V in a ×2 gain configuration. It operates from a single 4.5V to 5.5V supply dissipating only 5.5mW (I_CC = 1.1mA typ).

The LTC1458L has an onboard 1.22V reference and a full-scale output of 2.5V in a ×2 gain configuration. It operates from a single supply of 2.7V to 5.5V dissipating 2.4mW.

Excellent DNL, low supply current and a wide range of built-in functions allow these parts to be used in a host of applications when flexibility, power and single supply operation are important.

Applications

Digital Calibration
Industrial Process Control
Automatic Test Equipment
Low Power Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 17

1ku List Price Starting From $14.58

Technical Documents 3

LTC1458: Quad 12-Bit Rail-to-Rail Micropower DACs Data Sheet 01/29/2010

R392 Reliability Data 03/22/2018

AN87 - Linear Technology Magazine Circuit Collection, Volume V: Data Conversion, Interface and Signal Conditioning Products 10/15/2007

Reference Materials 2

Voltage Output DACs 03/03/2011

DAC Selector Card 09/21/2015

Design Resources 17

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1458CG#PBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458CG#TRPBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458CSW#PBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458CSW#TRPBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458DICE	CHIPS OR DIE	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458IG#PBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458IG#TRPBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458ISW#PBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458ISW#TRPBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LCG#PBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LCG#TRPBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LCSW#PBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LCSW#TRPBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LIG#PBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LIG#TRPBF	28-Lead SSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LISW#PBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTC1458LISW#TRPBF	28-Lead SOIC (Wide 0.3 Inch)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTC1458CG#PBF

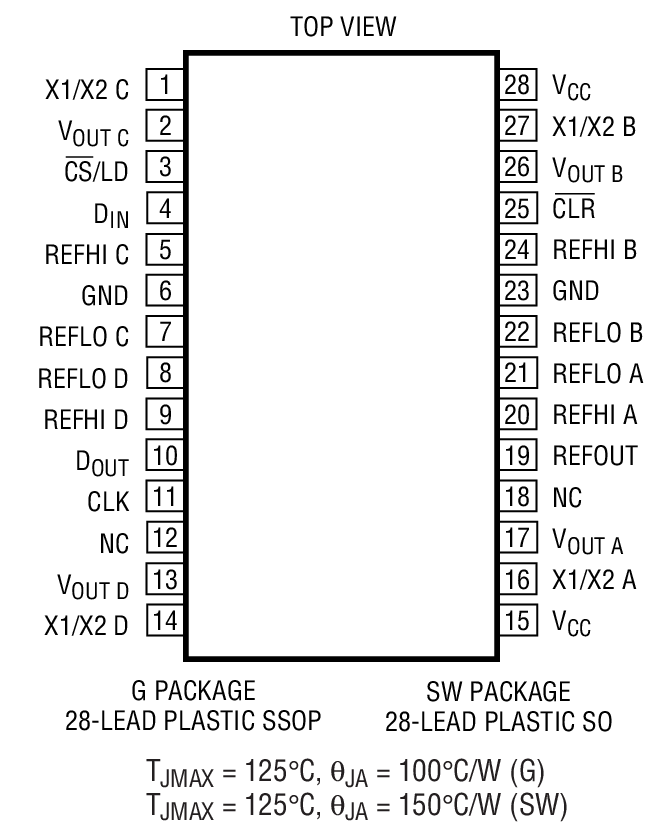

Pin/Package Drawing
28-Lead SSOP
Documentation

Parts	Product Life Cycle	Description
I²C Isolators1
LTM2883	PRODUCTION	SPI/Digital or I²C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power
Multichannel Voltage Output D/A Converters2
LTC2634	PRODUCTION	Quad 12-/10-/8-Bit Rail-to-Rail DACs with 10ppm/°C Reference
LTC2654	PRODUCTION	Quad 16-/12-Bit Rail-to-Rail DACs with 10ppm/°C Max Reference

LTC1458
