Data Sheet Rev. E
JP Rev. C
User Guides
1 View All

Overview

Features and Benefits

  • AEC-Q100 Qualified for Automotive Applications
  • Integrated Precision Reference
    • 2.5V Full-Scale 10ppm/°C (LTC2634-L)
    • 4.096V Full-Scale 10ppm/°C (LTC2634-H)

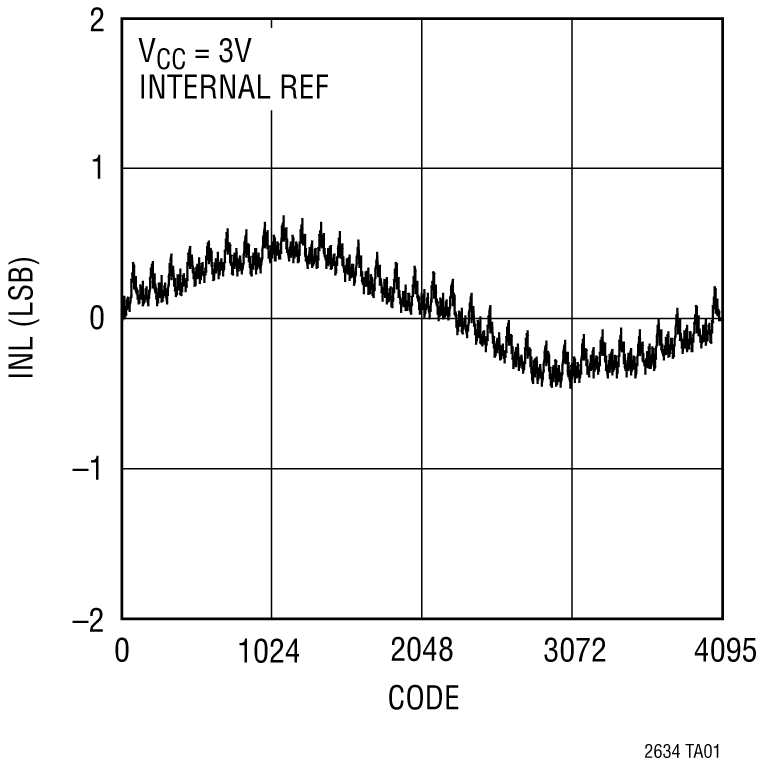

  • Maximum INL Error: ±2.5 LSB (LTC2634-12)
  • Low Noise: 0.75mVP-P 0.1Hz to 200KHz
  • Guaranteed Monotonic over −40°C to 125°C Temperature Range
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2634-L)
  • Ultralow Crosstalk Between DACs (2.4nV•s)
  • Low Power: 0.6mA at 3V
  • Power-On Reset to Zero-Scale/Mid-Scale
  • Double Buffered Data Latches

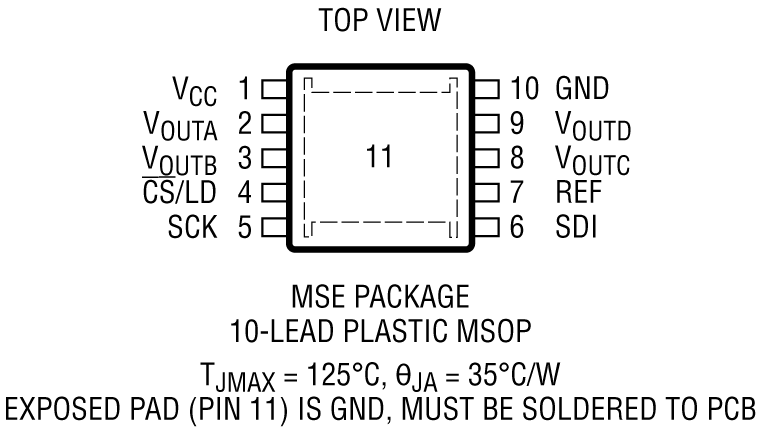

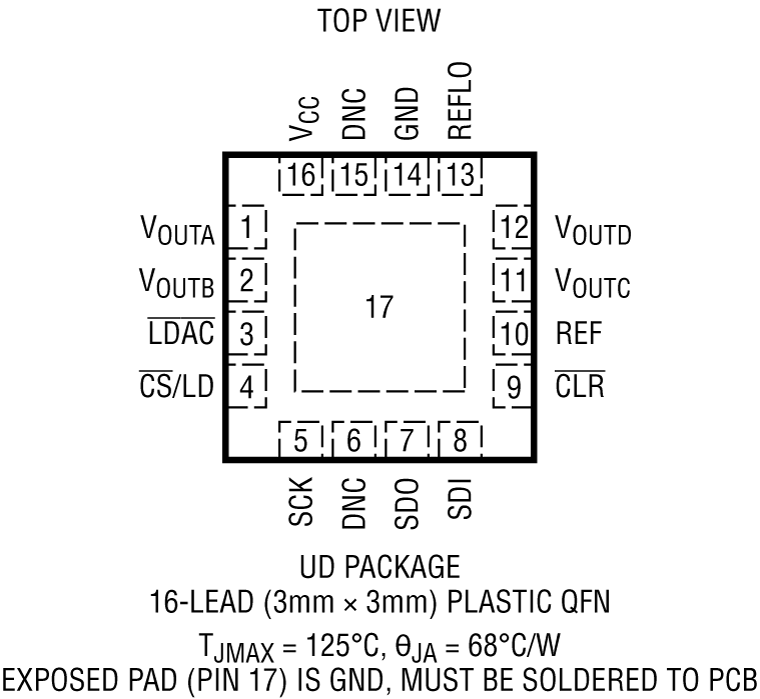

  • Tiny 16-Lead 3mm × 3mm QFN and 10-Lead MSOP Packages

    • Product Details

    The LTC2634 is a family of quad 12-, 10- and 8-bit voltage output DACs with an integrated, high accuracy, low drift 10ppm/°C reference in 16-lead QFN and 10-lead MSOP packages. It has rail-to-rail output buffers and is guaranteed monotonic. The LTC2634-L has a full-scale output of 2.5V, and operates from a single 2.7V to 5.5V supply. The LTC2634-H has a full-scale output of 4.096V, and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the full-scale output to the external reference voltage.

    These DACs communicate via an SPI/MICROWIRE compatible 3-wire serial interface which operates at clock rates up to 50MHz. Serial data output (SDO), a hardware clear (CLR), and an asynchronous DAC update (LDAC) capability are available in the QFN package. The LTC2634 incorporates a power-on reset circuit. Options are available for reset to zero-scale or reset to mid-scale in internal reference mode, or reset to mid-scale in external reference mode after power-up.

    Applications

    • Mobile Communications
    • Process Control and Industrial Automation
    • Automatic Test Equipment
    • Portable Equipment
    • Automotive

    Product Categories

    Comparable Parts Click to see all in Parametric Search

    Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

    Evaluation Kits (4)

    Documentation & Resources

  • View All (8)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (3)
  • Videos (1)
  • Press Releases (1)
    • Document Type

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC2636 - Linduino.CPP File
    LTC2636 - Linduino Header File
    LTC2636 - DC1466.ino

    Product Recommendations

    LTC2634 Companion Parts

    Recommended µModule Isolator

    Recommended D/A Converters

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTC2634CMSE-HMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-HZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CMSE-LZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634CUD-HMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-HZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634CUD-LZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HMSE-HMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-HZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX10#WPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX10#WTRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HMSE-LZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634HUD-HMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-HZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634HUD-LZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IMSE-HMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-HZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMI8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX10#WPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX10#WTRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LMX8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ10#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ10#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ12#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ12#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ8#PBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IMSE-LZ8#TRPBF Material Declaration Reliability Data 10-Lead MSOP w/ EP
    LTC2634IUD-HMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-HZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMI8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LMX8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ10#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ10#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ12#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ12#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ8#PBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    LTC2634IUD-LZ8#TRPBF Material Declaration Reliability Data 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP)
    Wafer Fabrication Data R461 Reliability Data

    PCN-PDN Information

    Select a model from the dropdown below to subscribe to PCN/PDN notifications and view past notifications as well.

    Select Model for PCN Information
    • LTC2634CMSE-HMI10#PBF Production
    • LTC2634CMSE-HMI10#TRPBF Production
    • LTC2634CMSE-HMI12#PBF Production
    • LTC2634CMSE-HMI12#TRPBF Production
    • LTC2634CMSE-HMI8#PBF Production
    • LTC2634CMSE-HMI8#TRPBF Production
    • LTC2634CMSE-HMX10#PBF Production
    • LTC2634CMSE-HMX10#TRPBF Production
    • LTC2634CMSE-HMX12#PBF Production
    • LTC2634CMSE-HMX12#TRPBF Production
    • LTC2634CMSE-HMX8#PBF Production
    • LTC2634CMSE-HMX8#TRPBF Production
    • LTC2634CMSE-HZ10#PBF Production
    • LTC2634CMSE-HZ10#TRPBF Production
    • LTC2634CMSE-HZ12#PBF Production
    • LTC2634CMSE-HZ12#TRPBF Production
    • LTC2634CMSE-HZ8#PBF Production
    • LTC2634CMSE-HZ8#TRPBF Production
    • LTC2634CMSE-LMI10#PBF Production
    • LTC2634CMSE-LMI10#TRPBF Production
    • LTC2634CMSE-LMI12#PBF Production
    • LTC2634CMSE-LMI12#TRPBF Production
    • LTC2634CMSE-LMI8#PBF Production
    • LTC2634CMSE-LMI8#TRPBF Production
    • LTC2634CMSE-LMX10#PBF Production
    • LTC2634CMSE-LMX10#TRPBF Production
    • LTC2634CMSE-LMX12#PBF Production
    • LTC2634CMSE-LMX12#TRPBF Production
    • LTC2634CMSE-LMX8#PBF Production
    • LTC2634CMSE-LMX8#TRPBF Production
    • LTC2634CMSE-LZ10#PBF Production
    • LTC2634CMSE-LZ10#TRPBF Production
    • LTC2634CMSE-LZ12#PBF Production
    • LTC2634CMSE-LZ12#TRPBF Production
    • LTC2634CMSE-LZ8#PBF Production
    • LTC2634CMSE-LZ8#TRPBF Production
    • LTC2634HMSE-HMI10#PBF Production
    • LTC2634HMSE-HMI10#TRPBF Production
    • LTC2634HMSE-HMI12#PBF Production
    • LTC2634HMSE-HMI12#TRPBF Production
    • LTC2634HMSE-HMI8#PBF Production
    • LTC2634HMSE-HMI8#TRPBF Production
    • LTC2634HMSE-HMX10#PBF Production
    • LTC2634HMSE-HMX10#TRPBF Production
    • LTC2634HMSE-HMX12#PBF Production
    • LTC2634HMSE-HMX12#TRPBF Production
    • LTC2634HMSE-HMX8#PBF Production
    • LTC2634HMSE-HMX8#TRPBF Production
    • LTC2634HMSE-HZ10#PBF Production
    • LTC2634HMSE-HZ10#TRPBF Production
    • LTC2634HMSE-HZ12#PBF Production
    • LTC2634HMSE-HZ12#TRPBF Production
    • LTC2634HMSE-HZ8#PBF Production
    • LTC2634HMSE-HZ8#TRPBF Production
    • LTC2634HMSE-LMI10#PBF Production
    • LTC2634HMSE-LMI10#TRPBF Production
    • LTC2634HMSE-LMI12#PBF Production
    • LTC2634HMSE-LMI12#TRPBF Production
    • LTC2634HMSE-LMI8#PBF Production
    • LTC2634HMSE-LMI8#TRPBF Production
    • LTC2634HMSE-LMX10#PBF Production
    • LTC2634HMSE-LMX10#TRPBF Production
    • LTC2634HMSE-LMX12#PBF Production
    • LTC2634HMSE-LMX12#TRPBF Production
    • LTC2634HMSE-LMX8#PBF Production
    • LTC2634HMSE-LMX8#TRPBF Production
    • LTC2634HMSE-LZ10#PBF Production
    • LTC2634HMSE-LZ10#TRPBF Production
    • LTC2634HMSE-LZ12#PBF Production
    • LTC2634HMSE-LZ12#TRPBF Production
    • LTC2634HMSE-LZ8#PBF Production
    • LTC2634HMSE-LZ8#TRPBF Production
    • LTC2634IMSE-HMI10#PBF Production
    • LTC2634IMSE-HMI10#TRPBF Production
    • LTC2634IMSE-HMI12#PBF Production
    • LTC2634IMSE-HMI12#TRPBF Production
    • LTC2634IMSE-HMI8#PBF Production
    • LTC2634IMSE-HMI8#TRPBF Production
    • LTC2634IMSE-HMX10#PBF Production
    • LTC2634IMSE-HMX10#TRPBF Production
    • LTC2634IMSE-HMX12#PBF Production
    • LTC2634IMSE-HMX12#TRPBF Production
    • LTC2634IMSE-HMX8#PBF Production
    • LTC2634IMSE-HMX8#TRPBF Production
    • LTC2634IMSE-HZ10#PBF Production
    • LTC2634IMSE-HZ10#TRPBF Production
    • LTC2634IMSE-HZ12#PBF Production
    • LTC2634IMSE-HZ12#TRPBF Production
    • LTC2634IMSE-HZ8#PBF Production
    • LTC2634IMSE-HZ8#TRPBF Production
    • LTC2634IMSE-LMI10#PBF Production
    • LTC2634IMSE-LMI10#TRPBF Production
    • LTC2634IMSE-LMI12#PBF Production
    • LTC2634IMSE-LMI12#TRPBF Production
    • LTC2634IMSE-LMI8#PBF Production
    • LTC2634IMSE-LMI8#TRPBF Production
    • LTC2634IMSE-LMX10#PBF Production
    • LTC2634IMSE-LMX10#TRPBF Production
    • LTC2634IMSE-LMX12#PBF Production
    • LTC2634IMSE-LMX12#TRPBF Production
    • LTC2634IMSE-LMX8#PBF Production
    • LTC2634IMSE-LMX8#TRPBF Production
    • LTC2634IMSE-LZ10#PBF Production
    • LTC2634IMSE-LZ10#TRPBF Production
    • LTC2634IMSE-LZ12#PBF Production
    • LTC2634IMSE-LZ12#TRPBF Production
    • LTC2634IMSE-LZ8#PBF Production
    • LTC2634IMSE-LZ8#TRPBF Production

    Support & Discussions

    LTC2634 Discussions

    Entering external voltage at REF pin while the DAC is on "Interanl Mode"
    20 week(s) ago in Precision DACs
    RE: enabling ad9144 as a module
    RE: First time using the LTC2634 (or any DAC) with Arduino - just need assurance that connections are correct
    All LTC2634 Discussions
    LTC2634 Contact ADI Technical Support »
    LTC2634 Ask your question »
    LTC2634 Contact ADI Technical Support » LTC2634 Ask your question »

    Sample & Buy


    Ordering FAQs


    See our Ordering FAQs for answers to questions about online orders, payment options and more.



    Buy Now Pricing


    (**) Displayed Buy Now Price and Price Range is based on small quantity orders.



    List Pricing


    (*)The 1Ku list pricing shown is for BUDGETARY USE ONLY, shown in United States dollars (FOB USA per unit for the stated volume), and is subject to change. International prices may differ due to local duties, taxes, fees and exchange rates. For volume-specific price or delivery quotes, please contact your local Analog Devices, Inc. authorized distributor. Pricing displayed for Evaluation Boards and Kits is based on 1-piece pricing.



    Lead Times


    Please see the latest communication from our CCO regarding lead times.



    Sampling


    Selecting the Sample button above will redirect to the third-party ADI Sample Site. The part selected will carry over to your cart on this site once logged in. Please create a new account there if you have never used the site before. Contact SampleSupport@analog.com with any questions regarding this Sample Site.


    Price Table Help



    Evaluation Boards

    Pricing displayed is based on 1-piece.

    Up to two boards can be purchased through Analog.com. To order more than two, please purchase through one of our listed distributors.

    Pricing displayed is based on 1-piece. The USA list pricing shown is for budgetary use only, shown in United States dollars (FOB USA per unit), and is subject to change. International prices may vary due to local duties, taxes, fees and exchange rates.

    •
