LTC2654

Quad 16-/12-Bit Rail-to-Rail DACs with 10ppm/°C Max Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 32
1ku List Price Starting From $5.72
Features
  • Precision Reference 10ppm/°C Max

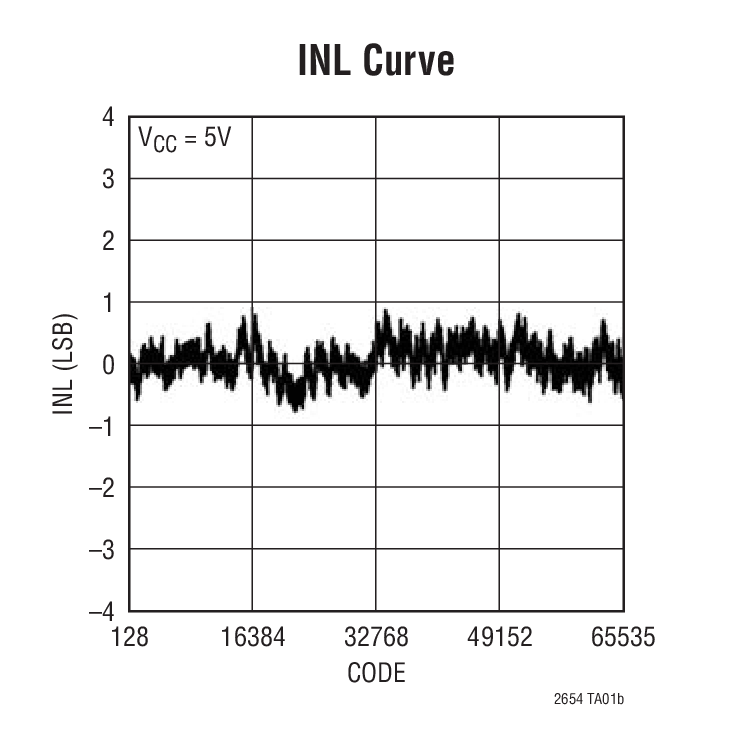

  • Maximum INL Error: ±4LSB at 16-Bits
  • Low ±2mV (Max) Offset Error
  • Guaranteed Monotonic Over Temperature
  • Selectable Internal or External Reference
  • 2.7V to 5.5V Supply Range (LTC2654-L)
  • Integrated Reference Buffers
  • Ultralow Crosstalk Between DACs (<3nV•s)
  • Power-on-Reset to Zero-Scale/Mid-Scale
  • Asynchronous DAC Update Pin

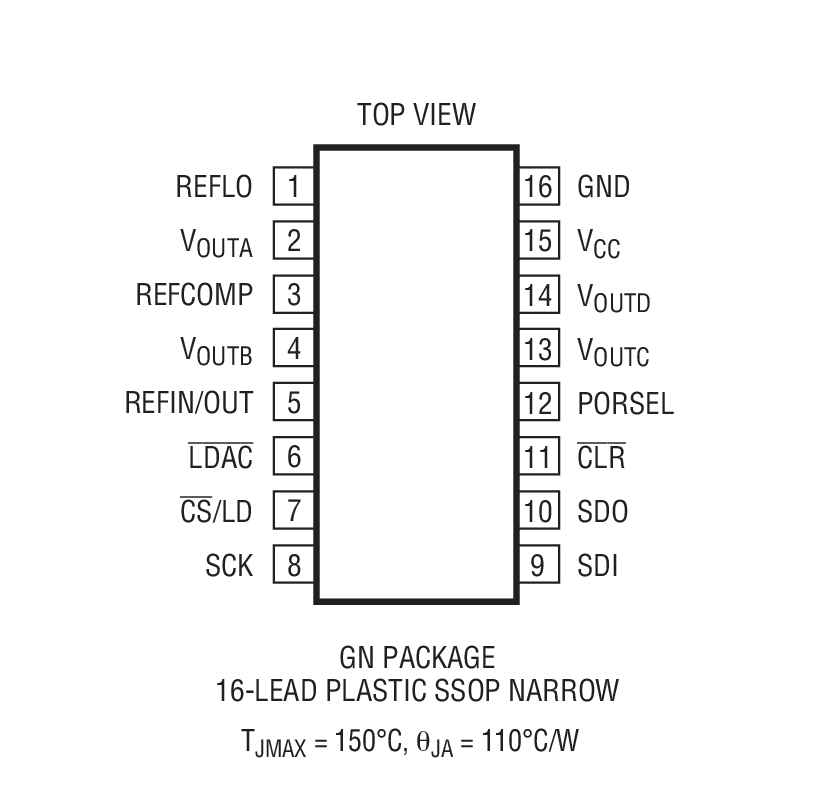

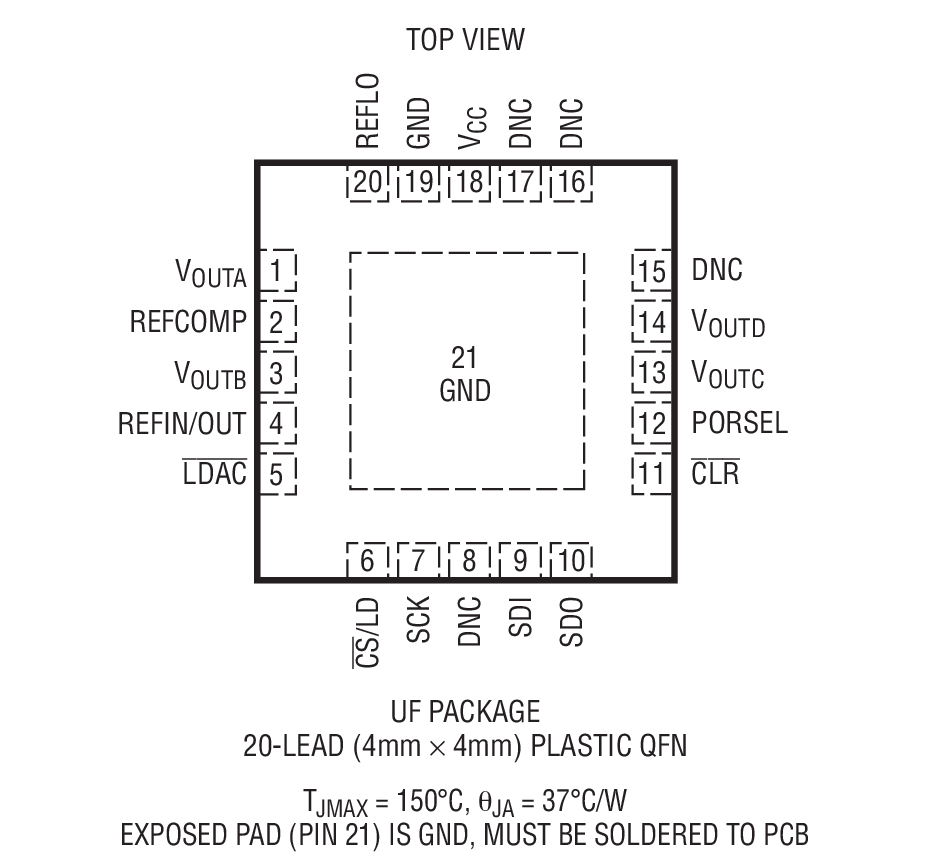

  • Tiny 20-Lead 4mm × 4mm QFN and 16-Lead Narrow SSOP Packages
Additional Details
show more Icon

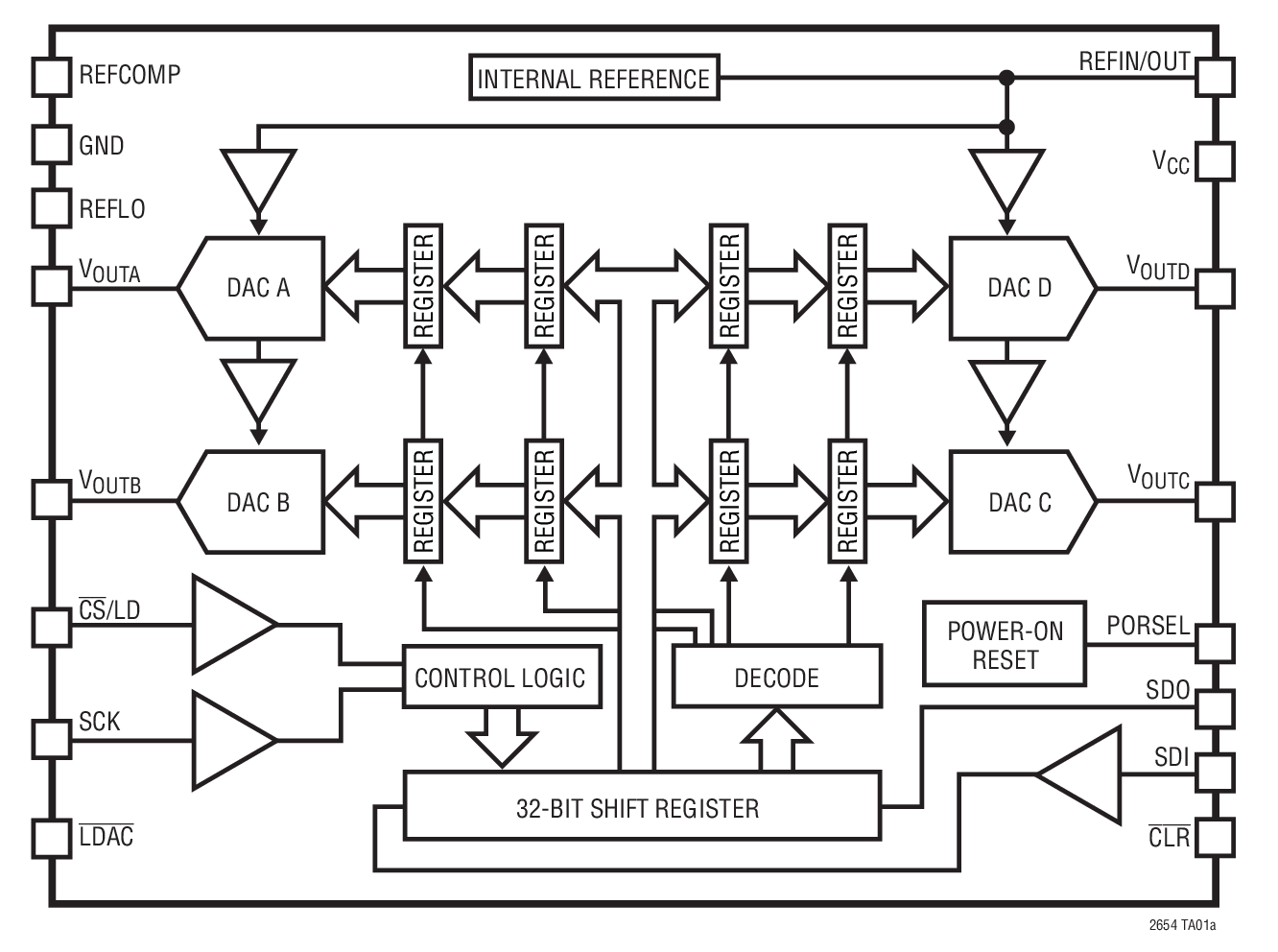

The LTC2654 is a family of quad 16-/12-bit rail-to-rail DACs with integrated 10ppm/°C maximum reference . The DACs have built-in high performance, rail-to-rail, output buffers and are guaranteed monotonic. The LTC2654-L has a full-scale output of 2.5V with the integrated reference and operates from a single 2.7V to 5.5V supply. The LTC2654-H has a full-scale output of 4.096V with the integrated reference and operates from a 4.5V to 5.5V supply. Each DAC can also operate with an external reference, which sets the full-scale output to 2 times the external reference voltage.

These DACs communicate via a SPI/MICROWIRE compatible 4-wire serial interface which operates at clock rates up to 50MHz. The LTC2654 incorporates a power-on reset circuit that is controlled by the PORSEL pin. If PORSEL is tied to GND the DACs reset to zero-scale. If PORSEL is tied to VCC, the DACs reset to mid-scale.

Applications

  • Mobile Communications
  • Process Control and Industrial Automation
  • Instrumentation
  • Automatic Test Equipment
  • Automotive
Part Models 32
1ku List Price Starting From $5.72

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2654BCGN-H16#PBF
  • HTML
  • HTML
LTC2654BCGN-H16#TRPBF
  • HTML
  • HTML
LTC2654BCGN-L16#PBF
  • HTML
  • HTML
LTC2654BCGN-L16#TRPBF
  • HTML
  • HTML
LTC2654BCUF-H16#PBF
  • HTML
  • HTML
LTC2654BCUF-H16#TRPBF
  • HTML
  • HTML
LTC2654BCUF-L16#PBF
  • HTML
  • HTML
LTC2654BCUF-L16#TRPBF
  • HTML
  • HTML
LTC2654BIGN-H16#PBF
  • HTML
  • HTML
LTC2654BIGN-H16#TRPBF
  • HTML
  • HTML
LTC2654BIGN-L16#PBF
  • HTML
  • HTML
LTC2654BIGN-L16#TRPBF
  • HTML
  • HTML
LTC2654BIUF-H16#PBF
  • HTML
  • HTML
LTC2654BIUF-H16#TRPBF
  • HTML
  • HTML
LTC2654BIUF-L16#PBF
  • HTML
  • HTML
LTC2654BIUF-L16#TRPBF
  • HTML
  • HTML
LTC2654CGN-H12#PBF
  • HTML
  • HTML
LTC2654CGN-H12#TRPBF
  • HTML
  • HTML
LTC2654CGN-L12#PBF
  • HTML
  • HTML
LTC2654CGN-L12#TRPBF
  • HTML
  • HTML
LTC2654CUF-H12#PBF
  • HTML
  • HTML
LTC2654CUF-H12#TRPBF
  • HTML
  • HTML
LTC2654CUF-L12#PBF
  • HTML
  • HTML
LTC2654CUF-L12#TRPBF
  • HTML
  • HTML
LTC2654IGN-H12#PBF
  • HTML
  • HTML
LTC2654IGN-H12#TRPBF
  • HTML
  • HTML
LTC2654IGN-L12#PBF
  • HTML
  • HTML
LTC2654IGN-L12#TRPBF
  • HTML
  • HTML
LTC2654IUF-H12#PBF
  • HTML
  • HTML
LTC2654IUF-H12#TRPBF
  • HTML
  • HTML
LTC2654IUF-L12#PBF
  • HTML
  • HTML
LTC2654IUF-L12#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC2654BCGN-H16#PBF

PRODUCTION

LTC2654BCGN-H16#TRPBF

PRODUCTION

LTC2654BCGN-L16#PBF

PRODUCTION

LTC2654BCGN-L16#TRPBF

PRODUCTION

LTC2654BIGN-H16#PBF

PRODUCTION

LTC2654BIGN-H16#TRPBF

PRODUCTION

LTC2654BIGN-L16#PBF

PRODUCTION

LTC2654BIGN-L16#TRPBF

PRODUCTION

LTC2654CGN-H12#PBF

PRODUCTION

LTC2654CGN-H12#TRPBF

PRODUCTION

LTC2654CGN-L12#PBF

PRODUCTION

LTC2654CGN-L12#TRPBF

PRODUCTION

LTC2654IGN-H12#PBF

PRODUCTION

LTC2654IGN-H12#TRPBF

PRODUCTION

LTC2654IGN-L12#PBF

PRODUCTION

LTC2654IGN-L12#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0066

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC2654BCGN-H16#PBF

PRODUCTION

LTC2654BCGN-H16#TRPBF

PRODUCTION

LTC2654BCGN-L16#PBF

PRODUCTION

LTC2654BCGN-L16#TRPBF

PRODUCTION

LTC2654BIGN-H16#PBF

PRODUCTION

LTC2654BIGN-H16#TRPBF

PRODUCTION

LTC2654BIGN-L16#PBF

PRODUCTION

LTC2654BIGN-L16#TRPBF

PRODUCTION

LTC2654CGN-H12#PBF

PRODUCTION

LTC2654CGN-H12#TRPBF

PRODUCTION

LTC2654CGN-L12#PBF

PRODUCTION

LTC2654CGN-L12#TRPBF

PRODUCTION

LTC2654IGN-H12#PBF

PRODUCTION

LTC2654IGN-H12#TRPBF

PRODUCTION

LTC2654IGN-L12#PBF

PRODUCTION

LTC2654IGN-L12#TRPBF

PRODUCTION

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC2654BCUF-H16#PBF

PRODUCTION

LTC2654BCUF-H16#TRPBF

PRODUCTION

LTC2654BCUF-L16#PBF

PRODUCTION

LTC2654BCUF-L16#TRPBF

PRODUCTION

LTC2654BIUF-H16#PBF

PRODUCTION

LTC2654BIUF-H16#TRPBF

PRODUCTION

LTC2654BIUF-L16#PBF

PRODUCTION

LTC2654BIUF-L16#TRPBF

PRODUCTION

LTC2654CUF-H12#PBF

PRODUCTION

LTC2654CUF-H12#TRPBF

PRODUCTION

LTC2654CUF-L12#PBF

PRODUCTION

LTC2654CUF-L12#TRPBF

PRODUCTION

LTC2654IUF-H12#PBF

PRODUCTION

LTC2654IUF-H12#TRPBF

PRODUCTION

LTC2654IUF-L12#PBF

PRODUCTION

LTC2654IUF-L12#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0235

arrow down

Epoxy Change from Henkel 8290 to 8290A for GN Package

LTC2654BCGN-H16#PBF

PRODUCTION

LTC2654BCGN-H16#TRPBF

PRODUCTION

LTC2654BCGN-L16#PBF

PRODUCTION

LTC2654BCGN-L16#TRPBF

PRODUCTION

LTC2654BIGN-H16#PBF

PRODUCTION

LTC2654BIGN-H16#TRPBF

PRODUCTION

LTC2654BIGN-L16#PBF

PRODUCTION

LTC2654BIGN-L16#TRPBF

PRODUCTION

LTC2654CGN-H12#PBF

PRODUCTION

LTC2654CGN-H12#TRPBF

PRODUCTION

LTC2654CGN-L12#PBF

PRODUCTION

LTC2654CGN-L12#TRPBF

PRODUCTION

LTC2654IGN-H12#PBF

PRODUCTION

LTC2654IGN-H12#TRPBF

PRODUCTION

LTC2654IGN-L12#PBF

PRODUCTION

LTC2654IGN-L12#TRPBF

PRODUCTION

Apr 6, 2022

- 22_0066

arrow down

Laser Top Mark for 16QSOP Assembled in ADPG [PNG]

LTC2654BCGN-H16#PBF

PRODUCTION

LTC2654BCGN-H16#TRPBF

PRODUCTION

LTC2654BCGN-L16#PBF

PRODUCTION

LTC2654BCGN-L16#TRPBF

PRODUCTION

LTC2654BIGN-H16#PBF

PRODUCTION

LTC2654BIGN-H16#TRPBF

PRODUCTION

LTC2654BIGN-L16#PBF

PRODUCTION

LTC2654BIGN-L16#TRPBF

PRODUCTION

LTC2654CGN-H12#PBF

PRODUCTION

LTC2654CGN-H12#TRPBF

PRODUCTION

LTC2654CGN-L12#PBF

PRODUCTION

LTC2654CGN-L12#TRPBF

PRODUCTION

LTC2654IGN-H12#PBF

PRODUCTION

LTC2654IGN-H12#TRPBF

PRODUCTION

LTC2654IGN-L12#PBF

PRODUCTION

LTC2654IGN-L12#TRPBF

PRODUCTION

Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LTC2654BCUF-H16#PBF

PRODUCTION

LTC2654BCUF-H16#TRPBF

PRODUCTION

LTC2654BCUF-L16#PBF

PRODUCTION

LTC2654BCUF-L16#TRPBF

PRODUCTION

LTC2654BIUF-H16#PBF

PRODUCTION

LTC2654BIUF-H16#TRPBF

PRODUCTION

LTC2654BIUF-L16#PBF

PRODUCTION

LTC2654BIUF-L16#TRPBF

PRODUCTION

LTC2654CUF-H12#PBF

PRODUCTION

LTC2654CUF-H12#TRPBF

PRODUCTION

LTC2654CUF-L12#PBF

PRODUCTION

LTC2654CUF-L12#TRPBF

PRODUCTION

LTC2654IUF-H12#PBF

PRODUCTION

LTC2654IUF-H12#TRPBF

PRODUCTION

LTC2654IUF-L12#PBF

PRODUCTION

LTC2654IUF-L12#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 4

reference details image

DC1678A-B

LTC2654-H16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

zoom

DC1678A-B

LTC2654-H16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

LTC2654-H16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

Product Detail

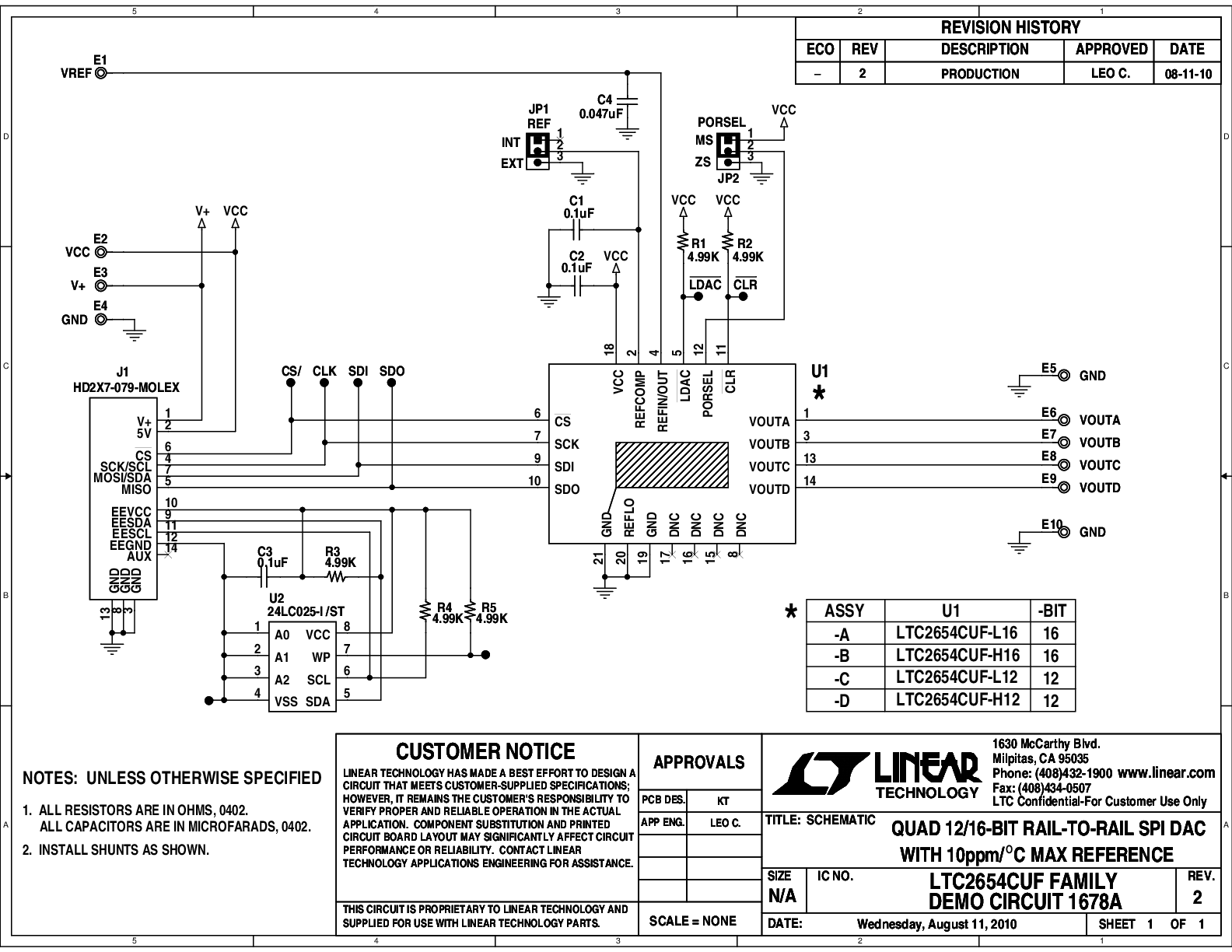

Demonstration circuit 1678A features the LTC2654 Quad 16-bit/12-bit DAC. The LTC2654 is a family of 16-bit/12-bit rail-to-rail DACs with integrated 10ppm/°C maximum reference. The LTC2654 advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.

reference details image

DC1678A-D

LTC2654-H12 Demo Board | Quad SPI 12-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

zoom

DC1678A-D

LTC2654-H12 Demo Board | Quad SPI 12-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

LTC2654-H12 Demo Board | Quad SPI 12-Bit Voltage Output DAC with 2.048V Reference, Requires DC2026

Product Detail

Demonstration circuit 1678A features the LTC2654 Quad 16-bit/12-bit DAC. The LTC2654 is a family of 16-bit/12-bit rail-to-rail DACs with integrated 10ppm/°C maximum reference. The LTC2654 advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.

reference details image

DC1678A-A

LTC2654-L16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

zoom

DC1678A-A

LTC2654-L16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

LTC2654-L16 Demo Board | Quad SPI 16-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

Product Detail

Demonstration circuit 1678A features the LTC2654 Quad 16-bit/12-bit DAC. The LTC2654 is a family of 16-bit/12-bit rail-to-rail DACs with integrated 10ppm/°C maximum reference. The LTC2654 advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.

reference details image

DC1678A-C

LTC2654-L12 Quad SPI 12-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

zoom

DC1678A-C

LTC2654-L12 Quad SPI 12-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

LTC2654-L12 Quad SPI 12-Bit Voltage Output DAC with 1.25V Reference, Requires DC2026

Product Detail

Demonstration circuit 1678A features the LTC2654 Quad 16-bit/12-bit DAC. The LTC2654 is a family of 16-bit/12-bit rail-to-rail DACs with integrated 10ppm/°C maximum reference. The LTC2654 advances performance standards for output drive, crosstalk and load regulation in single supply, voltage-output multiple DACs.

Tools & Simulations

Tools & Simulations 1

Linduino

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.
