LTC1151

PRODUCTION

Dual ±15V Zero-Drift Operational Amplifier

Part Models: 3
1ku List Price: Starting From $8.57

Viewing:

Overview

Maximum Offset Voltage Drift: 0.05µV/°C
High Voltage Operation: ±18V
No External Components Required
Maximum Offset Voltage: 5µV

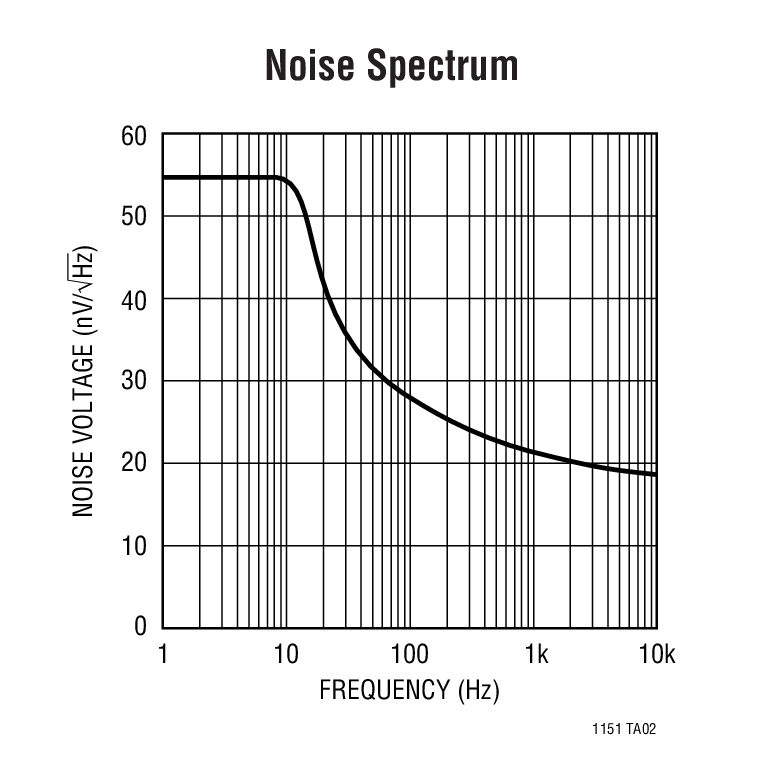

Low Noise: 1.5µV_P-P (0.1Hz to 10Hz)
Minimum Voltage Gain: 125dB
Minimum CMRR: 106dB
Minimum PSRR: 110dB
Low Supply Current: 0.9mA/Amplifier
Single Supply Operation: 4.75V to 36V
Input Common-Mode Range Includes Ground
Typical Overload Recovery Time: 20ms

The LTC1151 is a high voltage, high performance dual zero-drift operational amplifier. The two sample-and-hold capacitors per amplifier required externally by other chopper amplifiers are integrated on-chip. The LTC1151 also incorporates proprietary high voltage CMOS structures which allow operation at up to 36V total supply voltage.

The LTC1151 has a typical offset voltage of 0.5µV, drift of 0.01µV/°C, 0.1Hz to 10Hz input noise voltage of 1.5mV_P-P, and a typical voltage gain of 140dB. It has a slew rate of 3V/µs and a gain-bandwidth product of 2.5MHz with a supply current of 0.9mA per amplifier. Overload recovery times from positive and negative saturation are 3ms and 20ms, respectively.

The LTC1151 is available in a standard 8-lead plastic DIP package as well as a 16-lead wide body SO. The LTC1151 is pin compatible with industry-standard dual op amps and runs from standard ±15V supplies, allowing it to plug in to most standard bipolar op amp sockets while offering significant improvement in DC performance.

Applications

Strain Gauge Amplifiers
Instrumentation Amplifiers
Electronic Scales
Medical Instrumentation
Thermocouple Amplifiers
High Resolution Data Acquisition

Part Models: 3
1ku List Price: Starting From $8.57

Documentation

Data Sheet 1

LTC1151: Dual ±15V Zero-Drift Operational Amplifier Data Sheet 08/30/2007

Reliability Data 1

R235 Reliability Data 03/26/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

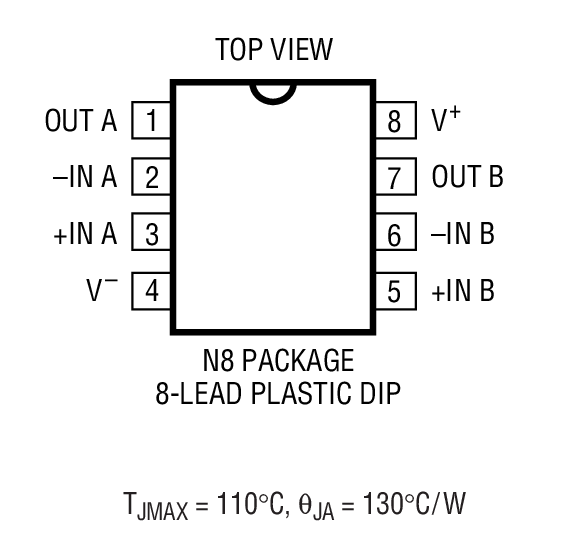

LTC1151CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

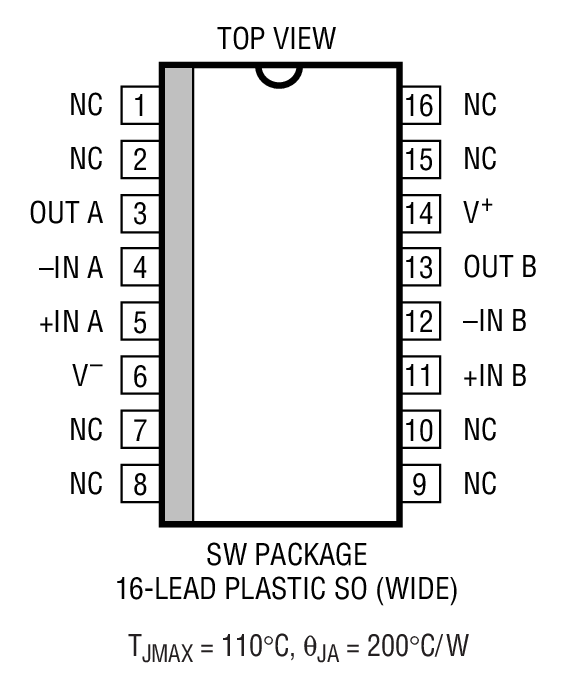

LTC1151CSW#PBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC1151CSW#TRPBF	16-Lead SOIC (Wide 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LTC1151CN8#PBF	PRODUCTION	PCN24_0234_Form Material_Report Marking Comparison
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC1151CN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC1151CN8#PBF	PRODUCTION
Aug 10, 2022 - 22_0176 Laser Top Mark Conversion for SOIC_W Packages Assembled in ADPG [PNG] and UTL
		PCN22_0176_Form Material_Report Delta Qualification Matrix
LTC1151CSW#PBF	PRODUCTION
LTC1151CSW#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
ADA4522-2	RECOMMENDED FOR NEW DESIGNS	Dual 55V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational Amplifiers
LTC2058	RECOMMENDED FOR NEW DESIGNS	36V, Low Noise Zero-Drift Operational Amplifier

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC1151

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
