LT8608/
LT8608B

42V, 1.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.E)
Documentation View All Documentation
LTspice LT8608 Demo Circuit - 2MHz Low EMI High Voltage Synchronous Buck Regulator (5.5-42V to 5V @ 1.5A) Download 3.00KB LTspice LT3045-1 - LDO Linear Regulators, LT8608 - Step-Down (Buck) Regulators Download 3.45 KB LTspice LT8608 - Step-Down (Buck) Regulators, LT3041 - LDO Linear Regulators Download 3.49 KB LTspice LT8608 - Step-Down (Buck) Regulators Download 1.95 KB
Part Models 34
1ku List Price Starting From $2.65
Features
  • Wide Input Voltage Range: 3.0V to 42V
  • Ultralow Quiescent Current Burst Mode® Operation:
    • <2.5μA IQ Regulating 12VIN to 3.3VOUT
    • Output Ripple <10mVP-P
  • High Efficiency 2MHz Synchronous Operation:

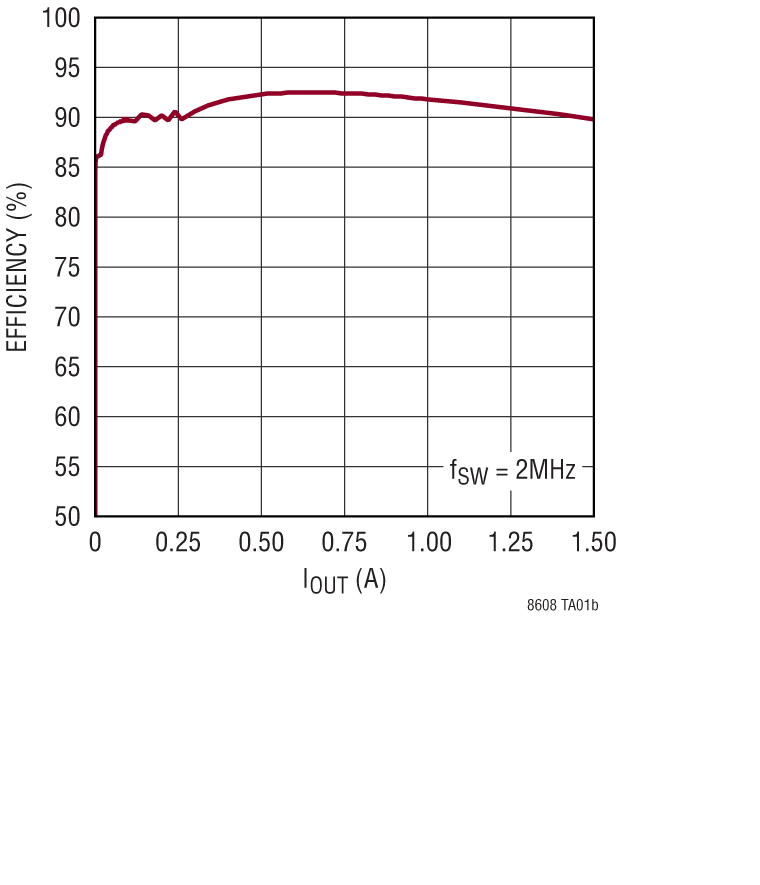

    • >92% Efficiency at 0.5A, 5VOUT from 12VIN
  • 1.5A Continuous Output Current
  • Fast Minimum Switch-On Time: 35ns
  • Adjustable and Synchronizable: 200kHz to 2.2MHz
  • Spread Spectrum Frequency Modulation for Low EMI
  • Allows Use of Small Inductors
  • Low Dropout
  • Peak Current Mode Operation
  • Accurate 1V Enable Pin Threshold
  • Internal Compensation
  • Output Soft-Start and Tracking

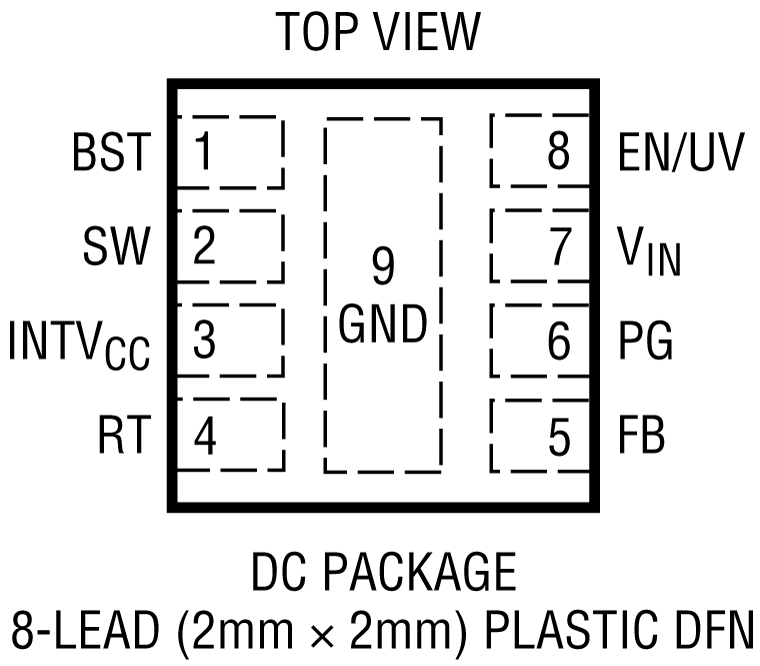

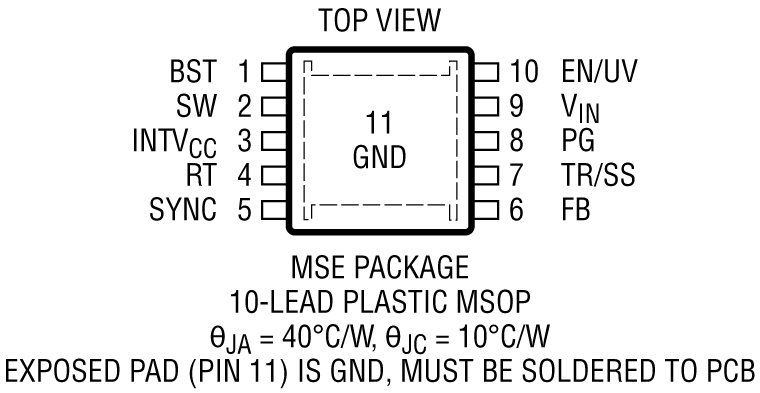

  • Small 10-Lead MSOP Package or 8-Lead 2mm × 2mm DFN Package
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

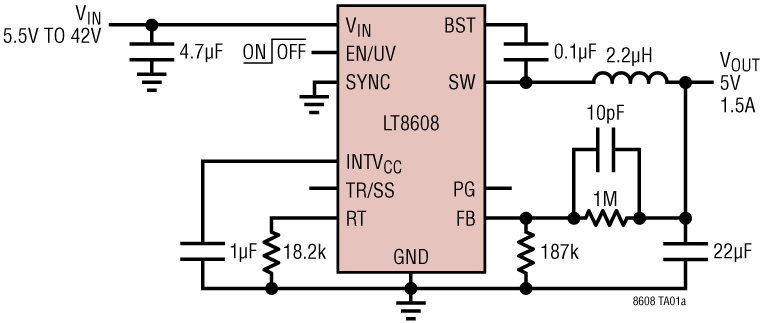

The LT8608 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 1.7µA of quiescent current. The LT8608 can deliver 1.5A of continuous current. Low ripple Burst Mode operation enables high efficiency down to very low output currents while keeping the output ripple below 10mV. Internal compensation with peak current mode topology allows the use of small inductors and results in fast transient response and good loop stability. The EN/ UV pin has an accurate 1V threshold and can be used to program VIN undervoltage lockout or to shut down the LT8608. The PG flag signals when VOUT is within ±8.5% of the programmed output voltage as well as fault conditions.

The MSOP package includes a SYNC pin to synchronize to an external clock, or to select Burst Mode operation or pulse-skipping with or without spread-spectrum; the TR/SS pin programs soft-start or tracking. The DFN package omits these pins and can be purchased in pulse-skipping or Burst Mode operation varieties.

APPLICATIONS

  • General Purpose Step Down
  • Low EMI Step Down
Show More Arrow image
file View Data Sheet (Rev.E)
Documentation View All Documentation
LTspice LT8608 Demo Circuit - 2MHz Low EMI High Voltage Synchronous Buck Regulator (5.5-42V to 5V @ 1.5A) Download 3.00KB LTspice LT3045-1 - LDO Linear Regulators, LT8608 - Step-Down (Buck) Regulators Download 3.45 KB LTspice LT8608 - Step-Down (Buck) Regulators, LT3041 - LDO Linear Regulators Download 3.49 KB LTspice LT8608 - Step-Down (Buck) Regulators Download 1.95 KB
Part Models 34
1ku List Price Starting From $2.65
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT8608/
LT8608B

Documentation

12
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Design Note
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/03/2020
English

LT8608/LT8608B: 42V, 1.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current Data Sheet (Rev.E)

Open PDF File

redirect
2.78 M
download

Download PDF

PDF Vector

PDF

UPDATED 06/29/2016
Japanese

LT8608: 静止電流が2.5μAの42V、1.5A同期整流式降圧レギュレータ データシート (Rev.0)

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 05/31/2016
English

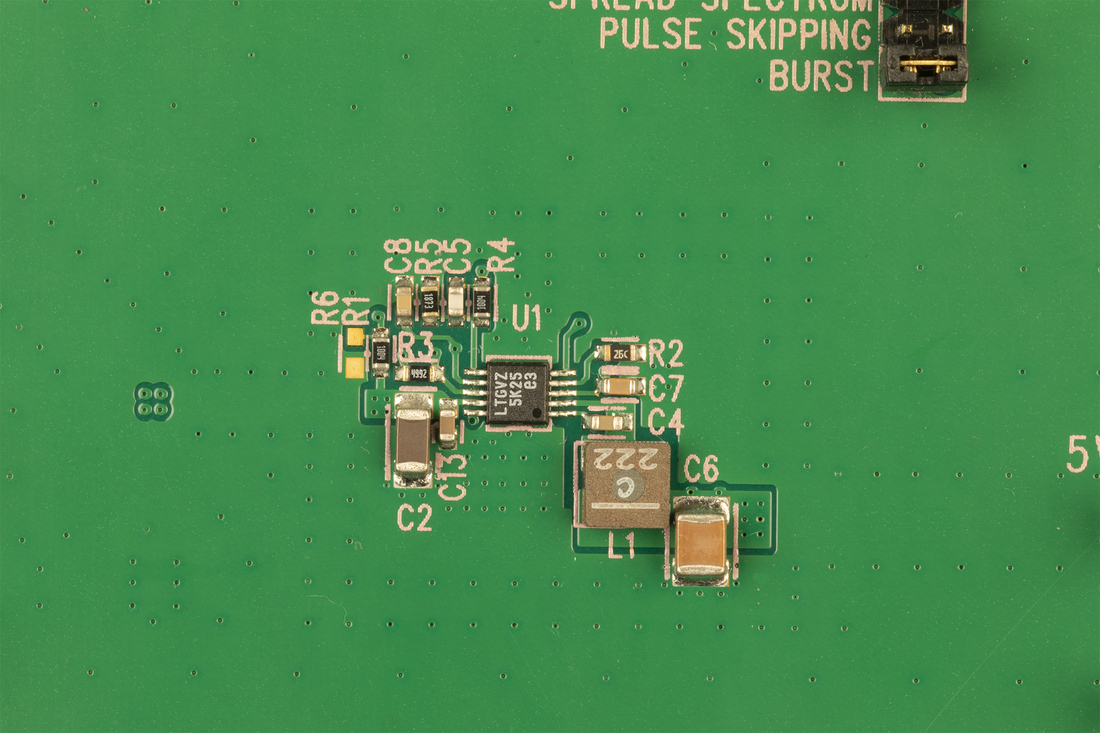

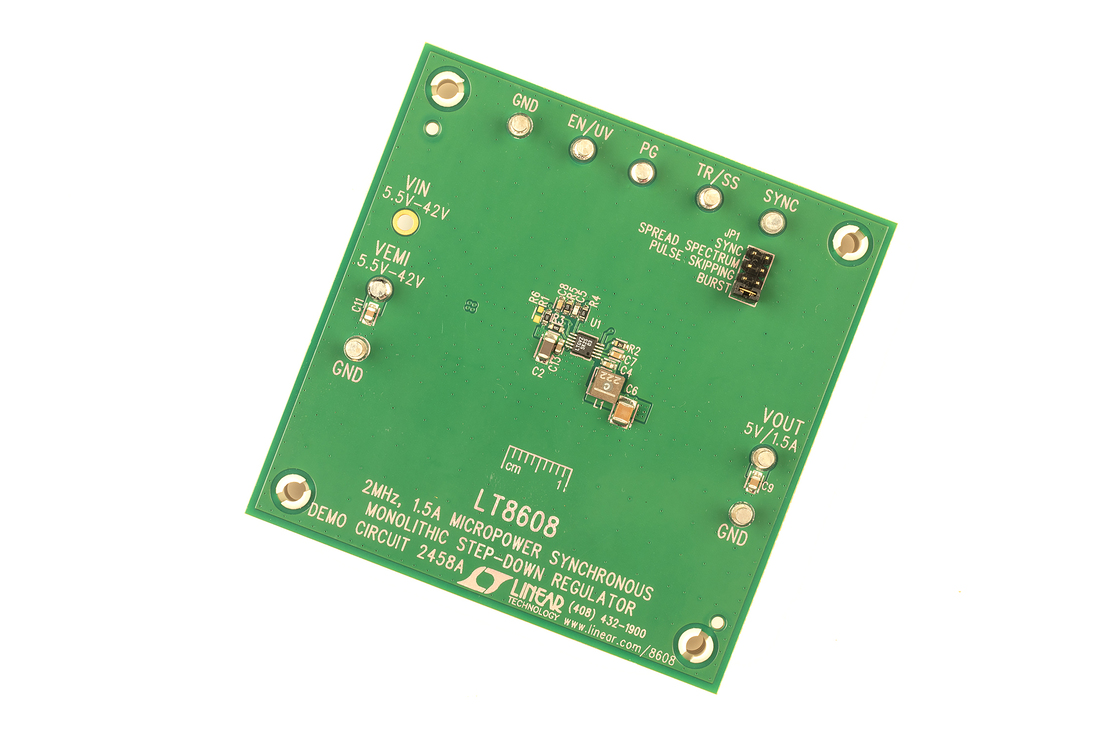

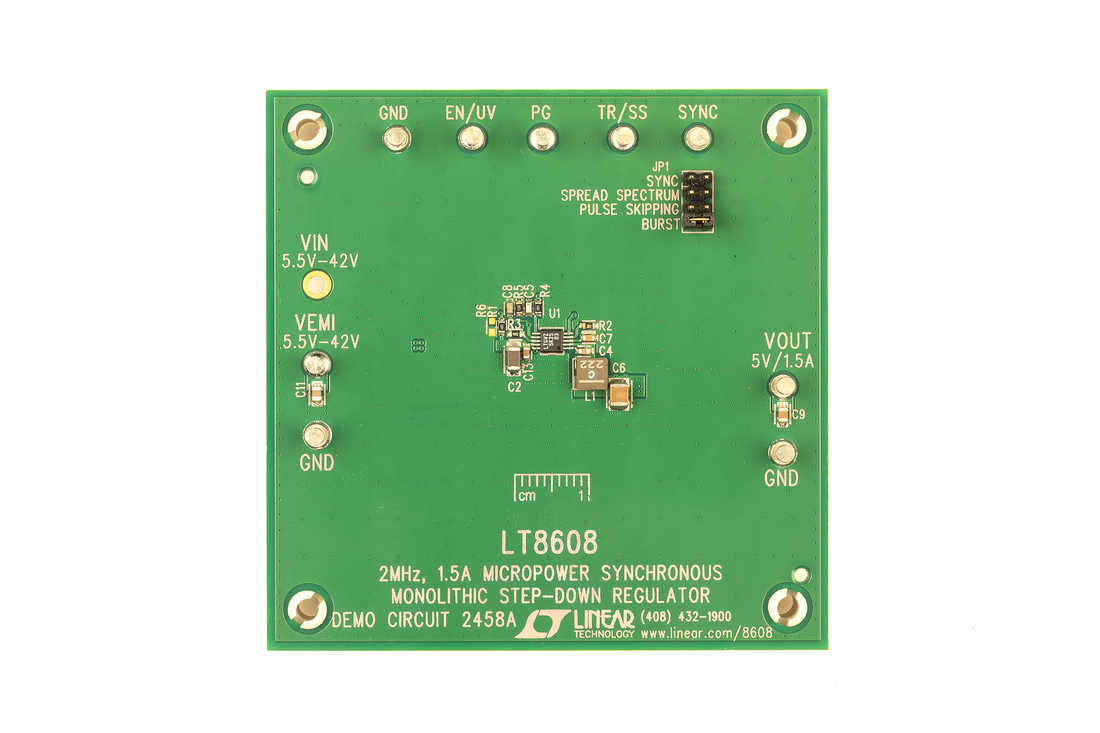

DC2458A - Demo Manual redirect icon

261.00K

download

Download PDF

Design Note

6

PDF Vector

PDF

UPDATED 11/14/2016
English
DN558 - Bidirectional DC/DC Regulator and Supercapacitor Charger redirect icon

292.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/30/2016
Chinese
DN558 - 双向 DC/DC 稳压器和超级电容器充电器 redirect icon

310.00K

download

Download PDF

PDF Vector

PDF

UPDATED 01/04/2017
Japanese
DN558 - 双方向DC/DCレギュレータおよびスーパーキャパシタ・チャージャ redirect icon

375.00K

download

Download PDF

PDF Vector

HTML

UPDATED 08/01/2018
English
42V Monolithic Synchronous Step-Down Regulators with 2.5µA Quiescent Current and Ultralow EMI redirect icon

PDF Vector

HTML

UPDATED 08/01/2018
Chinese
具2.5 μA静态电流和超低EMI的42 V单片式同步降压型稳压器 redirect icon

PDF Vector

HTML

UPDATED 08/01/2018
Japanese
42V入力／同期整流方式のモノリシック型降圧レギュレータ、2.5μAの静止電流と極めて高いEMI性能を実現 redirect icon

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R570 Reliability Data redirect icon

415.69 K

download

Download PDF

Technical Articles

2

PDF Vector

HTML

UPDATED 06/24/2016
English
95% Efficient at 2MHz 42V Synchronous Buck redirect icon

PDF Vector

HTML

UPDATED 06/24/2016
Chinese
可在 2MHz 提供 95% 效率的 42V 同步降压 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 6
show more Icon

Data Sheet 1

LT8608/LT8608B: 42V, 1.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current Data Sheet (Rev.E)

Reliability Data 1

R570 Reliability Data

User Guide 1

DC2458A - Demo Manual

Design Note 2

DN558 - Bidirectional DC/DC Regulator and Supercapacitor Charger
42V Monolithic Synchronous Step-Down Regulators with 2.5µA Quiescent Current and Ultralow EMI

Technical Articles 1

95% Efficient at 2MHz 42V Synchronous Buck

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8608BEDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608BEDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608BHDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608BHDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608BIDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608BIDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EDC#WTRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EDC#WTRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EMSE#WPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608EMSE#WTRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HDC#WTRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HDC#WTRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HMSE#WPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608HMSE#WTRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IDC#TRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IDC#TRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IDC#WTRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IDC#WTRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IMSE#PBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IMSE#TRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IMSE#WPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608IMSE#WTRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608JDC#WTRMPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608JDC#WTRPBF 8-Lead DFN (2mm x 2mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608JMSE#WPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8608JMSE#WTRPBF 10-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8608BEDC#TRMPBF

PRODUCTION

LT8608BEDC#TRPBF

PRODUCTION

LT8608BHDC#TRMPBF

PRODUCTION

LT8608BHDC#TRPBF

PRODUCTION

LT8608BIDC#TRMPBF

PRODUCTION

LT8608BIDC#TRPBF

PRODUCTION

LT8608EDC#TRMPBF

PRODUCTION

LT8608EDC#TRPBF

PRODUCTION

LT8608EMSE#PBF

PRODUCTION

LT8608EMSE#TRPBF

PRODUCTION

LT8608HDC#TRMPBF

PRODUCTION

LT8608HDC#TRPBF

PRODUCTION

LT8608HMSE#PBF

PRODUCTION

LT8608HMSE#TRPBF

PRODUCTION

LT8608IDC#TRMPBF

PRODUCTION

LT8608IDC#TRPBF

PRODUCTION

LT8608IMSE#PBF

PRODUCTION

LT8608IMSE#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon

Detailed Parts List

pdf

Other

external-icon

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT8608EMSE#PBF

PRODUCTION

LT8608EMSE#TRPBF

PRODUCTION

LT8608EMSE#WPBF

LT8608EMSE#WTRPBF

LT8608HMSE#PBF

PRODUCTION

LT8608HMSE#TRPBF

PRODUCTION

LT8608HMSE#WPBF

LT8608HMSE#WTRPBF

LT8608IMSE#PBF

PRODUCTION

LT8608IMSE#TRPBF

PRODUCTION

LT8608IMSE#WPBF

LT8608IMSE#WTRPBF

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 11, 2019

- 19_0067

arrow down

Notification of Wafer Fab Location Change for 0.35 BCD Process

LT8608BEDC#TRMPBF

PRODUCTION

LT8608BEDC#TRPBF

PRODUCTION

LT8608BHDC#TRMPBF

PRODUCTION

LT8608BHDC#TRPBF

PRODUCTION

LT8608BIDC#TRMPBF

PRODUCTION

LT8608BIDC#TRPBF

PRODUCTION

LT8608EDC#TRMPBF

PRODUCTION

LT8608EDC#TRPBF

PRODUCTION

LT8608EMSE#PBF

PRODUCTION

LT8608EMSE#TRPBF

PRODUCTION

LT8608HDC#TRMPBF

PRODUCTION

LT8608HDC#TRPBF

PRODUCTION

LT8608HMSE#PBF

PRODUCTION

LT8608HMSE#TRPBF

PRODUCTION

LT8608IDC#TRMPBF

PRODUCTION

LT8608IDC#TRPBF

PRODUCTION

LT8608IMSE#PBF

PRODUCTION

LT8608IMSE#TRPBF

PRODUCTION

pdf

PCN19_0067_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

pdf

Qualification Results Summary

external-icon
Detailed Parts List

pdf

Other

external-icon
Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT8608EMSE#PBF

PRODUCTION

LT8608EMSE#TRPBF

PRODUCTION

LT8608EMSE#WPBF

LT8608EMSE#WTRPBF

LT8608HMSE#PBF

PRODUCTION

LT8608HMSE#TRPBF

PRODUCTION

LT8608HMSE#WPBF

LT8608HMSE#WTRPBF

LT8608IMSE#PBF

PRODUCTION

LT8608IMSE#TRPBF

PRODUCTION

LT8608IMSE#WPBF

LT8608IMSE#WTRPBF

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4367
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

100V Overvoltage, Undervoltage and Reverse Supply Protection Controller

Parts Product Life Cycle Description
LT8609
LT8609A
LT8609B
popup image
Cart

42V, 3A Synchronous Step-Down Regulator with 2.5µA Quiescent Current

Evaluation Kits 2

reference details image

DC2521A-B

LT8608BEDC Demo Board | 5.5V to 42V Input down to 5V at 1.5A at 2MHz with pulse-skipping mode

zoom

DC2521A-B

LT8608BEDC Demo Board | 5.5V to 42V Input down to 5V at 1.5A at 2MHz with pulse-skipping mode

download icon

Download

 print icon

Print
DC2521A-B
LT8608BEDC Demo Board | 5.5V to 42V Input down to 5V at 1.5A at 2MHz with pulse-skipping mode
Buy Now View Details

Product Detail

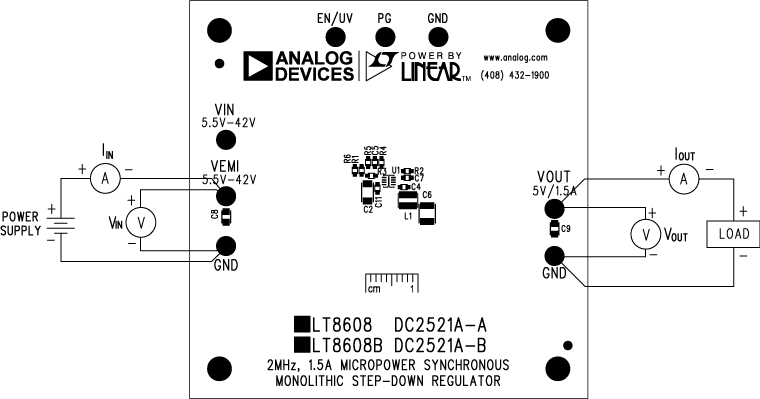

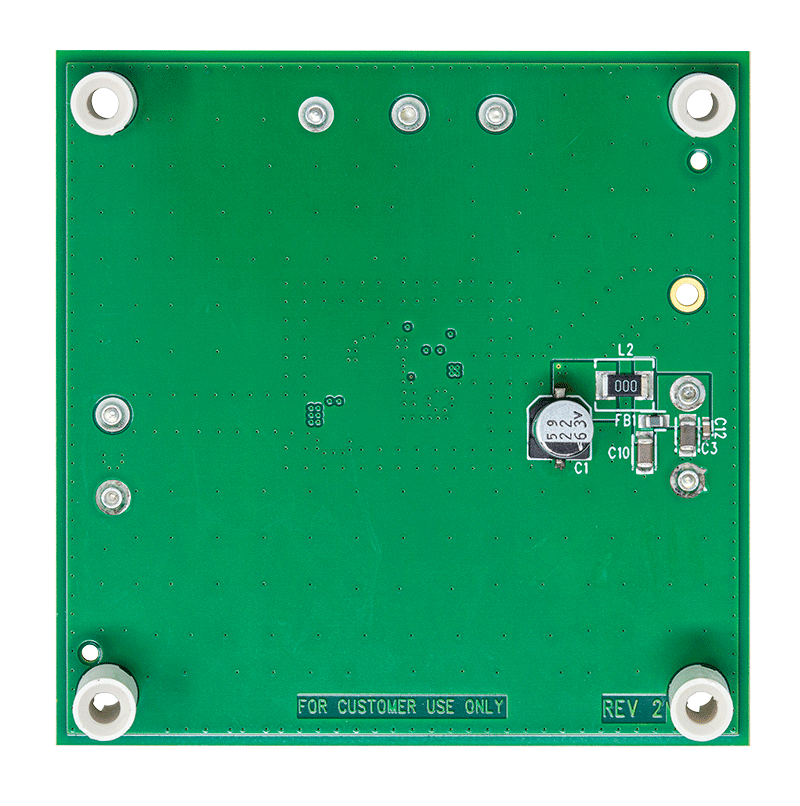

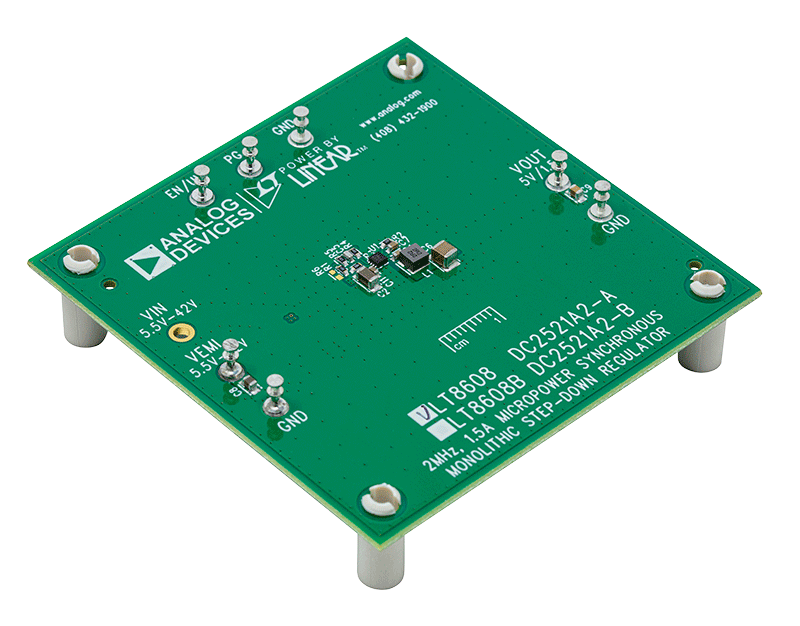

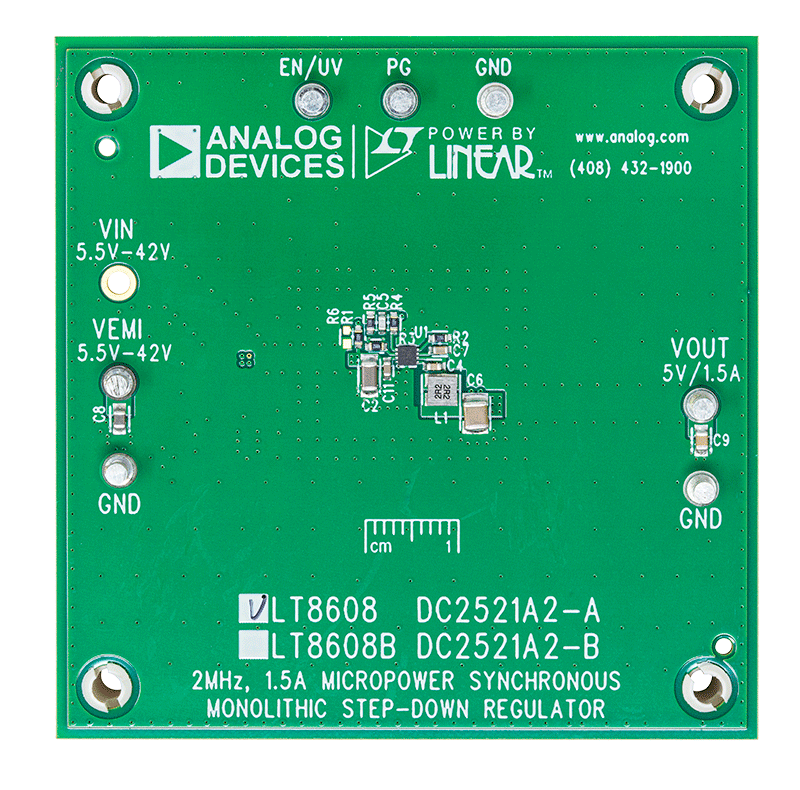

Demonstration circuit 2521A is a 42V, 1.5A micropower synchronous step-down regulator featuring the LT8608/ LT8608B. There are two assembly versions. DC2521A-A is for the LT8608 and DC2521A-B is for the LT8608B.

The LT8608/LT8608B is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator. Top and bottom power switches, compensation components and other necessary circuits are inside of the 2mm × 2mm DFN package to minimize external components and simplify design. The difference LT8608 and LT8608B is the LT8608 works under low ripple Burst Mode® operation at light load condition, while the LT8608B has pulse-skipping mode for light load. Due to the Burst Mode operation, LT8608 consumes only 1.7μA of quiescent current when output is regulated at 5V. LT8608B has higher quiescent current because of its pulse-skipping mode operation.

The demo board is designed for 5V output from a 5.5V to 42V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies.

The demo board has an EMI filter installed. To use the EMI filter, the input should be tied to VEMI, not VIN. An inductor L2, which is a 0Ω jumper on the board by default now, can be added in the EMI filter to further reduce the conducted emission.

The LT8608 data sheet gives a complete description of the part, operation and application information. The data sheet must be read in conjunction with this demo manual for DC2521A.

Resources

pdf icon

PDF

DC2521A-B Schematics Download

28.93 K

pdf icon

ZIP

DC2521A-B Design Files Download

1.33 M

pdf icon

PDF

DC2521A-B Demo Manual (Rev.0) Download

416.83 K

Show More Arrow image
reference details image

DC2458A

LT8608 Demo Board | Sync Buck, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 1.5A (fSW = 2MHz)

zoom

DC2458A

LT8608 Demo Board | Sync Buck, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 1.5A (fSW = 2MHz)

download icon

Download

 print icon

Print
DC2458A
LT8608 Demo Board | Sync Buck, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 1.5A (fSW = 2MHz)
Buy Now View Details

Product Detail

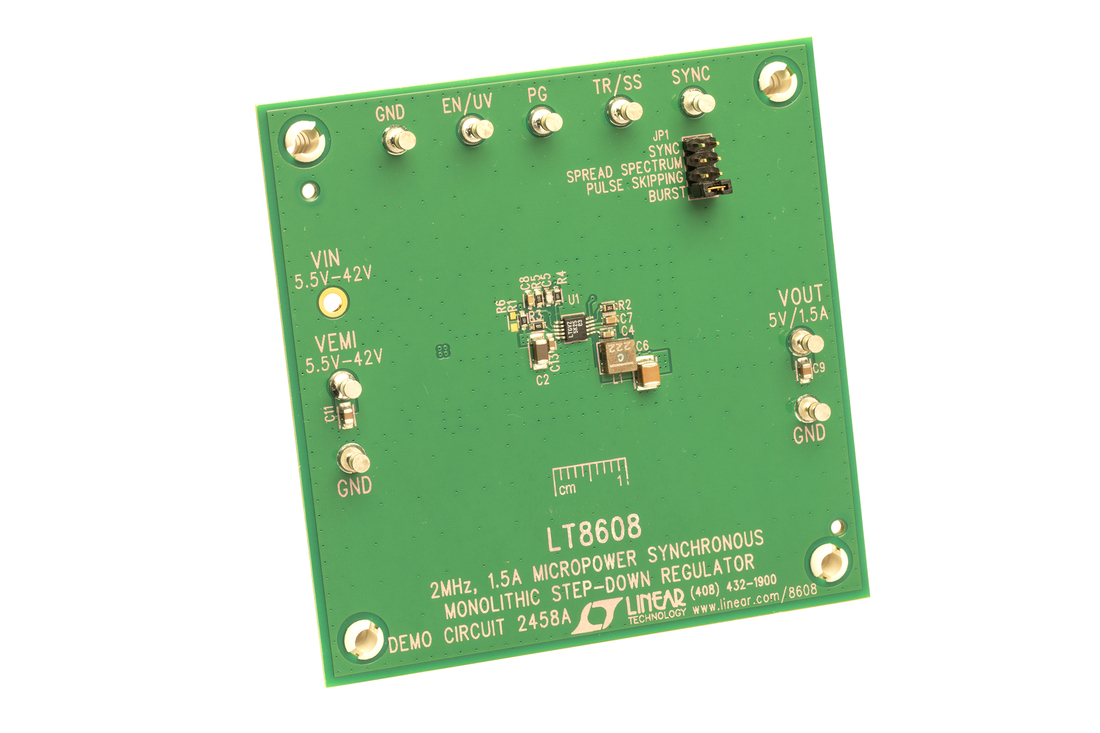

Demonstration circuit 2458A is a 42V, 1.5A micropower synchronous step-down regulator featuring the LT8608. The demo board is designed for 5V output from a 5.5V to 42V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8608 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when output is regulated at 5V. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8608 to minimize external components and simplify design.





Resources

pdf icon

PDF

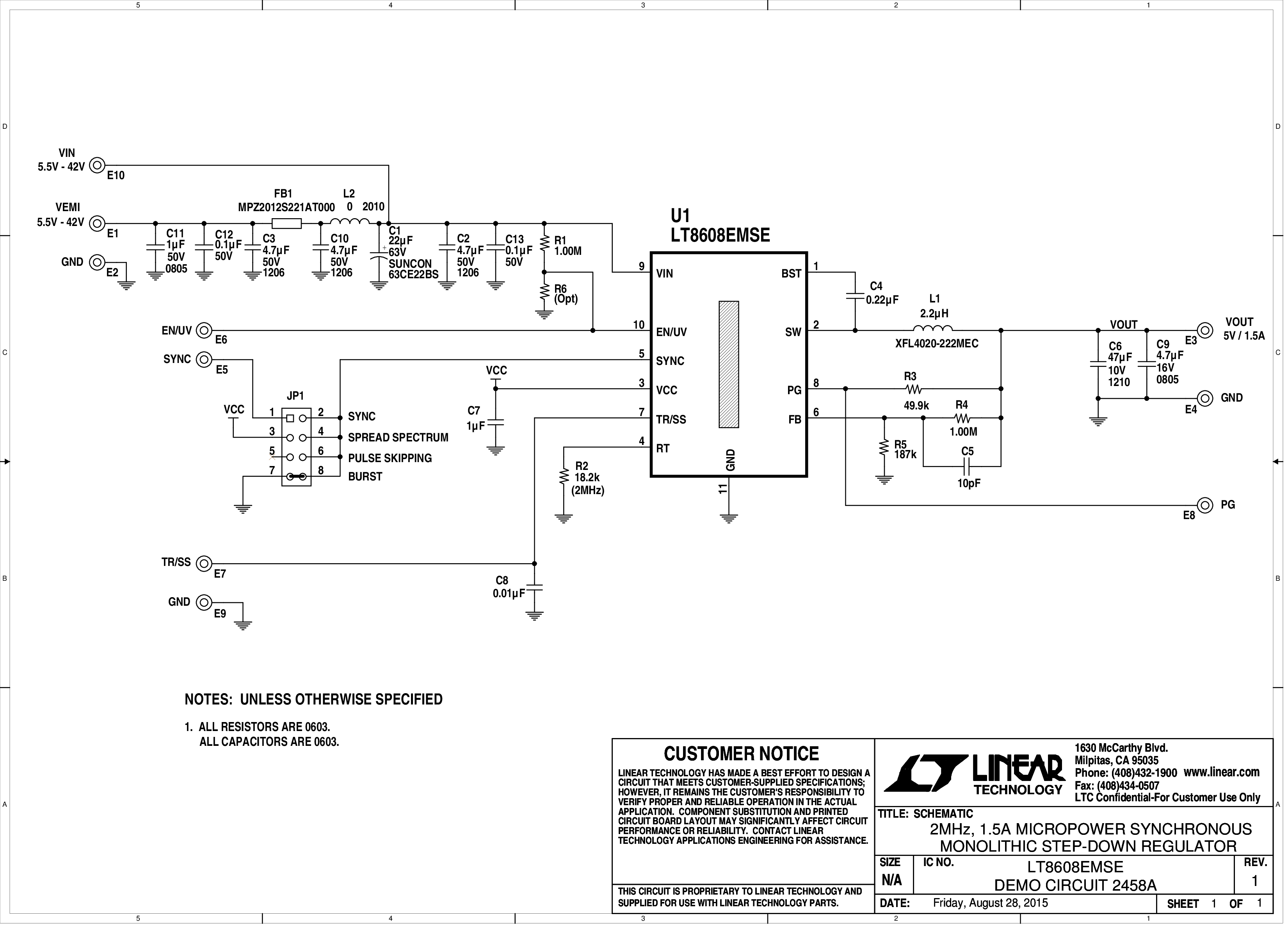

DC2458A - Schematic Download

30.00K

pdf icon

PDF

DC2458A - Demo Manual Download

261.00K

pdf icon

ZIP

DC2458A - Design Files Download

876.00K

Show More Arrow image

Evaluation Kits2

evaluation kit item images

DC2521A-B

LT8608BEDC Demo Board | 5.5V to 42V Input down to 5V at 1.5A at 2MHz with pulse-skipping mode
evaluation kit item images

DC2458A

LT8608 Demo Board | Sync Buck, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 1.5A (fSW = 2MHz)

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT8608 Demo Circuit - 2MHz Low EMI High Voltage Synchronous Buck Regulator (5.5-42V to 5V @ 1.5A) Download

3.00K

spice tool Lt Spice

LT3045-1 - LDO Linear Regulators, LT8608 - Step-Down (Buck) Regulators Download

3.45 K

spice tool Lt Spice

LT8608 - Step-Down (Buck) Regulators, LT3041 - LDO Linear Regulators Download

3.49 K

spice tool Lt Spice

LT8608 - Step-Down (Buck) Regulators Download

1.95 K

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Latest Discussions
