LT8310

100VIN Forward Converter Controller

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT8310/LT1431 Demo Circuit - 81 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (10.8-26.4V to 54V @ 1.5A) Download 7.00KB LTspice LT8310/LT1431 Demo Circuit - 72 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (36-72V to 12V @ 6A) Download 7.00KB LTspice LT8310/LT1431 Demo Circuit - 92W Isolated Nonsynchronous Forward Converter with Opto Feedback (43-53V to 54V @ 1.7A) Download 8.00KB LTspice LT8310 - Switching Regulators Download 4.43 KB
Part Models 8
1ku List Price Starting From $3.60
Features
  • Input Voltage Range: 6V to 100V
  • Duty Mode Control Regulates an Isolated Output without an Opto
  • High Efficiency Synchronous Control
  • Short-Circuit (Hiccup Mode) Overcurrent Protection
  • Programmable OVLO and UVLO with Hysteresis
  • Programmable Frequency (100kHz to 500kHz)
  • Synchronizable to an External Clock
  • Positive or Negative Polarity Output Voltage Feedback with a Single FBX Pin
  • Programmable Soft-Start
  • Low Shutdown Current < 1μA

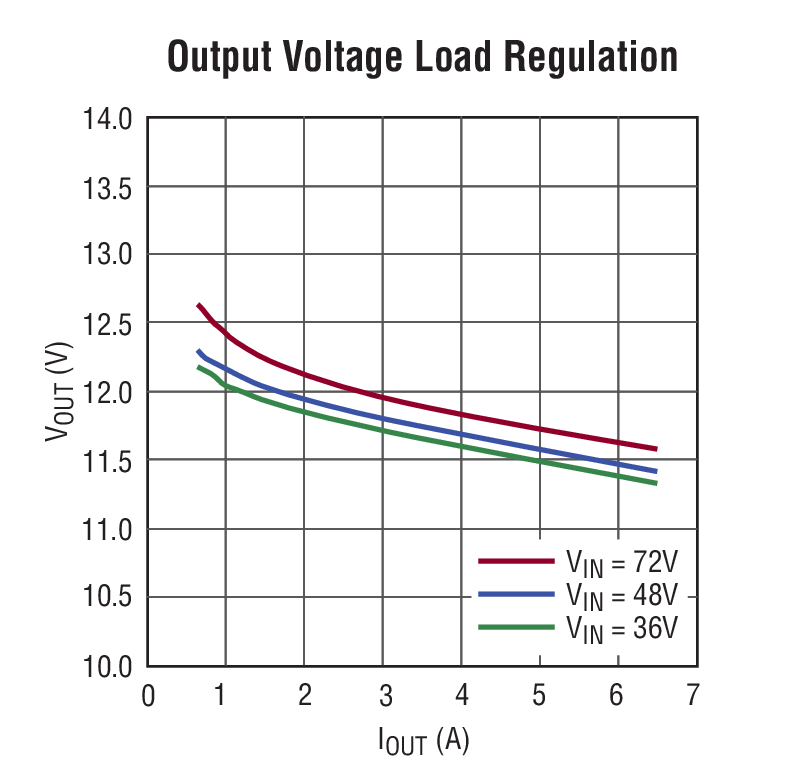

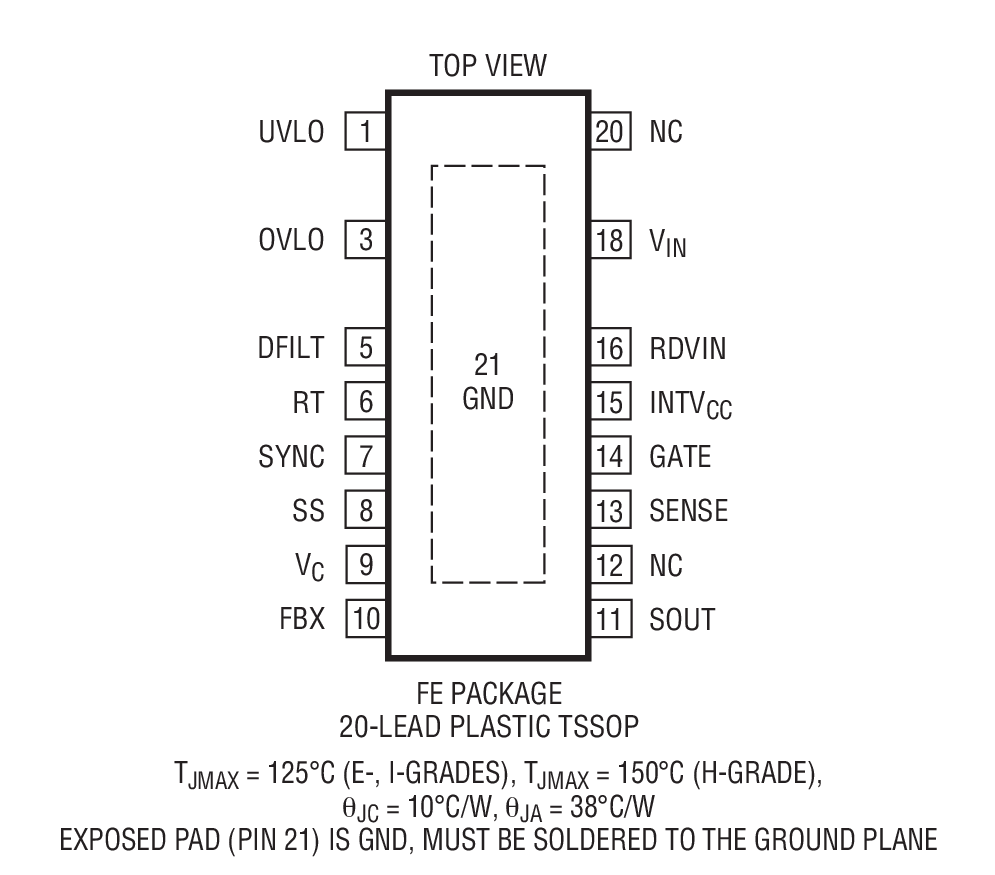

  • Available in FE20 TSSOP with HV Pin Spacing
Additional Details
show more Icon

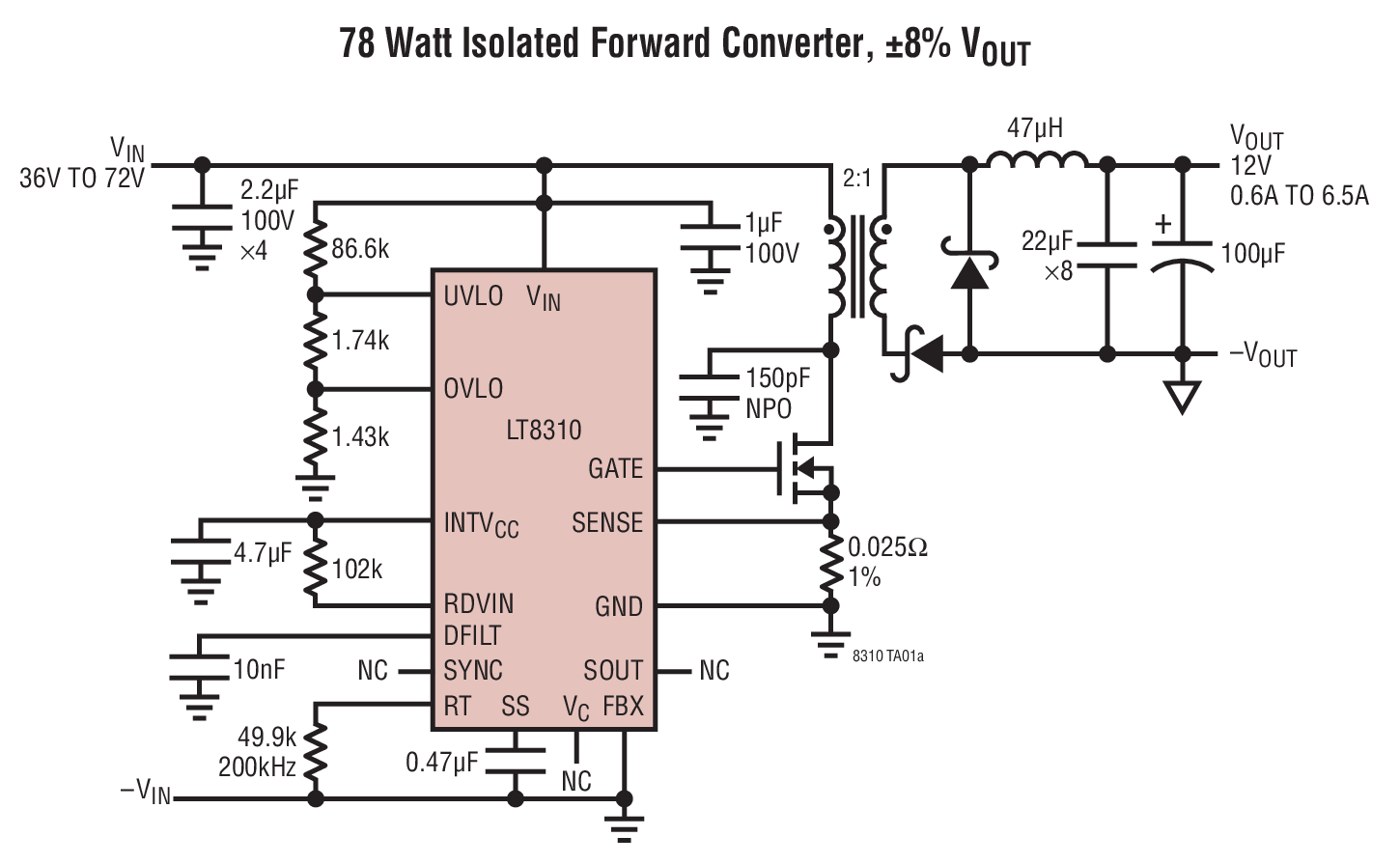

The LT8310 is a simple-to-use resonant reset forward converter controller that drives the gate of a low side N-channel MOSFET from an internally regulated 10V supply. The LT8310 features duty mode control that generates a stable, regulated, isolated output using a single power transformer. With the addition of output voltage feedback, via opto-coupler (isolated) or directly wired (nonisolated), current mode regulation is activated, improving output accuracy and load response. The flexibility to choose transformer turns ratio makes high step-down or step-up ratios possible without operating at duty cycle extremes.

The user can program the switching frequency from 100kHz to 500kHz to optimize efficiency, performance or external component size. A synchronous output is available for controlling secondary side synchronous rectification to improve efficiency. User programmable protection features include monitors on input voltage (UVLO and OVLO) and switch current (overcurrent limit). The LT8310 soft-start feature helps protect the transformer from flux saturation.

Applications

  • Industrial, Automotive and Military Systems
  • 48V Telecommunication Isolated Power Supplies
  • Isolated and Nonisolated DC/DC Converters
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT8310/LT1431 Demo Circuit - 81 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (10.8-26.4V to 54V @ 1.5A) Download 7.00KB LTspice LT8310/LT1431 Demo Circuit - 72 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (36-72V to 12V @ 6A) Download 7.00KB LTspice LT8310/LT1431 Demo Circuit - 92W Isolated Nonsynchronous Forward Converter with Opto Feedback (43-53V to 54V @ 1.7A) Download 8.00KB LTspice LT8310 - Switching Regulators Download 4.43 KB
Part Models 8
1ku List Price Starting From $3.60
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT8310

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • User Guide
  • Data Sheet
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 08/11/2014
English

LT8310: 100VIN Forward Converter Controller Data Sheet

Open PDF File

redirect
419.00K
download

Download PDF

PDF Vector

PDF

UPDATED 10/21/2014
Japanese

LT8310: 100V入力のフォワード・コンバータ・コントローラ データシート

Open PDF File

redirect
753.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R530 Reliability Data redirect icon

20.92 K

download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 08/18/2014
English
DC1963A - Demo Manual redirect icon

762.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/03/2014
English
DC2015A - Demo Manual redirect icon

503.00K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT8310EFE#PBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310EFE#TRPBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310HFE#PBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310HFE#TRPBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310IFE#PBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310IFE#TRPBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310MPFE#PBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT8310MPFE#TRPBF 20-Lead TSSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8310EFE#PBF

PRODUCTION

LT8310EFE#TRPBF

PRODUCTION

LT8310HFE#PBF

PRODUCTION

LT8310HFE#TRPBF

PRODUCTION

LT8310IFE#PBF

PRODUCTION

LT8310IFE#TRPBF

PRODUCTION

LT8310MPFE#PBF

PRODUCTION

LT8310MPFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT8310EFE#PBF

PRODUCTION

LT8310EFE#TRPBF

PRODUCTION

LT8310HFE#PBF

PRODUCTION

LT8310HFE#TRPBF

PRODUCTION

LT8310IFE#PBF

PRODUCTION

LT8310IFE#TRPBF

PRODUCTION

LT8310MPFE#PBF

PRODUCTION

LT8310MPFE#TRPBF

PRODUCTION

pdf

PCN22_0068_Form

external-icon

xls

Material_Report

Download

xlsm

Delta Qualification Matrix

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4366
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper

Parts Product Life Cycle Description
LT3752
LT3752-1
popup image
Cart

Active Clamp Synchronous Forward Controllers with Internal Housekeeping Controller

LT3753
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Active Clamp Synchronous Forward Controller

Evaluation Kit

Evaluation Kits 2

reference details image

DC1963A

LT8310EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 12V @ 6A

zoom

DC1963A

LT8310EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 12V @ 6A

download icon

Download

 print icon

Print
DC1963A
LT8310EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 12V @ 6A
Buy Now View Details

Product Detail

Demonstration circuit 1963A is a resonant reset forward converter featuring the LT8310 controller. This circuit was designed to demonstrate the high level of performance, and small solution size attainable using the LT8310. It operates at a 250kHz switching frequency, and regulates a 12V, 6A output from a 36V to 72V input source, making it well suited for telecom, industrial, and other applications. Table 1 summarizes the performance of the DC1963A.


Output regulation is handled on the secondary side by the LT1431, which is an adjustable shunt voltage regulator providing feedback to the primary side via an opto-coupler.

Resources

pdf icon

PDF

DC1963A - Schematic Download

82.00K

pdf icon

PDF

DC1963A - Demo Manual Download

762.00K

pdf icon

ZIP

DC1963A - Design Files Download

2.00M

Show More Arrow image
reference details image

DC2015A

LT8310EFE/LT8311EFE Isolated Demo Board | 36V ≤ VIN ≤ 72V; VOUT = 12V @ 12A

zoom

DC2015A

LT8310EFE/LT8311EFE Isolated Demo Board | 36V ≤ VIN ≤ 72V; VOUT = 12V @ 12A

download icon

Download

 print icon

Print
DC2015A
LT8310EFE/LT8311EFE Isolated Demo Board | 36V ≤ VIN ≤ 72V; VOUT = 12V @ 12A
Buy Now View Details

Product Detail

Demonstration circuit 2015A is a resonant reset forward converter with synchronous rectification featuring the LT8310/LT8311 chipset. This circuit was designed to demonstrate the high levels of performance, efficiency, and small solution size attainable using these parts. It operates at 240kHz and produces a regulated 12V, 12A output from an input voltage range of 36V to 72V: suitable for telecom, industrial, and other applications. It has an eighth-brick footprint area. Synchronous rectification helps to attain efficiency exceeding 94%.

Resources

pdf icon

PDF

DC2015A - Demo Manual Download

503.00K

pdf icon

PDF

DC2015A - Schematic Download

83.00K

pdf icon

ZIP

DC2015A - Design Files Download

2.00M

Show More Arrow image

Evaluation Kits2

evaluation kit item images

DC1963A

LT8310EFE Demo Board | Isolated Forward Converter, 36V ≤ VIN ≤ 72V; VOUT = 12V @ 6A
evaluation kit item images

DC2015A

LT8310EFE/LT8311EFE Isolated Demo Board | 36V ≤ VIN ≤ 72V; VOUT = 12V @ 12A
Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT8310/LT1431 Demo Circuit - 81 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (10.8-26.4V to 54V @ 1.5A) Download

7.00K

spice tool Lt Spice

LT8310/LT1431 Demo Circuit - 92W Isolated Nonsynchronous Forward Converter with Opto Feedback (43-53V to 54V @ 1.7A) Download

8.00K

spice tool Lt Spice

LT8310/LT1431 Demo Circuit - 72 Watt Isolated Nonsynchronous Forward Converter with Opto Feedback (36-72V to 12V @ 6A) Download

7.00K

spice tool Lt Spice

LT8310 - Switching Regulators Download

4.43 K
