LT6237

RECOMMENDED FOR NEW DESIGNS

Dual Rail-to-Rail Output 215MHz, 1.1nV/√Hz Op Amp/SAR ADC Driver

Data Sheet Product Selection Table

Part Models: 12
1ku List Price: Starting From $2.36

Viewing:

Part Details

Low Noise: 1.1nV/√Hz
Low Supply Current: 3.5mA/Amp Max
Low Offset Voltage: 350μV Max
Fast Settling Time: 570ns to 18-Bit, 2V_P-P Output
Low Distortion: THD = –116.8dB at 2kHz
Wide Supply Range: 3V to 12.6V
Output Swings Rail-to-Rail
215MHz Gain-Bandwidth Product
Specified Temperature Range: –40°C to 125°C
LT6236 Shutdown to 10μA Max
LT6236 in Low Profile (1mm) ThinSOT^™ Package
Dual LT6237 in 3mm × 3mm 8-Lead DFN and 8-Lead MSOP Packages
LT6238 in 16-Lead SSOP Package

Part Models: 12
1ku List Price: Starting From $2.36

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT6237CDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237CDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237HDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237HDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237HMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237HMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LT6237IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT6237CMS8#PBF	PRODUCTION
LT6237CMS8#TRPBF	PRODUCTION
LT6237HMS8#PBF	PRODUCTION
LT6237HMS8#TRPBF	PRODUCTION
LT6237IMS8#PBF	PRODUCTION
LT6237IMS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LT6237CMS8#PBF	PRODUCTION
LT6237CMS8#TRPBF	PRODUCTION
LT6237HMS8#PBF	PRODUCTION
LT6237HMS8#TRPBF	PRODUCTION
LT6237IMS8#PBF	PRODUCTION
LT6237IMS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Single Channel A/D Converters 2
LTC2389-18	PRODUCTION	18-Bit, 2.5Msps SAR ADC with Pin-Configurable Analog Input Range and 99.8dB SNR
LTC2379-18	PRODUCTION	18-Bit, 1.6Msps, Low Power SAR ADC with 101.2dB SNR

Tools & Simulations

LTspice 1

LT6237 - Operational Amplifiers (Op Amps)

Models for the following parts are available in LTspice:

LT6237

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT6237 ADC Driver Board | Driver for LTC2387 Family, Input Frequencies up to 8kHz

Buy Now View Details

Product Details

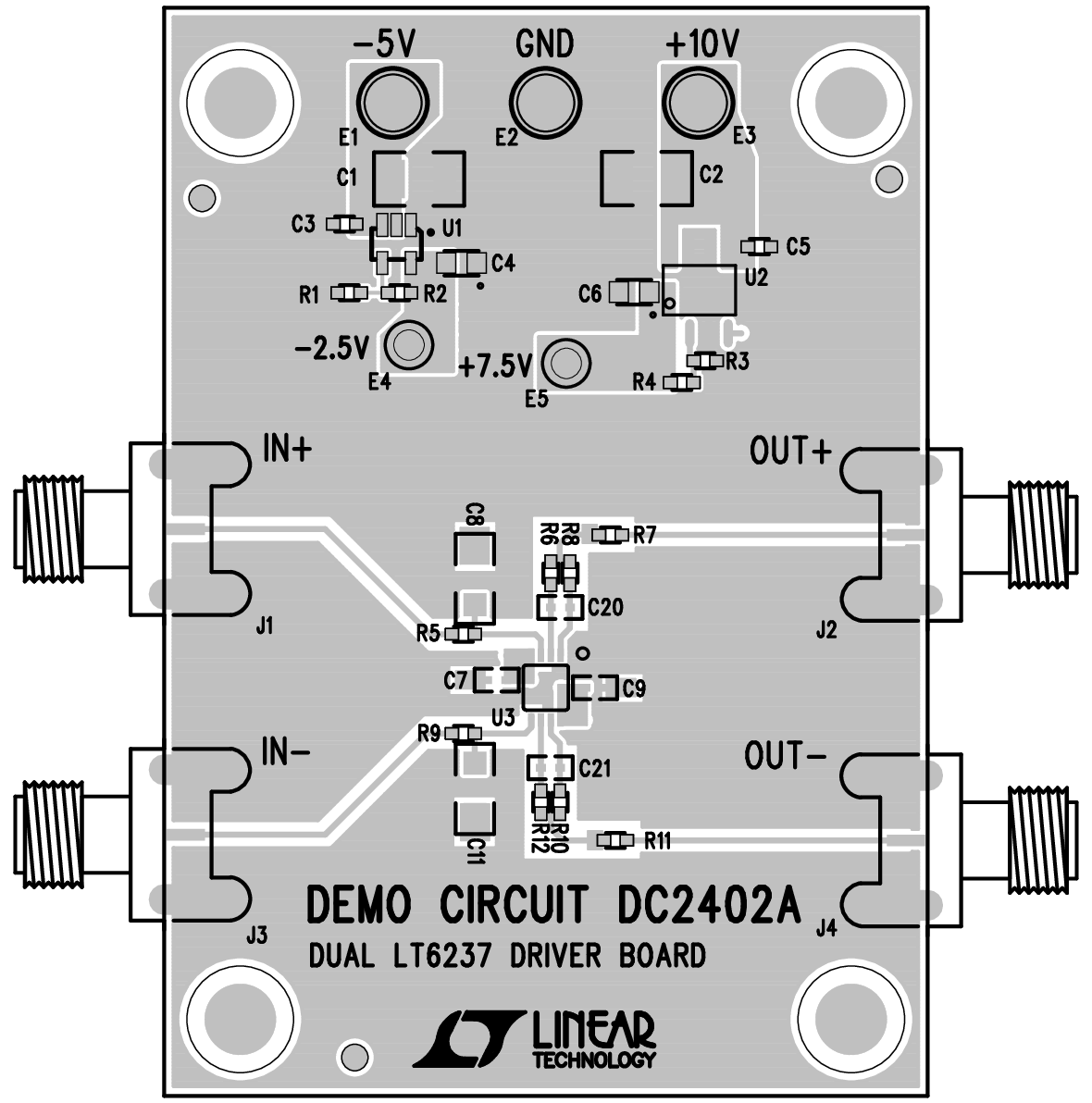

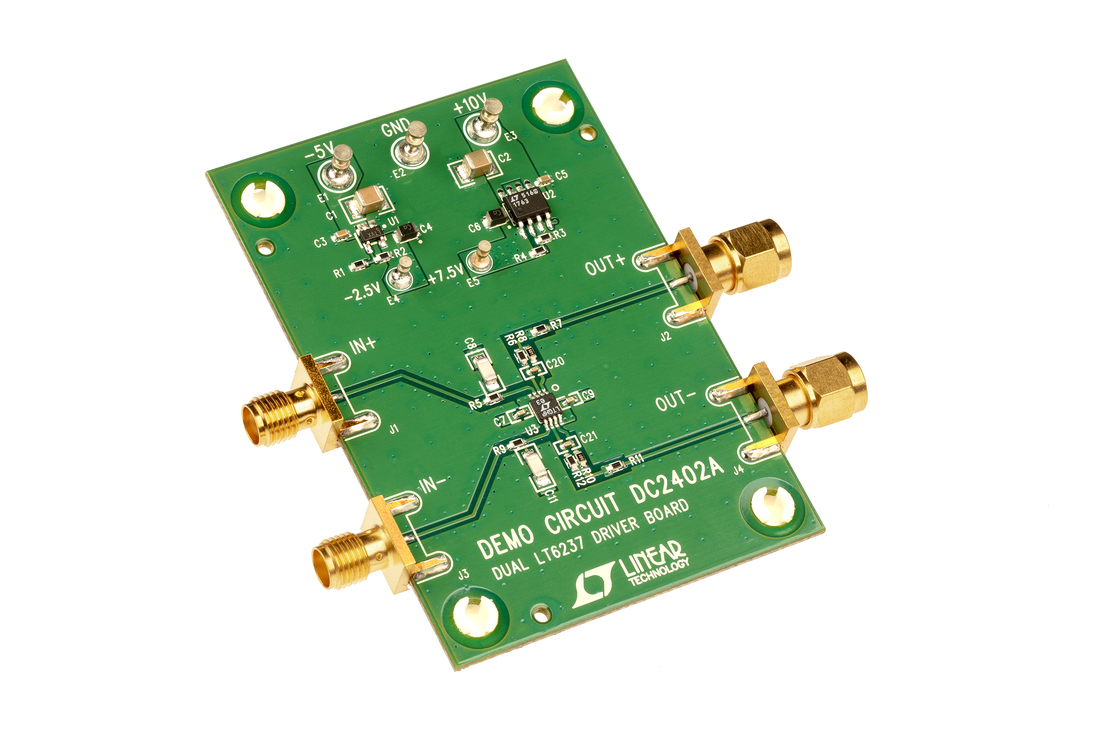

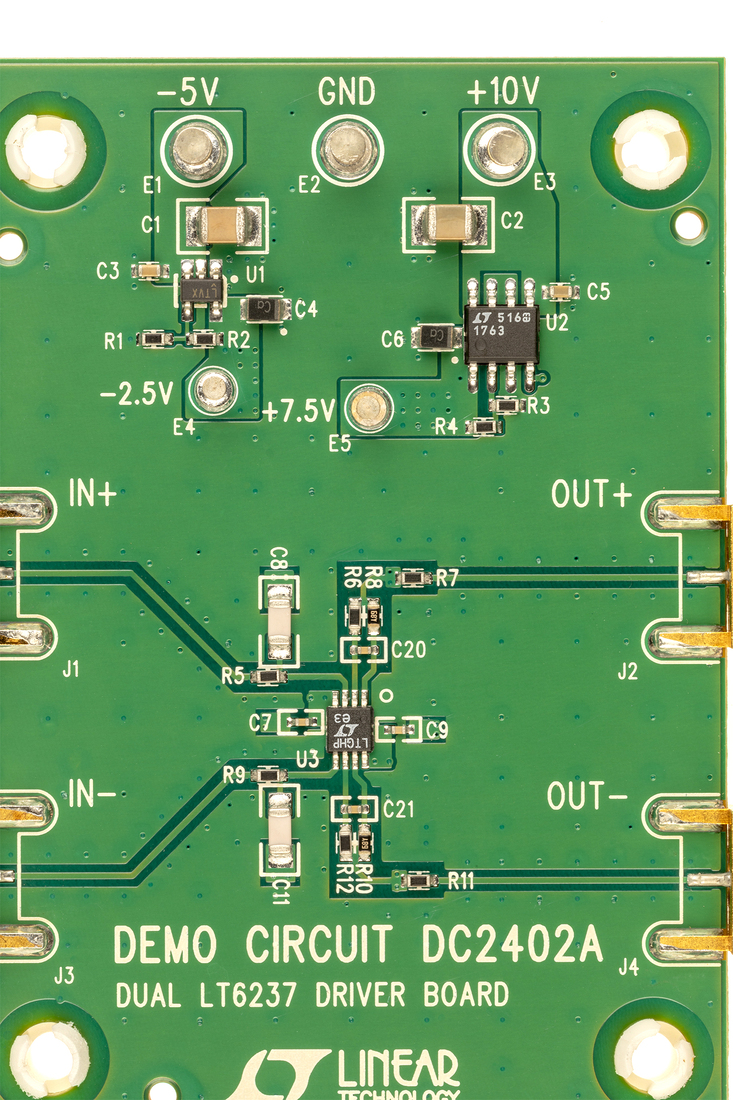

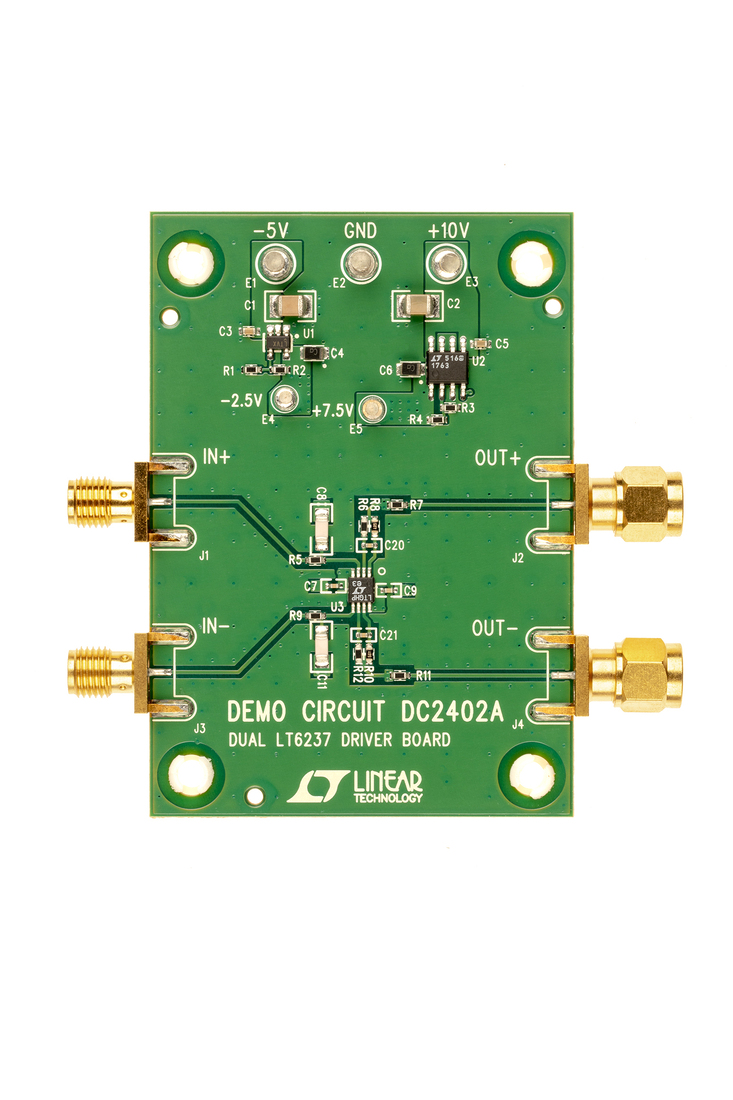

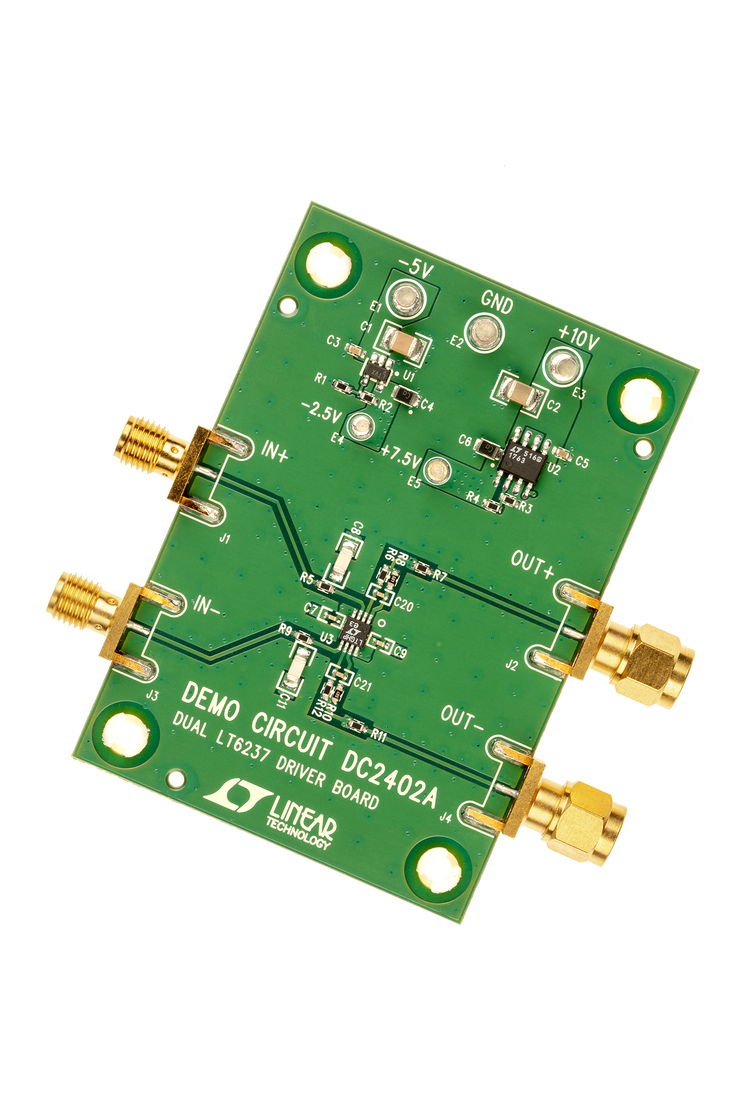

Demonstration circuit 2402A features the LT6237 amplifier. The DC2402A includes two of these amplifiers and is designed to drive the inputs of the DC2290A demo board. The DC2290A features the LTC2387 18-bit, 15Msps High Speed SAR ADC.
