LT6200

165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 24
1ku List Price Starting From $1.97
Features
  • Low Noise Voltage: 0.95nV/√Hz (100kHz)
  • Gain Bandwidth Product:
    • LT6200/LT6201     165MHz     AV = 1
    • LT6200-5                800MHz     AV ≥ 5
    • LT6200-10              1.6GHz       AV ≥ 10
  • Low Distortion: –80dB at 1MHz, RL = 100Ω
  • Dual LT6201 in Tiny DFN Package
  • Input Common Mode Range Includes Both Rails
  • Output Swings Rail-to-Rail
  • Low Offset Voltage: 1mV Max
  • Wide Supply Range: 2.5V to 12.6V
  • Output Current: 60mA Min
  • SO-8 and Low Profile (1mm) ThinSOT Packages
  • Operating Temperature Range –40°C to 85°C
  • Power Shutdown, Thermal Shutdown
Additional Details
show more Icon

The LT6200/LT6201 are single and dual ultralow noise, rail-to-rail input and output unity gain stable op amps that feature 0.95nV/√Hz noise voltage. These amplifiers combine very low noise with a 165MHz gain bandwidth, 50V/μs slew rate and are optimized for low voltage signal conditioning systems. A shutdown pin reduces supply current during standby conditions and thermal shutdown protects the part from overload conditions.

The LT6200-5/LT6200-10 are single amplifiers optimized for higher gain applications resulting in higher gain bandwidth and slew rate. The LT6200 family maintains its performance for supplies from 2.5V to 12.6V and are specified at 3V, 5V and ±5V.

For compact layouts the LT6200/LT6200-5/LT6200-10 are available in the 6-lead ThinSOT and the 8-pin SO package. The dual LT6201 is available in an 8-pin SO package with standard pinouts as well as a tiny, dual fine pitch leadless package (DFN). These amplifiers can be used as plug-in replacements for many high speed op amps to improve input/output range and noise performance.

Applications

  • Transimpedance Amplifiers
  • Low Noise Signal Processing
  • Active Filters
  • Rail-to-Rail Buffer Amplifiers
  • Driving A/D Converters
Part Models 24
1ku List Price Starting From $1.97

close icon
Documentation

Documentation

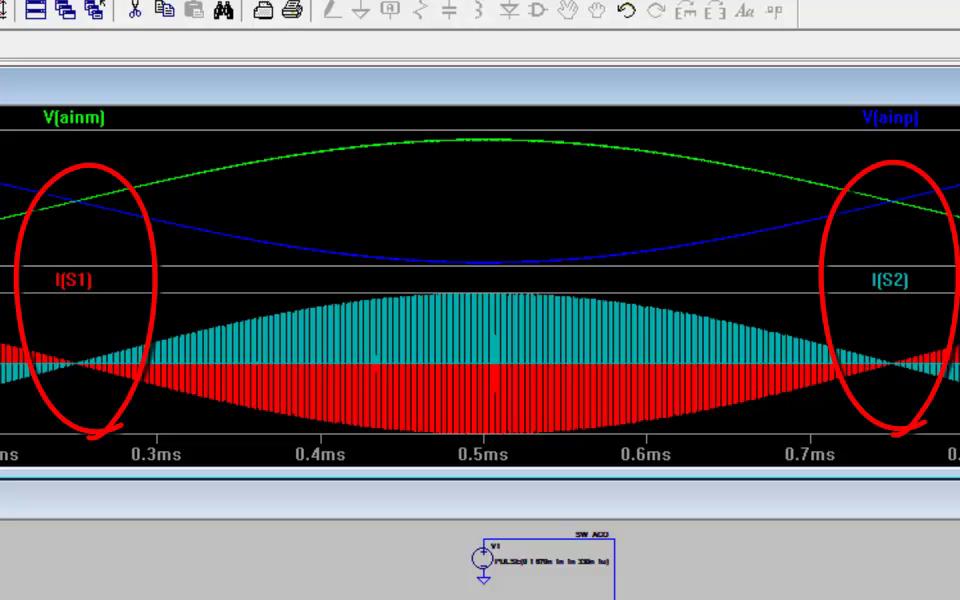

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT6200CS6#TRMPBF
  • HTML
  • HTML
LT6200CS6#TRPBF
  • HTML
  • HTML
LT6200CS6-10#TRMPBF
  • HTML
  • HTML
LT6200CS6-10#TRPBF
  • HTML
  • HTML
LT6200CS6-5#TRMPBF
  • HTML
  • HTML
LT6200CS6-5#TRPBF
  • HTML
  • HTML
LT6200CS8#PBF
  • HTML
  • HTML
LT6200CS8#TRPBF
  • HTML
  • HTML
LT6200CS8-10#PBF
  • HTML
  • HTML
LT6200CS8-10#TRPBF
  • HTML
  • HTML
LT6200CS8-5#PBF
  • HTML
  • HTML
LT6200CS8-5#TRPBF
  • HTML
  • HTML
LT6200IS6#TRMPBF
  • HTML
  • HTML
LT6200IS6#TRPBF
  • HTML
  • HTML
LT6200IS6-10#TRMPBF
  • HTML
  • HTML
LT6200IS6-10#TRPBF
  • HTML
  • HTML
LT6200IS6-5#TRMPBF
  • HTML
  • HTML
LT6200IS6-5#TRPBF
  • HTML
  • HTML
LT6200IS8#PBF
  • HTML
  • HTML
LT6200IS8#TRPBF
  • HTML
  • HTML
LT6200IS8-10#PBF
  • HTML
  • HTML
LT6200IS8-10#TRPBF
  • HTML
  • HTML
LT6200IS8-5#PBF
  • HTML
  • HTML
LT6200IS8-5#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 14, 2022

- 22_0254

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)

Jun 16, 2021

- 21_0026

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LT6200CS8#PBF

PRODUCTION

LT6200CS8#TRPBF

PRODUCTION

LT6200CS8-10#PBF

PRODUCTION

LT6200CS8-10#TRPBF

PRODUCTION

LT6200CS8-5#PBF

PRODUCTION

LT6200CS8-5#TRPBF

PRODUCTION

LT6200IS8#PBF

PRODUCTION

LT6200IS8#TRPBF

PRODUCTION

LT6200IS8-10#PBF

PRODUCTION

LT6200IS8-10#TRPBF

PRODUCTION

LT6200IS8-5#PBF

PRODUCTION

LT6200IS8-5#TRPBF

PRODUCTION

Dec 14, 2023

- 22_0255

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LT6200CS8-10#PBF

PRODUCTION

LT6200CS8-10#TRPBF

PRODUCTION

LT6200CS8-5#PBF

PRODUCTION

LT6200CS8-5#TRPBF

PRODUCTION

LT6200IS8#PBF

PRODUCTION

LT6200IS8#TRPBF

PRODUCTION

LT6200IS8-10#PBF

PRODUCTION

LT6200IS8-10#TRPBF

PRODUCTION

LT6200IS8-5#PBF

PRODUCTION

LT6200IS8-5#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Nov 14, 2022

- 22_0254

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)

Jun 16, 2021

- 21_0026

arrow down

Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM

LT6200CS8#PBF

PRODUCTION

LT6200CS8#TRPBF

PRODUCTION

LT6200CS8-10#PBF

PRODUCTION

LT6200CS8-10#TRPBF

PRODUCTION

LT6200CS8-5#PBF

PRODUCTION

LT6200CS8-5#TRPBF

PRODUCTION

LT6200IS8#PBF

PRODUCTION

LT6200IS8#TRPBF

PRODUCTION

LT6200IS8-10#PBF

PRODUCTION

LT6200IS8-10#TRPBF

PRODUCTION

LT6200IS8-5#PBF

PRODUCTION

LT6200IS8-5#TRPBF

PRODUCTION

Dec 14, 2023

- 22_0255

arrow down

Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)

LT6200CS8-10#PBF

PRODUCTION

LT6200CS8-10#TRPBF

PRODUCTION

LT6200CS8-5#PBF

PRODUCTION

LT6200CS8-5#TRPBF

PRODUCTION

LT6200IS8#PBF

PRODUCTION

LT6200IS8#TRPBF

PRODUCTION

LT6200IS8-10#PBF

PRODUCTION

LT6200IS8-10#TRPBF

PRODUCTION

LT6200IS8-5#PBF

PRODUCTION

LT6200IS8-5#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC417B

DIP8, MS8, S8, SOT23-6 | Multi-Footprint General Purpose Board for Single Op. Amp

reference details image

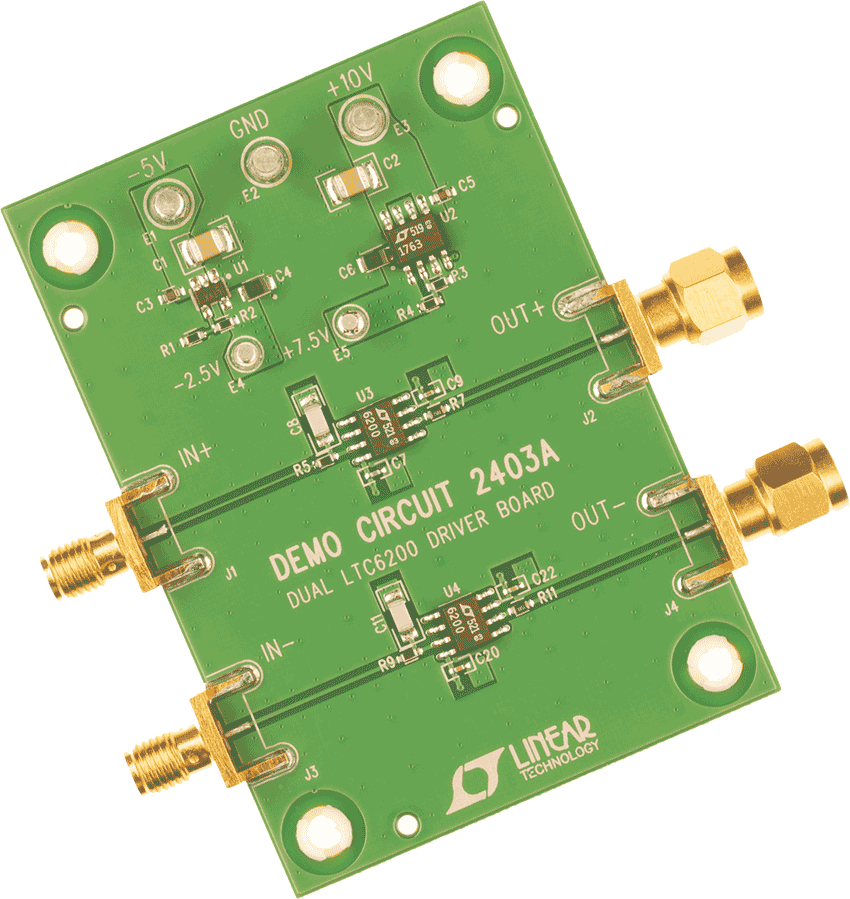

DC2403A

LT6200 ADC Driver Board | Driver for LTC2387 Family, Input Frequencies up to 1MHz

zoom

DC2403A

LT6200 ADC Driver Board | Driver for LTC2387 Family, Input Frequencies up to 1MHz

LT6200 ADC Driver Board | Driver for LTC2387 Family, Input Frequencies up to 1MHz

Product Detail

Demonstration circuit 2403A features the LT6200 amplifier. The DC2403A includes two of these amplifiers and is designed to drive the inputs of the DC2290A demo board. The DC2290A features the LTC2387 18-bit, 15Msps high speed SAR ADC. The linearity and low noise of the LT6200 make it an ideal candidate to drive the LTC2387.

Tools & Simulations

Tools & Simulations 5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
