LT5579

1.5GHz to 3.8GHz High Linearity Upconverting Mixer

PRODUCTION

Frequency Upconversion in 2.14GHz W-CDMA Transmitter slide

Gain, NF and OIP3 vs RF Output Frequency slide

Frequency Upconversion in 2.14GHz W-CDMA Transmitter

Gain, NF and OIP3 vs RF Output Frequency

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $6.83

Features

High Output IP3: +27.3dBm at 2.14GHz
Low Noise Floor: –158dBm/Hz (P_OUT = –5dBm)
High Conversion Gain: 2.6dB at 2.14GHz
Wide Frequency Range: 1.5GHz to 3.8GHz*
Low LO Leakage
Single-Ended RF and LO
Low LO Drive Level: –1dBm
Single 3.3V Supply
5mm × 5mm QFN24 Package

Additional Details

The LT5579 mixer is a high performance upconverting mixer optimized for frequencies in the 1.5GHz to 3.8GHz range. The single-ended LO input and RF output ports simplify board layout and reduce system cost. The mixer needs only –1dBm of LO power and the balanced design results in low LO signal leakage to the RF output. At 2.6GHz operation, the LT5579 provides high conversion gain of 1.3dB, high OIP3 of +26dBm and a low noise floor of –157.5dBm/Hz at a –5dBm RF output signal level.

The LT5579 offers a high performance alternative to passive mixers. Unlike passive mixers, which have conversion loss and require high LO drive levels, the LT5579 delivers conversion gain at significantly lower LO input levels and is less sensitive to LO power level variations. The lower LO drive level requirements, combined with the excellent LO leakage performance, translate into lower LO signal contamination of the output signal.

Applications

GSM/EDGE, W-CDMA, UMTS, LTE and TD-SCDMA Basestations
2.6GHz and 3.5GHz WiMAX Basestations
2.4GHz ISM Band Transmitters
High Performance Transmitters

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $6.83

Technical Documents 6

LT5579: 1.5GHz to 3.8GHz High Linearity Upconverting Mixer Data Sheet 06/18/2010

DC2191A - Demo Manual 04/06/2016

DC1233A - Demo Manual 09/24/2009

DN480 - Fast Time Division Duplex (TDD) Transmission Using an Upconverting Mixer with a High Side Switch 06/30/2010

DC2191A Upconverts the Output of the LTC2000 07/19/2016

Fast Time Division Duplex (TDD) Transmission Using an Upconverting Mixer with a High Side Switch 07/01/2010

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT5579IUH#PBF	24-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LT5579IUH#TRPBF	24-Lead QFN (5mm x 5mm x 0.75mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LT5579IUH#PBF
Pin/Package Drawing
24-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LT5579IUH#TRPBF
Pin/Package Drawing
24-Lead QFN (5mm x 5mm x 0.75mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Companion Parts 3

Parts	Product Life Cycle	Description
Fractional-N PLL1
LTC6948	LAST TIME BUY	Ultralow Noise 0.37GHz to 6.39GHz Fractional-N Synthesizer with Integrated VCO
Gain Blocks1
LTC6431-15	RECOMMENDED FOR NEW DESIGNS	50Ω Gain Block IF Amplifier
Single, Double, and Triple Balanced Mixers1
LTC5576	PRODUCTION	3GHz to 8GHz High Linearity Active Upconverting Mixer

DC1233A-D

LT5579IUH | 240MHz IF, 1.95GHz RF Upconverting Mixer Demo Board

DC1233A-D

LT5579IUH | 240MHz IF, 1.95GHz RF Upconverting Mixer Demo Board

Buy Now View Details

Product Detail

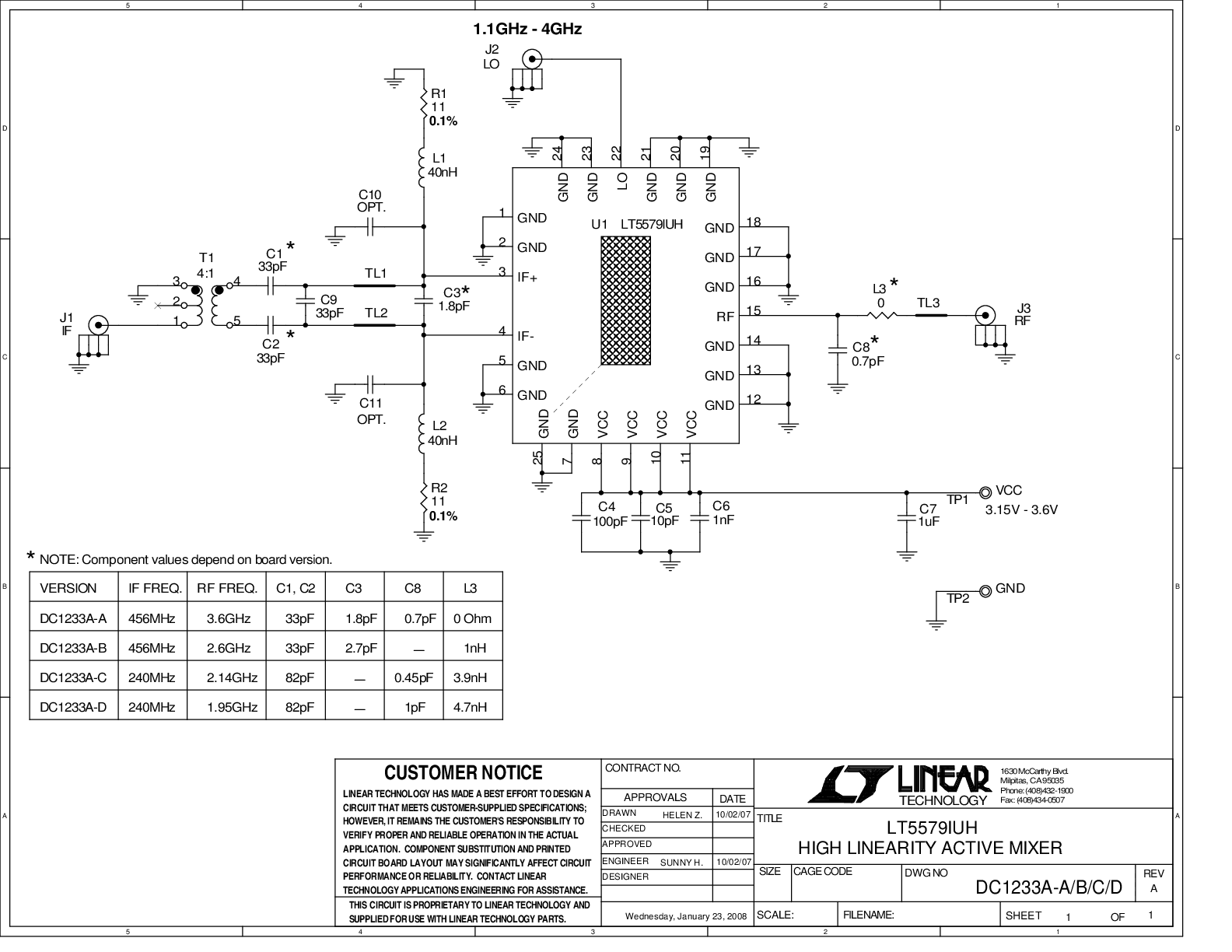

DC1233A-D: Demo Board for LT5579 1.5GHz to 3.8GHz High Linearity Upconverting Mixer.

Resources

ZIP

DC1233A - Design File

712.00K

PDF

DC1233A - Schematic

29.00K

PDF

DC1233A - Demo Manual

229.00K

DC1233A-B

LT5579IUH | 456MHz IF, 2.6GHz RF Upconverting Mixer Demo Board

DC1233A-B

LT5579IUH | 456MHz IF, 2.6GHz RF Upconverting Mixer Demo Board

Buy Now View Details

Product Detail

DC1233A-B: Demo Board for LT5579 1.5GHz to 3.8GHz High Linearity Upconverting Mixer.

Resources

ZIP

DC1233A - Design File

712.00K

PDF

DC1233A - Schematic

29.00K

PDF

DC1233A - Demo Manual

229.00K

DC1233A-C

LT5579IUH | 240MHz IF, 2.14GHz RF Upconverting Mixer Demo Board

DC1233A-C

LT5579IUH | 240MHz IF, 2.14GHz RF Upconverting Mixer Demo Board

Buy Now View Details

Product Detail

DC1233A-C: Demo Board for LT5579 1.5GHz to 3.8GHz High Linearity Upconverting Mixer.

Resources

ZIP

DC1233A - Design File

712.00K

PDF

DC1233A - Schematic

29.00K

PDF

DC1233A - Demo Manual

229.00K

DC1233A-A

LT5579IUH | 456MHz IF, 3.5GHz RF Upconverting Mixer Demo Board

DC1233A-A

LT5579IUH | 456MHz IF, 3.5GHz RF Upconverting Mixer Demo Board

Buy Now View Details

Product Detail

DC1233A-A: Demo Board for the LT5579 1.5GHz to 3.8GHz High Linearity Upconverting Mixer

Resources

ZIP

DC1233A - Design File

712.00K

PDF

DC1233A - Schematic

29.00K

PDF

DC1233A - Demo Manual

229.00K

DC2191A-A

LTC2000 + LT5579 Combo Board | 16-Bit 2.5Gsps DAC with Upconverting Mixer

DC2191A-A

LTC2000 + LT5579 Combo Board | 16-Bit 2.5Gsps DAC with Upconverting Mixer

Buy Now View Details

Product Detail

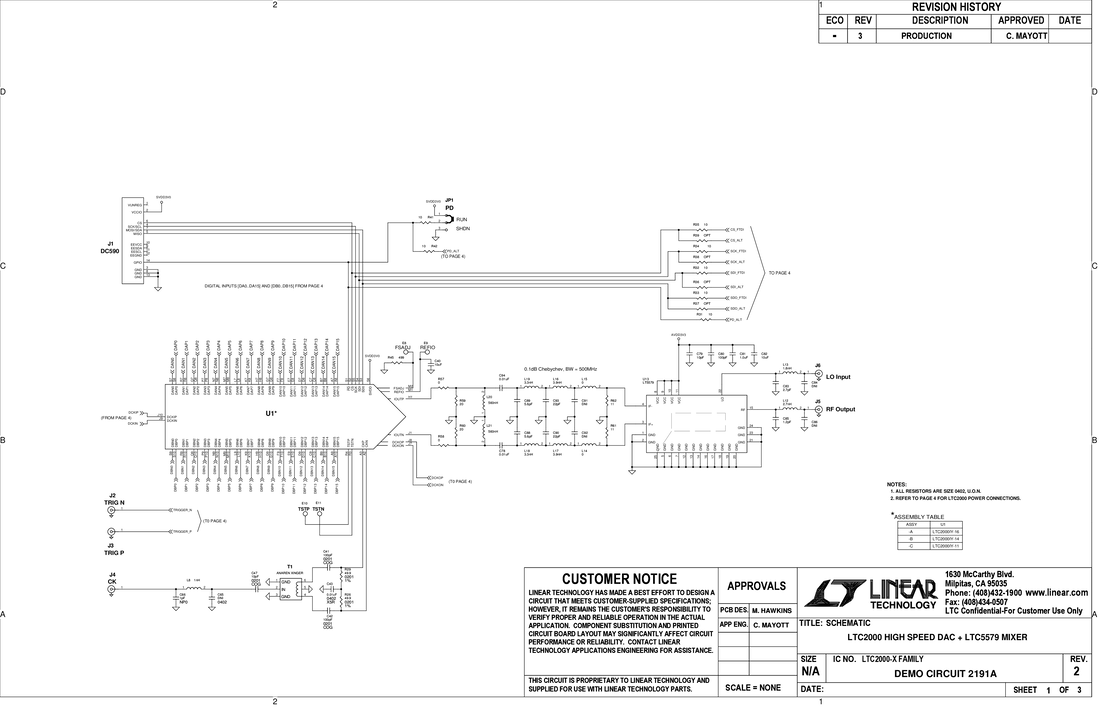

Demonstration circuit 2191A supports the LTC2000, a high speed, high dynamic range DAC driving the LT5579 upconverting mixer.

The circuitry on the DAC IF output is optimized for analog frequencies from DC to 500MHz. The circuitry on the LO input is optimized for frequencies from 1000MHz to 4300MHz.

Companion Board : Stratix board

Resources

ZIP

DC2191A - Design Files

7.00M

PDF

DC2191A - Schematic

259.00K

PDF

DC2191A - Demo Manual

850.00K

DC1233A-D

LT5579IUH | 240MHz IF, 1.95GHz RF Upconverting Mixer Demo Board

DC1233A-B

LT5579IUH | 456MHz IF, 2.6GHz RF Upconverting Mixer Demo Board

DC1233A-C

LT5579IUH | 240MHz IF, 2.14GHz RF Upconverting Mixer Demo Board

DC1233A-A

LT5579IUH | 456MHz IF, 3.5GHz RF Upconverting Mixer Demo Board

DC2191A-A

LTC2000 + LT5579 Combo Board | 16-Bit 2.5Gsps DAC with Upconverting Mixer

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
