LT4320
LT4320-1

Ideal Diode Bridge Controller

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 24
1ku List Price Starting From $3.54
Features
  • Maximizes Power Efficiency
  • Eliminates Thermal Design Problems
  • DC to 600Hz
  • 9V to 72V Operating Voltage Range
  • IQ = 1.5mA (Typical)
  • Maximizes Available Voltage
  • Available in 8-Lead (3mm × 3mm) DFN, 12-Lead MSOP and 8-Lead PDIP Packages
Additional Details
show more Icon

The LT4320/LT4320-1 are ideal diode bridge controllers that drive four N-channel MOSFETs, supporting voltage rectification from DC to 600Hz typical. By maximizing available voltage and reducing power dissipation (see thermograph comparison below), the ideal diode bridge simplifies power supply design and reduces power supply cost, especially in low voltage applications.

An ideal diode bridge also eliminates thermal design problems, costly heat sinks, and greatly reduces PC board area. The LT4320’s internal charge pump supports an all- NMOS design, which eliminates larger and more costly PMOS switches. If the power source fails or is shorted, a fast turn-off minimizes reverse current transients.

The LT4320 is designed for DC to 60Hz typical voltage rectification, while the LT4320-1 is designed for DC to 600Hz typical voltage rectification. Higher frequencies of operation are possible depending on MOSFET size and operating load current.

Applications

  • Security Cameras
  • Terrestrial or Airborne Power Distribution Systems
  • Power-over-Ethernet Powered Device with a Secondary Input
  • Polarity-Agnostic Power Input
  • Diode Bridge Replacement
Part Models 24
1ku List Price Starting From $3.54

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT4320HDD#PBF
  • HTML
  • HTML
LT4320HDD#TRPBF
  • HTML
  • HTML
LT4320HDD-1#PBF
  • HTML
  • HTML
LT4320HDD-1#TRPBF
  • HTML
  • HTML
LT4320HMSE#PBF
  • HTML
  • HTML
LT4320HMSE#TRPBF
  • HTML
  • HTML
LT4320HMSE-1#PBF
  • HTML
  • HTML
LT4320HMSE-1#TRPBF
  • HTML
  • HTML
LT4320HN8#PBF
  • HTML
  • HTML
LT4320HN8-1#PBF
  • HTML
  • HTML
LT4320IDD#PBF
  • HTML
  • HTML
LT4320IDD#TRPBF
  • HTML
  • HTML
LT4320IDD-1#PBF
  • HTML
  • HTML
LT4320IDD-1#TRPBF
  • HTML
  • HTML
LT4320IMSE#PBF
  • HTML
  • HTML
LT4320IMSE#TRPBF
  • HTML
  • HTML
LT4320IMSE-1#PBF
  • HTML
  • HTML
LT4320IMSE-1#TRPBF
  • HTML
  • HTML
LT4320IN8#PBF
  • HTML
  • HTML
LT4320IN8-1#PBF
  • HTML
  • HTML
LT4320MPMSE#PBF
  • HTML
  • HTML
LT4320MPMSE#TRPBF
  • HTML
  • HTML
LT4320MPMSE-1#PBF
  • HTML
  • HTML
LT4320MPMSE-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT4320HMSE#PBF

PRODUCTION

LT4320HMSE#TRPBF

PRODUCTION

LT4320HMSE-1#PBF

PRODUCTION

LT4320HMSE-1#TRPBF

PRODUCTION

LT4320IMSE#PBF

PRODUCTION

LT4320IMSE#TRPBF

PRODUCTION

LT4320IMSE-1#PBF

PRODUCTION

LT4320IMSE-1#TRPBF

PRODUCTION

LT4320MPMSE#PBF

PRODUCTION

LT4320MPMSE#TRPBF

PRODUCTION

LT4320MPMSE-1#PBF

PRODUCTION

LT4320MPMSE-1#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT4320HMSE#PBF

PRODUCTION

LT4320HMSE#TRPBF

PRODUCTION

LT4320HMSE-1#PBF

PRODUCTION

LT4320HMSE-1#TRPBF

PRODUCTION

LT4320IMSE#PBF

PRODUCTION

LT4320IMSE#TRPBF

PRODUCTION

LT4320IMSE-1#PBF

PRODUCTION

LT4320IMSE-1#TRPBF

PRODUCTION

LT4320MPMSE#PBF

PRODUCTION

LT4320MPMSE#TRPBF

PRODUCTION

LT4320MPMSE-1#PBF

PRODUCTION

LT4320MPMSE-1#TRPBF

PRODUCTION

Oct 11, 2022

- 22_0241

Epoxy Change from Henkel 8290 to 8290A for PDIP Package

LT4320HN8#PBF

PRODUCTION

LT4320HN8-1#PBF

PRODUCTION

LT4320IN8#PBF

PRODUCTION

LT4320IN8-1#PBF

PRODUCTION

Aug 6, 2022

- 22_0172

Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]

LT4320HN8#PBF

PRODUCTION

LT4320HN8-1#PBF

PRODUCTION

LT4320IN8#PBF

PRODUCTION

LT4320IN8-1#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT4320HMSE#PBF

PRODUCTION

LT4320HMSE#TRPBF

PRODUCTION

LT4320HMSE-1#PBF

PRODUCTION

LT4320HMSE-1#TRPBF

PRODUCTION

LT4320IMSE#PBF

PRODUCTION

LT4320IMSE#TRPBF

PRODUCTION

LT4320IMSE-1#PBF

PRODUCTION

LT4320IMSE-1#TRPBF

PRODUCTION

LT4320MPMSE#PBF

PRODUCTION

LT4320MPMSE#TRPBF

PRODUCTION

LT4320MPMSE-1#PBF

PRODUCTION

LT4320MPMSE-1#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT4320HMSE#PBF

PRODUCTION

LT4320HMSE#TRPBF

PRODUCTION

LT4320HMSE-1#PBF

PRODUCTION

LT4320HMSE-1#TRPBF

PRODUCTION

LT4320IMSE#PBF

PRODUCTION

LT4320IMSE#TRPBF

PRODUCTION

LT4320IMSE-1#PBF

PRODUCTION

LT4320IMSE-1#TRPBF

PRODUCTION

LT4320MPMSE#PBF

PRODUCTION

LT4320MPMSE#TRPBF

PRODUCTION

LT4320MPMSE-1#PBF

PRODUCTION

LT4320MPMSE-1#TRPBF

PRODUCTION

Oct 11, 2022

- 22_0241

arrow down

Epoxy Change from Henkel 8290 to 8290A for PDIP Package

LT4320HN8#PBF

PRODUCTION

LT4320HN8-1#PBF

PRODUCTION

LT4320IN8#PBF

PRODUCTION

LT4320IN8-1#PBF

PRODUCTION

Aug 6, 2022

- 22_0172

arrow down

Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]

LT4320HN8#PBF

PRODUCTION

LT4320HN8-1#PBF

PRODUCTION

LT4320IN8#PBF

PRODUCTION

LT4320IN8-1#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

reference details image

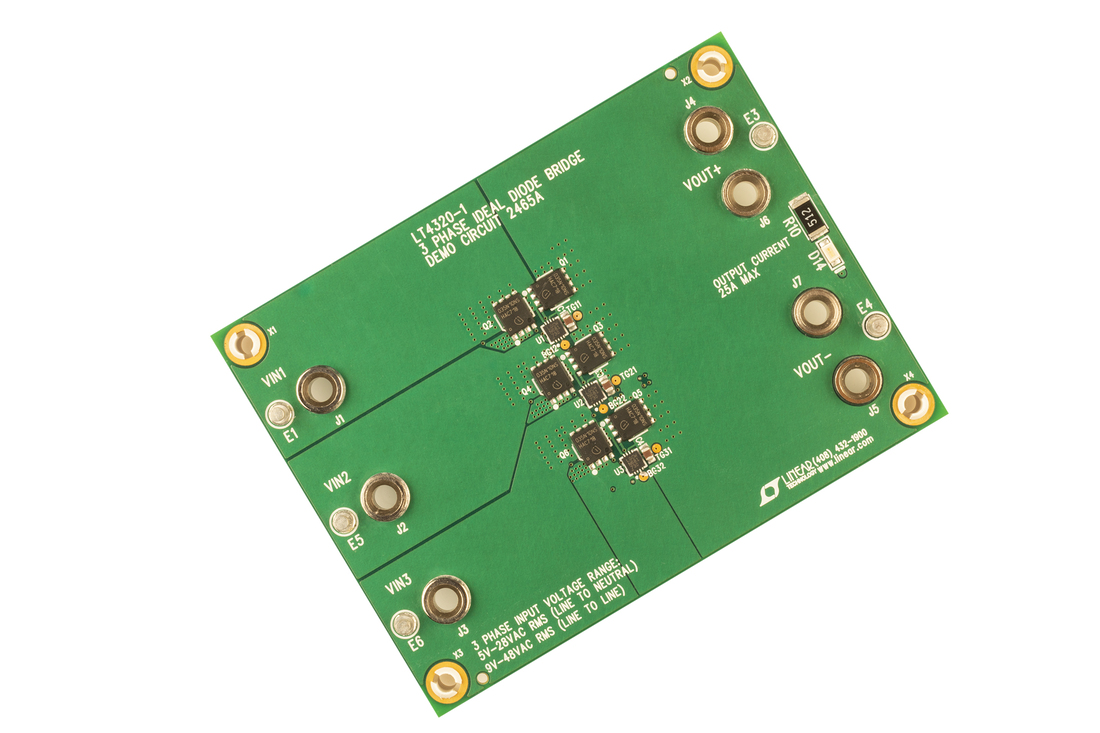

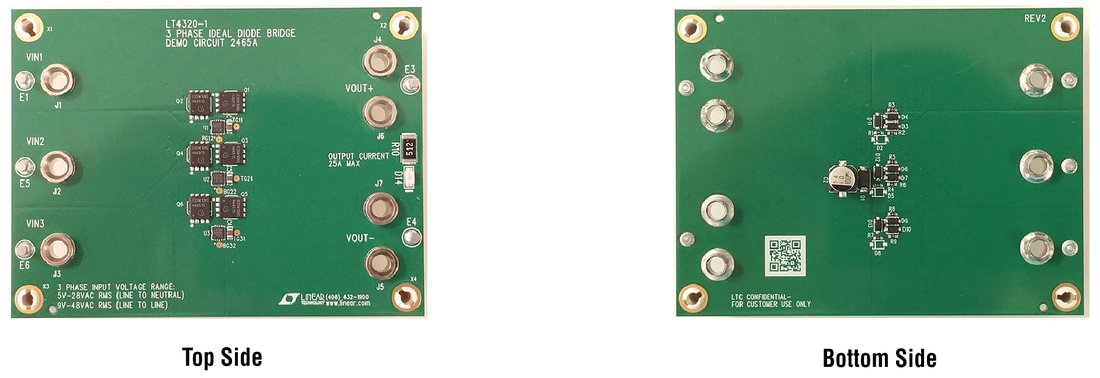

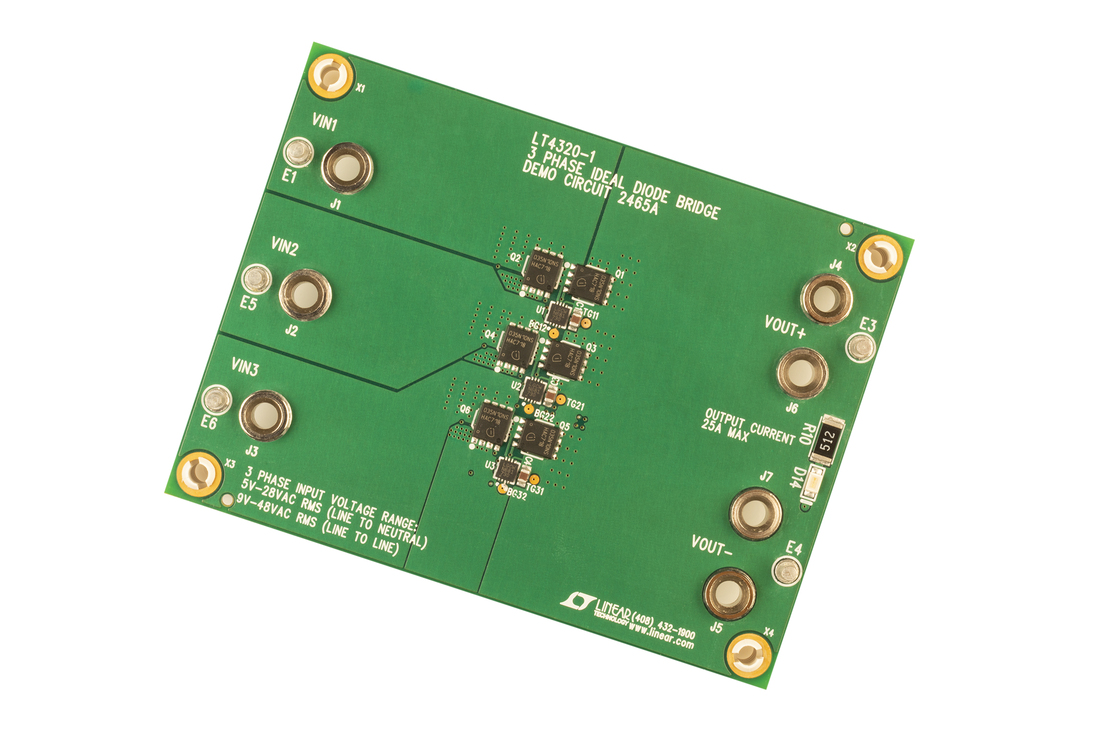

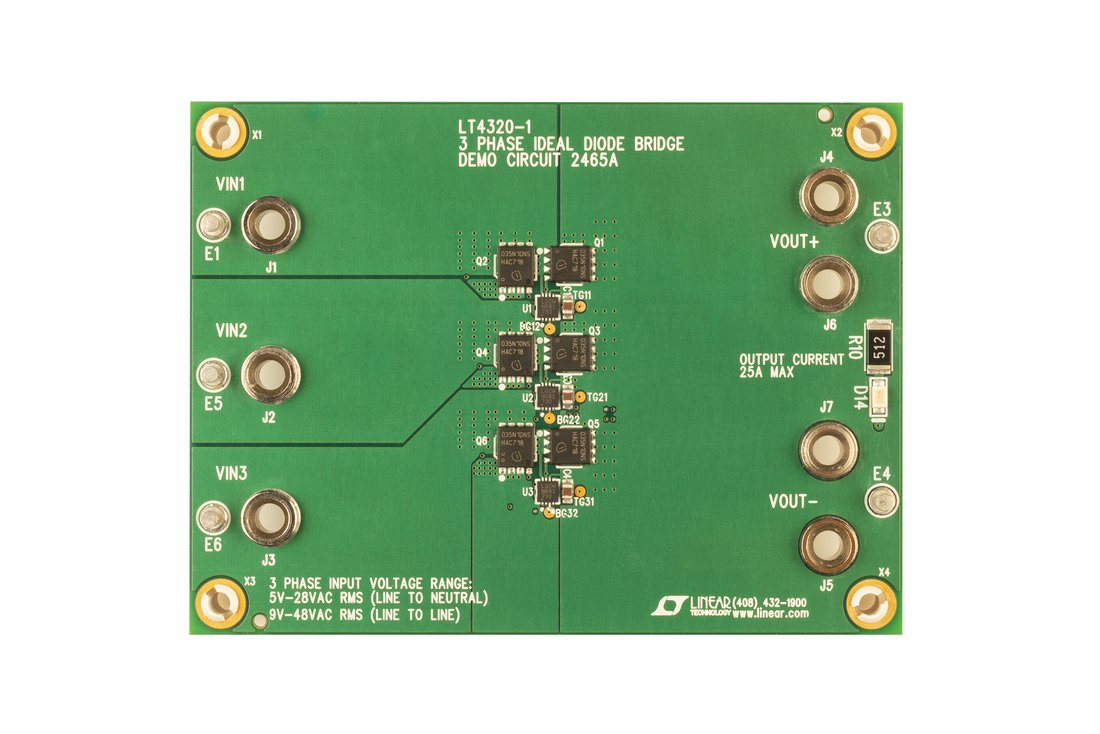

DC2465A

LT4320IDD-1 3-Phase Ideal Diode Bridge Rectifier [9VAC to 48VAC L-L, 25A]

zoom

DC2465A

LT4320IDD-1 3-Phase Ideal Diode Bridge Rectifier [9VAC to 48VAC L-L, 25A]

LT4320IDD-1 3-Phase Ideal Diode Bridge Rectifier [9VAC to 48VAC L-L, 25A]

Product Detail

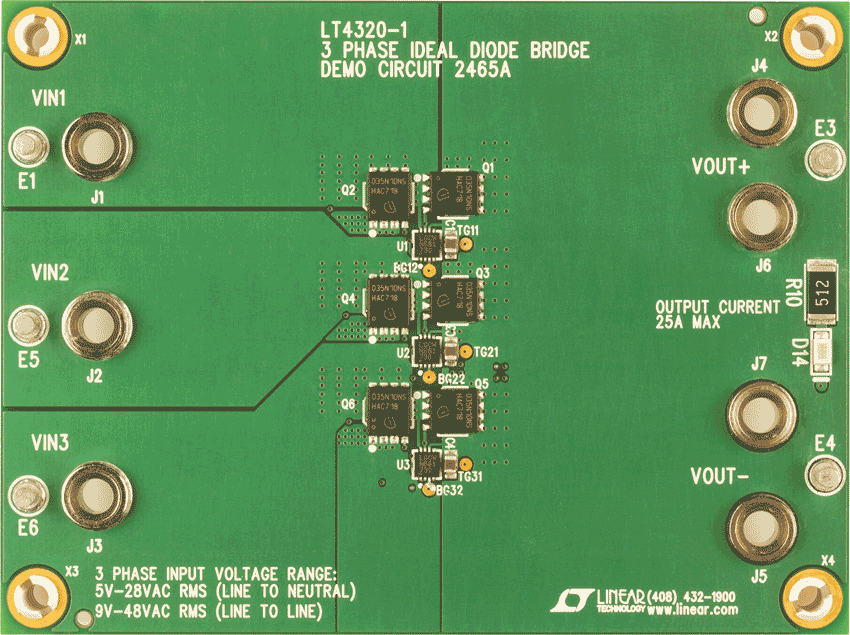

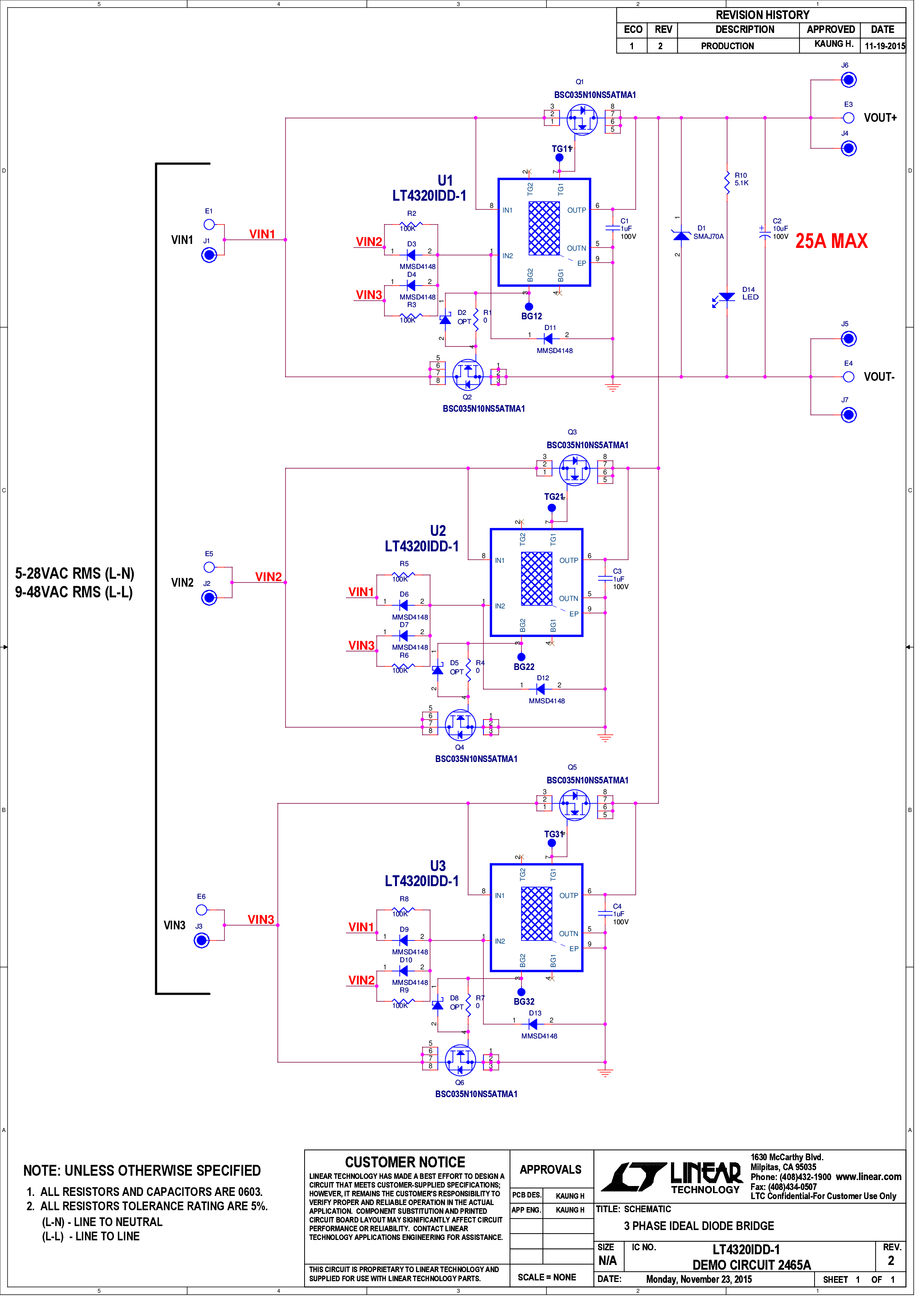

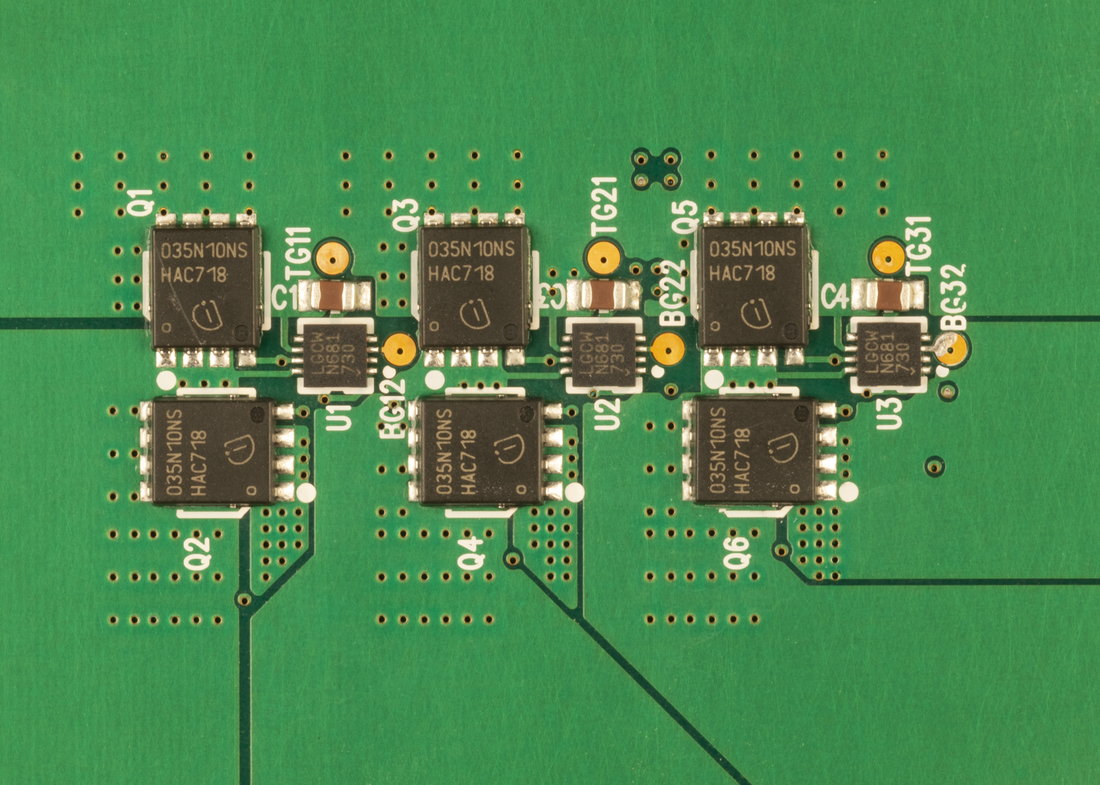

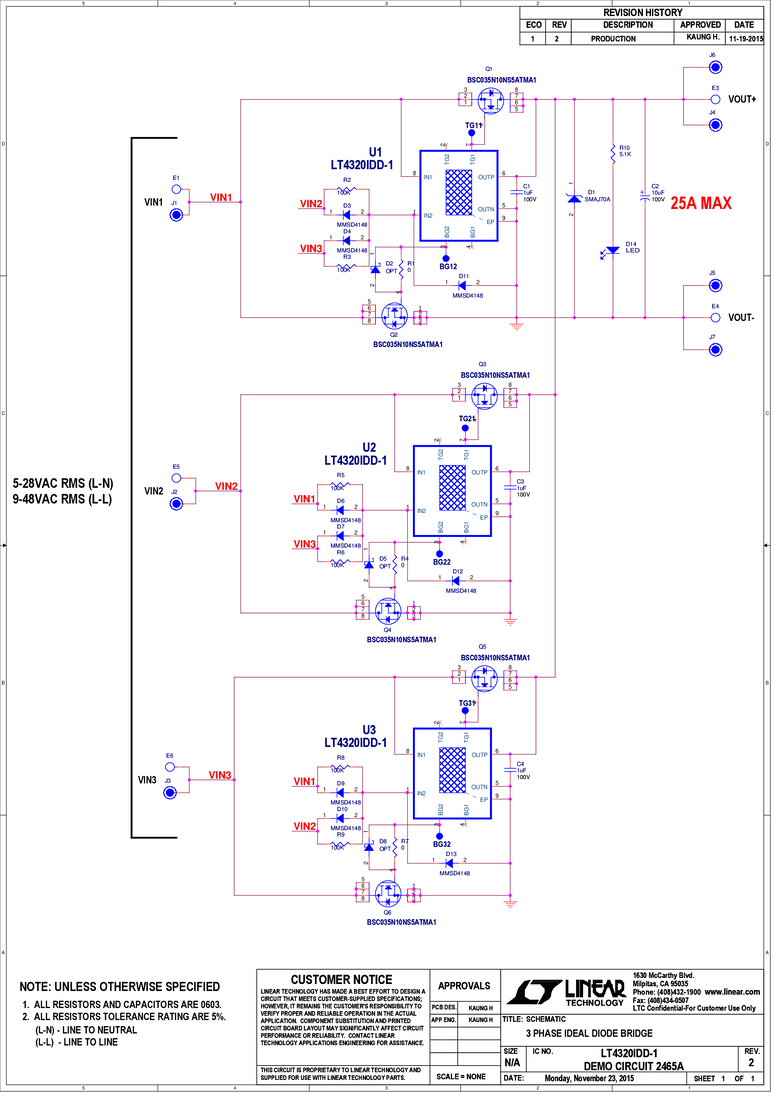

Demonstration circuit 2465A is a 3-phase ideal diode bridge using three LT4320 controllers and six N-channel FETs. This demo board provides highly efficient 3-phase rectification with an input voltage range from 5VAC to 28VAC RMS (line to neutral) and maximum load current of 25A.





reference details image

DC2047A-A

LT4276B/LT4321 Demo Board | PoE+ (25W, 12V/1.9A) PD with DC/DC, Ideal Diode Bridge and 9V-57V AUX

zoom

DC2047A-A

LT4276B/LT4321 Demo Board | PoE+ (25W, 12V/1.9A) PD with DC/DC, Ideal Diode Bridge and 9V-57V AUX

LT4276B/LT4321 Demo Board | PoE+ (25W, 12V/1.9A) PD with DC/DC, Ideal Diode Bridge and 9V-57V AUX

Product Detail

Demonstration circuit 2047A-A is an IEEE802.3at compliant Power over Ethernet (PoE) Powered Device (PD) with support for 9-57VDC and 24VAC auxiliary supply input. It features the LT4276 PD interface and switching regulator controller, the LT4321 PoE ideal diode bridge controller, and the LT4320 ideal diode bridge controller.

reference details image

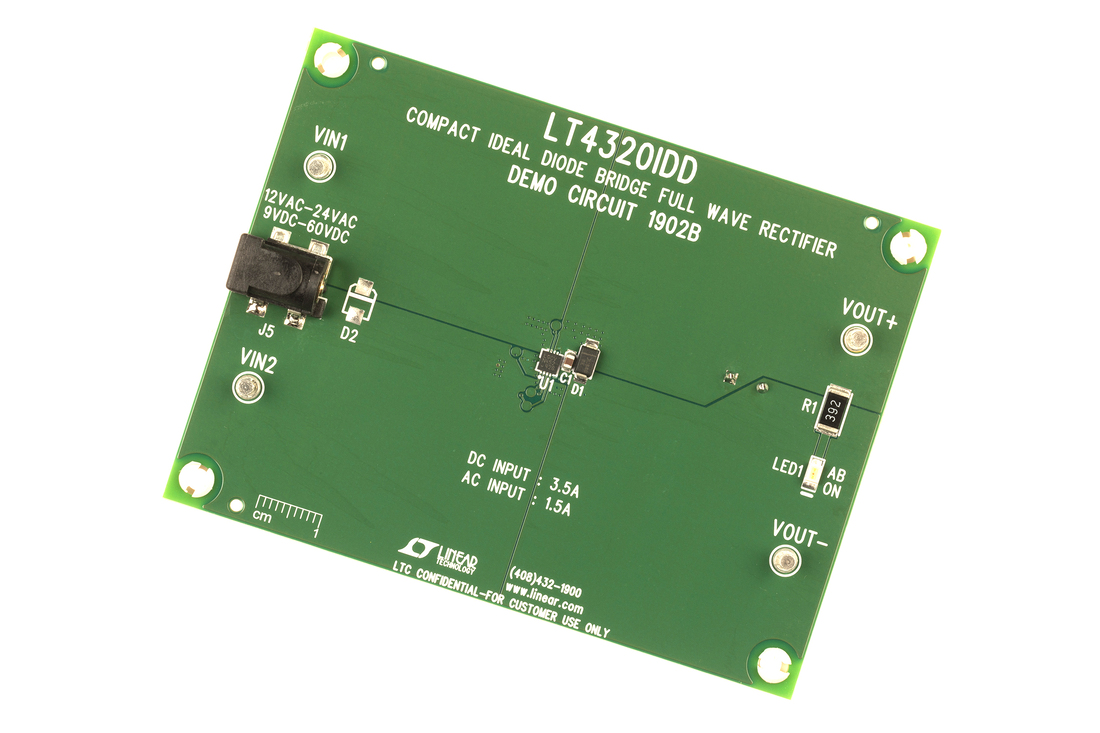

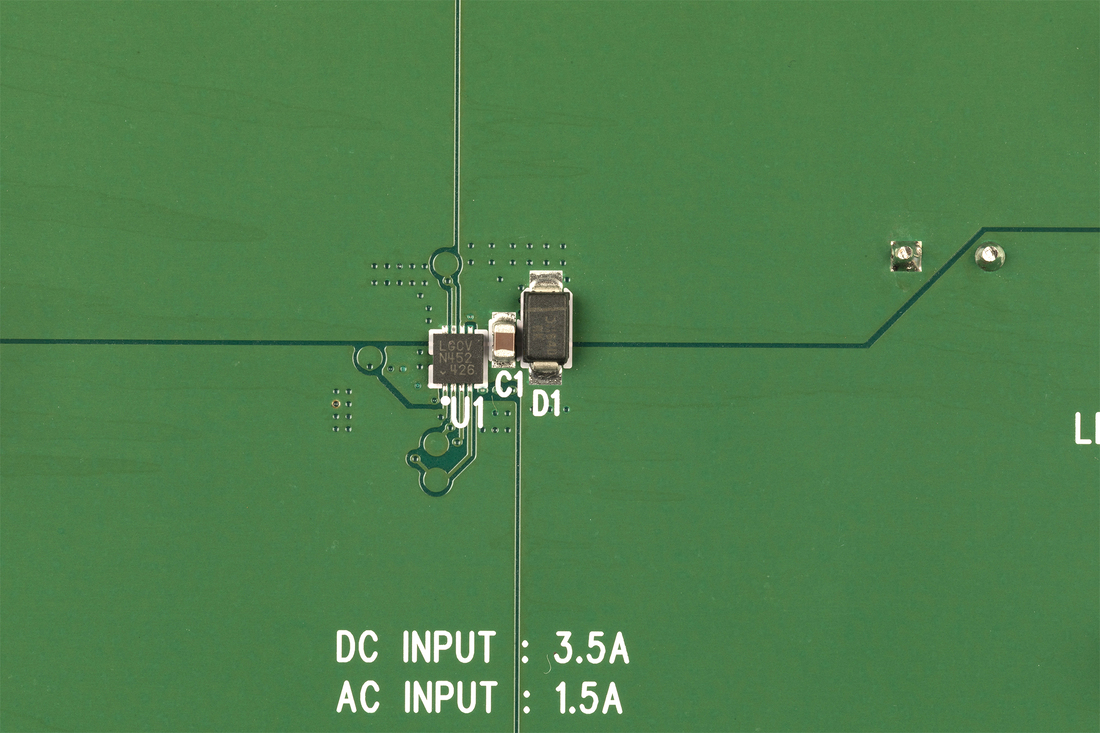

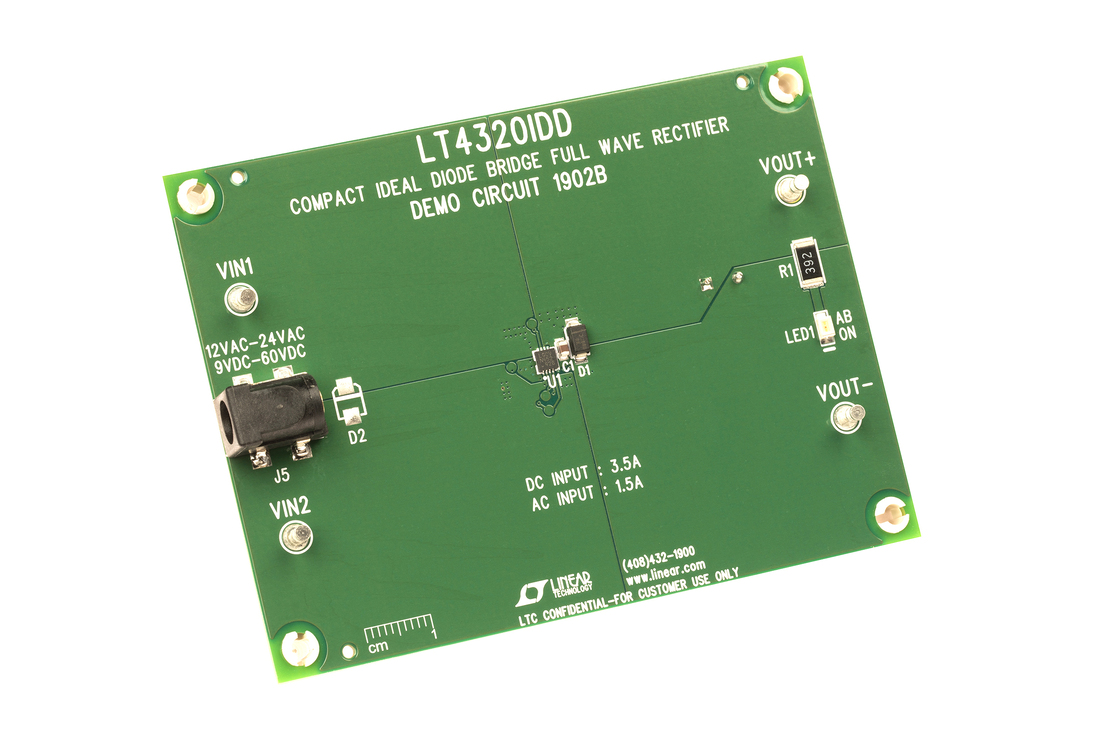

DC1902B

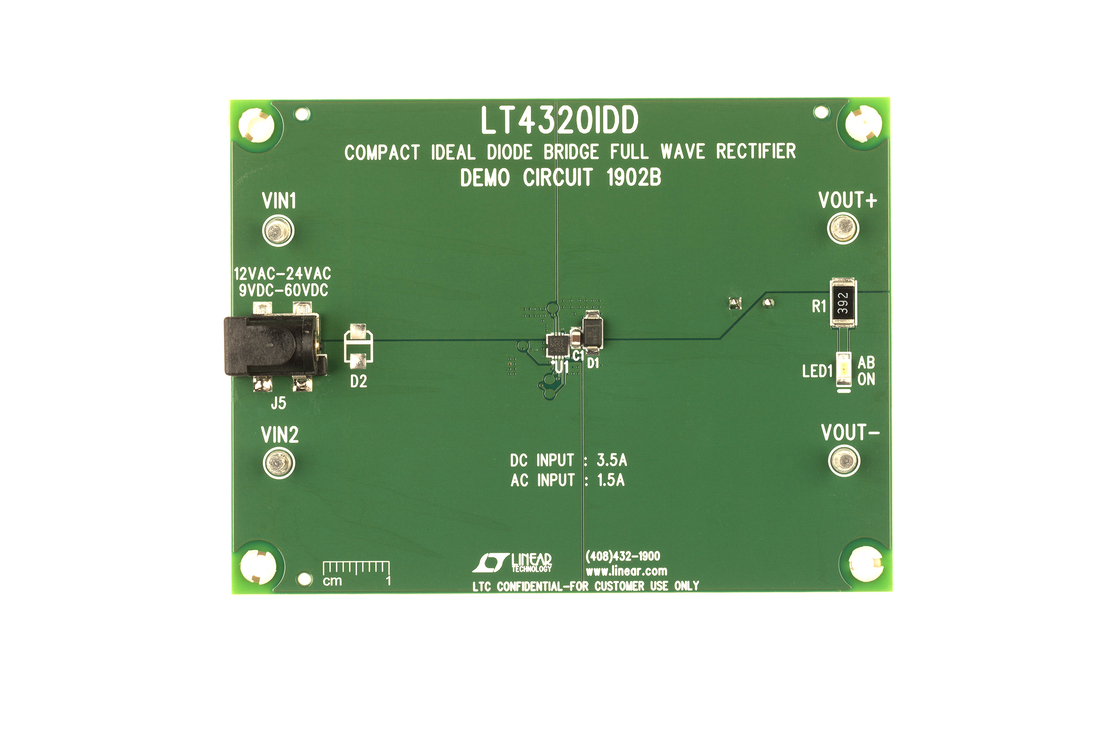

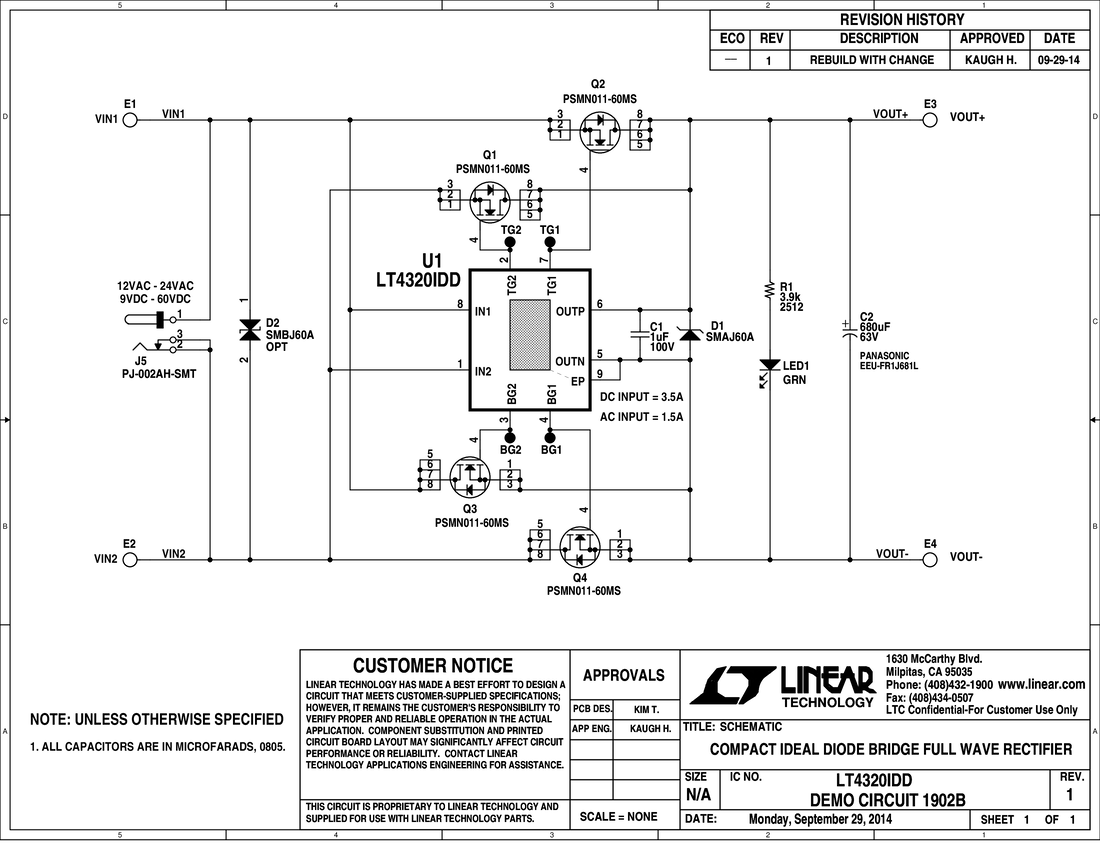

LT4320IDD Demo Board | 200W Ideal Diode Bridge Full-Wave Rectifier (9V to 60V, 3.5A)

reference details image

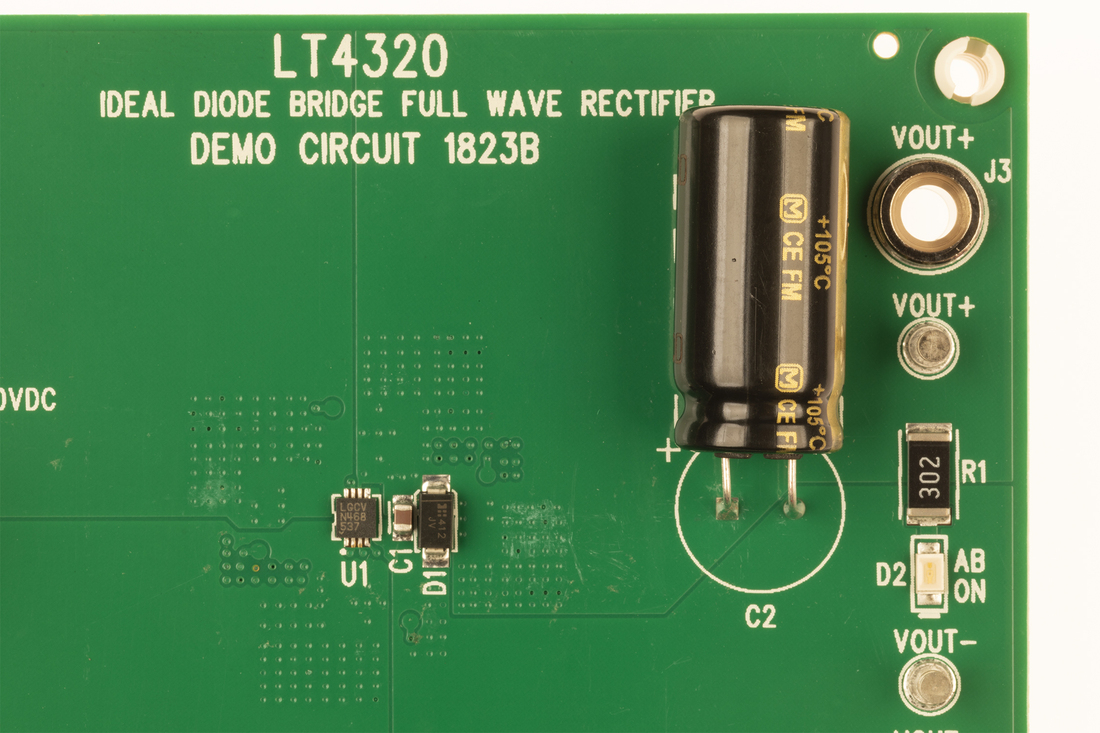

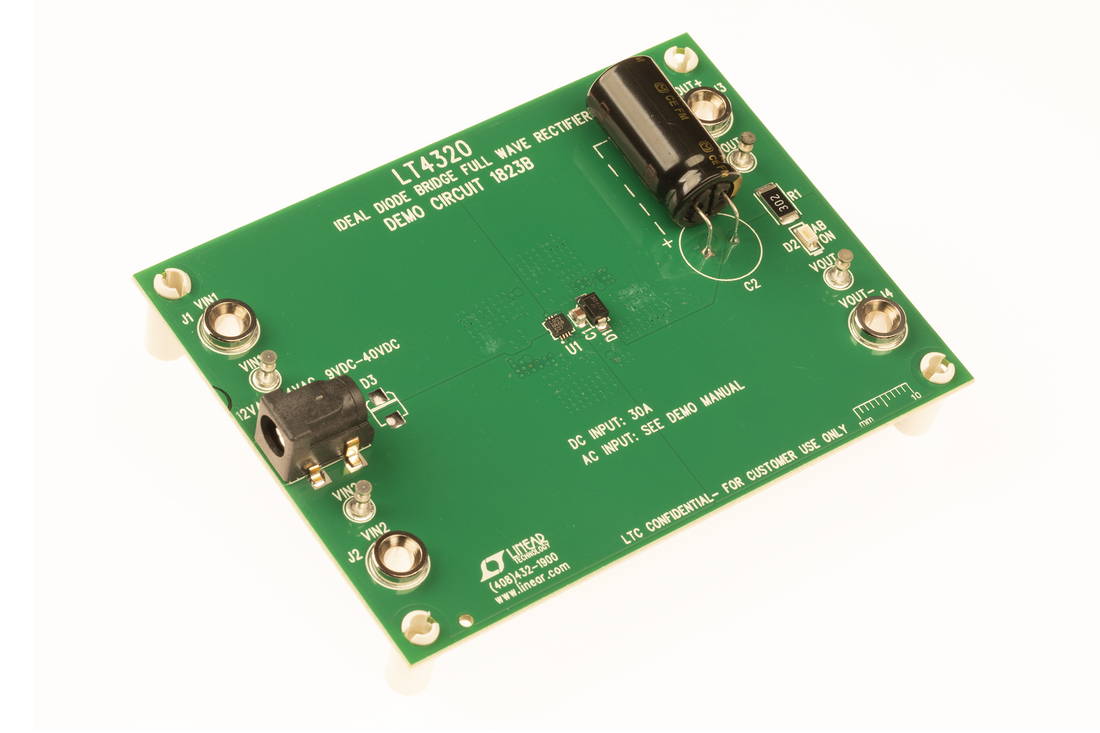

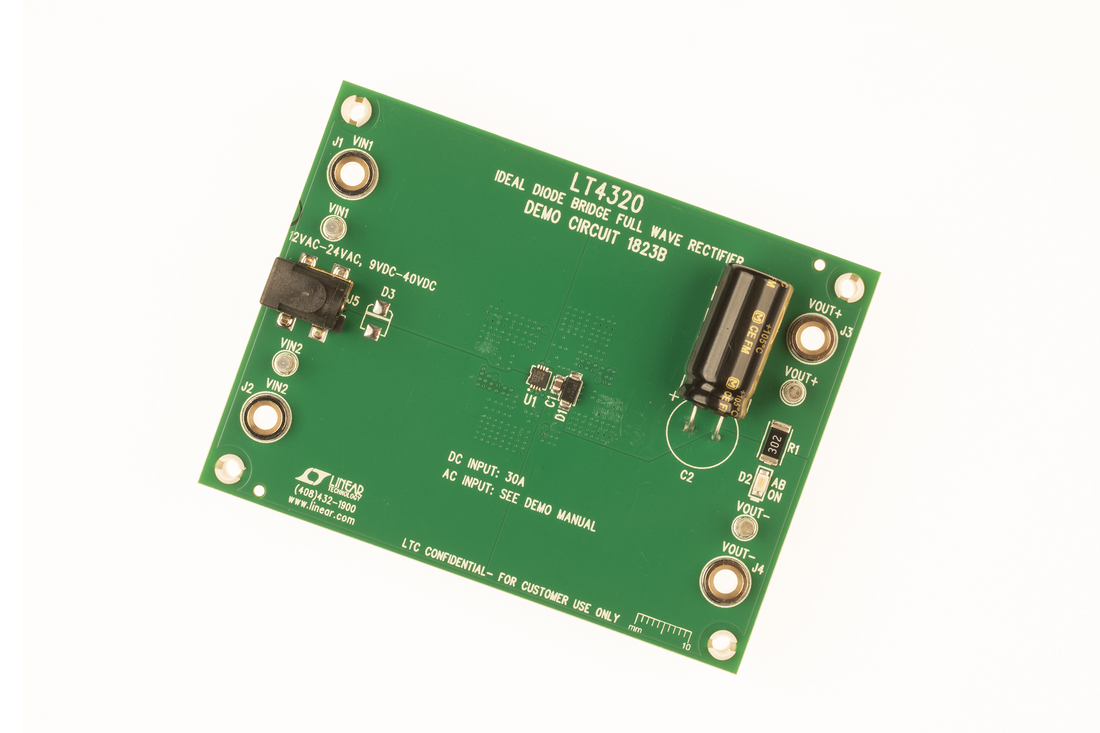

DC1823B

LT4320IDD Demo Board | 1.2kW Ideal Diode Bridge Full-Wave Rectifier [9V to 40V, 30A]

zoom

DC1823B

LT4320IDD Demo Board | 1.2kW Ideal Diode Bridge Full-Wave Rectifier [9V to 40V, 30A]

LT4320IDD Demo Board | 1.2kW Ideal Diode Bridge Full-Wave Rectifier [9V to 40V, 30A]

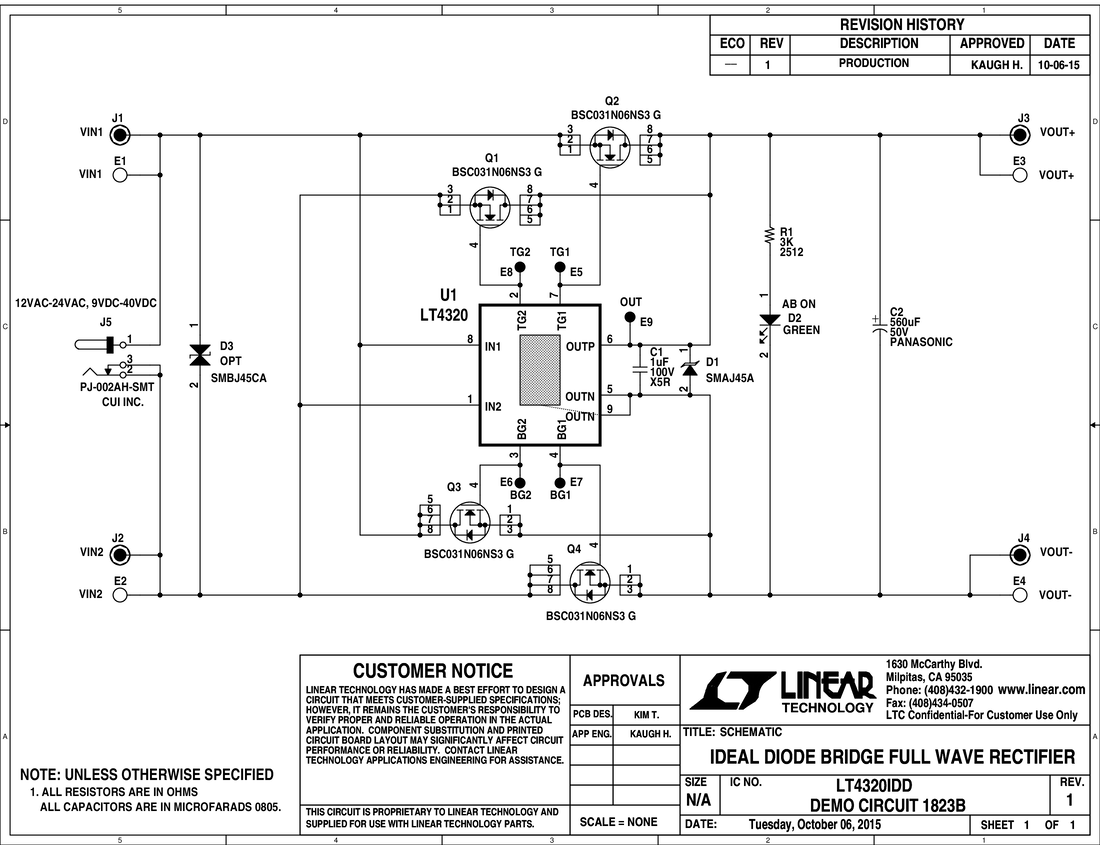

Product Detail

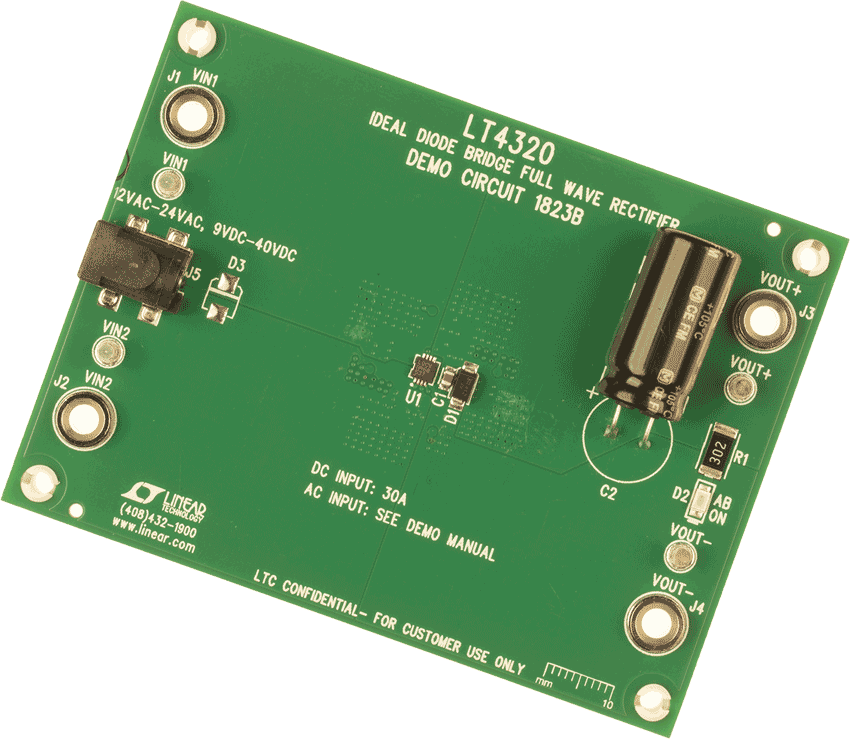

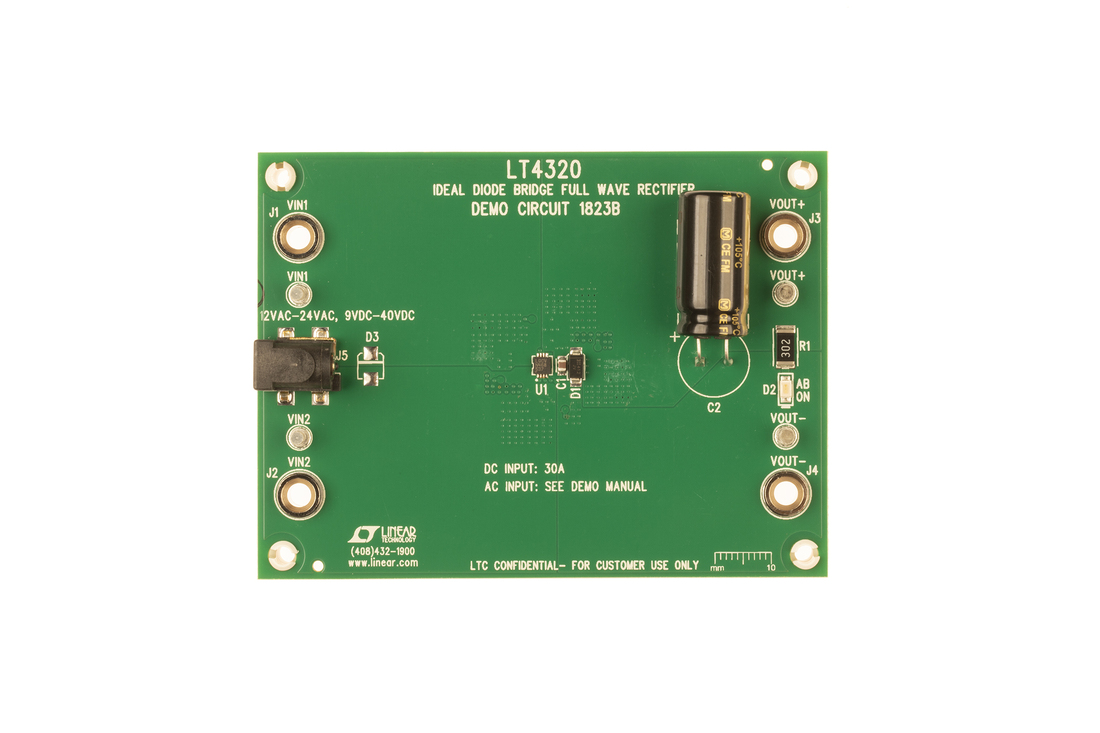

Demonstration circuit 1823B features the LT4320, an ideal diode bridge controller  suitable for applications that require high current AC to DC full-wave rectification or DC polarity correction. With an AC input, the input voltage range is 12VAC to 24VAC, the output voltage can be as high as 70V, and the output current can be as high as 1.5A. The AC current is limited by the capacitance provided on the demo board and can be increased up to 17A with additional load capacitance. The DC input voltage range is 9V up to 40V, and the maximum DC output current is 30A.


The LT4320 drives four N-channel MOSFETs to perform full-wave rectification functionally similar to a discrete diode bridge but with much lower power dissipation. This topology eases thermal design, and increases usable output voltage. In addition, an all N-channel topology has benefits over a P-channel topology such as a wider selection of MOSFETs, lower cost, lower RDS(ON), and smaller footprint.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
