LT3991

55V, 1.2A Step-Down Regulator with 2.8μA Quiescent Current

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 16
1ku List Price Starting From $3.54
Features
  • Ultralow Quiescent Current: 2.8μA IQ Regulating 12VIN to 3.3VOUT
  • Fixed Output Voltages: 3.3V, 5V 2.1μA IQ Regulating 12VIN
  • Low Ripple Burst Mode® Operation: Output Ripple < 15mVP-P
  • Wide Input Voltage Range: 4.3V to 55V
  • 1.2A Maximum Output Current
  • Adjustable Switching Frequency: 200kHz to 2MHz
  • Synchronizable Between 250kHz to 2MHz
  • Fast Transient Response
  • Accurate 1V Enable Pin Threshold
  • Low Shutdown Current: IQ = 700nA
  • Power Good Flag
  • Soft-Start CapabilityV
  • Internal Compensation
  • Saturating Switch Design: 0.44Ω On-Resistance
  • Output Voltage: 1.19V to 30V

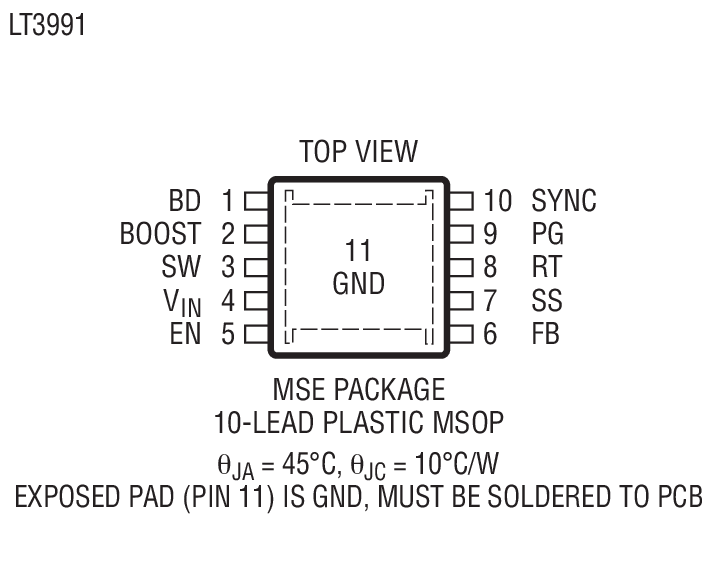

  • Small Thermally Enhanced 10-Pin MSOP Package and (3mm × 3mm) DFN Packages
Additional Details
show more Icon

The LT3991 is an adjustable frequency monolithic buck switching regulator that accepts a wide input voltage range up to 55V. Low quiescent current design consumes only 2.8μA of supply current while regulating with no load. Low ripple Burst Mode operation maintains high efficiency at low output currents while keeping the output ripple below 15mV in a typical application. An internally compensated current mode topology is used for fast transient response and good loop stability. A high efficiency 0.44Ω switch is included on the die along with a boost Schottky diode and the necessary oscillator, control and logic circuitry. An accurate 1V threshold enable pin can be used to shut down the LT3991, reducing the input supply current to 700nA. A capacitor on the SS pin provides a controlled inrush current (soft-start). A power good flag signals when VOUT reaches 91% of the programmed output voltage. The LT3991 is available in small 10-pin MSOP and 3mm × 3mm DFN packages with exposed pads for low thermal resistance.

Applications

  • Automotive Battery Regulation
  • Power for Portable Products
  • Industrial Supplies
Part Models 16
1ku List Price Starting From $3.54

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3991EDD#PBF
  • HTML
  • HTML
LT3991EDD#TRPBF
  • HTML
  • HTML
LT3991EMSE#PBF
  • HTML
  • HTML
LT3991EMSE#TRPBF
  • HTML
  • HTML
LT3991EMSE-3.3#PBF
  • HTML
  • HTML
LT3991EMSE-3.3#TRPBF
  • HTML
  • HTML
LT3991EMSE-5#PBF
  • HTML
  • HTML
LT3991EMSE-5#TRPBF
  • HTML
  • HTML
LT3991IDD#PBF
  • HTML
  • HTML
LT3991IDD#TRPBF
  • HTML
  • HTML
LT3991IMSE#PBF
  • HTML
  • HTML
LT3991IMSE#TRPBF
  • HTML
  • HTML
LT3991IMSE-3.3#PBF
  • HTML
  • HTML
LT3991IMSE-3.3#TRPBF
  • HTML
  • HTML
LT3991IMSE-5#PBF
  • HTML
  • HTML
LT3991IMSE-5#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3991EMSE#PBF

PRODUCTION

LT3991EMSE#TRPBF

PRODUCTION

LT3991EMSE-3.3#PBF

PRODUCTION

LT3991EMSE-3.3#TRPBF

PRODUCTION

LT3991EMSE-5#PBF

PRODUCTION

LT3991EMSE-5#TRPBF

PRODUCTION

LT3991IMSE#PBF

PRODUCTION

LT3991IMSE#TRPBF

PRODUCTION

LT3991IMSE-3.3#PBF

PRODUCTION

LT3991IMSE-3.3#TRPBF

PRODUCTION

LT3991IMSE-5#PBF

PRODUCTION

LT3991IMSE-5#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT3991EMSE#PBF

PRODUCTION

LT3991EMSE#TRPBF

PRODUCTION

LT3991EMSE-3.3#PBF

PRODUCTION

LT3991EMSE-3.3#TRPBF

PRODUCTION

LT3991EMSE-5#PBF

PRODUCTION

LT3991EMSE-5#TRPBF

PRODUCTION

LT3991IMSE#PBF

PRODUCTION

LT3991IMSE#TRPBF

PRODUCTION

LT3991IMSE-3.3#PBF

PRODUCTION

LT3991IMSE-3.3#TRPBF

PRODUCTION

LT3991IMSE-5#PBF

PRODUCTION

LT3991IMSE-5#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3991EMSE#PBF

PRODUCTION

LT3991EMSE#TRPBF

PRODUCTION

LT3991EMSE-3.3#PBF

PRODUCTION

LT3991EMSE-3.3#TRPBF

PRODUCTION

LT3991EMSE-5#PBF

PRODUCTION

LT3991EMSE-5#TRPBF

PRODUCTION

LT3991IMSE#PBF

PRODUCTION

LT3991IMSE#TRPBF

PRODUCTION

LT3991IMSE-3.3#PBF

PRODUCTION

LT3991IMSE-3.3#TRPBF

PRODUCTION

LT3991IMSE-5#PBF

PRODUCTION

LT3991IMSE-5#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LT3991EMSE#PBF

PRODUCTION

LT3991EMSE#TRPBF

PRODUCTION

LT3991EMSE-3.3#PBF

PRODUCTION

LT3991EMSE-3.3#TRPBF

PRODUCTION

LT3991EMSE-5#PBF

PRODUCTION

LT3991EMSE-5#TRPBF

PRODUCTION

LT3991IMSE#PBF

PRODUCTION

LT3991IMSE#TRPBF

PRODUCTION

LT3991IMSE-3.3#PBF

PRODUCTION

LT3991IMSE-3.3#TRPBF

PRODUCTION

LT3991IMSE-5#PBF

PRODUCTION

LT3991IMSE-5#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1526A

LT3991EMSE Demo Board | 55V, 1.2A, Step-Down Regulator with 2.8µA Quiescent Current

zoom

DC1526A

LT3991EMSE Demo Board | 55V, 1.2A, Step-Down Regulator with 2.8µA Quiescent Current

LT3991EMSE Demo Board | 55V, 1.2A, Step-Down Regulator with 2.8µA Quiescent Current

Product Detail

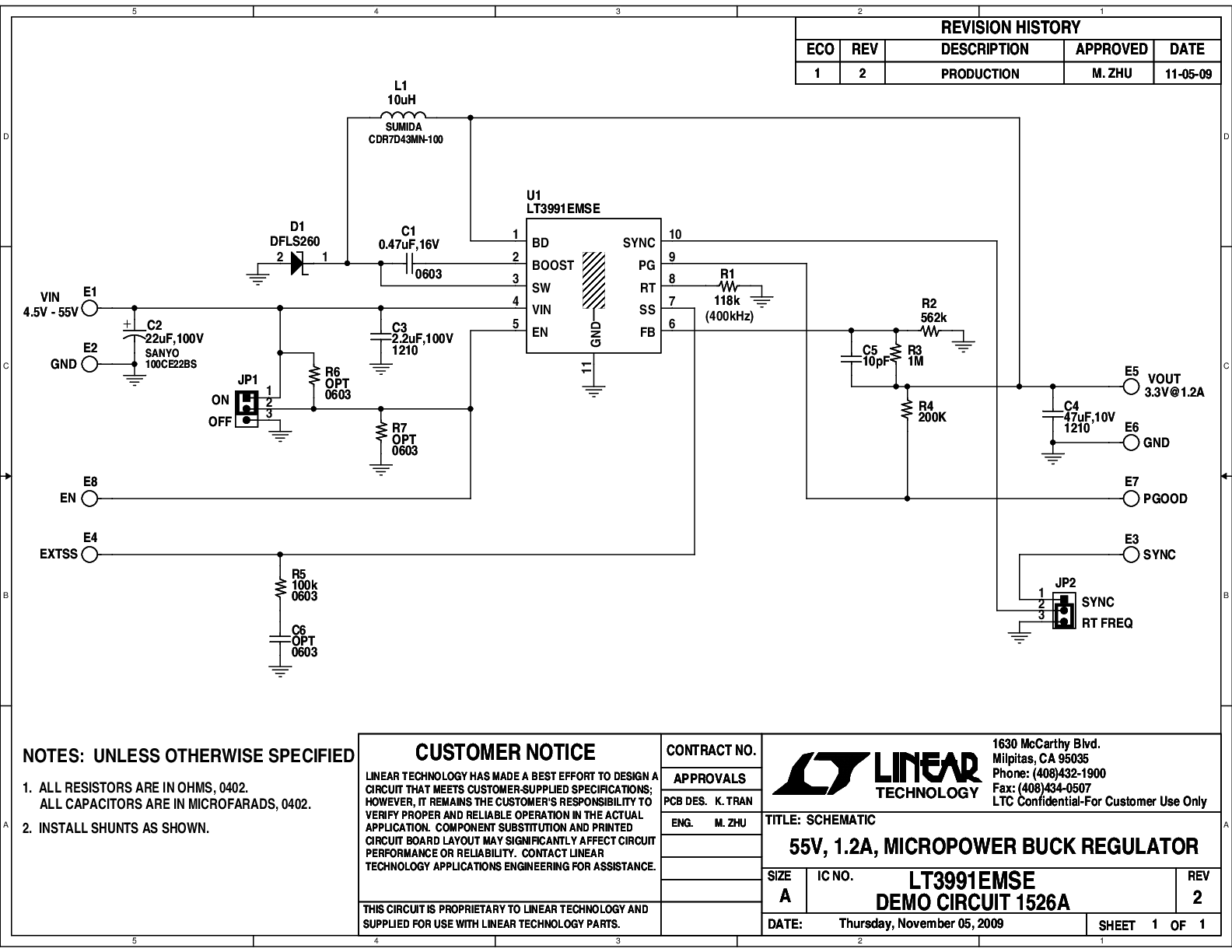

Demonstration circuit 1526 is a monolithic step-down DC/DC switching regulator featuring the LT3991. The switching frequency is adjustable up to 2MHz. The demo circuit is designed for 3.3V, 1.2A output from a 4.5V to 55V input. The wide input range of the LT3991 allows a variety of input sources including automotive batteries and 24V industrial supplies. Low ripple Burst Mode increases the efficiency at the light load while keeping the output ripple below 15mV. The part is in shutdown when the EN pin is low and active when the pin is high. The threshold of the EN pin is accurate at 1.01V with 30mV of hysteresis. When VIN is above 6V, adding a resistor divider from VIN to EN can program the LT3991 to regulate the output only when VIN is above a desired voltage. The circuit consumes only 2.8μA of quiescent current. The boost diode, control and logic circuit are integrated to reduce the components count and solution size. The current mode control scheme creates fast transient response and good loop stability.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
