LT3695 Series

Name: LT3695
Brand: Analog Devices
Price: 4.92 USD
Availability: InStock

PRODUCTION

1A Fault Tolerant Micropower Step-Down Regulator

Data Sheet Product Selection Table

Part Models: 18
1ku List Price: Starting From $4.92

Viewing:

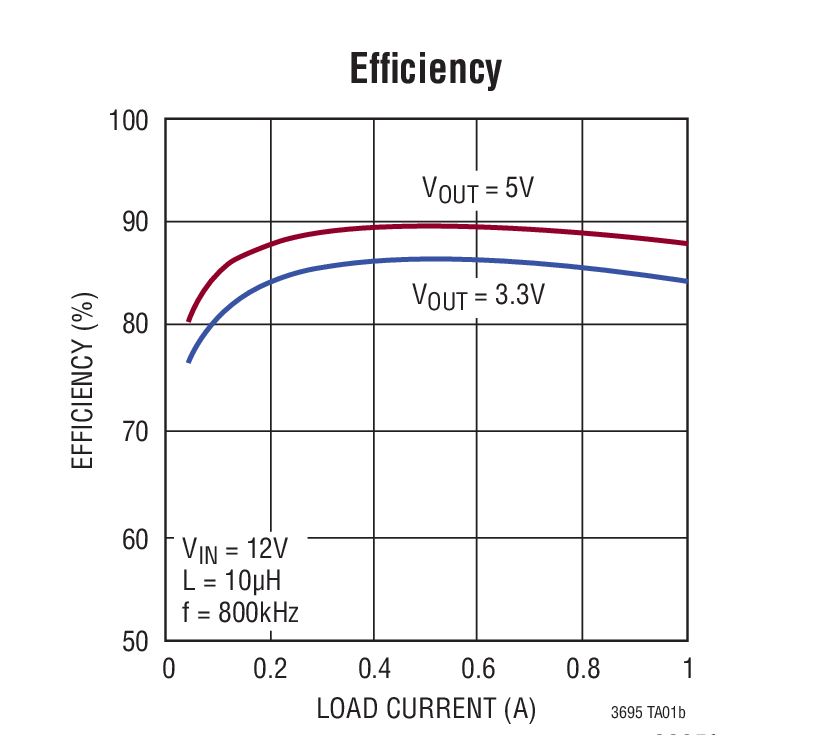

Overview

Wide Input Range:

Operation from 3.6V to 36V
Overvoltage Lockout Protects Circuits Through 60V Transients

FMEA Fault Tolerant:

Output Stays at or Below Regulation Voltage
During Adjacent Pin Short or When a Pin Is Left Floating

1A Output Current
Low Ripple (< 15mV_P-P) Burst Mode^®Operation

I_Q = 75μA for 12V_IN to 3.3V_OUT with No Load

Adjustable Switching Frequency: 250kHz to 2.2MHz
Short-Circuit Protected
Synchronizable Between 300kHz and 2.2MHz
Output Voltage: 0.8V to 20V
Power Good Flag
Fixed Output Voltage Versions for 3.3V and 5V Available
Small, Thermally Enhanced 16-Pin MSOP Package

Part Models: 18
1ku List Price: Starting From $4.92

Documentation

Data Sheet 1

LT3695: 1A Fault Tolerant Micropower Step-Down Regulator Data Sheet 11/17/2009

User Guide 2

DC1578A - Demo Manual 06/17/2010

DC1519A - Demo Manual 11/04/2009

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

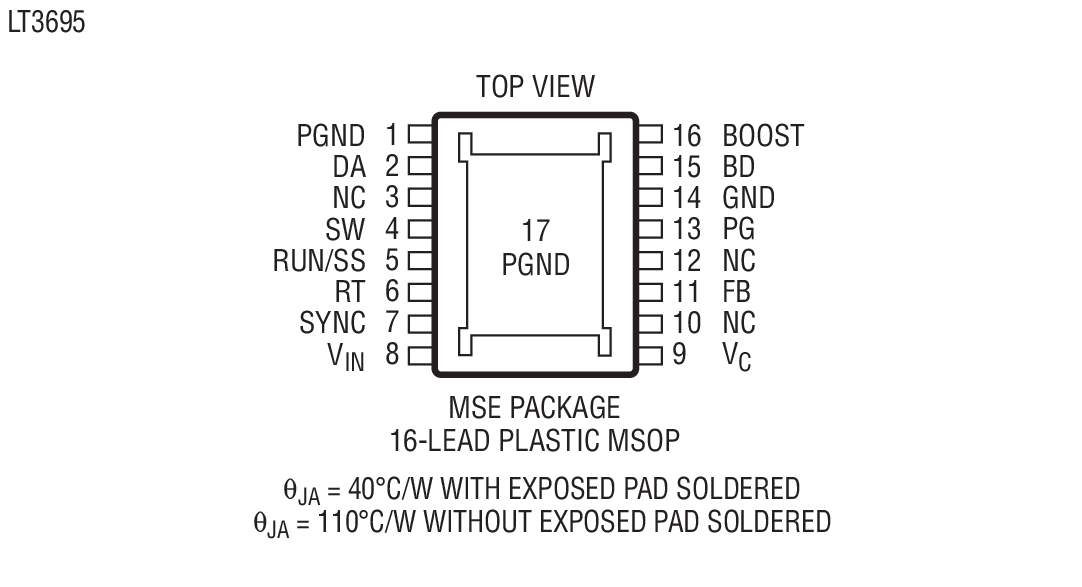

LT3695EMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695EMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

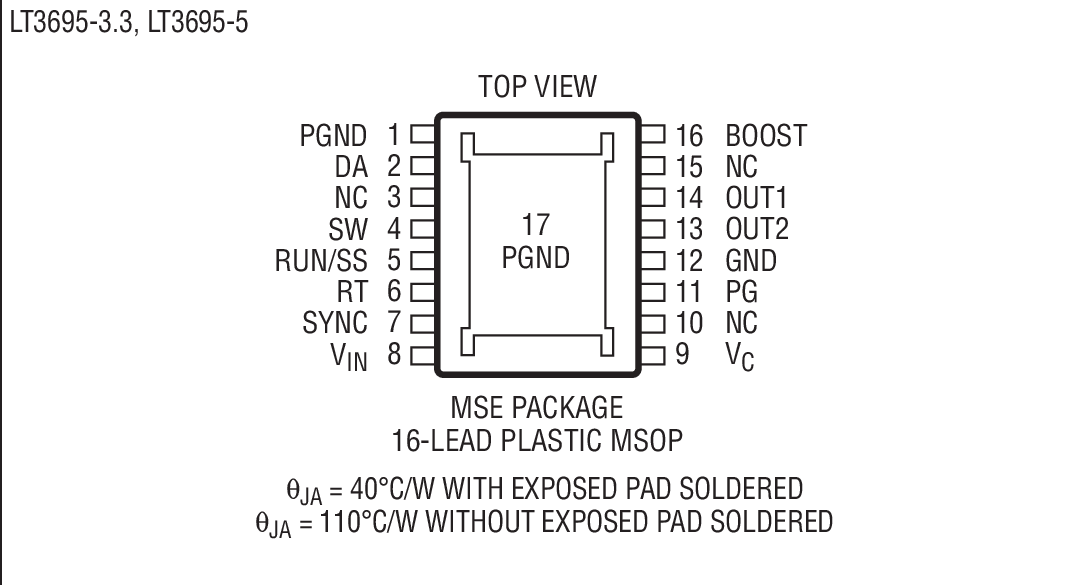

LT3695EMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695EMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695EMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695EMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695HMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT3695IMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report
LT3695EMSE#PBF	PRODUCTION
LT3695EMSE#TRPBF	PRODUCTION
LT3695EMSE-3.3#PBF	PRODUCTION
LT3695EMSE-3.3#TRPBF	PRODUCTION
LT3695EMSE-5#PBF	PRODUCTION
LT3695EMSE-5#TRPBF	PRODUCTION
LT3695HMSE#PBF	PRODUCTION
LT3695HMSE#TRPBF	PRODUCTION
LT3695HMSE-3.3#PBF	PRODUCTION
LT3695HMSE-3.3#TRPBF	PRODUCTION
LT3695HMSE-5#PBF	PRODUCTION
LT3695HMSE-5#TRPBF	PRODUCTION
LT3695IMSE#PBF	PRODUCTION
LT3695IMSE#TRPBF	PRODUCTION
LT3695IMSE-3.3#PBF	PRODUCTION
LT3695IMSE-3.3#TRPBF	PRODUCTION
LT3695IMSE-5#PBF	PRODUCTION
LT3695IMSE-5#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0132_Form Material_Report
LT3695EMSE#PBF	PRODUCTION
LT3695EMSE#TRPBF	PRODUCTION
LT3695EMSE-3.3#PBF	PRODUCTION
LT3695EMSE-3.3#TRPBF	PRODUCTION
LT3695EMSE-5#PBF	PRODUCTION
LT3695EMSE-5#TRPBF	PRODUCTION
LT3695HMSE#PBF	PRODUCTION
LT3695HMSE#TRPBF	PRODUCTION
LT3695HMSE-3.3#PBF	PRODUCTION
LT3695HMSE-3.3#TRPBF	PRODUCTION
LT3695HMSE-5#PBF	PRODUCTION
LT3695HMSE-5#TRPBF	PRODUCTION
LT3695IMSE#PBF	PRODUCTION
LT3695IMSE#TRPBF	PRODUCTION
LT3695IMSE-3.3#PBF	PRODUCTION
LT3695IMSE-3.3#TRPBF	PRODUCTION
LT3695IMSE-5#PBF	PRODUCTION
LT3695IMSE-5#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Hot Swap Controllers 1
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
Ideal Diodes and PowerPath Controllers 1
LTC4359	RECOMMENDED FOR NEW DESIGNS	Ideal Diode Controller with Reverse Input Protection
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement

Tools & Simulations

LTspice 1

LT3695 Demo Circuit - 1A Fault Tolerant µPower Step-Down Regulator (12V to 5V @ 1A)

Models for the following parts are available in LTspice:

LT3695
LT3695-3.3
LT3695-5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT3695EMSE Demo Board | Fault-Tolerant, 6.9V ≤ VIN ≤ 36/60V, VOUT = 5V @ 1A

Buy Now View Details

Product Details

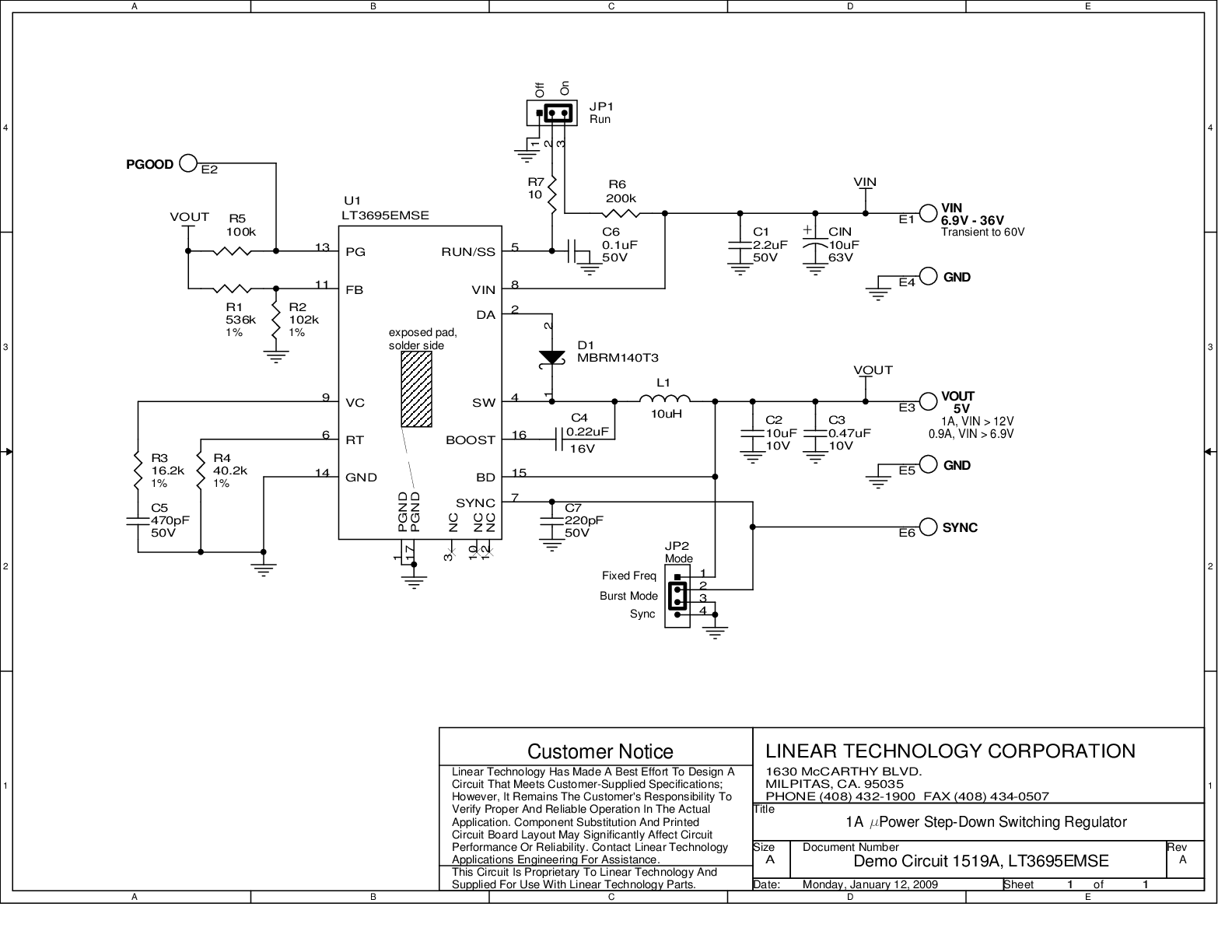

Demonstration circuit 1591A is a monolithic step-down switching regulator featuring the LT3695EMSE. The demo board is designed for 5V/1A output from a 6.9V to 36V input, with transients up to 60V. The LT3695 tolerates adjacent pin shorts or an open pin without raising the output voltage above its programmed value.

Resources

DC1519A - Demo Manual
11/4/2009

DC1519A - Design Files
11/4/2009

DC1519A - Schematic
11/4/2009

LT3695EMSE-3.3 Demo Board | Fault-Tolerant, 4.5V ≤ VIN ≤ 36/60V, VOUT = 3.3V @ 1A

Buy Now View Details

Product Details

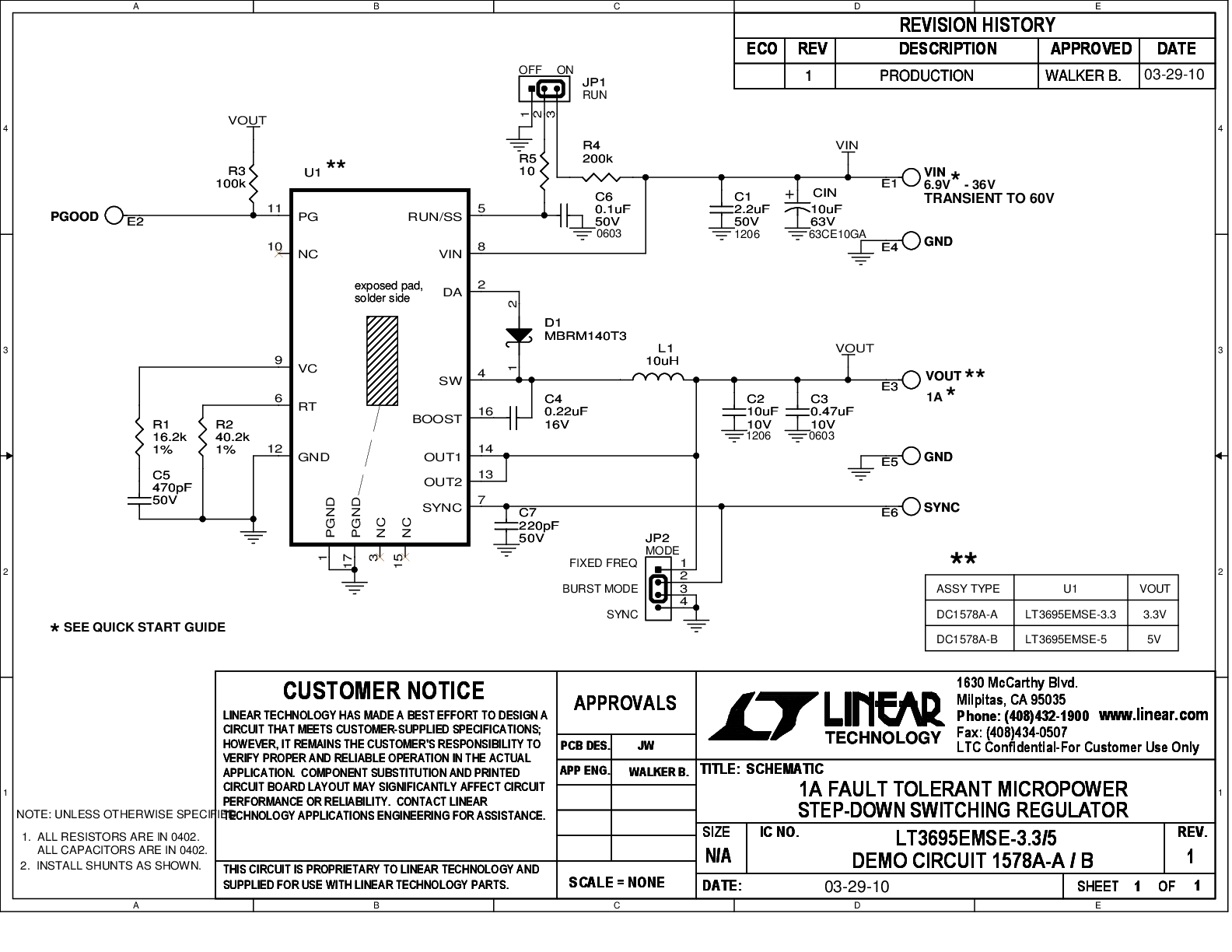

Demonstration circuit 1578A-A is a micropower monolithic step-down DC/DC switching regulator featuring the fixed 3.3V output LT3695-3.3. The demo board operates from 4.5V to 36V and can withstand input voltage transients up to 60V. It provides 3.3V @ 1A at its output. The LT3695 family tolerates adjacent pin shorts or an open pin without raising the output voltage above its programmed value.

Resources

DC1578A - Schematic
5/3/2012

DC1578A - Demo Manual
6/17/2010

DC1578A - Design Files
6/17/2010

LT3695EMSE-5 Demo Board | Fault-Tolerant, 6.9V ≤ VIN ≤ 36/60V, VOUT = 5V @ 1A

Buy Now View Details

Product Details

Demonstration circuit 1578A-B is a micropower monolithic step-down DC/DC switching regulator featuring the fixed 5V output LT3695-5. The demo board operates from 6.9V to 36V and can withstand input voltage transients up to 60V. It provides 5V @ 1A at its output. The LT3695 family tolerates adjacent pin shorts or an open pin without raising the output voltage above its programmed value.
