LT3663

1.2A Step-Down Switching Regulator with Output Current Limit

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 27
1ku List Price Starting From $3.01
Features
  • Wide Input Range:
    • Operation from 7.5V to 36V
    • Overvoltage Lockout Protects Circuit through 60V Transients
  • Programmable Output Current Limit (0.4A to 1.2A)
  • 3.3V and 5V Fixed Output Voltage Options
  • Integrated Boost Diode
  • Fixed Frequency, Peak Current Mode Control
    • LT3663 fSW = 1.5MHz
    • LT3663-X fSW = 1MHZ
  • Low Switch VCESAT: 275mV at 1A
  • Internally Compensated
  • Thermal Protection
  • Thermally Enhanced 8-Pin 2mm × 3mm DFN and
Additional Details
show more Icon

The LT3663 is a current mode step-down switching regulator with programmable output current limit. The current limit accurately controls the system power dissipation and reduces the size of the power path components.

The wide operating input voltage range of 7.5V to 36V (60V transient) suits the LT3663 to a variety of input sources, including unregulated 12V wall adapters, 24V industrial supplies, and automotive power.

The LT3663 includes a low current shutdown mode, input overvoltage and undervoltage lockout, and thermal shutdown. Internal compensation and boost diode minimize the number of external exponents. 3.3V and 5V fixed output voltage versions are available.

The LT3663 is available in 8-lead DFN and MSOP packages with exposed pads for low thermal resistance.

Applications

  • Distributed Supply Regulation
  • Automotive Battery Regulation
  • Industrial Supplies
  • Wall Transformer Regulation
Part Models 27
1ku List Price Starting From $3.01

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3663EDCB#TRMPBF
  • HTML
  • HTML
LT3663EDCB#TRPBF
  • HTML
  • HTML
LT3663EDCB-3.3#TRMPBF
  • HTML
  • HTML
LT3663EDCB-3.3#TRPBF
  • HTML
  • HTML
LT3663EDCB-5#TRMPBF
  • HTML
  • HTML
LT3663EDCB-5#TRPBF
  • HTML
  • HTML
LT3663EMS8E#PBF
  • HTML
  • HTML
LT3663EMS8E#TRPBF
  • HTML
  • HTML
LT3663EMS8E-3.3#PBF
  • HTML
  • HTML
LT3663EMS8E-3.3#TRPBF
  • HTML
  • HTML
LT3663EMS8E-5#PBF
  • HTML
  • HTML
LT3663EMS8E-5#TRPBF
  • HTML
  • HTML
LT3663HMS8E#PBF
  • HTML
  • HTML
LT3663HMS8E#TRPBF
  • HTML
  • HTML
LT3663HMS8E-3.3#PBF
  • HTML
  • HTML
LT3663HMS8E-3.3#TRPBF
  • HTML
  • HTML
LT3663HMS8E-5#PBF
  • HTML
  • HTML
LT3663HMS8E-5#TRPBF
  • HTML
  • HTML
LT3663IDCB#TRMPBF
  • HTML
  • HTML
LT3663IDCB#TRPBF
  • HTML
  • HTML
LT3663IDCB-5#TRPBF
  • HTML
  • HTML
LT3663IMS8E#PBF
  • HTML
  • HTML
LT3663IMS8E#TRPBF
  • HTML
  • HTML
LT3663IMS8E-3.3#PBF
  • HTML
  • HTML
LT3663IMS8E-3.3#TRPBF
  • HTML
  • HTML
LT3663IMS8E-5#PBF
  • HTML
  • HTML
LT3663IMS8E-5#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3663EMS8E#PBF

PRODUCTION

LT3663EMS8E#TRPBF

PRODUCTION

LT3663EMS8E-3.3#PBF

PRODUCTION

LT3663EMS8E-3.3#TRPBF

PRODUCTION

LT3663EMS8E-5#PBF

PRODUCTION

LT3663EMS8E-5#TRPBF

PRODUCTION

LT3663HMS8E#PBF

PRODUCTION

LT3663HMS8E#TRPBF

PRODUCTION

LT3663HMS8E-3.3#PBF

PRODUCTION

LT3663HMS8E-3.3#TRPBF

PRODUCTION

LT3663HMS8E-5#PBF

PRODUCTION

LT3663HMS8E-5#TRPBF

PRODUCTION

LT3663IMS8E#PBF

PRODUCTION

LT3663IMS8E#TRPBF

PRODUCTION

LT3663IMS8E-3.3#PBF

PRODUCTION

LT3663IMS8E-3.3#TRPBF

PRODUCTION

LT3663IMS8E-5#PBF

PRODUCTION

LT3663IMS8E-5#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3663EMS8E#PBF

PRODUCTION

LT3663EMS8E#TRPBF

PRODUCTION

LT3663EMS8E-3.3#PBF

PRODUCTION

LT3663EMS8E-3.3#TRPBF

PRODUCTION

LT3663EMS8E-5#PBF

PRODUCTION

LT3663EMS8E-5#TRPBF

PRODUCTION

LT3663HMS8E#PBF

PRODUCTION

LT3663HMS8E#TRPBF

PRODUCTION

LT3663HMS8E-3.3#PBF

PRODUCTION

LT3663HMS8E-3.3#TRPBF

PRODUCTION

LT3663HMS8E-5#PBF

PRODUCTION

LT3663HMS8E-5#TRPBF

PRODUCTION

LT3663IMS8E#PBF

PRODUCTION

LT3663IMS8E#TRPBF

PRODUCTION

LT3663IMS8E-3.3#PBF

PRODUCTION

LT3663IMS8E-3.3#TRPBF

PRODUCTION

LT3663IMS8E-5#PBF

PRODUCTION

LT3663IMS8E-5#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3663EMS8E#PBF

PRODUCTION

LT3663EMS8E#TRPBF

PRODUCTION

LT3663EMS8E-3.3#PBF

PRODUCTION

LT3663EMS8E-3.3#TRPBF

PRODUCTION

LT3663EMS8E-5#PBF

PRODUCTION

LT3663EMS8E-5#TRPBF

PRODUCTION

LT3663HMS8E#PBF

PRODUCTION

LT3663HMS8E#TRPBF

PRODUCTION

LT3663HMS8E-3.3#PBF

PRODUCTION

LT3663HMS8E-3.3#TRPBF

PRODUCTION

LT3663HMS8E-5#PBF

PRODUCTION

LT3663HMS8E-5#TRPBF

PRODUCTION

LT3663IMS8E#PBF

PRODUCTION

LT3663IMS8E#TRPBF

PRODUCTION

LT3663IMS8E-3.3#PBF

PRODUCTION

LT3663IMS8E-3.3#TRPBF

PRODUCTION

LT3663IMS8E-5#PBF

PRODUCTION

LT3663IMS8E-5#TRPBF

PRODUCTION

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3663EMS8E#PBF

PRODUCTION

LT3663EMS8E#TRPBF

PRODUCTION

LT3663EMS8E-3.3#PBF

PRODUCTION

LT3663EMS8E-3.3#TRPBF

PRODUCTION

LT3663EMS8E-5#PBF

PRODUCTION

LT3663EMS8E-5#TRPBF

PRODUCTION

LT3663HMS8E#PBF

PRODUCTION

LT3663HMS8E#TRPBF

PRODUCTION

LT3663HMS8E-3.3#PBF

PRODUCTION

LT3663HMS8E-3.3#TRPBF

PRODUCTION

LT3663HMS8E-5#PBF

PRODUCTION

LT3663HMS8E-5#TRPBF

PRODUCTION

LT3663IMS8E#PBF

PRODUCTION

LT3663IMS8E#TRPBF

PRODUCTION

LT3663IMS8E-3.3#PBF

PRODUCTION

LT3663IMS8E-3.3#TRPBF

PRODUCTION

LT3663IMS8E-5#PBF

PRODUCTION

LT3663IMS8E-5#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 3

reference details image

DC1570A-A

LT3663EDCB-3.3 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, Vout = 3.3V @ 0.6A to 1.2A

zoom

DC1570A-A

LT3663EDCB-3.3 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, Vout = 3.3V @ 0.6A to 1.2A

LT3663EDCB-3.3 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, Vout = 3.3V @ 0.6A to 1.2A

Product Detail

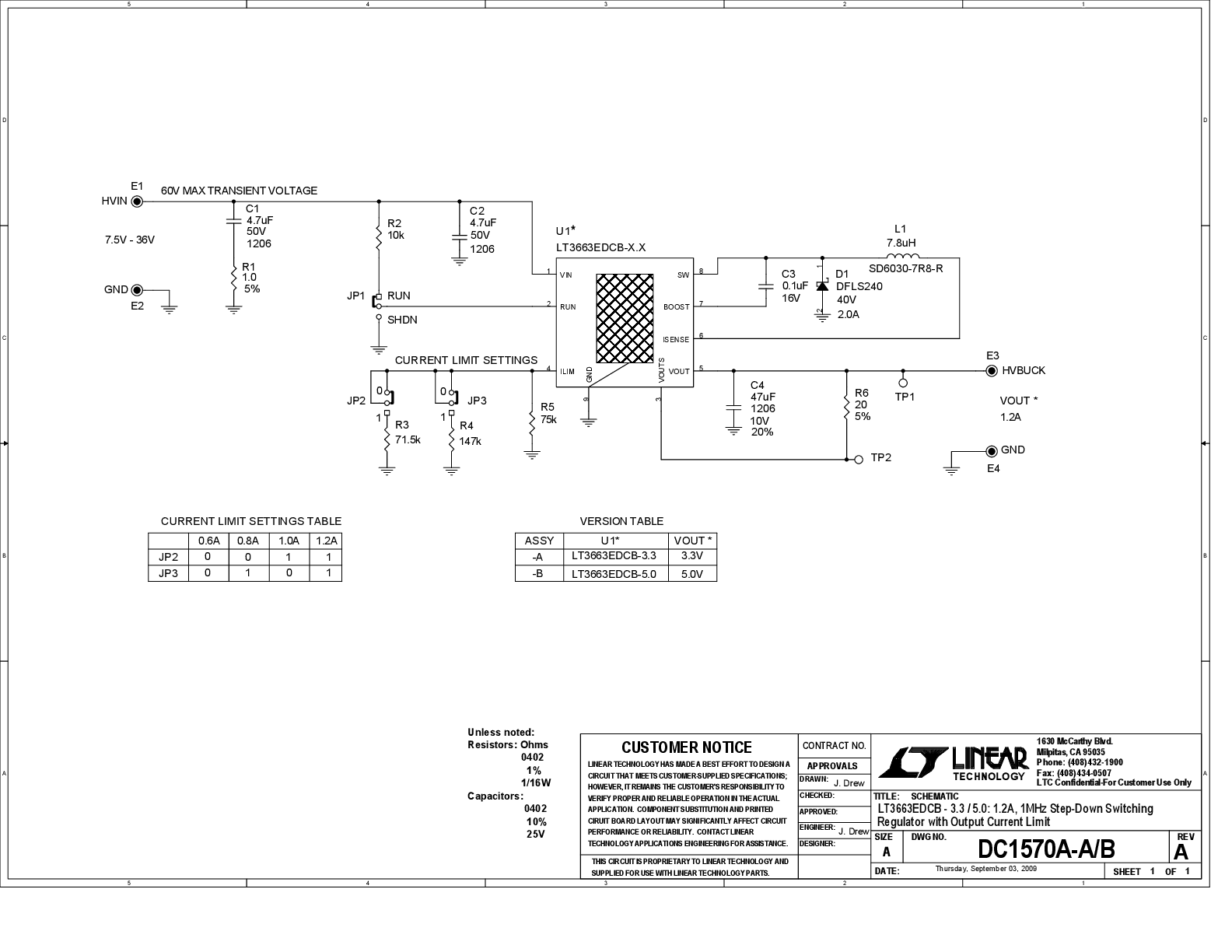

Demonstration Circuit 1570 is a 1.0MHz current mode step-down switching regulator with programmable output current limit. The current limit accurately controls the system power dissipation and reduces the size of the power path components. The demo board operates with a 7.5V to 36V (60 transients) input voltage range and provides a 3.3V output. The current limit can be set to 0.6A, 0.AV, 1A or 1.2A using jumpers J2 and J3.



reference details image

DC1570A-B

LT3663EDCB-5 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 5V @ 0.6A to 1.2A

zoom

DC1570A-B

LT3663EDCB-5 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 5V @ 0.6A to 1.2A

LT3663EDCB-5 Demo Board | Adj Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 5V @ 0.6A to 1.2A

Product Detail

Demonstration Circuit 1570 is a 1.0MHz current mode step-down switching regulator with programmable output current limit. The current limit accurately controls the system power dissipation and reduces the size of the power path components. The demo board operates with a 7.5V to 36V (60 transients) input voltage range and provides a 5V output. The current limit can be set to 0.6A, 0.8A, 1A or 1.2A using jumpers J2 and J3.





reference details image

DC1419A

LT3663EDCB Demo Board | Adjustable Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 3.3V or 5V @ 0.6A to 1.2A

zoom

DC1419A

LT3663EDCB Demo Board | Adjustable Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 3.3V or 5V @ 0.6A to 1.2A

LT3663EDCB Demo Board | Adjustable Current Limit, 7.5V ≤ VIN ≤ 36/60V, VOUT = 3.3V or 5V @ 0.6A to 1.2A

Product Detail

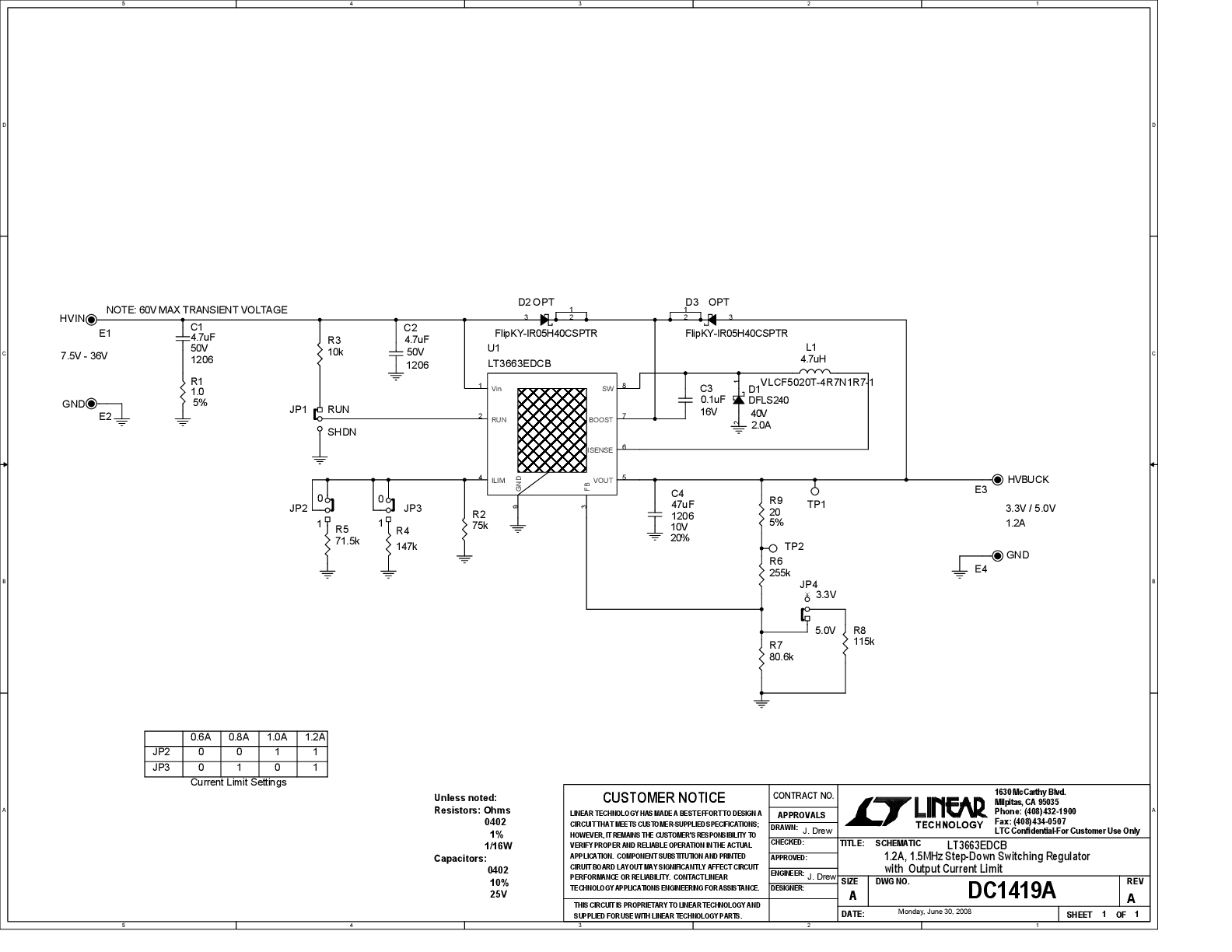

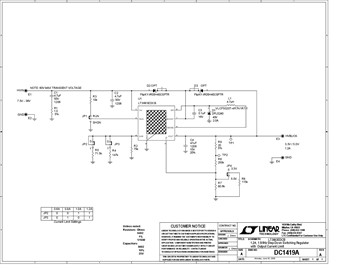

Demonstration Circuit 1419 is a 1.5MHz current mode step-down switching regulator with programmable output current limit featuring the LT3663. The current limit accurately controls the system power dissipation and reduces the size of the power path components. The demo board operates with a 7.5V to 36V (60 transients) input voltage range. The output can be set to 3.3V or 5V using jumper J4, and the current limit can be set to 0.6V, 0.8V, 1V or 1.2V using jumpers J2 and J3.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
