LT3650-8.X

High Voltage 2 Amp Monolithic 2-Cell Li-Ion Battery Charger

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT3650-8.4 Demo Circuit - Two-Cell Li-Ion 2A Charger (12-32V to 8.4V @ 2A) Download 3.00KB LTspice LT3650-8.2 - Battery Charger IC Download 1.57 KB
Part Models 16
1ku List Price Starting From $3.37
Features
  • Wide Input Voltage Range: 9V to 32V (40V Absolute Maximum)
  • Programmable Charge Current: Up to 2A
  • User-Selectable Termination: C/10 or Onboard Termination Timer
  • Dynamic Charge Rate Programming/Soft-Start Pin
  • Programmable Input Current Limit
  • 1MHz Fixed Frequency
  • Average Current Mode Control
  • 0.5% Float Voltage Accuracy
  • 5% Charge Current Accuracy
  • 2.5% C/10 Detection Accuracy
  • NTC Resistor Temperature Monitor
  • Auto-Recharge at 97.5% Float Voltage
  • Auto-Precondition at <70% Float Voltage
  • Bad Battery Detection with Auto-Reset
  • Binary Coded Open-Collector Status Pins
  • 3mm × 3mm DFN-12 or MSOP-12 Package
Additional Details
show more Icon

The LT3650 is a complete monolithic 2-cell Li-Ion/Polymer battery charger that operates over a 9V to 32V input voltage range (11.5V minimum start-up voltage). The LT3650 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A, set using an external current sense resistor. A precondition feature trickle-charges a low voltage battery, and bad-battery detection provides a signal and suspends charging if a battery does not respond to preconditioning.

The LT3650 can be configured to terminate charging when charge current falls to C/10, or one-tenth the programmed maximum current. Once charging is terminated, the LT3650 enters a low current (85μA) standby mode. An auto-restart feature starts a new charging cycle if the battery voltage drops 2.5% from the float voltage, or if a new battery is inserted into a charging system.

The LT3650 contains a user-programmable internal safety timer (typically set to a three hour full cycle time). The IC can be configured to use this internal timer if a time-based termination scheme is desired in which charging can continue below C/10 until a desired time is reached.

The LT3650 is available in a low profile (0.75mm) 3mm × 3mm 12-pin DFN and 12-pin MSOP packages.


 Float Voltage
LT3650-4.1 4.1V
LT3650-4.2 4.2V
LT3650-8.2 8.2V
LT3650-8.4 8.4V

Applications

  • Industrial Handheld Instruments
  • 12V to 24V Automotive and Heavy Equipment
  • Desktop Cradle Chargers
  • Notebook Computers
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT3650-8.4 Demo Circuit - Two-Cell Li-Ion 2A Charger (12-32V to 8.4V @ 2A) Download 3.00KB LTspice LT3650-8.2 - Battery Charger IC Download 1.57 KB
Part Models 16
1ku List Price Starting From $3.37
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT3650-8.X

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • User Guide
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/19/2012
English

LT3650-8.2: High Voltage 2 Amp Monolithic 2-Cell Li-Ion Battery Charger Data Sheet

Open PDF File

redirect
278.00K
download

Download PDF

PDF Vector

PDF

UPDATED 03/05/2013
Japanese

LT3650-8.2: 高電圧2Aモノリシック2セル・リチウムイオンバッテリ・チャージャ データシート

Open PDF File

redirect
553.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R541 Reliability Data redirect icon

17.69 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 09/24/2009
English
DC1473A - Demo Manual redirect icon

397.00K

download

Download PDF

Application Note

2

PDF Vector

HTML

UPDATED 06/01/2020
English
Reverse Voltage Protection for Battery Chargers redirect icon

PDF Vector

HTML

UPDATED 06/01/2020
Chinese
电池充电器的反向电压保护 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3650EDD-8.2#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EDD-8.2#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EDD-8.4#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EDD-8.4#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EMSE-8.2#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EMSE-8.2#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EMSE-8.4#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650EMSE-8.4#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IDD-8.2#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IDD-8.2#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IDD-8.4#PBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IDD-8.4#TRPBF 12-Lead DFN (3mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IMSE-8.2#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IMSE-8.2#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IMSE-8.4#PBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT3650IMSE-8.4#TRPBF 12-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3650EMSE-8.2#PBF

PRODUCTION

LT3650EMSE-8.2#TRPBF

PRODUCTION

LT3650EMSE-8.4#PBF

PRODUCTION

LT3650EMSE-8.4#TRPBF

PRODUCTION

LT3650IMSE-8.2#PBF

PRODUCTION

LT3650IMSE-8.2#TRPBF

PRODUCTION

LT3650IMSE-8.4#PBF

PRODUCTION

LT3650IMSE-8.4#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3650EMSE-8.2#PBF

PRODUCTION

LT3650EMSE-8.2#TRPBF

PRODUCTION

LT3650EMSE-8.4#PBF

PRODUCTION

LT3650EMSE-8.4#TRPBF

PRODUCTION

LT3650IMSE-8.2#PBF

PRODUCTION

LT3650IMSE-8.2#TRPBF

PRODUCTION

LT3650IMSE-8.4#PBF

PRODUCTION

LT3650IMSE-8.4#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT3650EMSE-8.2#PBF

PRODUCTION

LT3650EMSE-8.2#TRPBF

PRODUCTION

LT3650EMSE-8.4#PBF

PRODUCTION

LT3650EMSE-8.4#TRPBF

PRODUCTION

LT3650IMSE-8.2#PBF

PRODUCTION

LT3650IMSE-8.2#TRPBF

PRODUCTION

LT3650IMSE-8.4#PBF

PRODUCTION

LT3650IMSE-8.4#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LT3650EMSE-8.2#PBF

PRODUCTION

LT3650EMSE-8.2#TRPBF

PRODUCTION

LT3650EMSE-8.4#PBF

PRODUCTION

LT3650EMSE-8.4#TRPBF

PRODUCTION

LT3650IMSE-8.2#PBF

PRODUCTION

LT3650IMSE-8.2#TRPBF

PRODUCTION

LT3650IMSE-8.4#PBF

PRODUCTION

LT3650IMSE-8.4#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

µModule Battery Chargers1
LTM8061
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

32V, 2A μModule (Power Module) Li-Ion/Polymer Battery Charger

Battery Fuel Gauge and Coulomb Counter1
LTC2943
popup image
Cart

PRODUCTION

Multicell Battery Gas Gauge with Temperature, Voltage and Current Measurement

Current Sense Amplifiers1
LTC4150
popup image
Cart

PRODUCTION

Coulomb Counter/Battery Gas Gauge

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Switching Battery Chargers1
LT3652HV
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Power Tracking 2A Battery Charger

Evaluation Kit

Evaluation Kits 2

reference details image

DC1473A-A

LT3650EDD-8.4 Demo Board | High Voltage 2 Amp Monolithic 2-Cell Li-Ion Battery Charger

reference details image

DC1473A-B

LT3650EDD-8.2 Demo Board | High Voltage 2 Amp Monolithic Li-Ion Battery Charger

Evaluation Kits2

evaluation kit item images

DC1473A-A

LT3650EDD-8.4 Demo Board | High Voltage 2 Amp Monolithic 2-Cell Li-Ion Battery Charger
evaluation kit item images

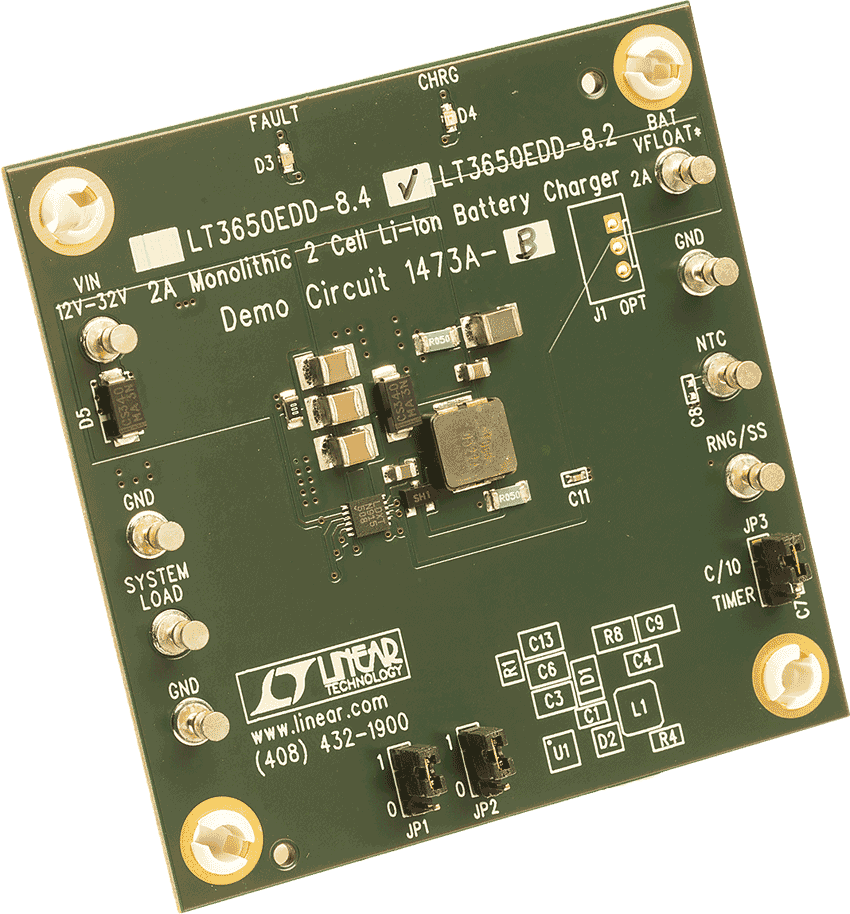

DC1473A-B
