Overview
Features and Benefits
- Wide Input Range: 3.1V to 25V
- Two Switching Regulators with 3A Output Capability
- Independent Supply to Each Regulator
- Adjustable/Synchronizable Fixed Frequency Operation from 250kHz to 1.5MHz
- Antiphase Switching
- Outputs Can be Paralleled
- Independent, Sequential, Ratiometric or Absolute Tracking Between Outputs
- Independent Soft-Start and Power Good Pins
- Enhanced Short-Circuit Protection
- Low Dropout: 95% Maximum Duty Cycle
- Low Shutdown Current: <10µA

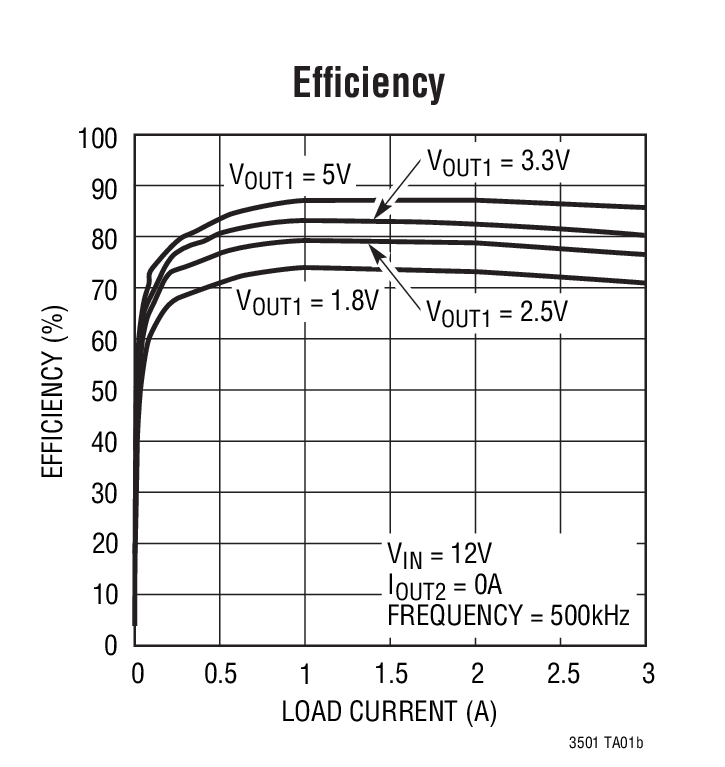

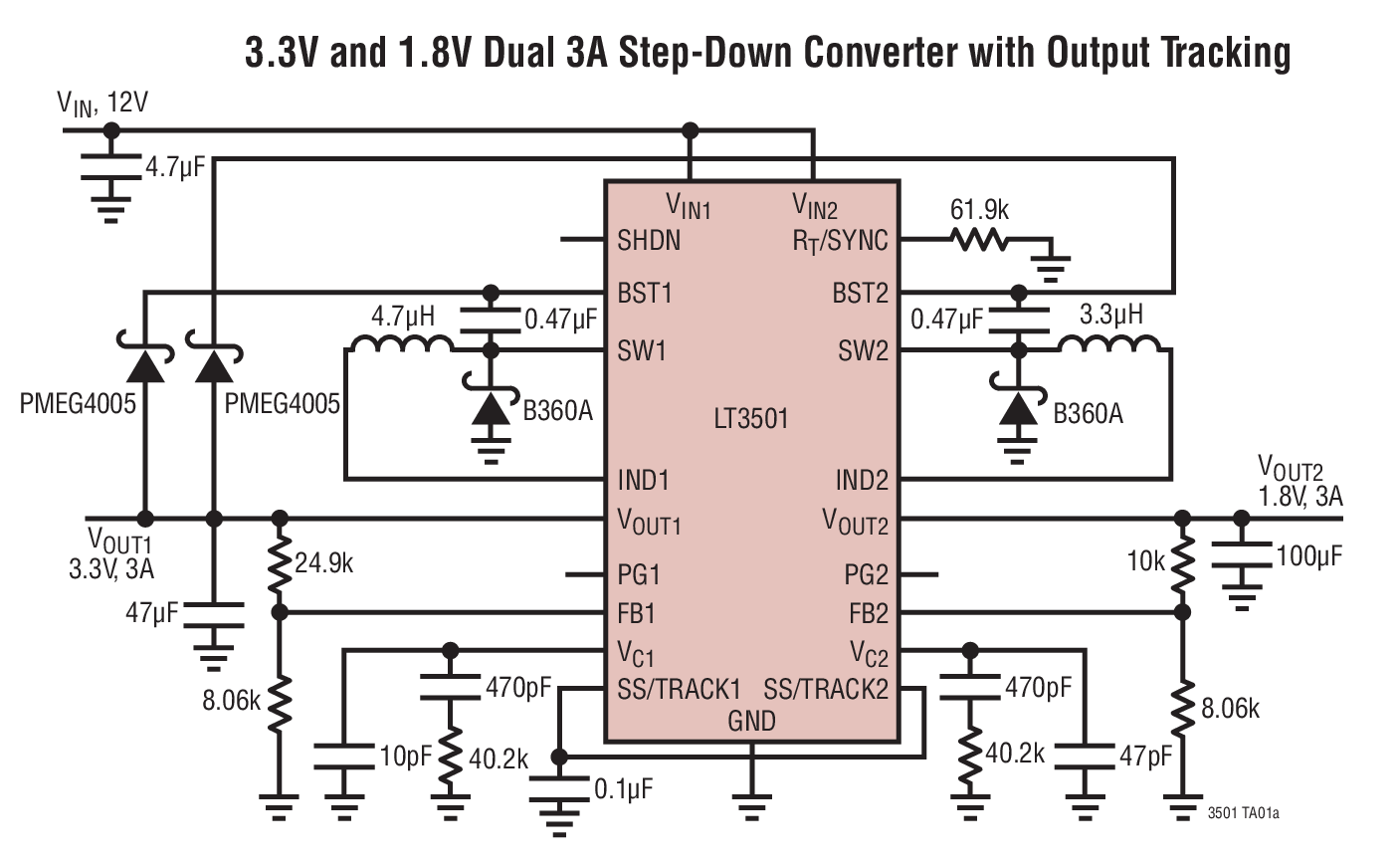

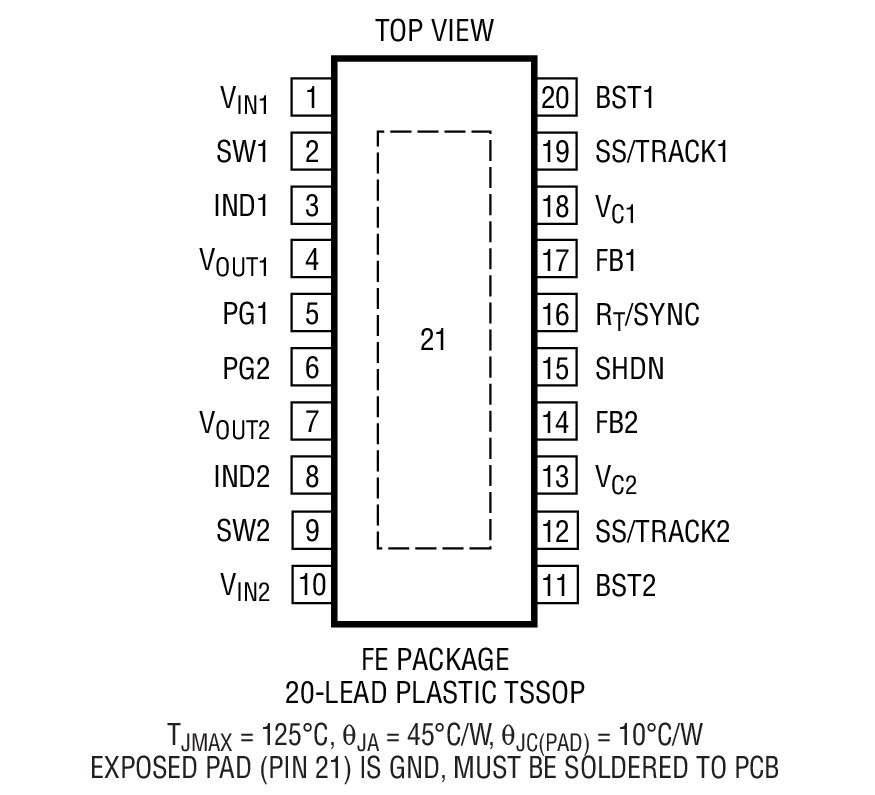

- 20-Lead TSSOP Package with Exposed Leadframe
Product Details
The LT3501 is a dual current mode PWM step-down DC/DC converter with two internal 3.5A switches. Independent input voltage, feedback, soft-start and power good pins for each channel simplify complex power supply tracking/sequencing requirements.
Both converters are synchronized to either a common external clock input or a resistor programmable fi xed 250kHz to 1.5MHz internal oscillator. At all frequencies, a 180° phase relationship between channels is maintained, reducing voltage ripple and component size. Programmable frequency allows for optimization between effi ciency and external component size.
Minimum input-to-output voltage ratios are improved by allowing the switch to stay on through multiple clock cycles, only switching off when the boost capacitor needs recharging, resulting in ~95% maximum duty cycle.
Each output can be independently disabled using its own soft-start pin, or by using the SHDN pin the entire part can be placed in a low quiescent current shutdown mode.
The LT3501 is available in a 20-lead TSSOP package with exposed leadframe for low thermal resistance.
Applications
- DSP Power Supplies
- Disc Drives
- DSL/Cable Modems
- Wall Transformer Regulation
- Distributed Power Regulation
