LT3496

Triple Output LED Driver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $4.19
Features
  • True Color PWM Dimming Delivers Up to 3000:1 Dimming Ratio
  • Built-In Gate Driver for PMOS LED Disconnect
  • Three Independent Driver Channels with 750mA, 45V Internal Switches
  • Operates in Buck, Boost, Buck-Boost Modes
  • CTRL Pin Accurately Sets LED Current Sense Threshold Over a Range of 10mV to 100mV
  • Adjustable Frequency: 330kHz to 2.1MHz
  • Open LED Protection
  • Wide VIN Supply Range:
    • Operation from 3V to 30V
    • Transient Protection to 40V
  • Surface Mount Components
  • 28-Lead (4mm × 5mm) QFN and TSSOP Packages
Additional Details
show more Icon

The LT3496 is a triple output DC/DC converter designed to operate as a constant-current source and is ideal for driving LEDs. The LT3496 works in buck, boost or buck-boost mode. The LT3496 uses a fixed frequency, current mode architecture resulting in stable operation over a wide range of supply and output voltages. A frequency adjust pin allows the user to program switching frequency between 330kHz and 2.1MHz to optimize efficiency and external component size.

The LT3496 supports 3000:1 dimming control on each channel. Each of the three regulators is independently operated by that channel’s PWM signal. The PWM feature allows precise adjustment of the color mixing or dimming ratio of the LED source. Each of the three channels has a built-in gate driver to drive an external LED-disconnect P-channel MOSFET, allowing high dimming range. The output current range of each channel of the LT3496 is programmed with an external sense resistor.

The CTRL pins are used to adjust the LED currents either for analog dimming or overtemperature protection.

Applications

  • RGB Lighting
  • Billboards and Large Displays
  • Automotive and Avionic Lighting
  • Constant-Current Sources
Part Models 10
1ku List Price Starting From $4.19

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3496EFE#PBF
  • HTML
  • HTML
LT3496EFE#TRPBF
  • HTML
  • HTML
LT3496EUFD#PBF
  • HTML
  • HTML
LT3496EUFD#TRPBF
  • HTML
  • HTML
LT3496HUFD#PBF
  • HTML
  • HTML
LT3496HUFD#TRPBF
  • HTML
  • HTML
LT3496IFE#PBF
  • HTML
  • HTML
LT3496IFE#TRPBF
  • HTML
  • HTML
LT3496IUFD#PBF
  • HTML
  • HTML
LT3496IUFD#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3496EFE#PBF

PRODUCTION

LT3496EFE#TRPBF

PRODUCTION

LT3496IFE#PBF

PRODUCTION

LT3496IFE#TRPBF

PRODUCTION

Feb 20, 2022

- 21_0269

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3496EUFD#PBF

PRODUCTION

LT3496EUFD#TRPBF

PRODUCTION

LT3496HUFD#PBF

PRODUCTION

LT3496HUFD#TRPBF

PRODUCTION

LT3496IUFD#PBF

PRODUCTION

LT3496IUFD#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LT3496EFE#PBF

PRODUCTION

LT3496EFE#TRPBF

PRODUCTION

LT3496IFE#PBF

PRODUCTION

LT3496IFE#TRPBF

PRODUCTION

Feb 20, 2022

- 21_0269

arrow down

Addition of Alternate Assembly Site ASE Taiwan for Select LFCSP Products

LT3496EUFD#PBF

PRODUCTION

LT3496EUFD#TRPBF

PRODUCTION

LT3496HUFD#PBF

PRODUCTION

LT3496HUFD#TRPBF

PRODUCTION

LT3496IUFD#PBF

PRODUCTION

LT3496IUFD#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC1288A

LT3496EUFD Demo Circuit | Buck-Boost or Boost Triple Output LED Driver, 8V ≤ VIN ≤ 16V, VLED up to 36V @ 200mA (×3)

zoom

DC1288A

LT3496EUFD Demo Circuit | Buck-Boost or Boost Triple Output LED Driver, 8V ≤ VIN ≤ 16V, VLED up to 36V @ 200mA (×3)

LT3496EUFD Demo Circuit | Buck-Boost or Boost Triple Output LED Driver, 8V ≤ VIN ≤ 16V, VLED up to 36V @ 200mA (×3)

Product Detail

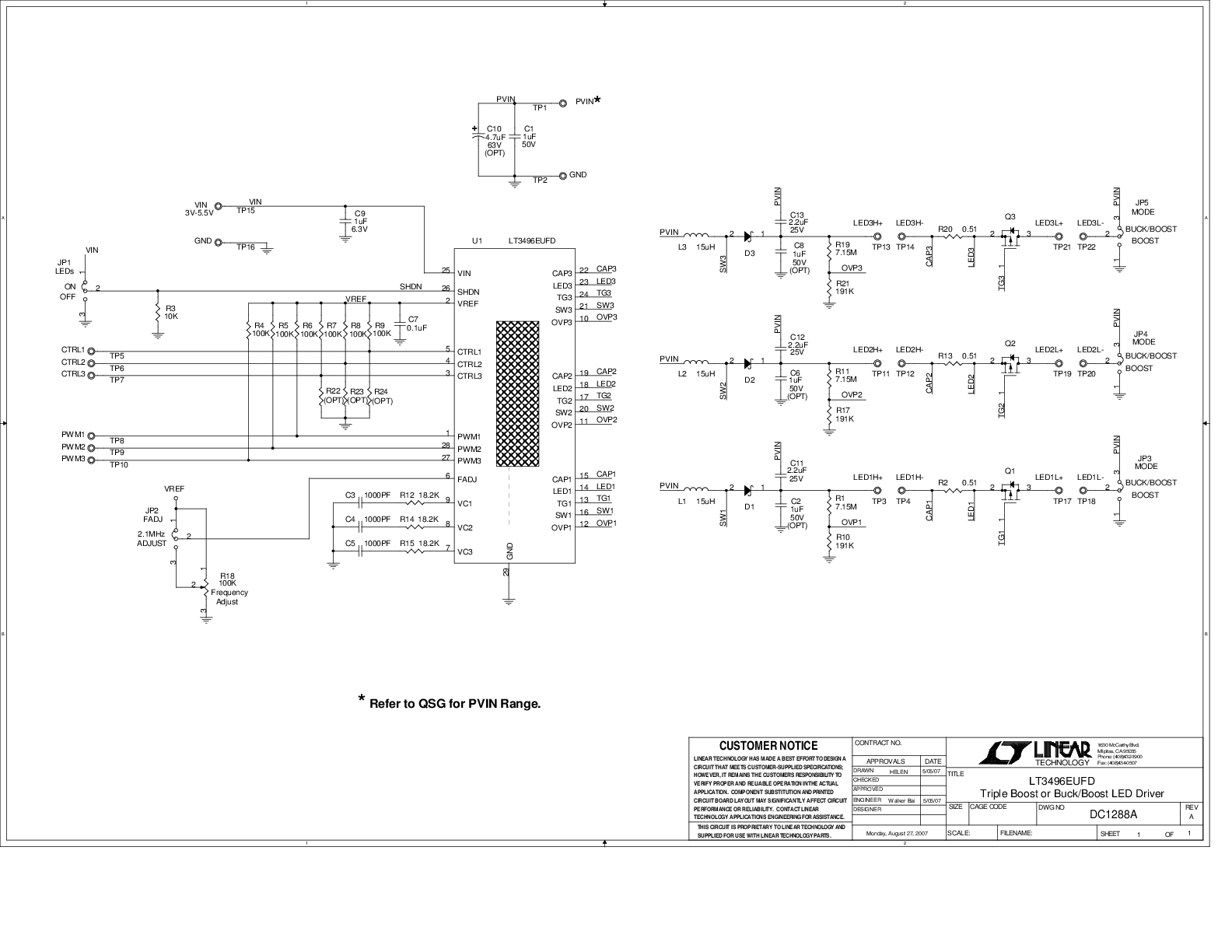

Demonstration circuit 1288 is a Triple Boost or Buck-Boost LED Driver featuring the LT3496EUFD (for evaluating an LT3496 buck mode LED driver, use the demonstration circuit 986). The LT3496 is a triple output DC/DC converter designed to operate as current sources for driving high current LEDs. The board can be configured as either a buck-boost (default) or boost solution. The current for each output is set at 200mA in either mode. The three LEDs are included in the demo board assembly.

The operating power input voltage (PVIN) range is 8V to 16V. The buck-boost circuit can tolerate an input voltage up to 40V when the LED string is on the high side. The part shuts down when the overvoltage threshold is reached. For a typical application with 5 LEDs totaling 16V of LED voltage, the circuit will operate until PVIN reaches 22V if the overvoltage protection is set to 38V.
reference details image

DC986A

LT3496EUFD Demo Circuit | Buck-Mode Triple LED Driver, 3V ≤ VIN ≤ 45V, VLED up to 45V (x3)

zoom

DC986A

LT3496EUFD Demo Circuit | Buck-Mode Triple LED Driver, 3V ≤ VIN ≤ 45V, VLED up to 45V (x3)

LT3496EUFD Demo Circuit | Buck-Mode Triple LED Driver, 3V ≤ VIN ≤ 45V, VLED up to 45V (x3)

Product Detail

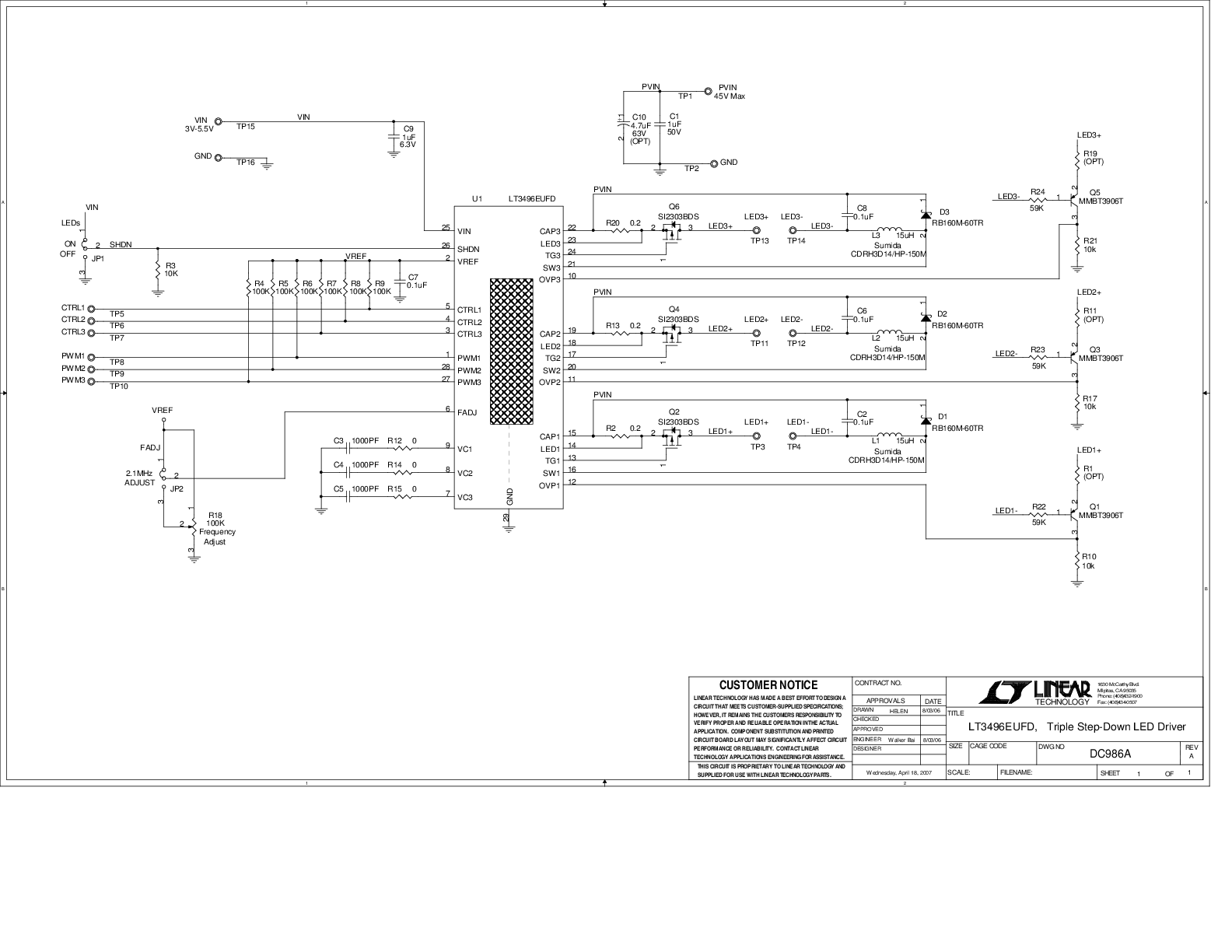

Demonstration circuit 986 is a Triple Step-Down LED Driver featuring the LT3496EUFD. The LT3496 is a triple output DC/DC converter designed to operate as current sources for driving high current LEDs. Each ofthe three regulators on the demo board is independently operated. The default current for each output channel is 500mA. The output current should not exceed the rated current of the LEDs used.  The maximum voltage of an LED string the demo board can drive is limited by the duty cycle and the input voltage of the LT3496.

The maximum power input voltage (PVIN ) is 45V. As a result, each channel of the demo board can drive up to ~31V total LED voltage. The LT3496's input voltage range is 3V to 30V (with 40V transients), however to minimize power dissipation the demo board uses a 3V to 5.5V supply.
