LT3027

RECOMMENDED FOR NEW DESIGNS

Dual 100mA, Low Dropout, Low Noise, Micropower Regulator with Independent Inputs

Data Sheet Product Selection Table
Viewing:

Overview

  • Low Noise: 20µVRMS (10Hz to 100kHz)
  • Low Quiescent Current: 25µA/Channel
  • Independent Inputs
  • Wide Input Voltage Range: 1.8V to 20V
  • Output Current: 100mA/Channel
  • Very Low Shutdown Current: <0.1µA
  • Low Dropout Voltage: 300mV at 100mA
  • Adjustable Output from 1.22V to 20V
  • Stable with 1µF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse Battery Protected
  • No Protection Diodes Needed
  • Overcurrent and Overtemperature Protected
  • Tracking/Sequencing Capability
  • Thermally Enhanced 10-Lead MSOP and DFN Packages
LT3027
Dual 100mA, Low Dropout, Low Noise, Micropower Regulator with Independent Inputs
3.3V/2.5V Low Noise Regulators 10Hz to 100kHz Output Noise Product Package 1 Product Package 2
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Technical Articles 1

Data Sheet

This is the most up-to-date revision of the Data Sheet.

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Ideal Diodes and PowerPath Controllers 1
LTC4417
RECOMMENDED FOR NEW DESIGNS Prioritized PowerPath™ Controller
Power System Management (PSM) & Sequencers 1
LTC2977
RECOMMENDED FOR NEW DESIGNS 8-Channel PMBus Power System Manager Featuring Accurate Output Voltage Measurement
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

  • LT3027
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
DC811A

LT3027EDD Demo Board | Dual Input, Dual Micropower Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, VOUT1 = VOUT2 = 2.5V/3.3V/5V @ 100mA

Buy Now View Details

Product Details

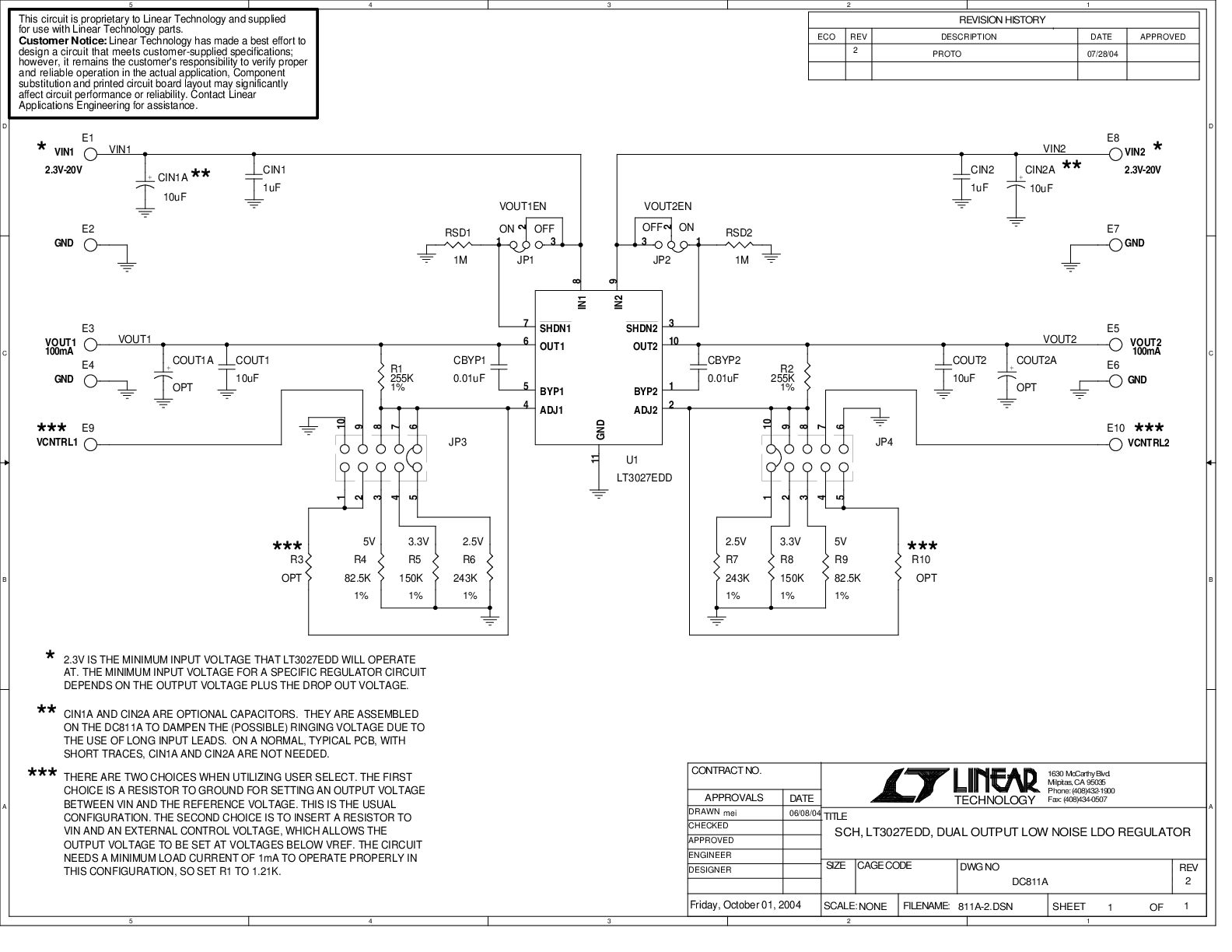

Demonstration circuit 811 is a dual 100mA output and dual (independent) input regulator, based on the LT3027, which consists of two identical LDO linear regulators in the 3 × 3 DFN-10 package. Each input has an input voltage range of 2.3V to 20V and a jumper-selectable output voltage of 2.5V, 3.3V, 5V or a user-defined value. The DC quiescent current, per channel, is typically only 20 uA at no load, and less than 0.1 uA in shutdown. The DC811 comes assembled with small ceramic capacitors, showing the LT3027 ability to maintain stability with ceramic output capacitors.
