Overview
Features & Benefits
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Product Categories

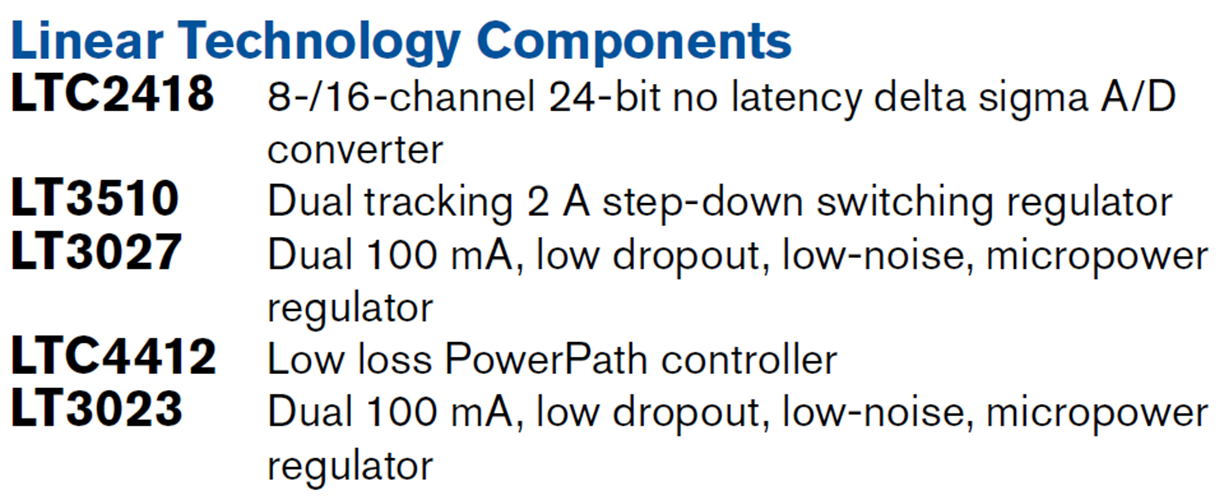

Parts Used
Documentation & Resources
-

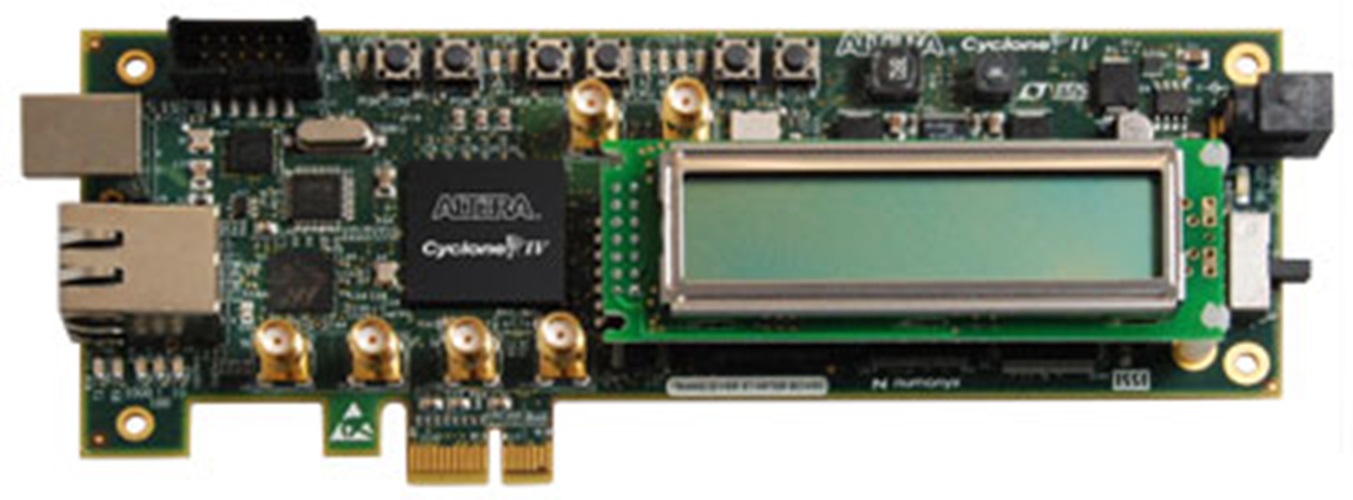

DK-START-4CGX15N Starter Kit Schematic8/4/2014PDF799K

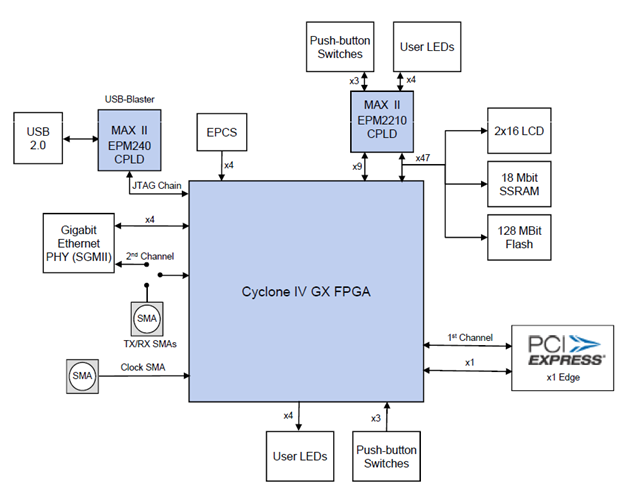

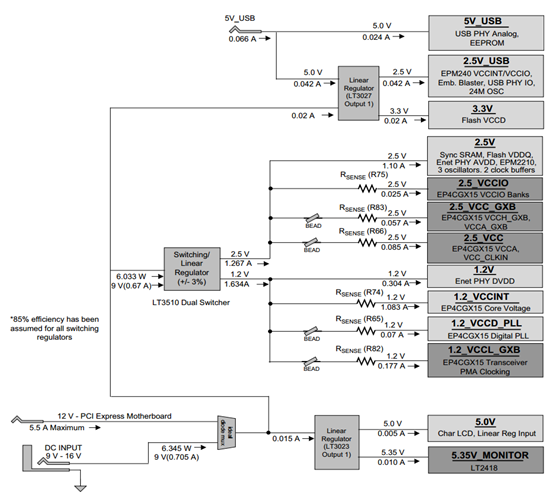

Circuit Description
The Altera Cyclone IV FPGA family extends the Cyclone FPGA series leadership in providing the market’s lowest cost, lowest power FPGAs, including a transceiver variant. Ideal for high-volume, cost-sensitive applications, Cyclone IV FPGAs enable you to meet increasing bandwidth requirements while lowering costs. The Altera Cyclone IV GX Transceiver Starter Kit offers you a platform for developing transceiver I/O-based FPGA designs. This kit provides complete hardware and software to enable you to develop your FPGA design, measure FPGA static and dynamic power consumption, test signal quality of the FPGAs transceiver I/O (up to 2.5 Gbps) and develop and test PCI Express 1.0 endpoint x1 lane designs (~250 MB per second transfer rate).
