Overview

Features and Benefits

  • 500mA Output Drive Current
  • 50MHz Bandwidth, AV = 2, RL = 25Ω
  • 900V/µs Slew Rate, AV= 2, RL = 25Ω
  • Low Distortion: −75dBc at 1MHz
  • High Input Impedance, 10MΩ
  • Wide Supply Range, ±5V to ±15V
  • Full Rate, Downstream ADSL Supported
  • Low Power Shutdown Mode
  • Power Saving Adjustable Supply Current
  • Stable with CL = 10,000pF
  • Power Enhanced Small Footprint Packages TSSOP-20, S0-20 Wide
  • Available in a 20-Lead TSSOP Package

Product Details

The LT1795 is a dual current feedback amplifier with high output current and excellent large signal characteristics. The combination of high slew rate, 500mA output drive and up to ±15V operation enables the device to deliver significant power at frequencies in the 1MHz to 2MHz range. Short-circuit protection and thermal shutdown insure the device’s ruggedness. The LT1795 is stable with large capacitive loads and can easily supply the large currents required by the capacitive loading. A shutdown feature switches the device into a high impedance, low current mode, reducing power dissipation when the device is not in use. For lower bandwidth applications, the supply current can be reduced with a single external resistor.

The LT1795 comes in the very small, thermally enhanced, 20-lead TSSOP package for maximum port density in line driver applications.

Applications

  • ADSL HDSL2, G.lite Drivers
  • Buffers
  • Test Equipment Amplifiers
  • Video Amplifiers
  • Cable Drivers

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

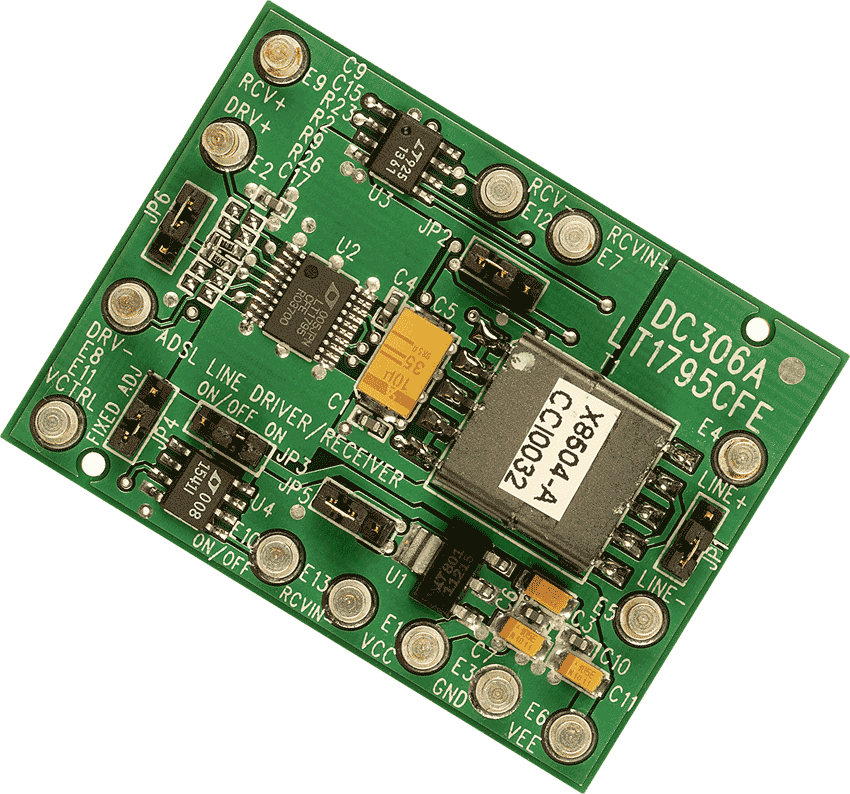

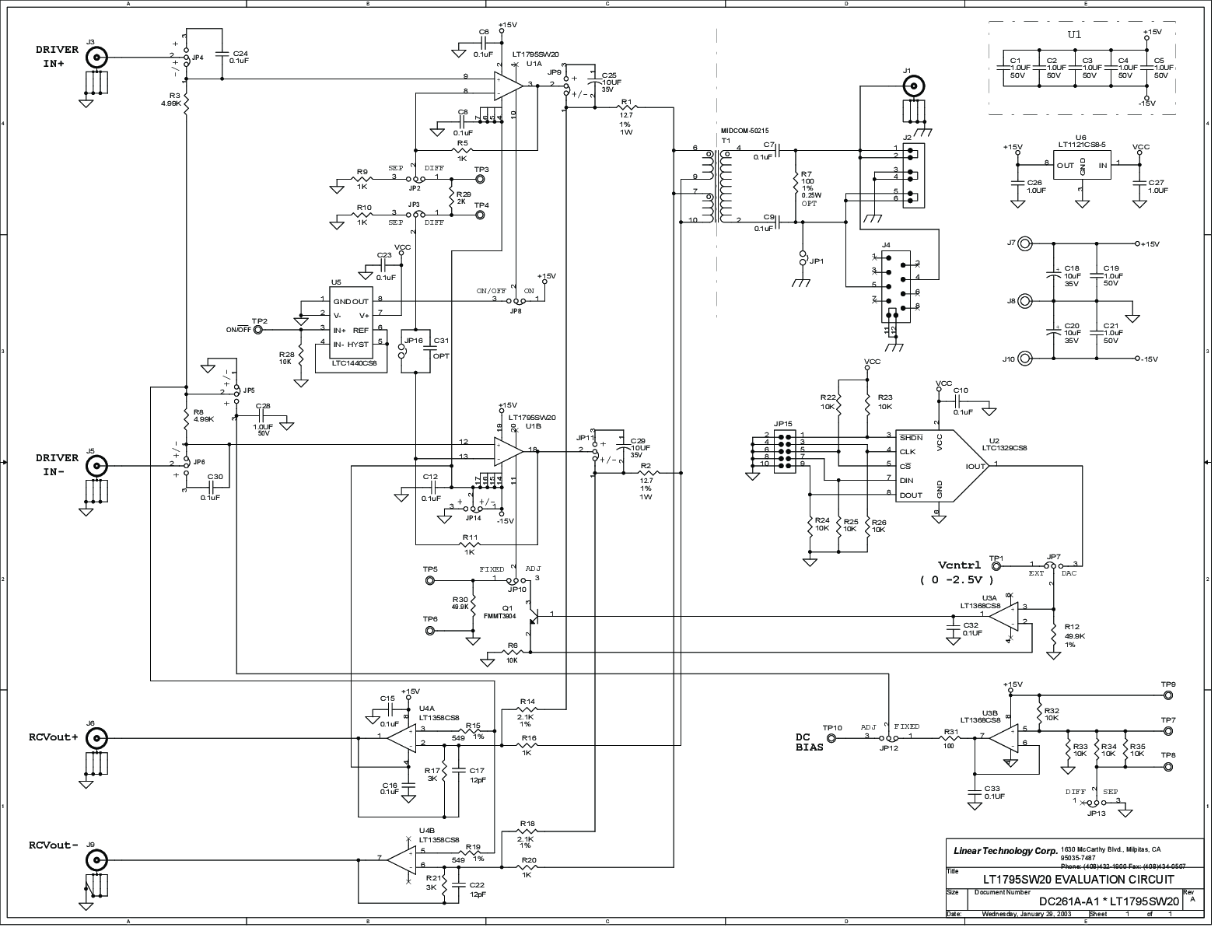

Evaluation Kits (2)

Documentation & Resources

  • View All (8)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (2)
  • Product Selector Card (1)
  • Technical Articles (3)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT1795

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1795CFE#PBF Material Declaration Reliability Data 20-Lead TSSOP w/ EP
    LT1795CFE#TRPBF Material Declaration Reliability Data 20-Lead TSSOP w/ EP
    LT1795CSW#PBF Material Declaration Reliability Data 20-Lead SOIC (Wide 0.3 Inch)
    LT1795CSW#TRPBF Material Declaration Reliability Data 20-Lead SOIC (Wide 0.3 Inch)
    LT1795IFE#PBF Material Declaration Reliability Data 20-Lead TSSOP w/ EP
    LT1795IFE#TRPBF Material Declaration Reliability Data 20-Lead TSSOP w/ EP
    LT1795ISW#PBF Material Declaration Reliability Data 20-Lead SOIC (Wide 0.3 Inch)
    LT1795ISW#TRPBF Material Declaration Reliability Data 20-Lead SOIC (Wide 0.3 Inch)
    Wafer Fabrication Data R164 Reliability Data
