Overview

Features and Benefits

  • 140MHz Bandwidth: AV = 2, RL = 150Ω
  • 1100V/µs Slew Rate
  • Low Cost
  • 30mA Output Drive Current
  • 0.01% Differential Gain
  • 0.01° Differential Phase
  • High Input Impedance: 14MΩ, 3pF
  • Wide Supply Range: ±2V to ±15V
  • Shutdown Mode: IS <250µA
  • Low Supply Current: IS = 10mA
  • Inputs Common Mode to Within 1.5V of Supplies
  • Outputs Swing Within 0.8V of Supplies

Product Details

The LT1227 is a current feedback amplifier with wide bandwidth and excellent video characteristics. The low differential gain and phase, wide bandwidth, and 30mA output drive current make the LT1227 well suited to drive cables in video systems.

A shutdown feature switches the device into a high impedance, low current mode, allowing multiple devices to be connected in parallel and selected. Input to output isolation in shutdown is 70dB at 10MHz for input amplitudes up to 10VP-P. The shutdown pin interfaces to open collector or open drain logic and takes only 4mµ to enable or disable.

The LT1227 comes in the industry standard pinout and can upgrade the performance of many older products. For a dual or quad version, see the LT1229/1230 data sheet.

The LT1227 is manufactured on Linear Technology’s proprietary complementary bipolar process.

Applications

  • Video Amplifiers
  • Cable Drivers
  • RGB Amplifiers
  • Test Equipment Amplifiers
  • 50 Ohms Buffers for Driving Mixers

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

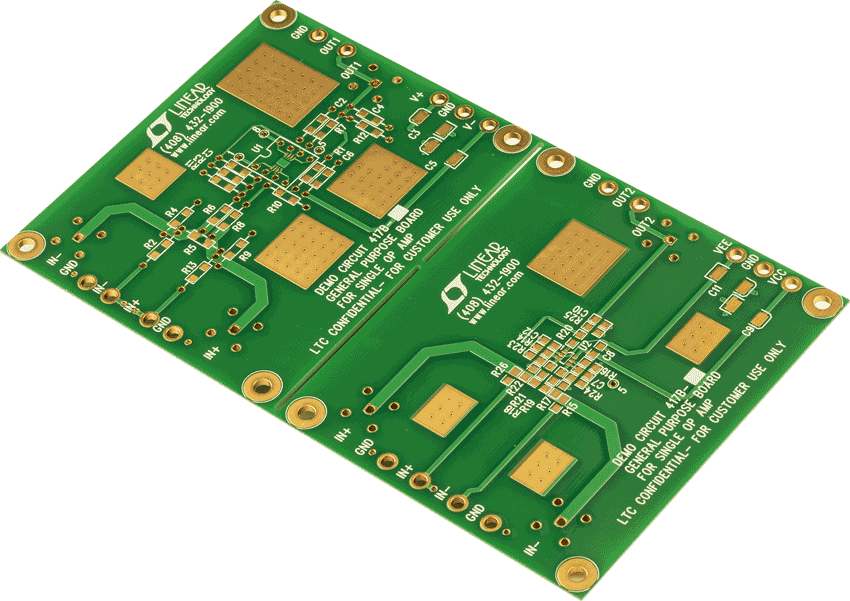

Evaluation Kits (1)

Documentation & Resources

  • View All (15)
  • Data Sheets (1)
  • Reliability Data (1)
  • Application Notes (6)
  • User Guides (1)
  • Design Notes (2)
  • Technical Articles (4)
    • Document Type
    Application Notes

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    LTspice

    Models for the following parts are available in LTspice:

    LT1227

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LT1227CN8#PBF Material Declaration Reliability Data 8-Lead PDIP (Narrow 0.3 Inch)

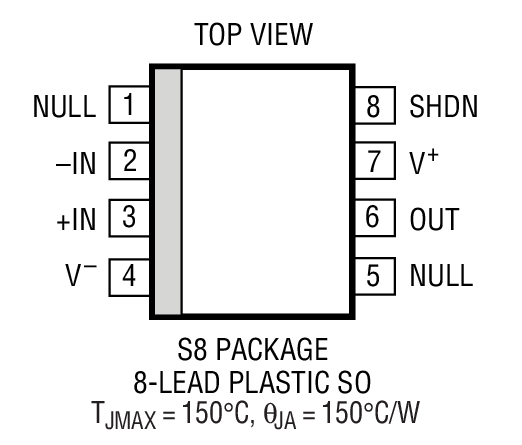

    LT1227CS8#PBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
    LT1227CS8#TRPBF Material Declaration Reliability Data 8-Lead SOIC (Narrow 0.15 Inch)
    Wafer Fabrication Data R164 Reliability Data
