HMC699

RECOMMENDED FOR NEW DESIGNS

HMC699

7 GHz Integer-N Synthesizer SMT

RECOMMENDED FOR NEW DESIGNS

Part Details

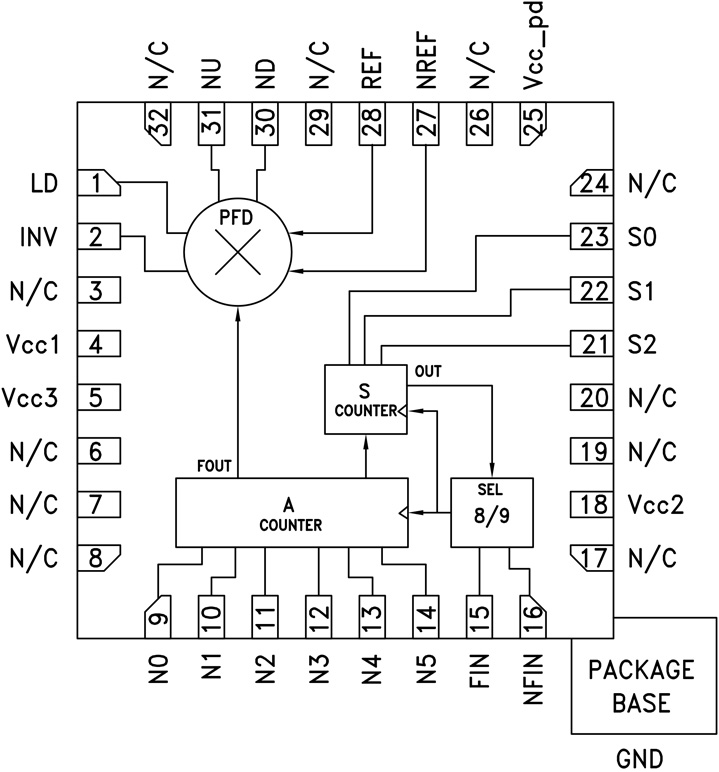

HMC699LP5 Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Features

Ultra Low SSB Phase Noise Floor:
-153 dBc/Hz @ 10 kHz offset @ 100 MHz
Reference Frequency.
Programmable Divider (N= 16 - 516) Operating up to 7 GHz

Open Collector Output Buffer Amplifiers for Interfacing w/ Op-Amp Based Loop Filter
Reversible Polarity PFD w/ Lock Detect Output
32 Lead 5x5mm SMT Package: 25mm

Additional Details

The HMC699LP5(E) is a frequency synthesizer with a wideband reversible polarity digital PFD and lock detect output. The divider operates from 160 - 7000 MHz with a continuous integer division ratio N = 56 to 519 and non-continuous division ratio N = 16 to 54. The HMC699LP5(E) high frequency operation along with ultra low phase noise floor make possible synthesizers with wide loop bandwidth and low N resulting in fast settling and very low phase noise. When used in conjunction with a differential loop filter, the HMC699LP5(E) can be used to phase lock a VCO to a reference oscillator. For continuous division ratio, the A counter and S counter must satisfy the condition: A + 1 ≥≥ S.

APPLICATIONS

Satellite Communication Systems
Point-to-Point Radios
Military Applications
Sonet Clock Generation

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price

price unavailable

Documentation

Technical Documents 1

HMC699 Data Sheet 04/22/2015

Reference Materials 6

Package/Assembly Qualification Test Report: 32L 5x5mm QFN Package (QTR: 10009 REV: 05) 01/01/0001

Semiconductor Qualification Test Report: GaAs HBT-A (QTR: 2013-00228) 10/29/2015

Package/Assembly Qualification Test Report: LP5 & LP5G (QTR: 2014-00150 REV: 02) 10/29/2015

Package/Assembly Qualification Test Report: Plastic Encapsulated QFN (QTR: 05006 REV: 02) 01/01/0001

5 x 5 mm QFN Tape Specification (LP5, LC5, LH5) 10/28/2015

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC699LP5E	32-Lead QFN (5mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC699LP5ETR	32-Lead QFN (5mm x 5mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC699LP5E
Pin/Package Drawing
32-Lead QFN (5mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC699LP5ETR
Pin/Package Drawing
32-Lead QFN (5mm x 5mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Companion Parts 3

Parts	Product Life Cycle	Description
High Speed Op Amps (Bandwidth ≥ 50MHz)1
LT6200	PRODUCTION	165MHz, Rail-to-Rail Input and Output, 0.95nV/√Hz Low Noise, Op Amp Family
Low Input Bias Current Op Amps (≤100 pA)1
ADA4625-1	RECOMMENDED FOR NEW DESIGNS	36 V, 18 MHz, Low Noise, Fast Settling Single Supply, RRO, JFET Op Amp
Low Power Op Amps (≤ 1mA/amp) 1
ADA4084-1	RECOMMENDED FOR NEW DESIGNS	30 V, Low Noise, Rail-to-Rail Input/Output, Low Power Operational Single Amplifier

Evaluation Kit

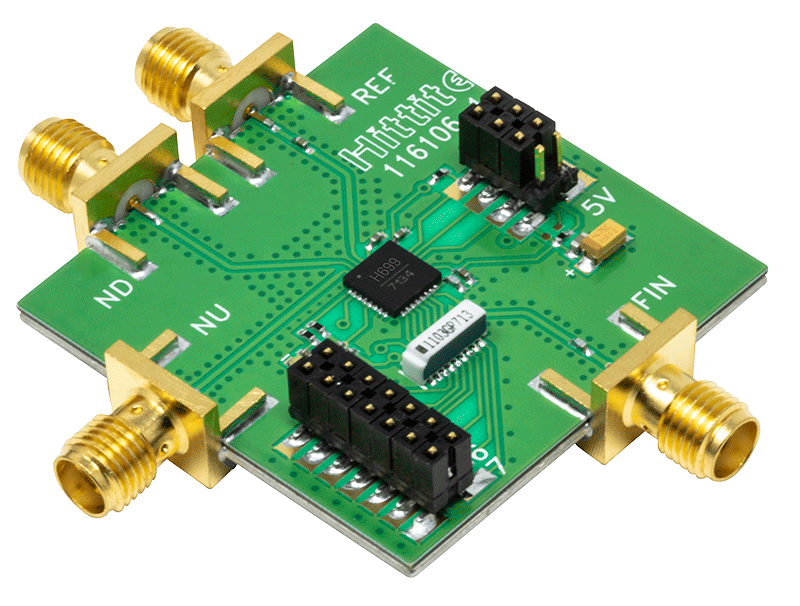

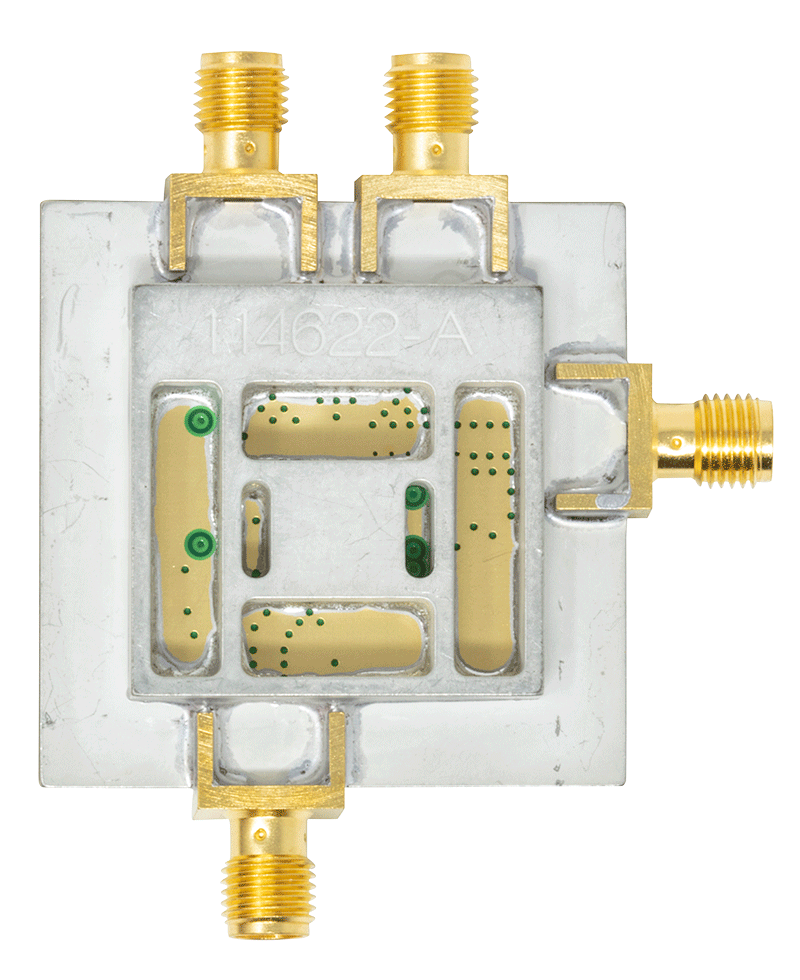

EVAL-HMC699LP5
