Overview

Features and Benefits

  • Ultra Low SSB Phase Noise Floor:
    -153 dBc/Hz @ 10 kHz offset @ 100 MHz Reference Frequency.
  • Programmable Divider (N= 2-32) Operating up to 2.8 GHz
  • Open Collector Output Buffer Amplifiers for Interfacing w/ Op-Amp Based Loop Filter
  • QSOP16G SMT Package: 29.4 mm²
  • Counter is a key component in low phase nois

Product Details

The HMC440QS16G(E) is an integer-n synthesizer that incorporates a 10 to 1300 MHz digital Phase-Frequency Detector with 10 to 2800 MHz 5-Bit frequency counter (continuous division from 2 to 32) in miniature 16 lead QSOP plastic packages. It is intended for use in low phase noise offset-synthesizer app-lications.

The HMC440QS16G(E) combines high frequency operation along with ultra low phase noise floor making possible synthesizers with wide loop bandwidth and low N resulting in fast settling and very low phase noise. When used in conjunction with a differential loop amplifier, the HMC440QS16G(E) generates an output voltage that can be used to phase lock a VCO to a reference oscillator.

Applications

  • Satellite Communication Systems
  • Point-to-Point Radios
  • Military Applications
  • Sonet Clock Generation
  • Test Equipment

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

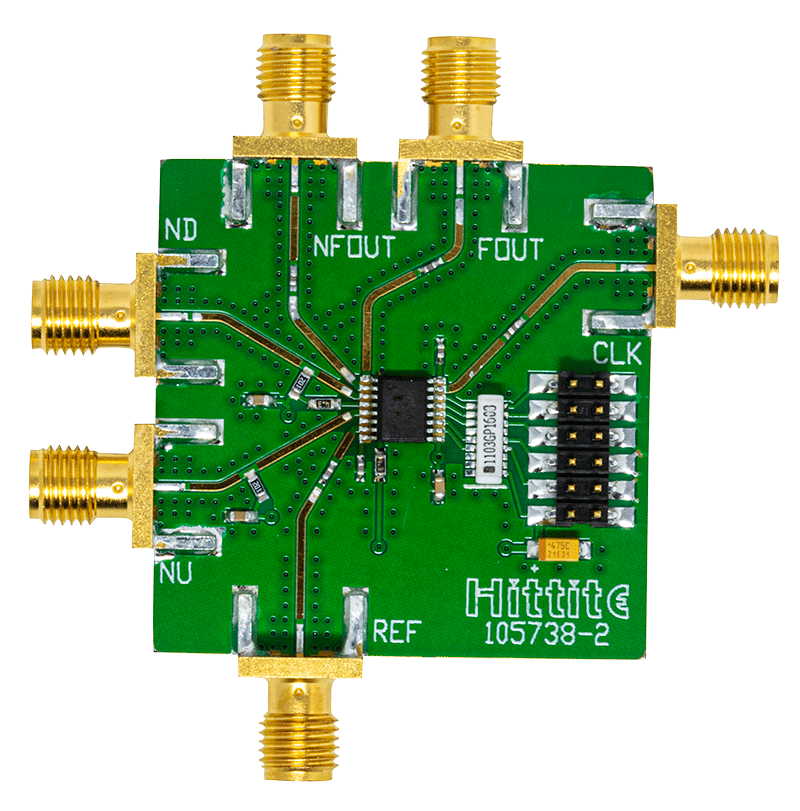

Evaluation Kits (1)

Documentation & Resources

  • View All (9)
  • Data Sheet (1)
  • Product Selection Guide (1)
  • Quality Documentation (4)
  • Tape & Reel Specification (1)
  • Technical Article (2)
    • Document Type

    Tools & Simulations

    Design Tool

    ADIsimPLL™

    ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.

    Product Recommendations

    HMC440 Companion Parts

    Recommended Loop Filter Op Amps
