  5. HMC439

Data Sheet

Overview

Features and Benefits

  • Ultra Low SSB Phase Noise Floor:
    −153 dBc/Hz@10 kHz offset @ 100 MHz
    Input up to 1300 MHz Fin.
  • Differential Input/Single Ended Output
  • Open Collector Output Buffer Amplifiers
  • QSOP16G SMT Package: 29.4mm2

Product Details

The HMC439QS16G(E) is a digital phase-frequency detector intended for use in low noise phase-locked loop applications for inputs from 10 to 1300 MHz. Its combination of high frequency of operation along with its ultra low phase noise floor make possible synthesizers with wide loop bandwidth and low N resulting in fast switching and very low phase noise. When used in conjunction with a differential loop amplifier, the HMC439QS16G(E) generate output voltages that can be used to phase lock a VCO to a reference oscillator. The device is packaged in a low cost, surface mount 16 lead QSOP package with an exposed base for improved RF and thermal performance.

APPLICATIONS

  • Point-to-Point Radios
  • Satellite Communication Systems
  • Military Applications
  • Sonet Clock Generation

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

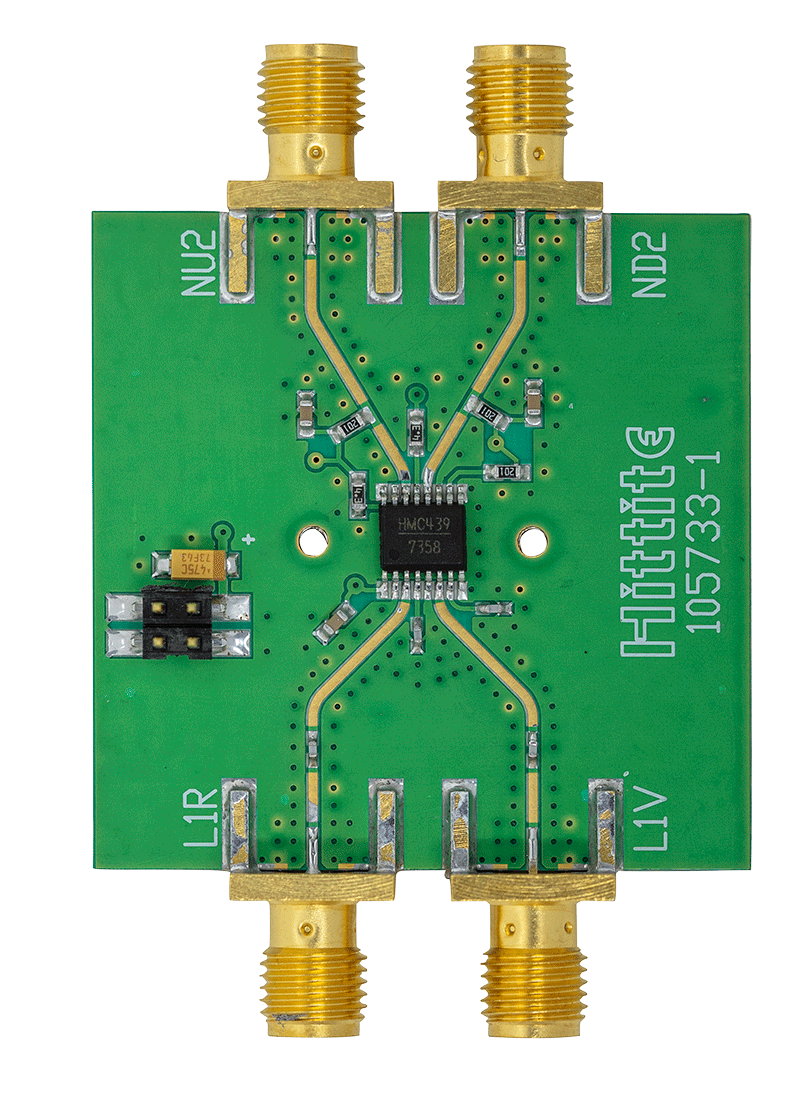

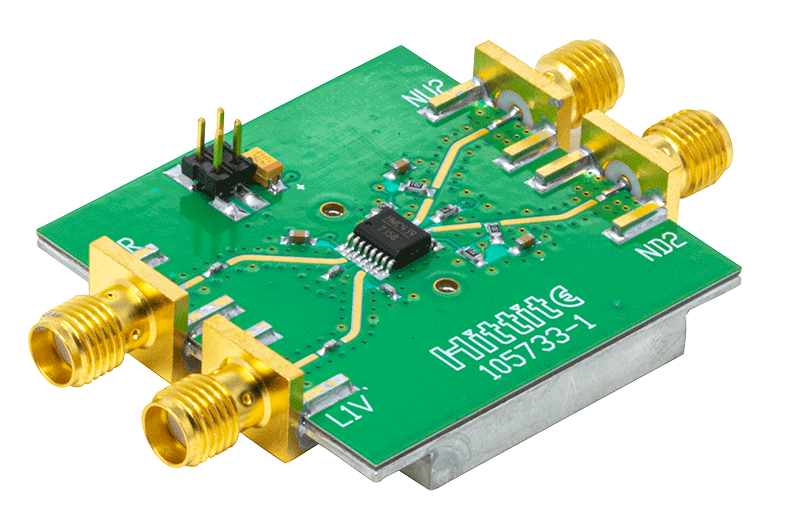

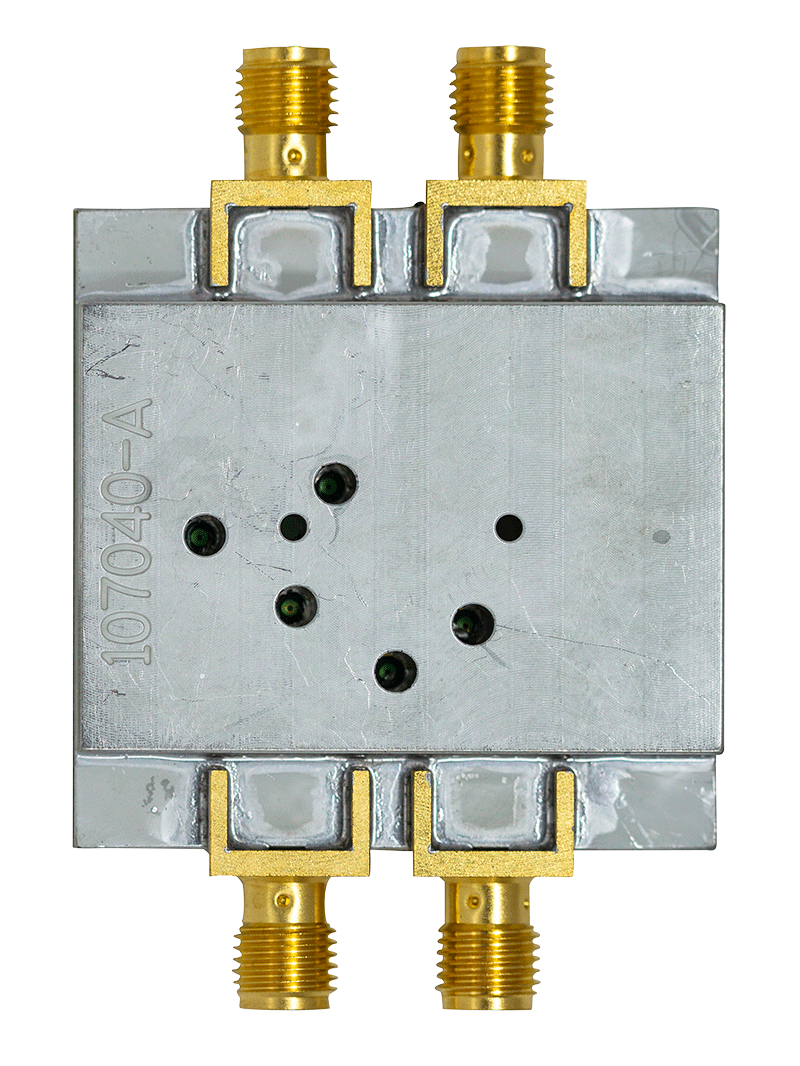

Evaluation Kits (1)

Documentation & Resources

  • View All (8)
  • Data Sheets (1)
  • Frequently Asked Questions (1)
  • Product Selection Guide (1)
  • Quality Documentation (4)
  • Tape & Reel Specification (1)
    • Document Type

    Tools & Simulations

    Design Tools

    ADIsimPLL™

    ADIsimPLL enables the rapid and reliable evaluation of new high performance PLL products from ADI. It is the most comprehensive PLL Synthesizer design and simulation tool available today. Simulations performed include all key non-linear effects that are significant in affecting PLL performance. ADIsimPLL removes at least one iteration from the design process, thereby speeding the design- to-market.
