Precision A/D Converters
Analog Devices provides an unrivalled portfolio for precision A/D converters. When you select an ADI precision ADC, you are selecting from the industry leading portfolio in ac and dc performance, power, speed and size, with products ranging from 8-bit to 32-bit resolution. ADI champions ease of use, with ever increasing emphasis on helping our customers to more quickly arrive at their end design objective, at a component level and signal chain level. Choose from a comprehensive suite of tools to simplify design in from selection to prototyping. Products are available in a range of architectures:
- SAR—Successive Approximation ADCs
- Σ-Δ Modulators
- Isolated ADCs
AD4111
AD4111 is a multi-channel, low power, low noise, 24-bit sigma-delta ADC that integrates an analog front end for fully differential or single-ended, high impedance bipolar, +/-10 V voltage inputs, and 0 mA to 20 mA current inputs.
AD7380
AD7380 is a 16-bit dual simultaneous sampling, high speed, low power, successive approximation register (SAR) ADC that operates from a 3.0 V to 3.6 V power supply and features throughput rates up to 4 MSPS.
AD4020
The AD4020 is a low noise, low power, 20-bit, 1.8 MSPS precision successive approximation register (SAR) analog-to-digital converter (ADC). It incorporates ease of use features that lower the signal chain power, reduce signal chain complexity, and enable higher channel density.
New Products
There are no new products released during this period. To view new products, please select another time period.
There are no new products released during this period. To view new products, please select another time period.
Quick Precision ADC Selection
Precision ADC selection guide
SAR ADC & Driver Quick Match Guide
Linear & Precision Technology: New Product Upgrades
With the industry’s broadest portfolio of op amps, precision converters (ADCs and DACs), digital potentiometers, temperature sensors, voltage references, switches, and multiplexers, Analog Devices can help solve your toughest design challenges. ADI offers over 1000 precision linear ICs, outstanding customer support, and a full complement of precision design and development resources to meet any signal chain design demand.
Explore how we cover the signal chain in Power Management and Voltage References.
Using DIE products in your signal chain design
For space constrained designs, ADI offers die solutions for many products in our portfolio. Our team develops die solutions for precision converters for both:
- Functional CHIPS model – verified to be functional at Ambient temperature.
- KGD – Known Good Die guaranteed to meet Datasheet specifications
Both Die options can be shipped in Die on Film, Waffle pack or Tape & Reel.
Explore ADI’s precision ADC Die Portfolio
If you see a product that does not offer Die packaging, contact your ADI sales representative to explore how ADI can meet your needs. If you’re interested in system-in-package (SiP) technology, please see our Precision Signal Chain μModule solutions page.
Condition-based Monitoring (CbM) Development Platforms
Developing accurate, reliable condition monitoring solutions for industrial assets requires a combination of technologies and design considerations to capture and convert critical signals into actionable insights. Our platforms enable diagnostic and predictive maintenance solutions for accelerated sensor data collection.
Precision Technology Selection Guide
ADI’s Precision Technology Selection Guide easily enables selection of the right components for across the entire precision signal chain, from amplifiers, switches, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), voltage references, and power management devices.
Precision ADC Driver Tool
A specialized simulation environment where you can quickly determine the impact of the driver and RC filter on the performance of an ADC signal chain.
Virtual Eval
Accelerate precision ADC product selection and evaluation with Virtual Eval. Configure operating conditions and simulate crucial part performance characteristics within seconds, including noise, distortion, frequency response plots, timing diagrams, FFTs and more.

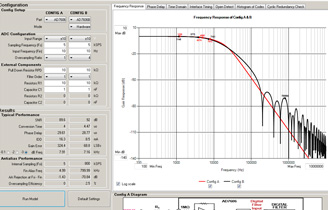

AD7606x Software Model
The AD7606x Software Model enables users to try different configurations for AD7606, AD7606B, AD7608 and AD7609 : sampling rate, RC filtering, oversampling, calibration; and analyze frequency response, noise performance, interface timing or power consumption, among others.
Latest Resources
Application Notes
Press Release
Design Notes Page
Technical Articles
- μModule Data Acquisition Solution Eases Engineering Challenges for a Diverse Set of Precision Applications
- How to Build a MEMS-Based Solution for Vibration Detection in Condition Monitoring
- All That Glitters Is Not Gold! Reading Relevant Data Sheet Data to Choose the Right Part
- Simple Realization of a Fully Integrated 4-Wire RTD Temperature Measurement System for High Precision Measurement Applications
- A Simple Way of Measuring Soil Moisture and pH with Temperature Compensation
Product Selection Guide
Design Tools
Webcast
Videos
- New CN0549 - CbM Development Platform
- New Condition Monitoring, Sensing to AI-Enabling Actionable Insights
- New ADAQ4003: 18-Bit, 2 MSPS, μModule® Data Acquisition Solution
- AD7134: 24-Bit, 4-Channel, 1.5 MSPS Precision Alias Free ADC
- ADI: The Evolution of the Control Network
Analog Dialogue
- Fast Reacting, Optical Encoder Feedback System for Miniature Motor Driven Applications
- Newest Sigma-Delta ADC Architecture Averts Disrupted Data Flow When Synchronizing Critical Distributed Systems
- Functional Safety in a Data Acquisition System
- Moving Up the Stack Challenges for Measurement Engineering at ADI
- Pin-Compatible, High Input Impedance ADC Family Enables Ease of Drive and Broadens ADC Driver Selection
Precision A/D Converters
| SortOrder | Part# | Channels | Resolution (bits) | Sample Rate (max) (SPS) | ADC SNR in dBFS (typ) (dBFS) | INL in LSB (typ) (LSBs) | Device Architecture | Input Type | Data Output Interface | Power (typ) (W) | Price (1000+) ($ US) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | AD4695 | 16 | 16 | 500k | 93 | 0.4 | SAR | Pseudo-Differential | Serial SPI | 4m | $8.95 (AD4695BCPZ) |
| 2 | ADAQ4003 | 1 | 18 | 2M | 100 | 0.4 | SAR | Differential, Single-Ended | Serial SPI | 57.4m | $22.95 (ADAQ4003BBCZ) |
| 3 | ADAQ23875 | 1 | 16 | 15M | 89.5 | 0.6 | SAR | Differential, Single-Ended | LVDS | 143 | $27.55 (ADAQ23875BBCZ) |
| 4 | AD7606C-16 | 8 | 16 | 1M | 92 | 0.5 | SAR | Differential, Single-Ended | Parallel, Serial SPI | 47m | $21.25 (AD7606C-16BSTZ) |
| 5 | AD4696 | 16 | 16 | 1M | 93 | 0.4 | SAR | Pseudo-Differential | Serial SPI | 8m | $11.95 (AD4696BCPZ) |
| 6 | ADUM7704 | 1 | 16 | 78.1k | - | 2 | Sigma-Delta Modulator | Differential | Isolated Serial | 130m | $4.48 (ADUM7704-8BRIZ) |
| 7 | AD7606C-18 | 8 | 18 | 1M | 93 | 2 | SAR | Differential, Single-Ended | Parallel, Serial SPI | 245m | $24.12 (AD7606C-18BSTZ) |
| 8 | AD4683 | 2 | 16 | 500k | 87.5 | 1 | SAR with Digital Filter | Pseudo-Differential | Serial SPI | 29.4m | $7.92 (AD4683BCPZ-RL) |
| 9 | AD4682 | 2 | 16 | 1M | 87.5 | 1 | SAR with Digital Filter | Pseudo-Differential | Serial SPI | 29m | $10.08 (AD4682BCPZ-RL) |
| 10 | AD4681 | 2 | 16 | 500k | 92.5 | 0.7 | SAR with Digital Filter | Differential | Serial SPI | 18.7m | $7.92 (AD4681BCPZ-RL) |
| 11 | AD4680 | 2 | 16 | 1M | 92.5 | 0.7 | SAR with Digital Filter | Differential | Serial SPI | 29.4m | $10.08 (AD4680BCPZ-RL) |
| 12 | ADUM7702 | 1 | 16 | 78.1k | - | 2 | Sigma-Delta Modulator | Differential | Isolated Serial | 47.6m | $4.10 (ADUM7702-8BRIZ) |
| 13 | AD7384 | 2 | 14 | 4M | 84.1 | 0.4 | SAR with Digital Filter | Pseudo-Differential | Serial SPI | 84m | $12.97 (AD7384BCPZ-RL) |
| 14 | AD7383 | 2 | 16 | 4M | 86.1 | 1 | SAR with Digital Filter | Pseudo-Differential | Serial SPI | 87m | $14.40 (AD7383BCPZ-RL) |
| 15 | AD4115 | 16 | 24 | 125k | - | - | Sigma-Delta | Differential, Single-Ended | Serial SPI | 52m | $8.70 (AD4115BCPZ) |
| 16 | AD4114 | 16 | 24 | 31.25k | - | - | Sigma-Delta | Differential, Single-Ended | Serial SPI | 19.5m | $7.25 (AD4114BCPZ) |
| 17 | AD7134 | 4 | 24 | 1.5M | 107 | - | Sigma-Delta Modulator | Differential | Serial SPI | 504m | $17.85 (AD7134BCPZ) |
| 18 | ADE1202 | 2 | 8 | 100k | - | 25 | SAR | Single-Ended | Isolated SPI | 14.19m | $6.70 (ADE1202ACCZ) |
| 19 | ADE1201 | 1 | 8 | 100k | - | 25 | SAR | Single-Ended | Isolated SPI | 14.19m | $4.98 (ADE1201ACCZ) |
| 20 | AD4022 | 1 | 20 | 500k | 100.5 | 1 | SAR | Differential | Serial SPI | 4.5m | $14.95 (AD4022BCPZ-RL7) |
| 21 | AD4021 | 1 | 20 | 1M | 100.5 | 1 | SAR | Differential | Serial SPI | 8.3m | $22.95 (AD4021BCPZ-RL7) |
| 22 | AD7388 | 4 | 12 | 4M | 73.8 | 0.2 | SAR | Single-Ended | Serial SPI | 80m | $9.72 (AD7388BCPZ-RL) |
| 23 | AD7387 | 4 | 14 | 4M | 84 | 0.5 | SAR | Single-Ended | Serial SPI | 81m | $12.97 (AD7387BCPZ-RL) |
| 24 | AD7386 | 4 | 16 | 4M | 87.5 | 1.5 | SAR | Single-Ended | Serial SPI | 83m | $14.40 (AD7386BCPZ-RL) |
| 25 | ADUM7703 | 1 | 16 | 78.1k | - | 2 | Sigma-Delta Modulator | Differential | Isolated Serial | 46m | $4.29 (ADUM7703-8BRIZ) |
| 26 | AD7606B | 8 | 16 | 800k | 89.5 | 1.16 | SAR | Single-Ended | Parallel, Serial SPI | 40m | $18.06 (AD7606BBSTZ) |
| 27 | AD74413R | 4 | 16 | 4.8k | - | - | Sigma-Delta | Differential | Serial SPI | - | $8.55 (AD74413RBCPZ) |
| 28 | AD74412R | 4 | 16 | 4.8k | - | - | Sigma-Delta | Differential | Serial SPI | - | $7.47 (AD74412RBCPZ) |
| 29 | ADUM7701 | 1 | 16 | 78.1k | - | 2 | Sigma-Delta Modulator | Differential | Isolated Serial | 46m | $3.73 (ADUM7701-8BRIZ) |
| 30 | AD7381 | 2 | 14 | 4M | 85.4 | 0.3 | SAR | Differential | Serial SPI | 83m | $12.97 (AD7381BCPZ-RL) |
| 31 | AD7380 | 2 | 16 | 4M | 92.5 | 0.75 | SAR | Differential | Serial SPI | 83m | $14.40 (AD7380BCPZ-RL) |
| 32 | AD4110-1 | 1 | 24 | 125k | - | - | Sigma-Delta | Differential, Single-Ended | Serial SPI | 200m | $8.76 (AD4110-1BCPZ) |
| 33 | AD4112 | 16 | 24 | 31.25k | - | - | Sigma-Delta | Differential, Single-Ended | Serial SPI | 19.5m | $6.45 (AD4112BCPZ) |
| 34 | AD4111 | 16 | 24 | 31.25k | - | - | Sigma-Delta | Differential, Single-Ended | Serial SPI | 19.5m | $7.25 (AD4111BCPZ) |
| 35 | AD7768-1 | 1 | 24 | 1.024M | 108 | - | Sigma-Delta | Differential | Serial SPI | 26.4m | $5.95 (AD7768-1BCPZ) |
| 36 | LTC2353-16 | 2 | 16 | 550k | 94.2 | 0.3 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 162m | $12.95 (LTC2353CLX-16#PBF) |
| 37 | AD4010 | 1 | 18 | 500k | 95 | 0.8 | SAR | Pseudo-Differential | Serial SPI | 3.5m | $8.20 (AD4010BCPZ-RL7) |
| 38 | AD4006 | 1 | 18 | 1M | 95 | 0.8 | SAR | Pseudo-Differential | Serial SPI | 7m | $11.00 (AD4006BCPZ-RL7) |
| 39 | AD4002 | 1 | 18 | 2M | 95 | 0.8 | SAR | Pseudo-Differential | Serial SPI | 14m | $12.00 (AD4002BCPZ-RL7) |
| 40 | LTC2357-18 | 4 | 18 | 350k | 96.4 | 1 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 174m | $20.45 (LTC2357CLX-18#PBF) |
| 41 | LTC2357-16 | 4 | 16 | 350k | 94.2 | 0.3 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 175m | $15.15 (LTC2357CLX-16#PBF) |
| 42 | AD4008 | 1 | 16 | 500k | 93 | 0.2 | SAR | Pseudo-Differential | Serial SPI | 2m | $4.95 (AD4008BCPZ-RL7) |
| 43 | LTC2333-18 | 8 | 18 | 800k | 96.4 | 0.75 | SAR | Differential | Serial LVDS, Serial SPI | 268m | $20.95 (LTC2333CLX-18#PBF) |
| 44 | LTC2333-16 | 8 | 16 | 800k | 94.2 | 0.3 | SAR | Differential | Serial LVDS, Serial SPI | 268m | $15.45 (LTC2333CLX-16#PBF) |
| 45 | LTC2325-14 | 4 | 14 | 5M | 82 | 1 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 102m | $14.95 (LTC2325CUKG-14#PBF) |
| 46 | LTC2325-12 | 4 | 12 | 5M | 77 | 0.5 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 102m | $10.95 (LTC2325CUKG-12#PBF) |
| 47 | LTC2324-16 | 4 | 16 | 2M | 82 | 2 | SAR | Differential | Serial LVDS, Serial SPI | 102m | $11.95 (LTC2324CUKG-16#PBF) |
| 48 | LTC2324-14 | 4 | 14 | 2M | 82 | 1 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 102m | $10.95 (LTC2324IUKG-14#PBF) |
| 49 | LTC2324-12 | 4 | 12 | 2M | 78.5 | 0 | SAR | Differential, Single-Ended | Serial LVDS, Serial SPI | 102m | $6.95 (LTC2324CUKG-12#PBF) |
| 50 | AD7771 | 8 | 24 | 128k | 95 | 1.5 | Sigma-Delta | Differential, Pseudo-Differential, Single-Ended | Serial SPI | 133m | $8.46 (AD7771BCPZ) |
