Overview
Features and Benefits
- Excellent ac performance
- −3 dB bandwidth
800 MHz (200 mV p-p)
730 MHz (2 V p-p) - Slew rate: 2800 V/μs
- −3 dB bandwidth
- Low power: 75 mW, VS = ±5 V
- Excellent video performance
- >100 MHz, 0.1 dB gain flatness
- 0.02% differential gain/0.02° differential phase error (RL = 150 Ω)
- Gain = +1
- Low crosstalk of −82 dB at 5 MHz and −60 dB at 100 MHz
- High impedance output disable allows connection of multiple devices without loading the output bus
- 8-lead LFCSP
Product Details
The ADV3219 and ADV3220 are high speed, high slew rate, buffered, 2:1 analog multiplexers. They offer a −3 dB signal bandwidth greater than 800 MHz and channel switch times of less than 20 ns with 1% settling. With −82 dB of crosstalk and −88 dB isolation (at 5 MHz), the ADV3219 and ADV3220 are useful in many high speed applications. The differential gain of less than 0.02% and the differential phase of less than 0.02°, together with 0.1 dB flatness beyond 100 MHz while driving a 75 Ω back terminated load, make the ADV3219 and ADV3220 ideal for all types of signal switching.
The ADV3219/ADV3220 include an output buffer that can be placed into a high impedance state to allow multiple outputs to be connected together for cascading stages without the off channels loading the output bus. The ADV3219 has a gain of +1, and the ADV3220 has a gain of +2; they both operate on ±5 V supplies while consuming less than 7.5 mA of idle current.
The ADV3219/ADV3220 are available in the 8-lead LFCSP package over the extended industrial temperature range of −40°C to +85°C.
Applications
- Routing of high speed signals including
– Video (NTSC, PAL, S, SECAM, YUV, and RGB)
– Compressed video (MPEG, wavelet)
– 3-level digital video (HDB3) - Data communications
- Telecommunications
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

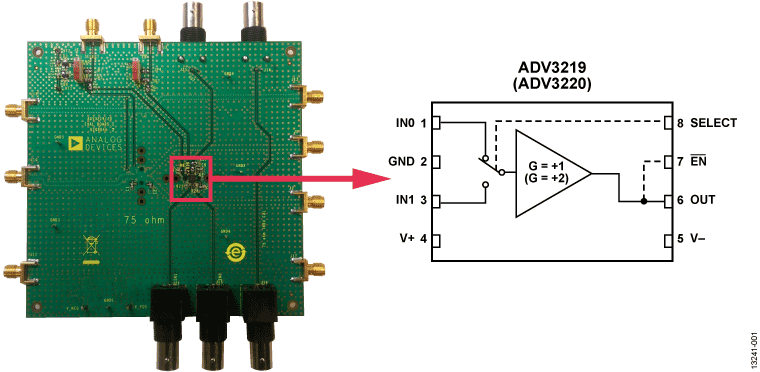

Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADV3219ACPZ | Material Declaration | Reliability Data | 8-Lead LFCSP (3mm x 3mm w/ EP) | |
| ADV3219ACPZ-R7 | Material Declaration | Reliability Data | 8-Lead LFCSP (3mm x 3mm w/ EP) | |
| ADV3219ACPZ-RL | Material Declaration | Reliability Data | 8-Lead LFCSP (3mm x 3mm w/ EP) | |
| Wafer Fabrication Data |
