ADV3220

800 MHz, 2:1 Analog Multiplexer, Gain = +2

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 3
1ku List Price Starting From $1.88
Features
  • Excellent ac performance
    • −3 dB bandwidth
      800 MHz (200 mV p-p)
      730 MHz (2 V p-p)
    • Slew rate: 2800 V/μs
  • Low power: 75 mW, VS = ±5 V
  • Excellent video performance
    • >100 MHz, 0.1 dB gain flatness
    • 0.02% differential gain/0.02° differential phase error (RL = 150 Ω)
  • Gain = +2
  • Low crosstalk of −82 dB at 5 MHz and −60 dB at 100 MHz
  • High impedance output disable allows connection of multiple devices without loading the output bus
  • 8-lead LFCSP
Additional Details
show more Icon

The ADV3219 and ADV3220 are high speed, high slew rate, buffered, 2:1 analog multiplexers. They offer a −3 dB signal bandwidth greater than 800 MHz and channel switch times of less than 20 ns with 1% settling. With −82 dB of crosstalk and −88 dB isolation (at 5 MHz), the ADV3219 and ADV3220 are useful in many high speed applications. The differential gain of less than 0.02% and the differential phase of less than 0.02°, together with 0.1 dB flatness beyond 100 MHz while driving a 75 Ω back terminated load, make the ADV3219 and ADV3220 ideal for all types of signal switching.

The ADV3219/ADV3220 include an output buffer that can be placed into a high impedance state to allow multiple outputs to be connected together for cascading stages without the off channels loading the output bus. The ADV3219 has a gain of +1, and the ADV3220 has a gain of +2; they both operate on ±5 V supplies while consuming less than 7.5 mA of idle current.

The ADV3219/ADV3220 are available in the 8-lead LFCSP package over the extended industrial temperature range of −40°C to +85°C.

Applications

  • Routing of high speed signals including
    – Video (NTSC, PAL, S, SECAM, YUV, and RGB)
    – Compressed video (MPEG, wavelet)
    – 3-level digital video (HDB3)
  • Data communications
  • Telecommunications
Part Models 3
1ku List Price Starting From $1.88

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADV3220ACPZ
  • HTML
  • HTML
ADV3220ACPZ-R7
  • HTML
  • HTML
ADV3220ACPZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 21, 2016

- 16_0229

Assembly Transfer of Select LFCSP Products to ASE Korea

Apr 28, 2014

- 13_0224

Assembly Transfer of Select 2x3 and 3x3mm LFCSP Products to STATS ChipPAC China.

ADV3220ACPZ

PRODUCTION

ADV3220ACPZ-R7

PRODUCTION

ADV3220ACPZ-RL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 21, 2016

- 16_0229

arrow down

Assembly Transfer of Select LFCSP Products to ASE Korea

Apr 28, 2014

- 13_0224

arrow down

Assembly Transfer of Select 2x3 and 3x3mm LFCSP Products to STATS ChipPAC China.

ADV3220ACPZ

PRODUCTION

ADV3220ACPZ-R7

PRODUCTION

ADV3220ACPZ-RL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADV3220

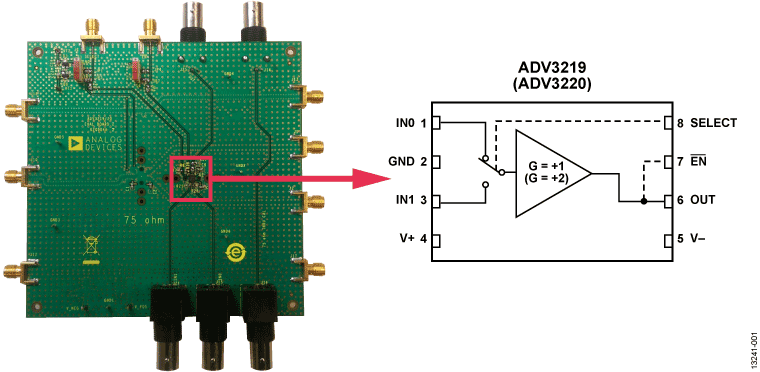

ADV3220 Evaluation Board
