ADUM4070

Isolated Switch Regulator with Integrated Feedback

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $1.90
Features
  • Isolated PWM feedback with built in compensation
  • Primary side transformer driver for up to 2.5 W output power with 5 V input voltage
  • Regulated adjustable output:
    3.3 V to 24 V
  • Up to 70% efficiency
  • 200 kHz to 1 MHz adjustable oscillator
  • Soft start function at power-up
  • Pulse-by-pulse overcurrent protection
  • Thermal shutdown
  • 5000 V rms isolation
  • High common-mode transient immunity: >25 kV/µs
  • 16-lead SOIC package with 8.3 mm creepage
  • High temperature operation:
    105°C
  • Safety and regulatory approvals
  • UL recognition: 5000 V rms for 1 minute per UL 1577
  • CSA certification per IEC 62368-1, IEC 61010-1, and IEC 60601-1
  • VDE certificate of conformity
  • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
  • VIORM = 849 V peak
Additional Details
show more Icon

The ADuM40701 is a regulated dc-to-dc isolated power supply controller with an internal MOSFET driver. The dc-to-dc controller has internal isolated PWM feedback from the secondary side based on the iCoupler® chip scale transformer technology and complete loop compensation. This architecture eliminates the need to use an optocoupler for feedback and compensates the loop for stability.

The ADuM4070 isolator provides a more stable output voltage and higher efficiency compared to unregulated isolated dc-to-dc power supplies. The fully integrated feedback and loop compensation in a wide-body SOIC package provide a solution with a smaller form factor and 8.3 mm creepage distance.

The regulated feedback provides a relatively flat efficiency curve over the full output power range. The ADuM4070 enables a dc-todc converter with a 3.3 V to 24 V isolated output voltage range from either a 5.0 V or a 3.3 V input voltage, with an output power of up to 2.5 W..

Applications

  • Power supply startup bias and gate drives
  • Isolated sensor interfaces
  • Process controls
Show More Arrow image
file View Data Sheet (Rev.A)
Documentation View All Documentation
Part Models 2
1ku List Price Starting From $1.90
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADUM4070

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Informational
  • Safety and Regulatory Compliance
  • User Guide
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 12/08/2023
English

ADuM4070: Isolated Switching Regulator with Integrated Feedback Data Sheet (Rev.A)

Open PDF File

redirect
1.14 M
download

Download PDF

PDF Vector

pdf

UPDATED 11/05/2012
Japanese

ADuM4070: 帰還回路付きの絶縁型レギュレータ (Rev.0)

Open PDF File

redirect
1742 kB
download

Download PDF

Informational

2

PDF Vector

HTML

UPDATED 02/14/2015
English
First Digital Isolators to Achieve 8.3mm Creepage Packaging redirect icon

PDF Vector

HTML

UPDATED 02/10/2015
Japanese
8mm沿面距離パッケージを実現した初のデジタル・アイソレータ redirect icon

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

User Guide

1

PDF Vector

pdf

UPDATED 03/22/2013
English
UG-403: Evaluating the iCoupler ADuM4070 Isolated Switching Regulator with Integrated Feedback redirect icon

488 kB

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Video

1

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM4070ARIZ 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADUM4070ARIZ-RL 16-Lead SOIC (Increased Creepage) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM4070ARIZ

PRODUCTION

ADUM4070ARIZ-RL

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

Nov 6, 2013

- 13_0283

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM4070ARIZ

PRODUCTION

ADUM4070ARIZ-RL

PRODUCTION

pdf

PCN13_0283_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM4070ARIZ

PRODUCTION

ADUM4070ARIZ-RL

PRODUCTION

pdf

PCN15_0135_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon
Nov 6, 2013

- 13_0283

arrow down

Change of Moisture Sensitivity Level Rating for iCoupler Products Assembled in an RI-16 Package from MSL 1 to MSL 3

ADUM4070ARIZ

PRODUCTION

ADUM4070ARIZ-RL

PRODUCTION

pdf

PCN13_0283_Form

external-icon

xls

Material_Report

Download
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADUM4070

ADuM4070 Evaluation Board

zoom

EVAL-ADUM4070

ADuM4070 Evaluation Board

download icon

Download

 print icon

Print
EVAL-ADUM4070
ADuM4070 Evaluation Board
Buy Now View Details

Product Detail

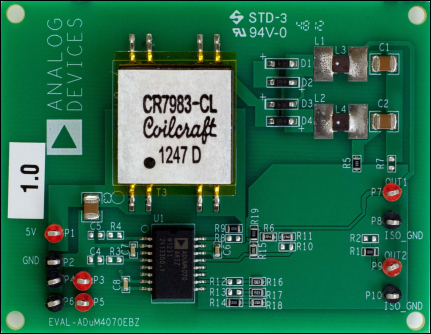

The EVAL-ADuM4070EBZ can be used for different applications of the ADuM4070 isolated switching regulator. With the ability to be configured as a circuit with either single- (default) or double-supply output, the board supports a variety of input/output configurations and multiple transformer options. It is equipped with an ADuM4070 regulator for voltage isolation; the regulator features integrated feedback and a switching frequency that can be set from 200 kHz to 1000 kHz.

This user guide provides all the necessary details to set up and use the EVAL-ADuM4070EBZ board. Additional information about the ADuM4070 device is available in the ADuM4070 data sheet, which should be consulted in conjunction with this user guide when using the EVAL-ADuM4070EBZ board.

Resources

pdf icon

pdf

UG-403: Evaluating the iCoupler ADuM4070 Isolated Switching Regulator with Integrated Feedback Download

488 kB

Show More Arrow image

Evaluation Kits1

evaluation kit item images

EVAL-ADUM4070

ADuM4070 Evaluation Board
