ADN4624

5.7 kV RMS/1.5 kV RMS, Quad-Channel LVDS 2.5 Gigabit Isolator (0 Reverse Channels)

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADN4624 IBIS Model Download 51.3 KB IBIS Model ADN4624 LFCSP IBIS Model Download 51.7 KB
Part Models 4
1ku List Price Starting From $15.89
Features
  • 5.7 kV rms and 1.5 kV rms LVDS isolators
  • Complies with TIA/EIA-644-A LVDS signal levels
  • Quad-channel configuration (ADN4622: 2 + 2, ADN4624: 4 + 0)
  • Any data rate up to 2.5 Gbps switching with low jitter
    • 10 Gbps total bandwidth across four channels
    • 2.15 ns typical propagation delay
    • Typical jitter: 0.82 ps rms random, 40 ps total peak
  • Lower power 1.8 V supplies
  • ±8 kV IEC 61000-4-2 ESD protection across isolation barrier
  • High common-mode transient immunity: 100 kV/μs typical
  • Safety and regulatory approvals (28-lead SOIC_W_FP package)
    • UL (pending): 5700 V rms for 1 minute per UL 1577
    • CSA Component Acceptance Notice 5A (pending)
    • VDE certificate of conformity (pending)
      • DIN V VDE V 0884-11 (VDE V 0884-11):2017-01
      • VIORM = 849 VPEAK (working voltage)
  • Enable or disable refresh (low-speed output correctness check)
  • Operating temperature range: −40°C to +125°C
  • 28-lead, wide-body, finer pitch SOIC_W_FP package with 8.3 mm creepage and clearance or 6 mm × 6 mm LFCSP package with 1.27 mm creepage and clearance
Additional Details
show more Icon

The ADN4622/ADN4624 are quad-channel, signal isolated, low-voltage differential signaling (LVDS) buffers that operate at up to 2.5 Gbps with very low jitter. The devices integrate Analog Devices, Inc., iCoupler® technology, enhanced for high-speed operation to provide drop-in galvanic isolation of LVDS signal chains. AC coupling and/or level shifting to the LVDS receivers and from the LVDS drivers allows isolation of other high-speed signals such as current-mode logic (CML).

The ADN4622/ADN4624 include a refresh mechanism to monitor the input and output states and ensure they remain the same in the absence of data transitions. For lower power consumption and high-speed operation with low jitter, the LVDS and isolator circuits rely on 1.8 V supplies. The ADN4622/ADN4624 are fully specified over a wide industrial temperature range and are available in a 28-lead, wide-body, finer pitch SOIC_W_FP package with 8.3 mm creepage and clearance (for 5.7 kV rms or 8 kVPEAK surge and impulse voltages and reinforced insulation at AC mains voltages) or 6 mm × 6 mm LFCSP package with 1.27 mm creepage and clearance (for basic/functional isolation).

APPLICATIONS

  • Isolated video and imaging data
  • Analog front-end isolation
  • Data plane isolation
  • Isolated high speed clock and data links
  • Multi-gigabit SERDES
  • Board-to-board optical replacement (for example, short reach fiber)
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADN4624 IBIS Model Download 51.3 KB IBIS Model ADN4624 LFCSP IBIS Model Download 51.7 KB
Part Models 4
1ku List Price Starting From $15.89
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADN4624

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Safety and Regulatory Compliance
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 03/12/2021
English

ADN4622/ADN4624: 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators Data Sheet (Rev.B)

Open PDF File

redirect
3.66 M
download

Download PDF

PDF Vector

PDF

UPDATED 03/12/2021
Japanese

ADN4624: 実効値 5.7kV のクワッド・チャンネルLVDS 2.5 ギガビット・アイソレータ データシート (Rev.0)

Open PDF File

redirect
3.45 M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 05/03/2021
English
UG-1373: Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators (Rev.A) redirect icon

2.26 M

download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

The Industry’s First 10Gbps Digital Isolator

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Analog Dialogue 1

The Easy Steps to Calculate Sampling Clock Jitter for Isolated, Precision High Speed DAQs

Webcast 2

Fastest Ever – Innovate with 2.5 Gigabit Digital Isolators
Isolating GigaSpeed: Unlocking Data Integrity for USB and HDMI Communication

Video

1

Thumbnail Image

Video

2021-07-16

01:01

ADI's ADN4624 5.7 kV rms Quad-Channel 2.5 Gigabit Isolator

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

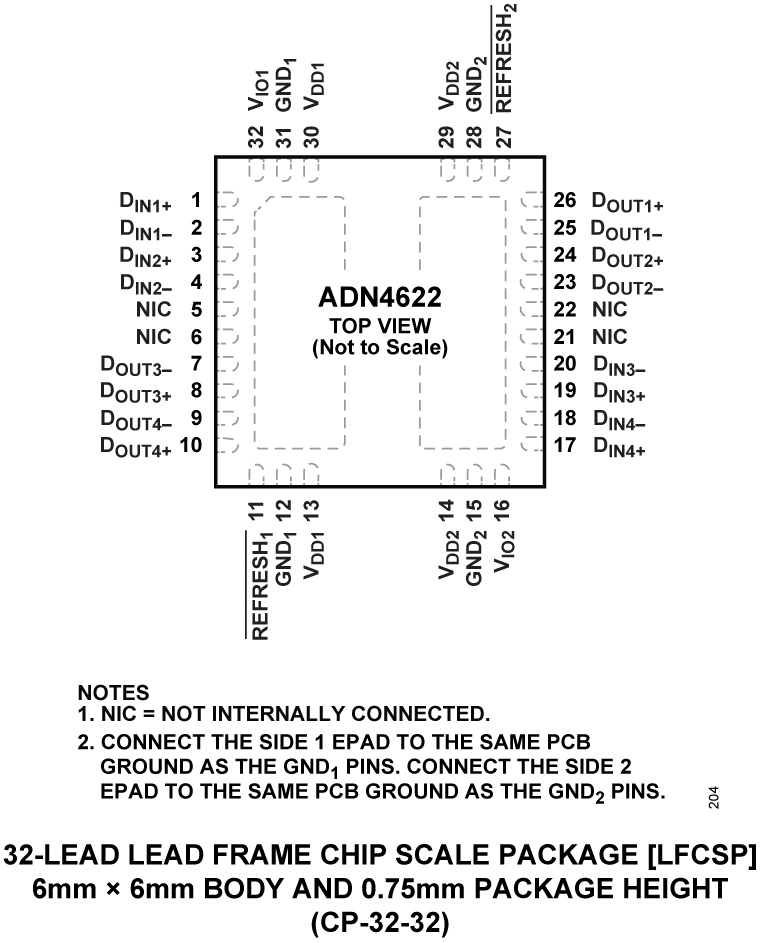

ADN4624BCPZ 32-Lead LFCSP (6 mm x 6 mm x 0.75 mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADN4624BCPZ-RL 32-Lead LFCSP (6 mm x 6 mm x 0.75 mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

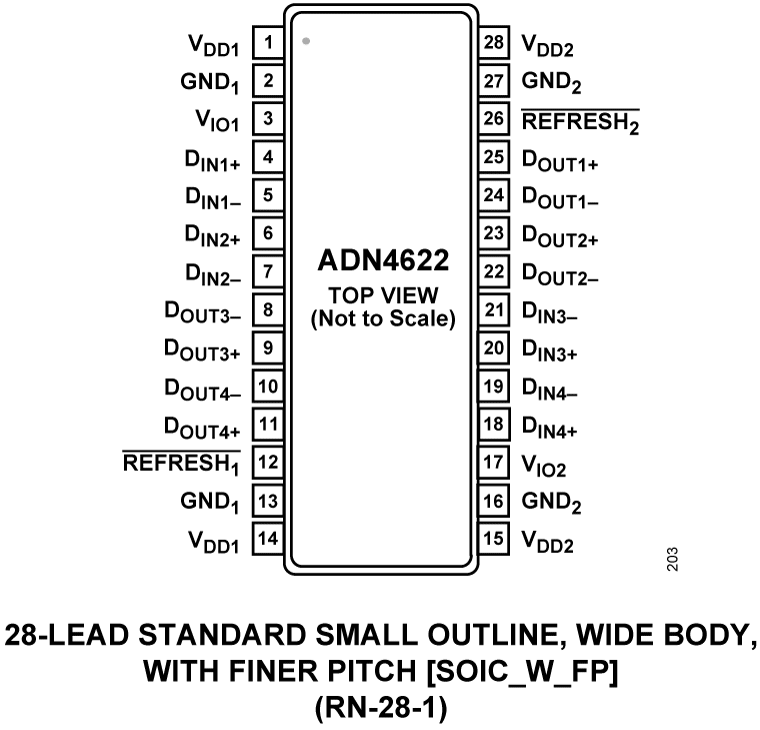

ADN4624BRNZ 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADN4624BRNZ-RL 28-Lead SOIC (Wide, Finer Pitch) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 1

reference details image

EVAL-ADN4622/EVAL-ADN4624

Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators

zoom

EVAL-ADN4622/EVAL-ADN4624

Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators

download icon

Download

 print icon

Print
EVAL-ADN4622/EVAL-ADN4624
Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators

Features and Benefits

  • Isolated ground planes (logic side and bus side)
  • High speed layout supports 2.5 Gigabit operation and precision jitter measurements (<1 ps rms for random jitter)
  • Convenient connections through SMA terminals
    • 1.8 V power on Side 1 (VDD1) and Side 2 (VDD2)
    • ADN4622: 3.3 V power for LVDS receivers on Side 1 (VIO1) and Side 2 (VIO2)
    • Ground on Side 1 (GND1) and ground on Side 2 (GND2)
    • LVDS input signals: DIN1+, DIN1−, DIN2+, DIN2−, DIN3+, DIN3−, DIN4+, DIN4−
    • LVDS output signals: DOUT1+, DOUT1−, DOUT2+, DOUT2−, DOUT3+, DOUT3−, DOUT4+, DOUT4−
  • Jumper-selectable refresh mode
  • Termination resistors on all LVDS receivers
Buy Now View Details

Product Detail

The EVAL-ADN4622EB1Z and EVAL-ADN4624EB1Z allow quick and simple evaluation of the ADN4622 and ADN4624 low-voltage differential signaling (LVDS) isolators respectively, without the need for external components. The ADN4622/ADN4624 employ Analog Devices, Inc., iCoupler® technology to combine a 4-channel isolator with LVDS receivers and drivers into a single, 28-lead wide-body SOIC package with finer pitch. The devices are capable of running at data rates of up to 2.5 Gbps with low jitter.

The EVAL-ADN4622EB1Z and EVAL-ADN4624EB1Z have a separate ground and power plane for each side of the isolator. This separation enables the evaluation of the ADN4622/ADN4624 with galvanic isolation between both sides of the device. 1.8 V power supplies are required on each side of the ADN4622/ADN4624 device, and the ADN4622 additionally requires a 3.3 V power supply on each side.

For full details on the ADN4622/ADN4624, see the ADN4622/ADN4624 data sheet, which must be consulted in conjunction with the user guide when using the EVAL-ADN4622EB1Z or EVALADN4624EB1Z.

Resources

pdf icon

PDF

UG-1373: Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators (Rev.A) Download

2.26 M

Show More Arrow image

Evaluation Kits1

evaluation kit item images

EVAL-ADN4622/EVAL-ADN4624

Evaluating the ADN4622/ADN4624 5.7 kV rms/1.5 kV rms, Quad-Channel LVDS 2.5 Gigabit Isolators
