Features and Benefits
- Blackfin+ core with up to 200 MHz performance
- Dual 16-bit or single 32-bit MAC support per cycle
- 16-bit complex MAC and many other instruction set enhancements
- Instruction set compatible with previous Blackfin product
- On-Chip Memory
- 136KB L1 SRAM with multi-parity-bit protection (64KB instruction, 64KB data, 8KB scratchpad)
- 128KByte on-chip L2 SRAM with ECC protection
- 512KByte On-chip L2 ROM
- Key Peripherals include
- USB2.0 HS OTG
- 2x CAN2.0B
- ePPI Video I/O
- 2x SPORTs (w/I2S)
- 2xQuad-SPI / 1xDual-SPI (w/ Host mode option)
- SD/SDIO/MMC (4-bit)
- Security and one-time-programmable memory
- Crypto hardware accelerators for fast secure boot/IP protection
- memDMA encryption/decryption for fast run-time security
- Low-cost packaging
- 88-Lead LFCSP (QFN) package (12 mm × 12mm), RoHS compliant
- Low system power with < 53 mW at 200 MHz at 25°C TJUNCTION

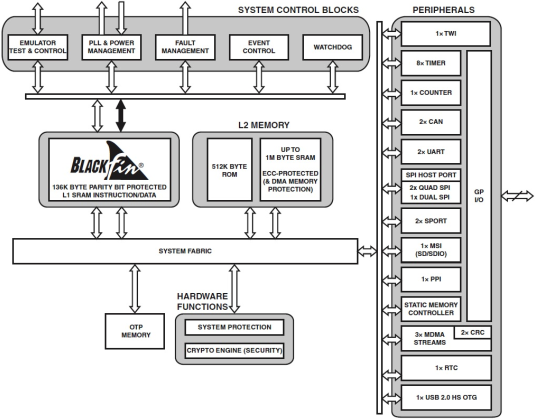

This device is a member of the ADSP-BF70x Blackfin Digital Signal Processor (DSP) product family. The new Blackfin+ processor core combines dual-MAC 16-bit, 32-bit MAC and 16-bit complex MAC in to a state-of-the-art signal processing engine. It also combines advantages of a clean, orthogonal RISC-like microprocessor instruction set, and single-instruction, multiple-data (SIMD) multimedia capabilities within a single instruction-set architecture. Further new enhancements to the Blackfin+ core add cache enhancements, branch prediction and other instruction set improvements—all while maintaining instruction set compatibility to previous Blackfin products.
The processor offers performance up to 200 MHz, as well as lowest power consumption at <53mW. Produced with a low-power and low-voltage design methodology, they provide world-class power management and performance.
By integrating a rich set of industry-leading system peripherals and large on-chip memory, this Blackfin processor is the platform of choice for next-generation applications that require RISC-like programmability, multimedia support, and leading-edge signal processing in one integrated package. These applications span a wide array of markets, from automotive systems to embedded industrial, instrumentation, video/image analysis, biometric and control applications.
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (2)
The Analog Devices ICE-1000 and ICE-2000 emulators facilitate the creation, test, and debug of advanced applications on Analog Devices Processors and DSPs. Working in tandem with the CrossCore® Embedded Studio development environment, these emulators provide state-of-the-art support for all JTAG-compliant Analog Devices processors.
New debug feature added for the ICE-1000/ICE-2000:
- Coresight Serial Wire Debug (SWD)
Features & Benefits
- JTAG/SWD support for Blackfin, Blackfin+, SHARC and multi-core SHARC+ with ARM
- Plug-n-Play, USB 2.0 compliant
- USB bus-powered device
- Windows® 8.1, Window 7 compatible
- Multiple processor I/O voltage support: 1.8V, 2.5V, and 3.3V
- Multiprocessor support
- JTAG/SWD clock operation of 5 MHz on the ICE-1000
- JTAG/SWD clock operation up to 46 MHZ on the ICE-2000
- Multi-colored LED for enhanced status indication
- Software controlled target reset to support remote debug
Analog Devices has developed a low cost, low power DSP evaluation platform targeting an array of real-time applications. The ADSP-BF706 EZ-KIT Mini® leverages the latest entry within the industry-leading, low power Blackfin® processor family as well as ADI’s optimized development tools and third party software deliverables. With on-board, high quality audio connectivity, multiple expansion options, and an integrated debug agent, the EZ-KIT Mini offers designers a complete small form factor, low cost starter platform for multiple applications.
The ADSP-BF706 Blackfin processor is a high performance DSP that delivers a class-leading 800 MMACS of processing power at less than 100 mW. With glueless connectivity options including USB and over 1 MB of internal SRAM, this reduces BOM cost and eliminates the need for external memory in many applications. Using the enhanced Blackfin+ core, the combination of performance, power efficiency, memory integration, sophisticated security, and great value, allows designers to incorporate advanced 16- and 32-bit processing into a wide range of new power sensitive use cases.
Target ADSP-BF70x applications include:
- Portable audio, DJ equipment, and effects
- Automotive audio and sensors
- Portable communications
- Military and aerospace
- Portable healthcare
- Intelligent lighting and occupancy detection*
- Industrial imaging and biometrics*
Features & Benefits
- ADSP-BF706 EZ-KIT Mini features:
- ADSP-BF706 Blackfin Processor
- 400 MHz/800 MMACs performance at <100 mW
- 1160 kB on-chip SRAM (136 kB L1, 1 MB L2)
- 88-lead LFCSP (QFN) package
- Small form factor: 4 in × 2 in (10 cm × 5 cm)
- 4 MB quad SPI flash
- ADAU1761 SigmaDSP® low power stereo audio codec
- Line-in and headphone jacks
- Direct USB 2.0 HS PHY interface to ADSP-BF706
- External connections for EPPI0, SPORT, SPI, I2C, timer, and GPIOs
- On-board debug agent (JTAG/SWD) via separate USB interface
- Other features
- USB bus powered
- Push buttons and LEDs
- Boot mode strapped to SPI master
- Resistors for processor current measurement
- Arduino Uno R3 connection compatibility
- ADSP-BF706 Blackfin Processor
- CrossCore® embedded studio software tools
- Full featured development suite and board support package
- Complete real-time debug capability included
- Full featured one year evaluation license
Documentation & Resources
EE-394: ADSP-BF70x Blackfin+™ Processor Optimization Techniques (Rev. 1)12/16/20163M
• EE-394: Associated CodeZIP
EE-395: Interfacing the AD7689 ADC to ADSP-BF70x Blackfin+™ Processors (Rev. 1)12/15/2016665 K
• EE-395: Code ExampleZIP
EE-386: Using the Security Packet Engine to Protect Data (Rev. 1)10/20/2016500 K
• EE-386: Associated CodeZIP
EE-378: Processor Comparison Guide (ADSP-BF60x/BF70x vs ADSP-SC58x/2158x) (Rev. 1)1/19/2016554 K
EE-376: ADSP-BF70x Blackfin+ Processor System Optimization Techniques1/7/20161 M
• EE-376: Associated ZIP FileZIP
EE-385: Implementing the RSA Cryptosystem with the Public Key Accelerator12/18/2015572 K
• EE-385: Associated CodeZIP
EE-373: Tuning the Dynamic Branch Predictor for ADSP-BF70x Blackfin™ Processors (Rev. 1)7/14/2015479 K
• EE-373: Associated FileZIP
EE-374: Implementing Second-Stage Loaders on ADSP-BF707 Blackfin® Processors (Rev. 1)6/15/2015398 K
• EE-374: Associated FileZIP
EE-360: Utilizing the Trigger Routing Unit for System Level Synchronization (Rev. 1)2/14/2015211 kB
• EE-360: Code ExampleZIP
EE-368: ADSP-BF70x Blackfin+ Processors Cryptographic Algorithm Validation (Rev. 1)12/11/2014595 K
• EE-368: Code ExampleZIP
EE-366: Secure Booting Guide for Blackfin+® and SHARC+® Processors (Rev. 2)11/26/2014588 K
• EE-366: Code ExampleZIP
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev. 1)2/15/200590 kB
Blackfin®/SHARC® USB EZ-Extender® Manual (Rev. 1.1)5/7/2009359 kB
Blackfin Processors: Manuals11/12/2015
ADSP-BF70x Blackfin+™ Processor Programming Reference (Rev. 1.0)6/11/20143825 kB
ADSP-BF70x Blackfin+™ Processor Hardware Reference (Rev. 1.0)6/10/201411517 kB
ICE-1000/ICE-2000 Emulator User’s Guide (Rev. 1.2)6/3/2014321 kB
ICE-100B Emulator User’s Guide (Rev. 1.1)11/11/2009348 kB
Blackfin ADSP-BF70x Series of DSP Processors10/15/20144 M
