ADSP-BF538F
Blackfin Processor for Industrial and Peripheral Intensive Applications
Show More
Not the part you were looking for?
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
|
|
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The Blackfin® Processor family has been expanded to address the ever-increasing need for more connection possibilities. This connectivity is coupled with the high performance 16-/32-bit Blackfin embedded processor core, the flexible cache architecture, the enhanced DMA subsystem, and the Dynamic Power Management (DPM) functionality. System designers can take advantage of the combined control and signal processing capabilities of the processor core across a wide range of end applications through code compatibility of these new family members with existing Blackfin offerings.
The ADSP-BF538F processors are a functional extension of the popular ADSP-BF533 processor, and they are ideally suited for applications with multiple device connections. The ADSP-BF538F is equivalent in functionality to the ADSP-BF538 processor with the exception of the addition of onboard FLASH memory. Ideally suited for a broad range of industrial, instrumentation and medical appliance applications—allowing for broad connection possibilities coupled with a mix of control and signal processing needs based on the end product.
Designed for Embedded Development
A new addition to the Blackfin Processor family is the inclusion of integrated FLASH memory alongside the processor. There are two choices available in the ADSP-BF538F family, one with 512KB of onboard FLASH memory and one with 1MB of onboard FLASH memory. Both offer large code space for complex embedded systems and fast access time to the Blackfin core. This is in addition to the complementary Blackfin processor memory system that offers a powerful and flexible cache architecture that can dynamically balance between the hard real-time tasks desired in SRAM and soft real-time control tasks and an Operating System (OS) requiring cache functionality.
FLASH Memory Data Sheets:
4 Megabit (512 K x 8-Bit/256 K x 16-Bit) FLASH memory
8 Megabit (1 M x 8-Bit/512 K x 16-Bit) FLASH memory
Dynamic Power Management additionally lowers power consumption for extending battery life or for minimizing power dissipation in enclosed applications.
Designed as an Integrated System
In addition to the embedded connectivity of CAN, the ADSP-BF538F processors include a variety of general purpose functions designed to minimize external IC count and offer broad control and communication. Peripherals include three SPI®-compatible ports, three UARTs, four SPORT ports, three multifunction timers, 54 general-purpose I/Os, dual Two-Wire Interface for I2C operation, a real-time clock, a watchdog timer, an event controller, and a JTAG/debug interface. The flexible Parallel Peripheral Interface (PPI) offers a direct connection to a variety of video encoders/ decoders, display drivers, image sensors, and general-purpose converters.
Development Tools
Blackfin Processors are supported by:
Analog Devices CROSSCORE® brand of industry leading development tools. The CROSSCORE components include the VisualDSP++® software development environment, EZ-KIT Lite® evaluation systems, EZ-Extender™ daughter boards, and PCI-based or USB-based emulators.
Green Hills® Software award-winning MULTI® Embedded Software Development Environment and associated emulators.
2
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADSP-BF538F
Documentation
Filters
1 Applied
-
All
-
Application Note
-
Data Sheet
-
Integrated Circuit Anomaly
-
Processor Manual
-
Emulator Manual
-
Product Highlight
-
Software Manual
-
User Guide
-
All
-
English
-
Chinese
-
Japanese
Data Sheet
3
Application Note
15
Integrated Circuit Anomaly
2
Processor Manual
3
HTML
Emulator Manual
6
Product Highlight
4
2098 kB
Software Manual
11
User Guide
7
Documentation
Data Sheet 1
User Guide 6
Application Note 9
EE-269: A Beginner’s Guide to Ethernet 802.3 (Rev.1)
EE-294: Energy-Aware Programming on Blackfin Processors (Rev.1)
EE-185: Fast Floating-Point Arithmetic Emulation on Blackfin® Processors (Rev.4)
EE-281: Hardware Design Checklist for the Blackfin® Processors (Rev.2)
EE-261: Understanding Jitter Requirements of PLL-Based Processors (Rev.1)
EE-339: Using External Switching Regulators with Blackfin® Processors (Rev.1)
EE-183: Rational Sample Rate Conversion with Blackfin® Processors (Rev.5)
EE-335: Interfacing SD Cards with Blackfin Processors (Rev.1)
EE-326: Blackfin® Processor and SDRAM Technology (Rev.2)
Processor Manual 3
Product Highlight 3
Software Manual 11
VisualDSP++® 5.0 Users Guide (Rev.3.0)
VisualDSP++® 5.0 Quick Installation Reference Card (Rev.3.1)
VisualDSP++® 5.0 Licensing Guide (Rev.1.4)
VisualDSP++® 5.0 Device Drivers and System Services Manual for Blackfin Processors (Rev.4.3)
VisualDSP++® 5.0 C/C++ Compiler and Library Manual for Blackfin Processors (Rev.5.4)
VisualDSP++® 5.0 Loader and Utilities Manual (Rev.2.5)
VisualDSP++® 5.0 Product Release Bulletin (Rev.3.0)
VisualDSP++® 5.0 Assembler and Preprocessor Manual (Rev.3.4)
VisualDSP++® 5.0 Getting Started Guide (Rev.3.0)
VisualDSP++® 5.0 Kernel (VDK) Users Guide (Rev.3.5)
VisualDSP++® 5.0 Linker and Utilities Manual (Rev.3.5)
Emulator Manual 3
Integrated Circuit Anomaly 1
Legacy Evaluation Kit Manual 4
Product Highlight 3
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADSP-BF538BBCZ-4F8 |
316-Ball CSPBGA (17mm x 17mm)
|
|
|
| ADSP-BF538BBCZ-5F8 |
316-Ball CSPBGA (17mm x 17mm)
|
|
- ADSP-BF538BBCZ-4F8
- Pin/Package Drawing
-
316-Ball CSPBGA (17mm x 17mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADSP-BF538BBCZ-5F8
- Pin/Package Drawing
-
316-Ball CSPBGA (17mm x 17mm)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 25, 2013
- 13_0300
Datasheet Changes for ADSP-BF538/BF538F Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
May 9, 2011
- 11_0096
Fab Site Transfer for Flash Memory used with ADSP-BF538F8 & ADSP-BF539F8 Blackfin Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
May 14, 2010
- 10_0114
Datasheet Update for ADSP-BF538/ BF538F Products
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Mar 9, 2010
- 10_0034
Halogen-Free laminate change and datasheet update for ADSP-BF538/BF538F & ADSP-BF539/BF539F CSP_BGA products.
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Mar 2, 2010
- 09_0185
Change of 8M bit Boot Sector Flash memory used with ADSP-BF538F8 & ADSP-BF539F8 Blackfin Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Feb 17, 2010
- 09_0173
Power-Up Reset timing specification change applicable to select Blackfin Processors.
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Nov 7, 2024
- 24_0112
Obsolescence of ADSP-BF538F and ADSP-BF539FW products
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 25, 2013
- 13_0300
Datasheet Changes for ADSP-BF538/BF538F Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
May 9, 2011
- 11_0096
Fab Site Transfer for Flash Memory used with ADSP-BF538F8 & ADSP-BF539F8 Blackfin Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Jun 18, 2010
- 07_0093
Conversion to Laser Mark for all ADSPXXXX, ADSSTXXXX, and PC Audio Codecs Ink on Plastic Encapsulated Parts
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
May 14, 2010
- 10_0114
Datasheet Update for ADSP-BF538/ BF538F Products
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Mar 9, 2010
- 10_0034
Halogen-Free laminate change and datasheet update for ADSP-BF538/BF538F & ADSP-BF539/BF539F CSP_BGA products.
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Mar 2, 2010
- 09_0185
Change of 8M bit Boot Sector Flash memory used with ADSP-BF538F8 & ADSP-BF539F8 Blackfin Processors
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Feb 17, 2010
- 09_0173
Power-Up Reset timing specification change applicable to select Blackfin Processors.
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Nov 7, 2024
- 24_0112
Obsolescence of ADSP-BF538F and ADSP-BF539FW products
ADSP-BF538BBCZ-4F8
LAST TIME BUY
ADSP-BF538BBCZ-5F8
LAST TIME BUY
Software & Part Ecosystem
Software & Tools Anomaly
Looking for Evaluation Software? You can find it here
Evaluation Kits 3
EMULATOR-ADSP
Low Cost ICE-1000 and High Performance ICE-2000 USB-based JTAG Emulators
Features and Benefits
- JTAG/SWD support for Blackfin, Blackfin+, SHARC and multi-core SHARC+ with ARM
- Plug-n-Play, USB 2.0 compliant
- USB bus-powered device
- Windows® 8.1, Window 7 compatible
- Multiple processor I/O voltage support: 1.8V, 2.5V, and 3.3V
- Multiprocessor support
- JTAG/SWD clock operation of 5 MHz on the ICE-1000
- JTAG/SWD clock operation up to 46 MHZ on the ICE-2000
- Multi-colored LED for enhanced status indication
- Software controlled target reset to support remote debug
Product Detail
New debug feature added for the ICE-1000/ICE-2000:
- Coresight Serial Wire Debug (SWD)
EMULATOR-USB & HP USB ICE
USB-Based Emulator and High Performance USB-Based Emulator
Features and Benefits
- Full speed USB 1.1 interface enabling download speeds of up to 150 KB/Sec (ADZS-USB-ICE) or High speed USB 2.0 interface enabling download speeds of up to 1.5MB/sec (ADZS-HPUSB-ICE)
- Background Telemetry Channel (BTC) support enabling non-intrusive data exchange at up to 2.0 MB/sec (ADZS-HPUSB-ICE only)
- 1.8V, 2.5V, and 3.3V compliant and tolerant
- Support for all ADI JTAG processors and DSPs
- 5V tolerant and 3.3V compliant for 5V processors and DSPs
- Multiprocessor support
- 14-pin JTAG connector
- 3-meter USB cable for difficult-to-reach targets
- CE-certified
Product Detail
The plug-and-play architecture of USB allows the emulators to be automatically detected and configured by the host operating system. It can also be connected to and disconnected from the host without opening the PC or turning off the power to the PC. A 3-meter cable is included to connect the emulators to the host PC, thus providing abundant accessibility to hard to reach targets.
The HP USB-based emulator also supports the Background
Telemetry Channel (BTC), a non-intrusive method
for exchanging data between the host and target
application without affecting the target system's
real-time characteristics.
Part Number:
USB-Based Emulator
Part Number: ADZS-USB-ICE
High Performance USB-Based Emulator
Part Number: ADZS-HPUSB-ICE
Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
For additional information, contact your local Analog Devices Sales Office or Distributor.
Resources
EVAL-BF538F-EZLITE

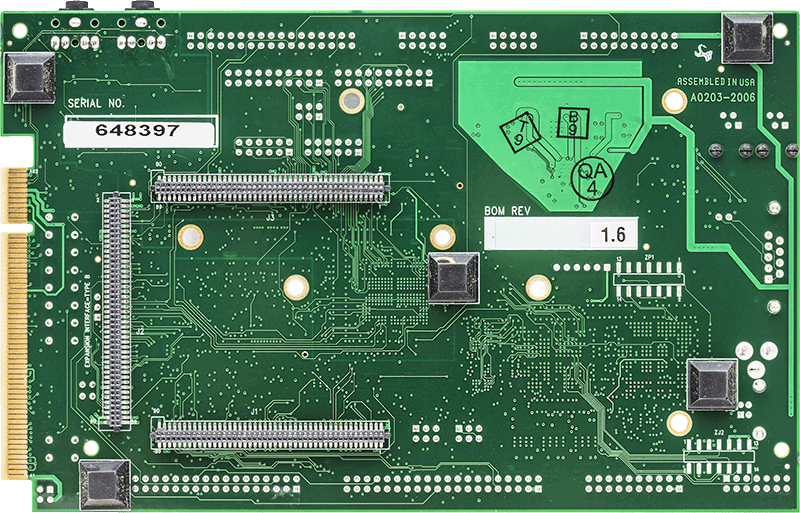

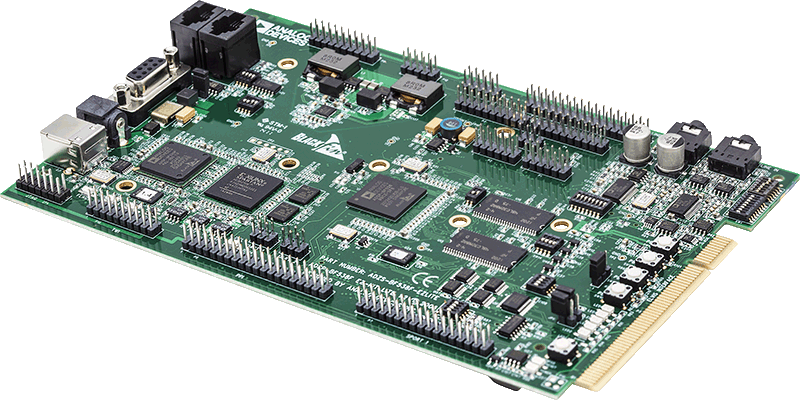

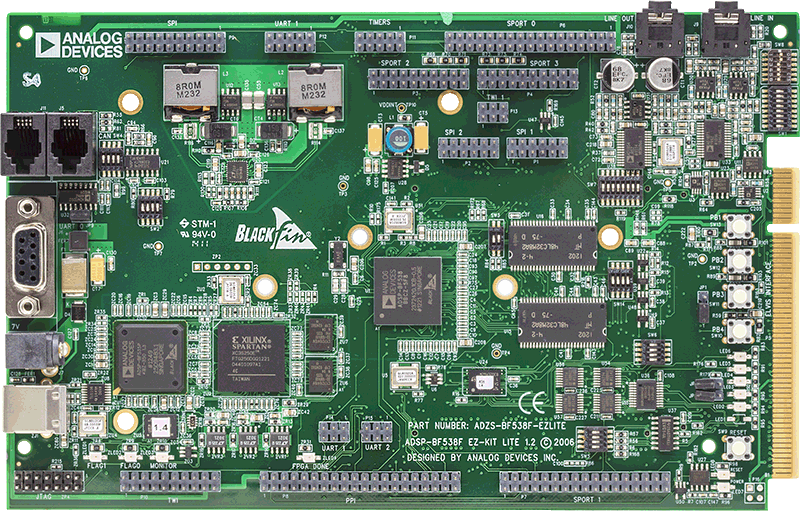

The ADSP-BF538F EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-BF538 and ADSP-BF538F Blackfin processor family.
