ADSP-BF516

Low Power Blackfin with Advanced Embedded Connectivity

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $12.60
Features
  • Blackfin processor core with up to 400 MHz (800 MMACS) performance
  • 2 dual-channel, full-duplex synchronous serial ports supporting 8 stereo I2S channels
  • 12 peripheral DMA channels supporting one- and two-dimensional data transfers
  • Ethernet 10/100 MII interface
  • 168-ball BGA package is offered in Commercial Temp. (0C to +70C) and Industrial Temp (-40C to +85C)
  • Lockbox™ Secure Technology: Hardware-enabled security for code and content protection
  • Memory controller providing glue-less connection to multiple banks of external SDRAM, SRAM, Flash, or ROM
  • 176-p, 0.5 mm pitch, 24 × 24 LQFP is offered in Commercial Temp. (0C to +70C) and Industrial Temp (-40C to +85C)
  • Connectivity: SDIO, CE-ATA, eMMC, UART’s, SPORT’s, SPI and TWI
Additional Details
show more Icon

The Blackfin processor family is extended further into the industrial and instrumentation market with the availability of an on chip eMAC, a 3-phase PWM generation unit and a quadrature encoder. The high performance 16/32-bit Blackfin embedded processor core, the flexible cache architecture, the enhanced DMA subsystem, and the dynamic power management (DPM) functionality allow system designers a flexible platform to address a wide range of connected applications, including motor control, power line monitoring, biometrics, pro-audio and femto cells.

The embedded eMAC of the BF516 coupled with a 400MHz CPU and a plethora of other peripherals make the BF516 the most attractive choice for demanding network connected systems.

The VoIP challenge to the embedded-system designer is to choose a processing solution that is cost-effective, easy to deploy and scaleable in performance across market spaces. A “sweet spot” embedded-solution approach is to design with a platform that can implement a low channel count basic VoIP solution, yet retain sufficient capacity for value added capabilities and services – such as video, music, imaging and system control. Unlike traditional VoIP embedded solutions that utilize two processor cores to provide VoIP functionality, the ADSP-BF516 provides a convergent solution in a unified core architecture that allows voice and video signal processing concurrent with RISC MCU processing to handle network and user-interface demands. This unique ability to offer full VoIP functionality on a single convergent processor provides for a unified software development environment, faster system debugging and deployment, and lower overall system cost.

The BF516 also brings ultra low power and a removable storage interface covering SDIO, CE-ATA and eMMC for portable devices.

IP protection has become a necessary part of today’s embedded computing applications. The ADSP-BF516 provides a security scheme which balances flexibility and upgradeability with performance through the inclusion of a firmware-based solution including OTP (One Time Programmable) memory to enable users to implement private keys for secure access to program code.

Part Models 8
1ku List Price Starting From $12.60

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADSP-BF516BBCZ-3
  • HTML
  • HTML
ADSP-BF516BBCZ-4
  • HTML
  • HTML
ADSP-BF516BSWZ-3
  • HTML
  • HTML
ADSP-BF516BSWZ-4
  • HTML
  • HTML
ADSP-BF516KBCZ-3
  • HTML
  • HTML
ADSP-BF516KBCZ-4
  • HTML
  • HTML
ADSP-BF516KSWZ-3
  • HTML
  • HTML
ADSP-BF516KSWZ-4
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 18, 2011

- 10_0289

Datasheet changes for ADSP-BF51x/ BF51xF Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Aug 27, 2010

- 10_0197

Die Revision and Datasheet Changes for ADSP-BF512/F,BF514/F,BF516/F,BF518/F Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Jun 23, 2010

- 10_0151

Datasheet update for ADSP-BF51x/ BF51xF Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Oct 18, 2016

- 16_0034

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 18, 2011

- 10_0289

arrow down

Datasheet changes for ADSP-BF51x/ BF51xF Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Aug 27, 2010

- 10_0197

arrow down

Die Revision and Datasheet Changes for ADSP-BF512/F,BF514/F,BF516/F,BF518/F Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Jun 23, 2010

- 10_0151

arrow down

Datasheet update for ADSP-BF51x/ BF51xF Products

ADSP-BF516BBCZ-3

PRODUCTION

ADSP-BF516BBCZ-4

PRODUCTION

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KBCZ-3

PRODUCTION

ADSP-BF516KBCZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Oct 18, 2016

- 16_0034

arrow down

Assembly Relocation of Select LQFP,LQFP_EP,MQFP,TQFP,TQFP_EP Products to Stats ChipPAC China Jiangyin

ADSP-BF516BSWZ-3

PRODUCTION

ADSP-BF516BSWZ-4

PRODUCTION

ADSP-BF516KSWZ-3

PRODUCTION

ADSP-BF516KSWZ-4

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 4

reference details image

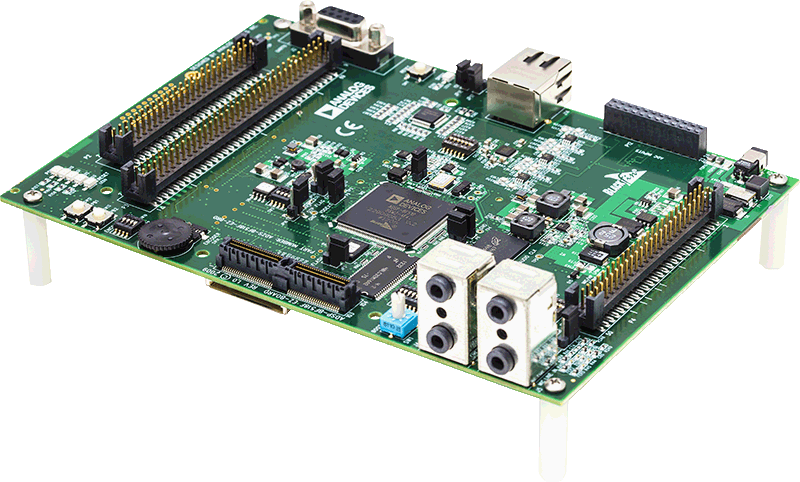

EVAL-BF518F-EZLITE

The ADSP-BF518F EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-BF51x Blackfin processor family.

zoom

EVAL-BF518F-EZLITE

The ADSP-BF518F EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-BF51x Blackfin processor family.

The ADSP-BF518F EZ-Kit Lite evaluation hardware provides a low-cost hardware solution for evaluating the ADSP-BF51x Blackfin processor family.

Features and Benefits

  • ADSP-BF518F: Blackfin processor: 400 MhZ, 176 Lead LQFP
  • SDRAM: 64 MB, 32M x 16, Micron MT48LC32M16A2TG ,3.3V
  • FLASH: 4 MB (2M x 16 ), Numonyx M29W320DB 3.3V, FBGA48
  • SPI FLASH: 4 Mb on-chip SPI 1.8V
  • Audio CODEC: ADI SSM2602 CODEC 3.3 Volts, 12MHz input
  • A/D Converter: AD7266, Differential/Single-Ended Input, Dual 2 MSPS, 12 bit 3 Channel
  • Power Analysis Interface: Precision resistors to measure VDDINT, VDDEXT, VDDMEM, VDDFLASH
  • Ethernet PHY: National Semiconductor 10/100 Single Port PHY
  • LEDs: 13 LEDs: 1 power (green), 1 board reset (red), 3 general purpose (amber), 8 Ethernet (amber)
  • RTC Battery: 3.0 Volt Li-ION, CR2430 (270mAh)
  • Connectors: Ethernet, SD, EBIU Expansion, Group 1A and 1B Expansion, Group 2A Expansion

Product Detail

The ADSP-BF518F EZ-KIT Lite® provides developers with a cost-effective method for initial evaluation of the ADSP-BF512/F, BF514/F, BF516/F, BF518/F Blackfin® Processors via a USB-based, PC-hosted tool set. With this EZ-KIT Lite, users can learn more about the Analog Devices (ADI) ADSP-BF518F hardware and software development, and quickly prototype a wide range of applications.



The EZ-KIT Lite includes an ADSP-BF518F Blackfin Processor desktop evaluation board along with an evaluation suite of the VisualDSP++® development and debugging environment, including the C/C++ compiler, assembler, and linker. The evaluation suite of VisualDSP++ is designed to be used with the EZ-KIT Lite only.



The EZ-KIT Lite also comes with a standalone debug agent board that is removable to allow a user to plug-in an external emulator.


Ordering Information
Part number: ADZS-BF518F-EZLITE


CROSSCORE® Tools Support
Tel: 1.800.ANALOGD
Contact Support

reference details image

EVAL-BFSHUSB-EZEXT

The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

zoom

EVAL-BFSHUSB-EZEXT

The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

The USB extender board is a low-cost, plug-on extender for EZ-Boards. This extender extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin or SHARC processor and a USB 2.0 device. For information about compatible EZ-Board products, see the processors family's Software and Tools page.

Features and Benefits

  • ADSP-21469: 176-pin LQFP package, 25 MHz CLKIN oscillator
  • ADSP-21479: 196-pin BGA package, 16.625 MHz CLKIN oscillator
  • ADSP-21489: 176-pin LQFP package, 25 MHz CLKIN oscillator
  • Flash Memory: 4 M x 8-bit, Numonyx
  • SDRAM Memory: 16Mb x16 bit, Micron MT48LC16M16A2P-6A
  • Asynch SRAM: 1M x16 bit, ISSI IS61WV102416BLL-10TLI
  • SPI Memory: 16 Mbit
  • Analog Audio: AD1939 Codec
  • SPDIF: RCA phone jacks
  • Temp Sensor: ADM1032 Two Wire Sensor
  • UART: ADM3202 RS-232 line driver/receiver
  • Power Supply: 5V @ 3.6 Amps
  • LEDs: 10 LEDs: 1 power (green), 1 board reset (red), and 8 general purpose (amber)
  • Push Buttons: (5) push buttons: (1) reset, (2) connected to DAI, (2). IRQ/Flag
  • SHARC Expansion Interface II: AMI, Flags/IRQs, DAI, DPI, PWR_IN, 3.3V, GND
  • Other Features: Standalone Debug Agent Interface, RTC (Real Time Clock) implementation, Shift Register Interface, MP JTAG IN and OUT Connectors, 0-ohm resistors for DSP current measurement, CE compliant

Product Detail

The Blackfin SHARC USB EZ-Extender plugs onto the expansion interface of the ADSP-BF518F and ADSP-21469 EZ-Board and EZ-KIT Lite’s. The EZ-Extender aids the design and prototyping phases of the processor targeted applications and extends the capabilities of the evaluation system by providing a connection between the asynchronous memory bus of the Blackfin/SHARC processor and a USB 2.0 device.


Ordering Information:
Part number: ADZS-BFSHUSB-EZEXT


CROSSCORE® Tools Support:
Tel: 1-800-ANALOGD (262-5643)
Contact Support
