ADSP-21065L

Low-Cost SHARC, 66 MHz, 198 MFLOPS, 3.3v, Floating Point

Data Sheet

Rev. C

Production

Top

}

Overview

Features and Benefits
Product Details

Features and Benefits

198 MFLOPS (32-bit floating-point)
16K 32-bit Dual-ported on-chip memory (544 KBits configurable)
64M x 32-bit word external address space
Glueless SDRAM interface
I²S mode supports up to 8 channels
2 serial transmit/receive ports support 32-channel TDM
Two timers with event capture and PWM options
12 programmable I/O pins
10 DMA channels
Glueless multiprocessing with 2 ADSP-21065Ls

ADSP-21065L supports defense and aerospace applications (AQEC standard)

Download ADSP-21065L-EP data sheet (pdf)
Extended temperature range –55°C to +110°C
Controlled manufacturing baseline
One package assembly/test site
One wafer fabrication site
Enhanced product change notification
Qualification data available upon request
V62/13601 DSCC Drawing Number

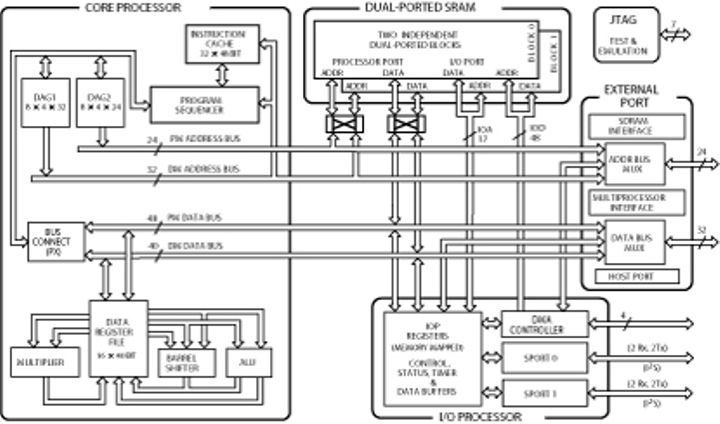

Product Details

The ADSP-21065L is a general purpose, programmable 32-bit DSP that allows users to program with equal efficiency in both fixed-point or floating-point arithmetic. This programming flexibility combined with the high performance core and integrated peripherals make the ADSP-21065L an outstanding price/performance value for a broad base of consumer, communications, automotive, industrial and computer applications.

The ADSP-21065L is code compatible with ADI's SHARC DSP family and as such customers have immediate access to software and hardware development tools from ADI and SHARC third parties.

Product Categories

Processors & Microcontrollers
- SHARC Audio Processors/SoCs

Audio & Video Products
- SHARC Audio Processors/SoCs

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
