Features and Benefits
- Ultrawideband frequency range: 9 kHz to 40 GHz
- Attenuation range: 2 dB steps to 30 dB
- Low insertion loss
- 1.6 dB to 18 GHz
- 2.0 dB to 26 GHz
- 3.4 dB to 40 GHz
- Attenuation accuracy
- ±(0.1 + 1.0%) of attenuation state up to 18 GHz
- ±(0.1 + 2.5%) of attenuation state up to 26 GHz
- ±(0.6 + 10.0%) of attenuation state up to 40 GHz
- Typical step error
- ±0.15 dB to 18 GHz
- ±0.20 dB to 26 GHz
- ±0.60 dB to 40 GHz
- High input linearity
- P0.1dB insertion loss state: 30 dBm
- P0.1dB other attenuation states: 26 dBm
- IP3: 50 dBm typical
- High RF input power handling: 26 dBm average, 30 dBm peak
- Tight distribution in relative phase
- No low frequency switching spurs
- SPI and parallel mode control, CMOS/LVTTL compatible
- RF amplitude settling time (0.1 dB of final RF output): 8.5 μs
- 2.5 mm × 2.5 mm, 16-terminal LGA package
- Pin compatible with ADRF5731, fast switching version
The ADRF5721 is a silicon, 4-bit digital attenuator with a 30 dB attenuation control range in 2 dB steps.
This device operates from 9 kHz to 40 GHz with better than 3.4 dB of insertion loss. The ATTIN port of the ADRF5721 has a radio frequency (RF) input power handling capability of 26 dBm average and 30 dBm peak for all states.
The ADRF5721 requires a dual supply voltage of +3.3 V and −3.3 V. The device features serial peripheral interface (SPI), parallel mode control, and complementary metal-oxide semiconductor (CMOS)-/low voltage transistor to transistor logic (LVTTL)-compatible controls.
The ADRF5721 is pin compatible with the ADRF5731, the fast switching version, which operates from 100 MHz to 40 GHz.
The ADRF5721 RF ports are designed to match a characteristic impedance of 50 Ω.
The ADRF5721 comes in a 16-terminal, 2.5 mm × 2.5 mm, RoHS compliant, land grid array (LGA) package and operates from −40°C to +105°C.
- Industrial scanners
- Test and instrumentation
- Cellular infrastructure: 5G millimeter wave
- Military radios, radars, electronic counter measures (ECMs)
- Microwave radios and very small aperture terminals (VSATs)
Markets & Technology
- Aerospace and Defense
- Instrumentation & Measurement
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

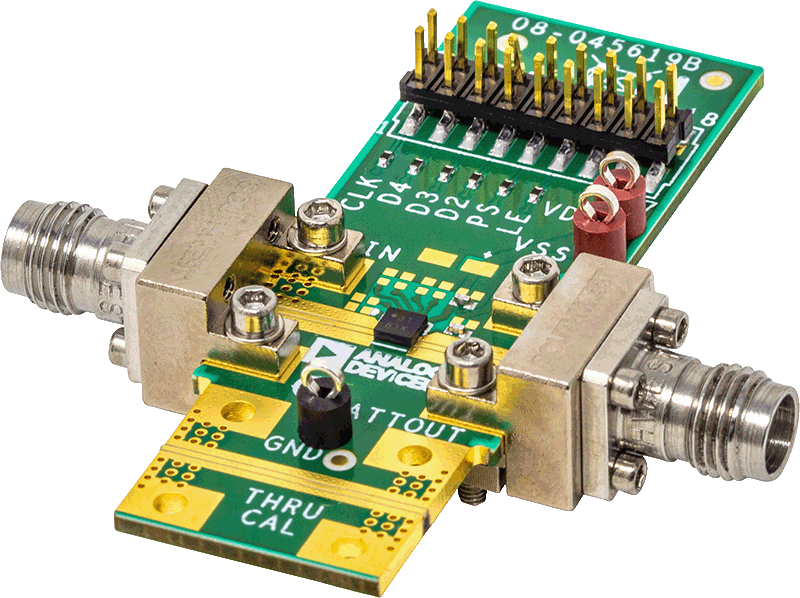

The ADRF5721-EVALZ is a 4-layer evaluation board. The top and bottom copper layers are 2.2 mil (1.5oz) and are separated by dielectric materials.
All RF and dc traces are routed on the top copper layer whereas the inner and bottom layers are grounded planes that provide a solid ground for the RF transmission lines. Top dielectric material is 12 mil Rogers RO4003, offering optimal high frequency performance. The middle and bottom dielectric materials provide mechanical strength. The overall board thickness is 62 mil, which allows 2.4 mm RF launchers to be connected at the board edges.
Tools & Simulations
ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.
