ADL9005

Wideband, Low Noise Amplifier, Single Positive Supply, 0.01 GHz to 26.5 GHz

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $140.27
Features
  • Single positive supply
  • Low noise figure: 2.5 dB typical from 0.01 GHz to 14 GHz
  • High gain: 17.5 dB typical from 0.01 GHz to 14 GHz
  • OP1dB: 13.5 dBm typical from 0.01 GHz to 20 GHz
  • High OIP3: 26 dBm typical from 0.01 GHz to 14 GHz
  • RoHS-compliant, 4 mm × 4 mm, 24-lead LFCSP
Additional Details
show more Icon

The ADL9005 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), wideband, LNA that operates from 0.01 to 26.5 GHz. The ADL9005 provides a typical gain of 17.5 dB from 0.01 GHz to 14 GHz with a positive gain slope from 14 GHz to 20 GHz, a 13.5 dBm typical output power at 1 dB compression (OP1dB) from 0.01 GHz to 20 GHz, a 2.5 dB typical noise figure from 0.01 GHz to 14 GHz, and a typical output third-order intercept (OIP3) of 26 dBm from 0.01 GHz to 14 GHz, requiring only 80 mA from a 5 V supply voltage. The saturated output power (PSAT) of up to 16 dBm enables the LNA to function as a local oscillator (LO) driver for many of Analog Devices, Inc., balanced, inphase/quadrature (I/Q) or image rejection mixers. The ADL9005 also features inputs and outputs (I/Os) that are internally matched to 50 Ω, making it ideal for surface-mounted technology (SMT)-based, high capacity microwave radio applications.

The ADL9005 is housed in a RoHS-compliant, 4 mm × 4 mm, LFCSP.

Multifunction pin names may be referenced by their relevant function only.

APPLICATIONS

  • Test instrumentation
  • Military
  • Communications
  • Part Models 2
    1ku List Price Starting From $140.27

    close icon
    Documentation

    Documentation

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADL9005ACPZN
    • HTML
    • HTML
    ADL9005ACPZN-R7
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Sep 28, 2023

    - 23_0146

    Process Revision for Select Low Noise Amplifier Products

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Sep 28, 2023

    - 23_0146

    arrow down

    Process Revision for Select Low Noise Amplifier Products

    Software & Part Ecosystem

    Software & Part Ecosystem

    Evaluation Kit

    Evaluation Kits 1

    reference details image

    EVAL-ADL9005

    Evaluating the ADL9005 Wideband, Low Noise Amplifier, Single Positive Supply, 0.01 GHz to 26.5 GHz

    zoom

    EVAL-ADL9005

    Evaluating the ADL9005 Wideband, Low Noise Amplifier, Single Positive Supply, 0.01 GHz to 26.5 GHz

    Evaluating the ADL9005 Wideband, Low Noise Amplifier, Single Positive Supply, 0.01 GHz to 26.5 GHz

    Features and Benefits

  • 2-layer Rogers 4350B evaluation board with heat spreader
  • End launch, 2.9 mm RF connectors
  • Through calibration path (depopulated)
  • Product Detail

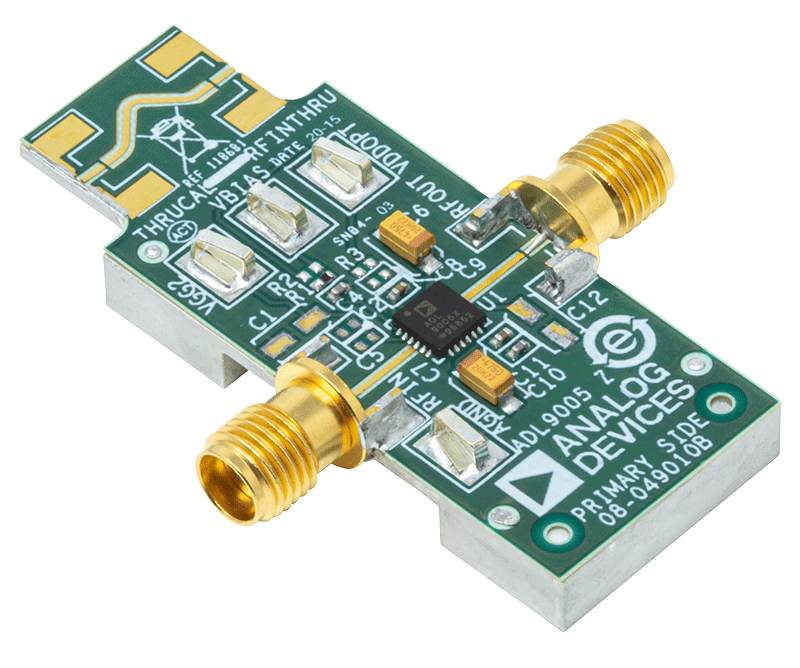

    The ADL9005-EVALZ consists of a 2-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B, copper clad, mounted to an aluminum heat spreader. The heat spreader assists in providing thermal relief to the device as well as mechanical support to the PCB. Mounting holes on the heat spreader allow attachment to larger heat sinks for improved thermal management.

    The RFIN and RFOUT ports on the ADL9005-EVALZ are populated with 2.9 mm, female coaxial connectors, and the respective RF traces have a 50 Ω characteristic impedance. The ADL9005-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL9005.

    To calibrate out board trace losses, a through calibration path, THRU CAL, is provided between the RFINTHRU and THRUCAL connectors. RFINTHRU and THRUCAL must be populated with RF connectors to use the through calibration path. The power voltages and ground path are accessed through surfacemounted technology (SMT) test points.

    An external wideband bias tee must be connected to RFOUT to provide bias current and ac coupling on RFOUT. The BT2-0040 from Marki Microwave is recommended.

    Alternatively, dc bias can be provided by connecting the dc supply voltage to the VDDOPT SMT test point.

    The RF traces are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad directly connect to the ground plane. Multiple vias are used to connect the top and bottom ground planes with particular focus on the area directly beneath the ground pad to provide adequate electrical conduction and thermal conduction to the heat spreader.

    For full details on the ADL9005, see the ADL9005 data sheet, which must be consulted in conjunction with the user guide when using the ADL9005-EVALZ.
