Features
- Single positive supply (self biased) typical: 1.5 V and 35 mA
- RBIAS drain current adjustment pin
- Gain: 28.5 dB from 8 GHz to 10 GHz
- Noise figure: 1 dB from 8 GHz to 10 GHz
- Extended operating temperature range: −55°C to +125°C
- Internally matched and AC-coupled
- RoHS-compliant, 2 mm × 2 mm, 8-lead LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADL8143 is a low noise amplifier (LNA) that operates from 8 GHz to 14 GHz. The typical gain, noise figure, output power for 1 dB compression (OP1dB), and output third-order intercept (OIP3) are 28.5 dB, 1 dB, 7.5 dBm, and 19.5 dBm, respectively, from 8 GHz to 10 GHz. The nominal quiescent current (IDQ), which can be adjusted, is 35 mA from a 1.5 V supply voltage (VDD). The ADL8143 also features inputs and outputs that are AC-coupled and internally matched to 50 Ω.
The ADL8143 is housed in an RoHS-compliant, 2 mm × 2 mm, 8-lead lead frame chip scale package [LFCSP] and is specified for operation from −55°C to +125°C.
APPLICATIONS
- Satellite communications
- Radar
- Telecommunications
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL8143
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
All
-
English
Data Sheet
1
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL8143ACPZN |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
|
| ADL8143ACPZN-CSL |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
|
| ADL8143ACPZN-R7 |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
|
| ADL8143ACPZN-R7-CSL |
8-lead LFCSP 2 mm × 2 mm × 0.85
|
|
- ADL8143ACPZN
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8143ACPZN-CSL
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8143ACPZN-R7
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8143ACPZN-R7-CSL
- Pin/Package Drawing
-
8-lead LFCSP 2 mm × 2 mm × 0.85
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL8143
Evaluating the ADL8143 GaAs, pHEMT, MMIC, Low Noise Amplifier, 8 GHz to 14 GHz
Product Detail

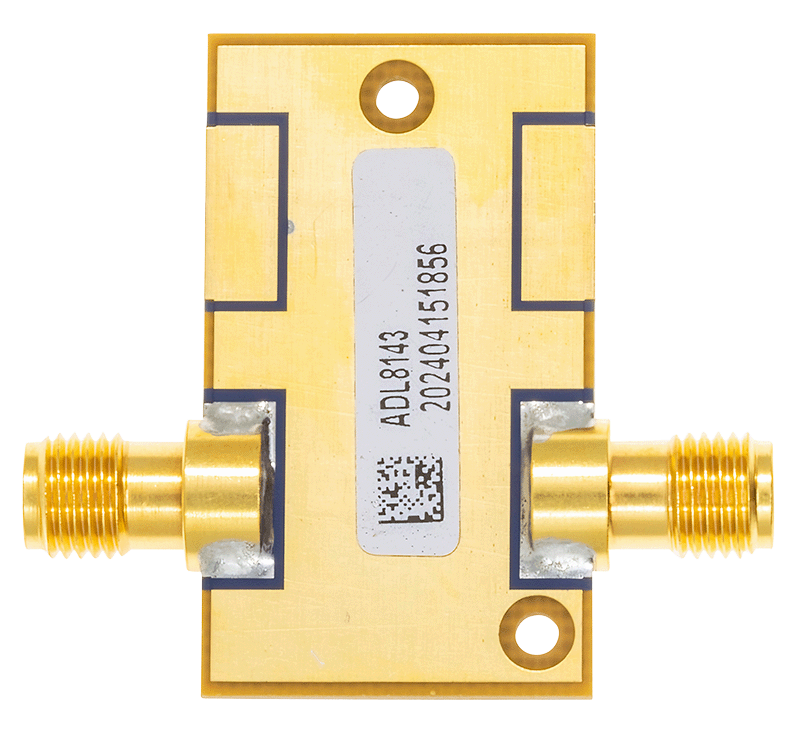

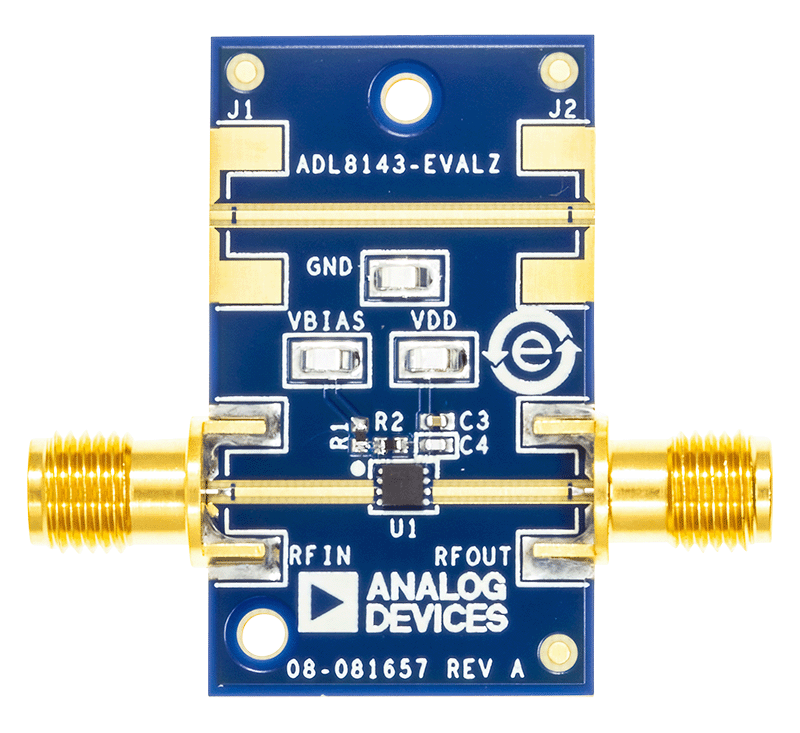

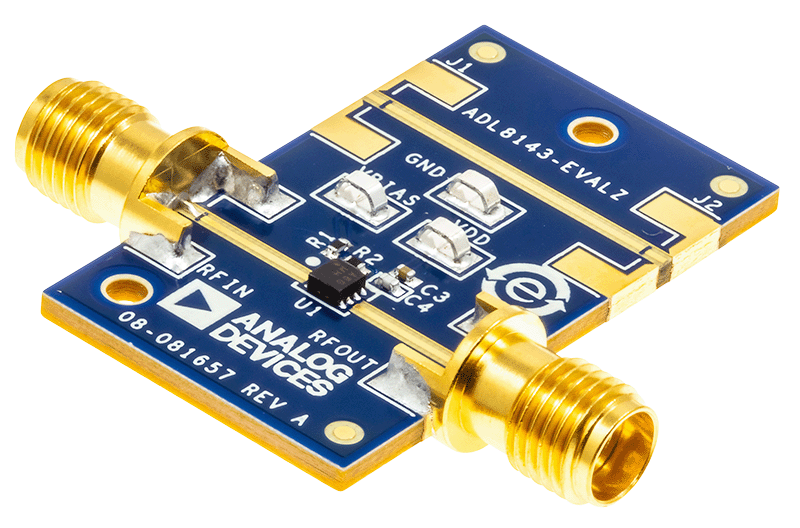

The ADL8143-EVALZ is a 4-layer printed circuit board (PCB) fabricated from 0.203 mm (8 mil) thick, Rogers 4003C and Isola 370HR, copper clad, forming a nominal thickness of 1.63 mm (64 mils). The RFIN and RFOUT ports on the ADL8143-EVALZ are populated with 2.92 mm, female coaxial connectors. The ADL8143-EVALZ is populated with components suitable for use over the entire −55°C to +125°C operating temperature range.
