ADL8112

10 MHz to 26.5 GHz Amplifier with Bypass Switches

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $215.73
Features
  • Wideband amplifier with multiple bypass modes
  • Broad operation from 10 MHz to 26.5 GHz
  • Integrated power supply decoupling
  • Four pin-selectable operating modes
    • Internal amplifier mode
    • Internal bypass mode
    • Two external bypass modes
  • Reflective bypass switches
  • Amplifier gain: 13.5 dB typical from 8 GHz to 14 GHz
  • Amplifier OP1dB: 11 dBm typical from 8 GHz to 14 GHz
  • Amplifier OIP3: 22.5 dBm typical from 8 GHz to 14 GHz
  • Amplifier noise figure: 4 dB typical from 8 GHz to 14 GHz
  • Bypass mode insertion loss: 3.4 dB typical from 8 GHz to 14 GHz
  • Operating temperature range: −40°C to +85°C

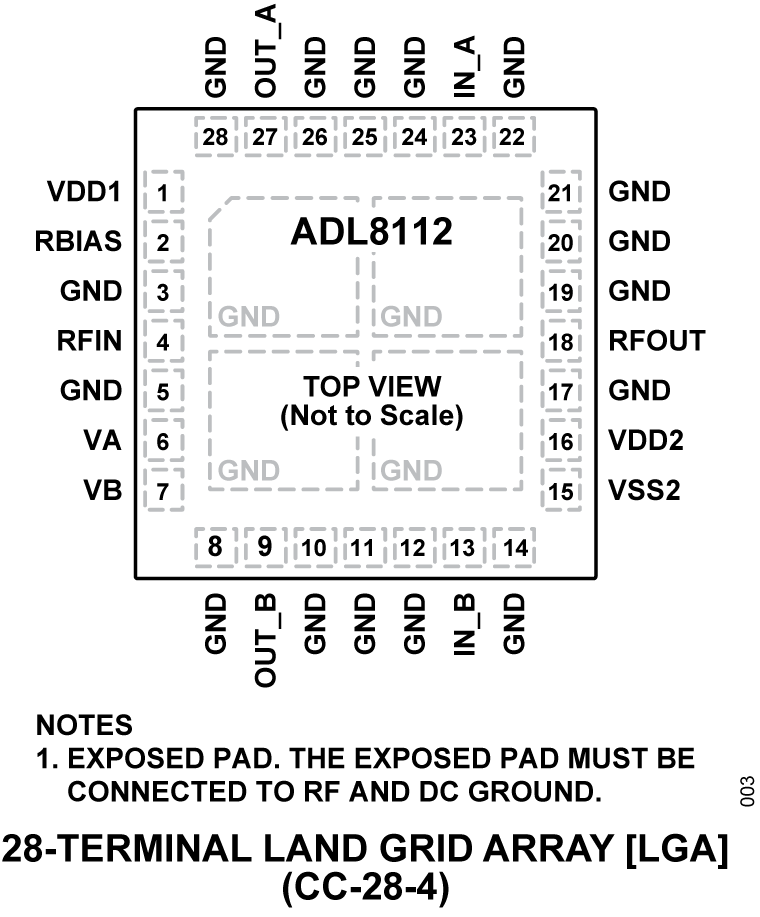

  • RoHS compliant, 6 mm × 6 mm, 28-terminal LGA
Additional Details
show more Icon

The ADL8112 is a low noise amplifier (LNA) with bypass switches that provides broadband operation from 10 MHz to 26.5 GHz. The ADL8112 provides a low noise figure of 4 dB and an output third-order intercept point (OIP3) of 22.5 dBm. The ADL8112 provides a gain of 13.5 dB that is stable over frequency, temperature, power supply, and from device to device.

The integration of an amplifier and two single-pole, four-throw (SP4T) reflective switches allow multiple paths through the device. The addition of switches also offers a high third order input intercept (IIP3) path when large input signals are present. With the integration of power supply decoupling capacitors, minimal external power supply decoupling is required.

The ADL8112 is fully specified for operation across a temperature range of −40°C to +85°C. The ADL8112 is offered in a 6 mm x 6 mm, 28-terminal land grid array (LGA) package.

APPLICATIONS

  • Electronic test and measurement equipment
  • Electronic warfare
  • Wireless receivers
  • Part Models 2
    1ku List Price Starting From $215.73

    close icon
    Documentation

    Documentation

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    ADL8112ACCZ
    • HTML
    • HTML
    ADL8112ACCZ-R7
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Sep 28, 2023

    - 23_0146

    Process Revision for Select Low Noise Amplifier Products

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Sep 28, 2023

    - 23_0146

    arrow down

    Process Revision for Select Low Noise Amplifier Products

    Software & Part Ecosystem

    Software & Part Ecosystem

    Evaluation Kit

    Evaluation Kits 1

    reference details image

    EVAL-ADL8112

    Evaluating the ADL8112 Low Noise Amplifier with Bypass Switches, 10 MHz to 26.5 GHz

    zoom

    EVAL-ADL8112

    Evaluating the ADL8112 Low Noise Amplifier with Bypass Switches, 10 MHz to 26.5 GHz

    Evaluating the ADL8112 Low Noise Amplifier with Bypass Switches, 10 MHz to 26.5 GHz

    Features and Benefits

  • 4-layer, Rogers 4350B and Isola 370HR evaluation board
  • End launch, 2.92 mm RF connectors
  • Through calibration path (depopulated)
  • Product Detail

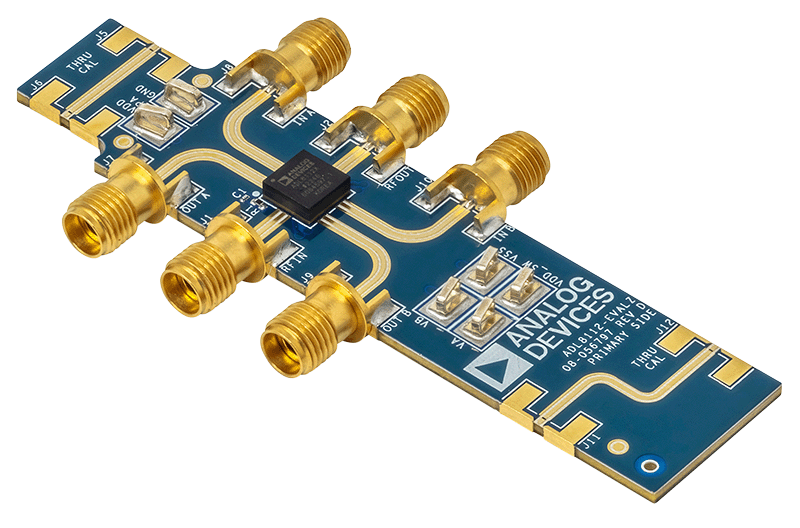

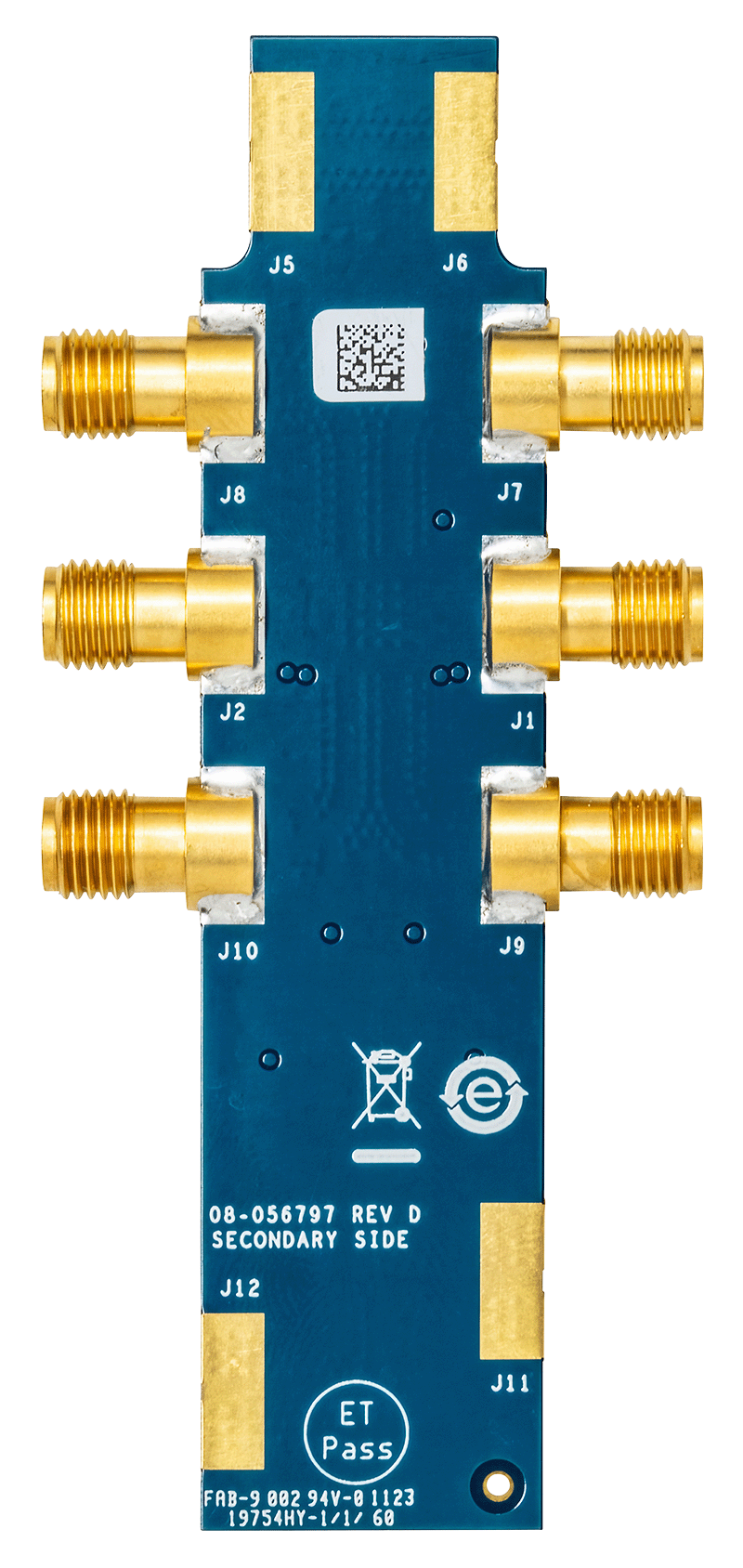

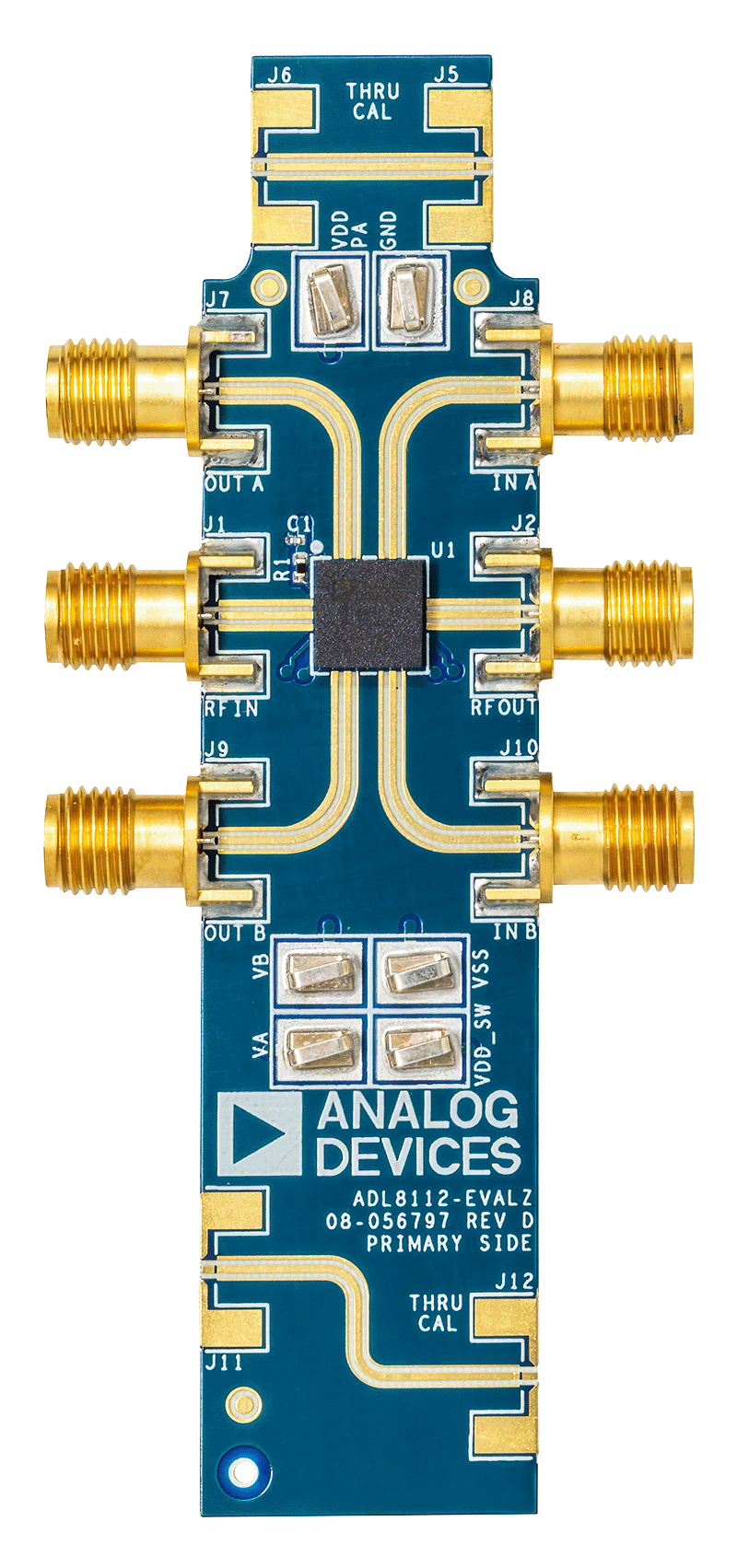

    The ADL8112-EVALZ is a 4-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B and Isola 370HR, copper clad, forming a nominal thickness of 62 mils. The RFIN and RFOUT ports on the ADL8112-EVALZ are populated with 2.92 mm, female coaxial connectors, and the corresponding RF traces have a 50 Ω characteristic impedance. The ADL8112-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL8112. To calibrate board trace losses, two through calibration paths are provided. Install RF connectors in the J5, J6, J11, and J12 positions to use the through calibration paths. Refer to Table 1 and Figure 3, in the user guide, for the through calibration RF path performance.

    Access the ADL8112-EVALZ power supply and digital control pins through the surface-mount technology (SMT) test point connectors, VDD_PA, GND, VDD_SW, VSS_SW, VA, and VB.

    The RF traces on the ADL8112-EVALZ are 50 Ω, grounded, coplanar waveguides. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground paddle to provide adequate electrical conduction and thermal conduction to the ADL8112-EVALZ.

    Figure 4, in the user guide, shows the ADL8112-EVALZ schematic and configuration used to characterize and qualify the device.

    For full details on the ADL8112, see the ADL8112 data sheet, which must be consulted in conjunction with the user guide when using the ADL8112-EVALZ.
