ADL8108

RECOMMENDED FOR NEW DESIGNS

1 GHz to 8 GHz, Low Noise Amplifier with Integrated Temperature Sensor and Enable and Disable Function

Part Models
2
1ku List Price
Starting From $44.64
Viewing:

Part Details

  • Single positive supply: 5 V and IDQ of 90 mA nominal
  • RBIAS drain current adjustment pin
  • Integrated temperature sensor
  • Integrated enable and disable function
  • Gain: 20 dB typical from 3 GHz to 4.5 GHz
  • OIP3: 35.5 dBm typical from 1 GHz to 4.5 GHz
  • Noise figure: 1 dB typical from 3 GHz to 6 GHz
  • Extended operating temperature range: −55°C to +125°C
  • RoHS-compliant, 3 mm × 3 mm, 16-lead LFCSP
ADL8108
1 GHz to 8 GHz, Low Noise Amplifier with Integrated Temperature Sensor and Enable and Disable Function
ADL8108 Chip ADL8108 Functional Block Diagram ADL8108 Circuit Diagram ADL8108 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations


Evaluation Kits

eval board
EVAL-ADL8108

Evaluating the ADL8108 1 GHz to 8 GHz, Low Noise Amplifier with Integrated Temperature Sensor and Enable and Disable Function

Features and Benefits

  • 4-layer, Rogers 4350B and Isola 370HR evaluation board
  • End launch, 2.92 mm RF connectors
  • Through calibration path (depopulated)

Product Details

The ADL8108-EVALZ is a 4-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B and Isola 370HR, copper clad, forming a nominal thickness of 62 mils. The RFIN and RFOUT ports on the ADL8108-EVALZ are populated with 2.92 mm, female coaxial connectors, and the corresponding RF traces have a 50 Ω characteristic impedance. The ADL8108-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL8108. To calibrate board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Table 1 and Figure 4 for the through calibration path performance.

Access the ADL8108-EVALZ ground path and VDD pin through the surface-mount technology (SMT) test point connectors, GND and VDD. A supplementary test point for VRBIAS is included for simple access on the RBIAS pin (see Figure 6 for the test point locations).

The RF traces on the ADL8108-EVALZ are 50 Ω, grounded, coplanar waveguide. The package ground leads and the exposed pad connect directly to the ground plane. Multiple vias connect the top and bottom ground planes with particular focus on the area directly beneath the ground paddle to provide adequate electrical conduction and thermal conduction.

The power supply decoupling capacitors on the ADL8108-EVALZ represent the configuration used to characterize and qualify the device.

For full details on the ADL8108, see the ADL8108 data sheet, which must be consulted in conjunction with this user guide when using the ADL8108-EVALZ.

EVAL-ADL8108
Evaluating the ADL8108 1 GHz to 8 GHz, Low Noise Amplifier with Integrated Temperature Sensor and Enable and Disable Function

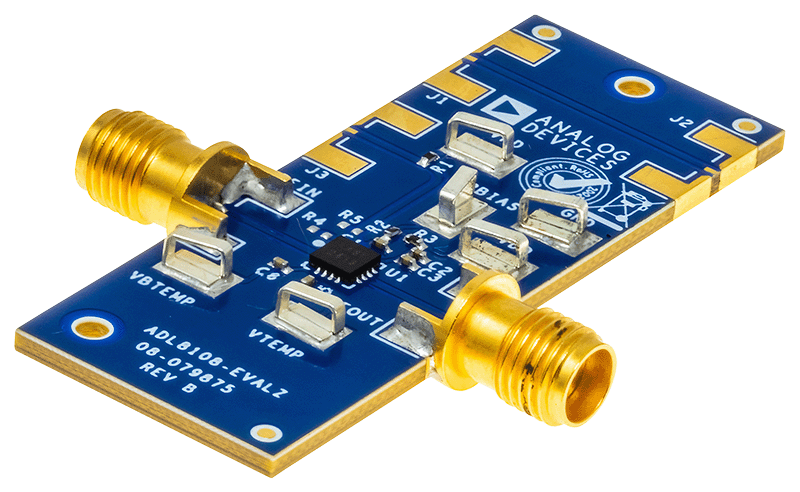

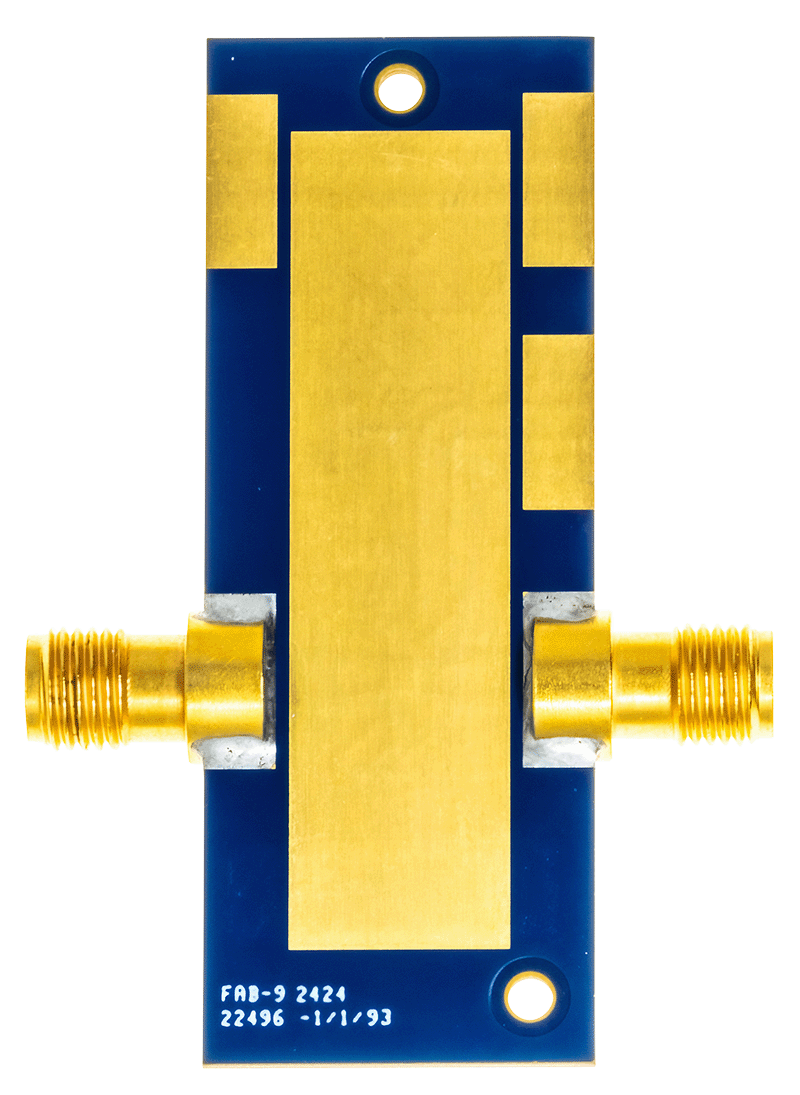

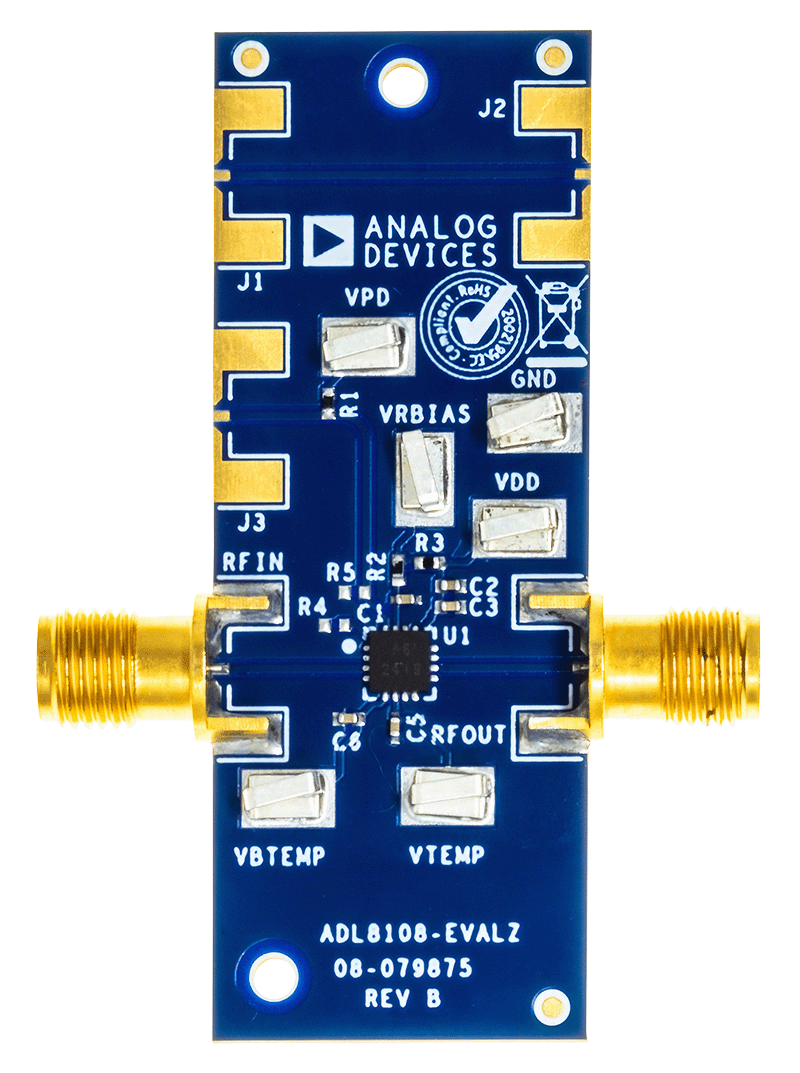

EVAL-ADL8108 Evaluation Board Photo Angle View EVAL-ADL8108 Evaluation Board Photo Top View EVAL-ADL8108 Evaluation Board Photo Bottom View
