ADL8104
Wideband, High Linearity, Low Noise Amplifier, 0.4 GHz to 7.5 GHz
Show More
Not the part you were looking for?
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Single positive supply (self biased)
- High OIP2: 52 dBm typical at 0.6 GHz to 7.5 GHz
- High gain: 15 dB typical at 0.6 GHz to 6 GHz
- High OIP3: 32 dBm typical
- Low noise figure: 3.5 dB typical at 0.4 GHz to 6 GHz
- RoHS-compliant, 3 mm × 3 mm, 16-lead LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADL8104 is a gallium arsenide (GaAs), monolithic microwave integrated circuit (MMIC), pseudomorphic high electron mobility transistor (pHEMT), low noise, wideband, high linearity amplifier that operates from 0.4 GHz to 7.5 GHz.
The ADL8104 provides a typical gain of 15 dB at 0.6 GHz to 6 GHz, a 3.5 dB typical noise figure at 0.4 GHz to 6 GHz, a 20 dBm typical output power for 1 dB compression (OP1dB) at 0.6 GHz to 6 GHz, and a typical output third-order intercept (OIP3) of 32 dBm at 0.6 GHz to 6 GHz, requiring only 150 mA from a 5 V drain supply voltage. The low noise amplifier has a high output second-order intercept (OIP2) of 52 dBm typical at 0.6 GHz to 6 GHz, making the ADL8104 suitable for military and test instrumentation applications.
The ADL8104 also features inputs and outputs that are internally matched to 50 Ω. The RFIN and RFOUT pins are internally ac-coupled and the bias inductor is also integrated, making the ADL8104 ideal for surface-mounted technology (SMT)-based, high density applications.
The ADL8104 is housed in an RoHS-compliant, 3 mm × 3 mm, 16-lead LFCSP.
APPLICATIONS
- Test instrumentation
- Military communications
3
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADL8104
Documentation
Filters
1 Applied
-
All
-
User Guide
-
Data Sheet
-
Technical Articles
-
All
-
English
-
Japanese
Data Sheet
2
User Guide
1
Technical Articles
1
HTML
Documentation
Data Sheet 1
User Guide 1
Technical Articles 1
Product Selection Guide 1
Analog Dialogue 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADL8104ACPZN |
16-Lead LFCSP (3mm x 3mm w/ EP)
|
|
|
| ADL8104ACPZN-R7 |
16-Lead LFCSP (3mm x 3mm w/ EP)
|
|
- ADL8104ACPZN
- Pin/Package Drawing
-
16-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADL8104ACPZN-R7
- Pin/Package Drawing
-
16-Lead LFCSP (3mm x 3mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8104ACPZN
PRODUCTION
ADL8104ACPZN-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Sep 28, 2023
- 23_0146
Process Revision for Select Low Noise Amplifier Products
ADL8104ACPZN
PRODUCTION
ADL8104ACPZN-R7
PRODUCTION
Software & Part Ecosystem
Evaluation Kits 1
EVAL-ADL8104
Evaluating the ADL8104 Wideband, High Linearity, Low Noise Amplifier, 0.4 GHz to 7.5 GHz
Product Detail

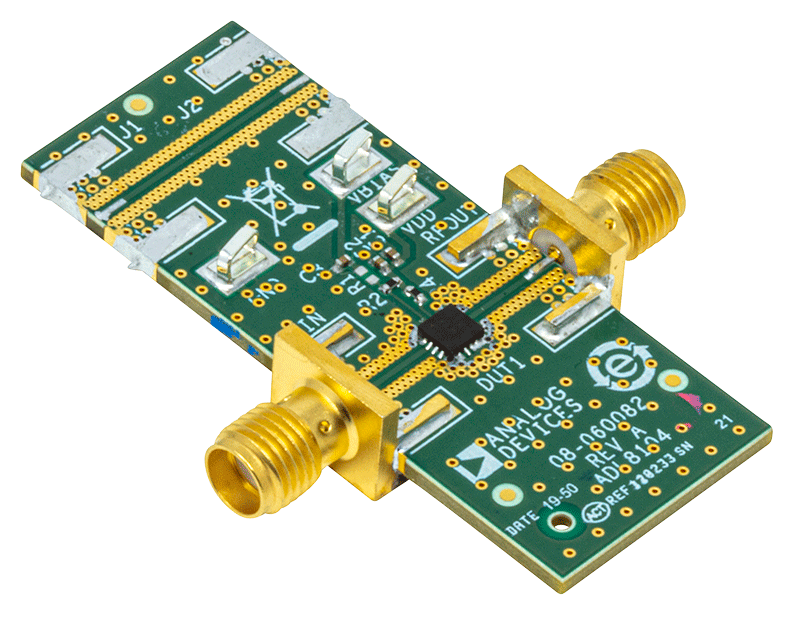

The ADL8104-EVALZ consists of a 4-layer printed circuit board (PCB) fabricated from 10 mil thick, Rogers 4350B and Isola 370HR, copper clad, forming a nominal thickness of 62 mils. The RFIN and RFOUT ports on the ADL8104-EVALZ are populated with 3.5 mm, female coaxial connectors, and the corresponding RF traces have a 50 Ω characteristic impedance. The ADL8104-EVALZ is populated with components suitable for use over the entire −40°C to +85°C operating temperature range of the ADL8104. To calibrate board trace losses, a through calibration path is provided between the J1 and J2 connectors. J1 and J2 must be populated with RF connectors to use the through calibration path. Refer to Table 1 and Figure 3 in the user guide for the through calibration path performance.
