ADIS16576

RECOMMENDED FOR NEW DESIGNS

Precision MEMS IMU Module

Part Models
2
1ku List Price
Starting From $610.75
Viewing:

Part Details

  • Triaxial digital angular rate (gyroscope) sensing
    • ±450°/sec and ±2000°/sec range options
    • 2.0°/hr in-run bias stability (±450°/sec range)
    • 0.2°/√hr angular random walk (±450°/sec range)
    • ±0.05° axis to axis misalignment error
  • Triaxial digital accelerometer sensing
    • ±14 g Full Scale Range
    • 13 μg in-run bias stability
  • Triaxial delta angle and delta velocity outputs
  • Factory-calibrated sensitivity, bias, and axial alignment
    • Calibration temperature range: −40°C to +85°C
  • SPI-compatible data communications
  • Programmable operation and control
    • Automatic and manual bias correction controls
    • Data ready indicator for synchronous data acquisition
    • External synchronization of data sampling/processing
    • On-demand self test of inertial sensors
    • On-demand self test of flash memory
    • Continuous real-time health monitoring of SRAM and sensors
    • FIFO, 512 samples, up to 4 kHz sample rate
  • Single-supply operation (VDD): 3.0 V to 3.6 V
  • 2000 g mechanical shock survivability
  • Operating temperature range: −40°C to +105°C
ADIS16576
Precision MEMS IMU Module

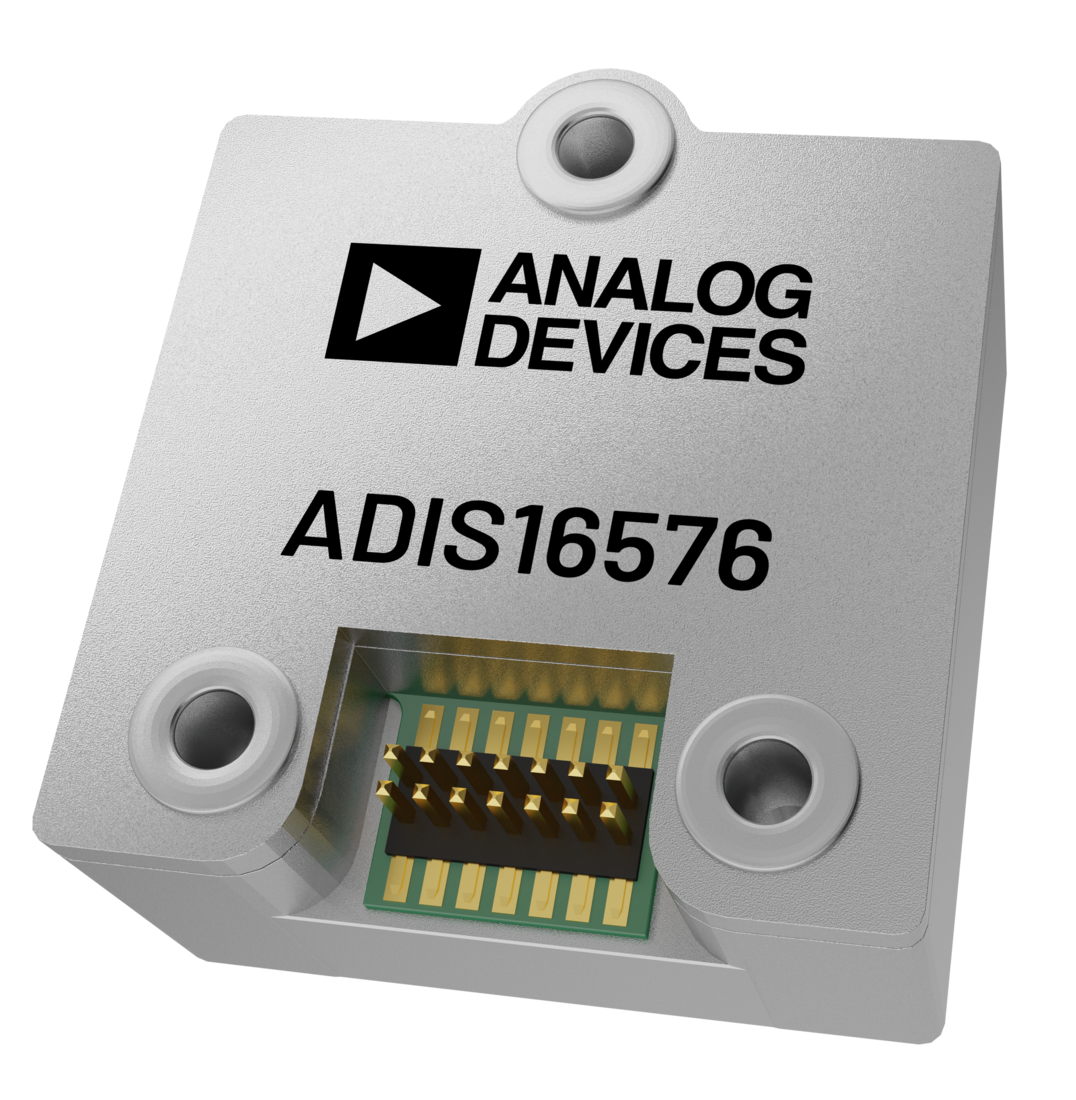

ADIS16575/ADIS16576/ADIS16577 Functional Block Diagram ADIS16575 ADIS16576 ADIS16577 Pin Configuration ADIS16576 Chip
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Software Resources


Evaluation Kits

eval board
EVAL-ADIS-FX3

ADI FX3 iSensor® Evaluation System

Features and Benefits

  • Real-time sampling of IMU at full sample rate with no loss of data guaranteed.
  • No external power needed. (Can be powered from USB port.)
  • Completely open source API, Firmware, and Evaluation GUI.
  • Schematics available
  • API includes a wrapper library for interfacing to MATLAB, Python, LabView.

Product Details

The EVAL-ADIS-FX3 is the latest addition to the iSensor evaluation portfolio and was designed from the ground up to provide users with an easy-to-use solution for capturing reliable inertial data in lab and characterization environments. The EVAL-ADIS-FX3 incorporates the ability to capture inertial sensor data at maximum throughput while interfacing with external test equipment and reacting to external triggers.

In addition to launching a redesigned hardware platform, we’ve also developed a robust API that allows users to quickly build custom applications that capture reliable sensor data. We’ve included many useful features into the API that enable designers to characterize sensor performance in any .NET compatible environment.

APPLICATIONS

  • Inertial sensing
  • Robotics
  • Autonomous driving
  • Platform stabilization

eval board
EVAL-ADISIMU1-RPIZ

IMU to Raspberry Pi Adaptor Board

Features and Benefits

  • Simplifies software and application prototyping of IMU’s on Raspberry Pi Platform
    • Direct mounting for software development
    • Ribbon cable mounting for application testing and verification
  • Connects to ADIS16IMU1/PCBZ and ADIS16IMU4/PCBZ compatible IMU devices
  • Connectable to Raspberry Pi 3B+ and 4 through the 40pin GPIO connector

Product Details

This adaptor board allows for easy plug and play connection of Analog Devices Inertial Measurement Unit (IMU) devices to the Raspberry Pi platform, providing application and software development.

There are two ways in which to connect your IMU to this adaptor board.

  1. Direct board mounting using the screws and mounting locations provided.
  2. Mount the IMU to a separate ADIS16IMU1/PCBZ or ADIS16IMU4/PCBZ breakout board and use the flexible 16-position ribbon cable to the EVAL-ADISIMU1-RPIZ.

This helps both software development as well as enabling real world application verification with the ability to physically move the sensor.

eval board
ADIS16IMU5/PCBZ

ADIS16IMU5/PCBZ MEMS IMU Breakout Board

Features and Benefits

  • Breakout board for ADIS16575, ADIS16576, and ADIS16577
  • Compatible with ADIS16460, ADIS16465, and ADIS16467
  • Easy prototyping interface for SPI-compatible processor platforms
  • Dual-row, 16-pin header for simple 1 mm ribbon cable connections
  • PC Windows connection with EVAL-ADIS-FX3
  • Four mounting holes for secure attachment
  • Optimized layout for high signal integrity
  • Includes necessary setup hardware (ribbon cable, screws, washers, nuts, and spacers)

Product Details

The ADIS16IMU5/PCBZ breakout board offers a straightforward method for developing a prototype connection between various Analog Devices, Inc., inertial measurement units (IMUs) and serial peripheral interface (SPI)-compatible embedded processor platforms. The ADIS16IMU5/PCBZ also provides a convenient method for connecting the same microelectromechanical systems (MEMS) IMUs to the EVAL-ADIS-FX3 for PC Windows®-based data acquisition and configuration. For a complete list of supported IMUs, refer to the Compatible-MEMS IMUs section.

EVAL-ADIS-FX3
ADI FX3 iSensor® Evaluation System
EVAL-ADIS-FX3 Evaluation Board EVAL-ADIS-FX3TOP Top View EVAL-ADIS-FX3 Evaluation Board - Bottom View
EVAL-ADISIMU1-RPIZ
IMU to Raspberry Pi Adaptor Board
EVAL-ADISIMU1-RPIZ Evaluation Board EVAL-ADISIMU1-RPIZ Evaluation Board - Top View EVAL-ADISIMU1-RPIZ Evaluation Board - Bottom View
ADIS16IMU5/PCBZ
ADIS16IMU5/PCBZ MEMS IMU Breakout Board
EVAL-ADIS16IMU5 Board Photo Angle View EVAL-ADIS16IMU5 Board Photo Top View EVAL-ADIS16IMU5 Board Photo Bottom View
