ADIN1200
Robust, Industrial, Low Power, 10 Mbps and 100 Mbps Ethernet PHY
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- 10BASE-Te/100BASE-TX IEEE® 802.3™ compliant
- MII, RMII and RGMII MAC interfaces
- 100BASE-TX RGMII latency transmit: <124 ns, receive <250 ns
- 100BASE-TX MII latency transmit: <52 ns, receive <248 ns
- EMC test standards
- IEC 61000-4-5 surge (±4 kV)
- IEC 61000-4-4 electrical fast transient (EFT) (±4 kV)
- IEC 61000-4-6 conducted immunity (10 V)
- EN55032 radiated emissions (Class A)
- EN55032 conducted emissions (Class A)
- Unmanaged configuration using multilevel pin strapping
- EEE in accordance with IEEE 802.3az
- Start of packet detection for IEEE 1588 time stamp support
- Enhanced link detection
- Configurable LED
- Crystal oscillator/clock input: 25 MHz
- 25 MHz/125 MHz synchronous clock output
- Small package and wide temperature range
- 32-lead, 5 mm × 5 mm LFCSP
- Specified for −40°C to +105°C and −40°C to +85°C ambient operation
- Low power consumption
- 139 mW for 100BASE-TX
- 3.3 V/2.5 V/1.8 V MAC interface VDDIO supply
- Single-supply operation with 3.3 V VDDIO
- Integrated power supply monitoring and POR
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The ADIN1200 is a low power, single-port, 10 Mbps and 100 Mbps Ethernet transceiver with low latency specifications designed for industrial Ethernet applications.

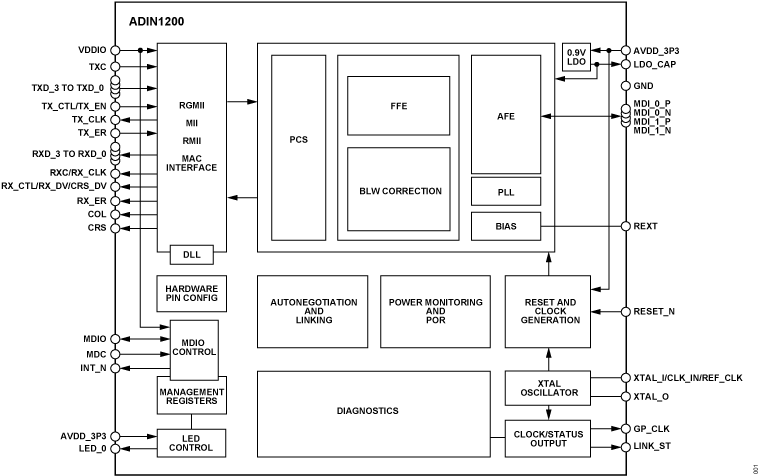

This design integrates an energy efficient Ethernet (EEE) physical layer device (PHY) core with all associated common analog circuitry, input and output clock buffering, management interface and subsystem registers, and media access control (MAC) interface and control logic to manage the reset, clock control and pin configuration.

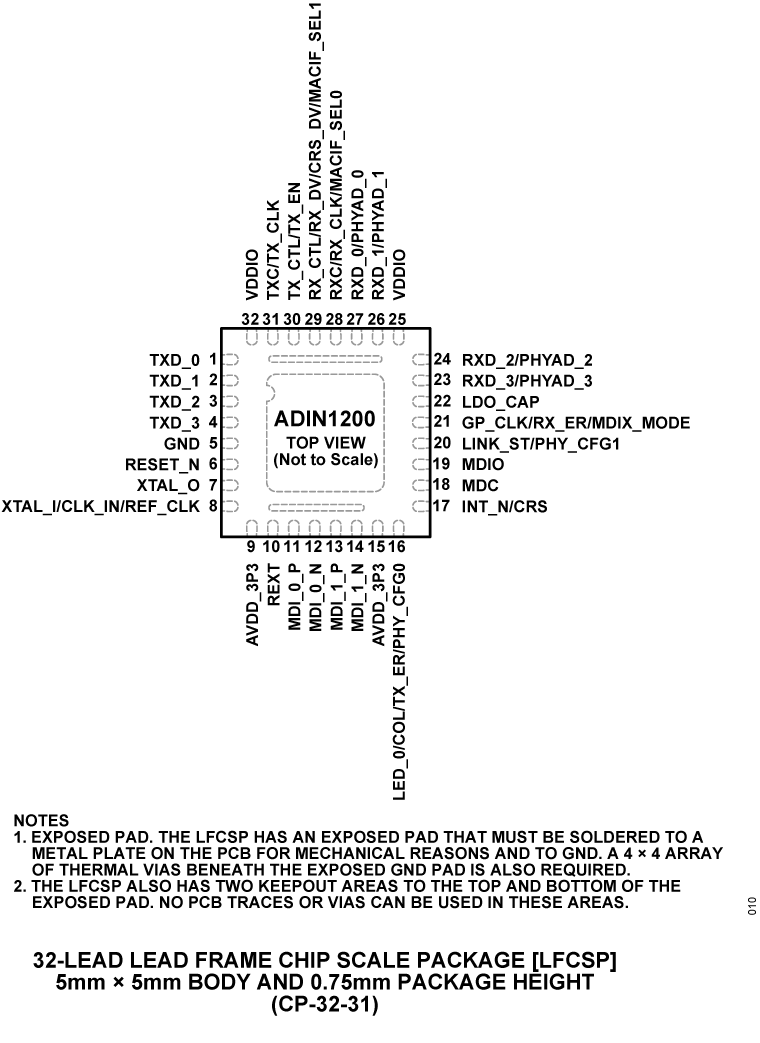

The ADIN1200 is available in a 5 mm × 5 mm, 32-lead lead frame chip scale package (LFCSP) and can operate with a single 3.3 V supply, assuming the use of a 3.3 V MAC interface supply. For maximum flexibility in system level design, a separate VDDIO supply enables the management data input/output (MDIO) and MAC interface supply voltages to be configured independently of the other circuitry on the ADIN1200 allowing operation at 1.8 V, 2.5 V, or 3.3 V. At power-up, the ADIN1200 is held in hardware reset until each of the supplies has crossed its minimum rising threshold value and the power is considered good. Brownout protection is provided by monitoring the supplies to detect if one or more of them drops below a minimum falling threshold and holding the device in hardware reset until the power supplies return and satisfy the power-on-reset (POR) circuit.
The MII management interface (also referred to as MDIO interface) provides a 2-wire serial interface between a host processor or MAC and the ADIN1200, allowing access to control and status information in the PHY core management registers. The interface is compatible with both IEEE® 802.3™ Standard Clause 22 and Clause 45 management frame structures.
The ADIN1200 can support cable lengths up to 180 meters.
Note that throughout this data sheet, multifunction pins, such as XTAL_I/CLK_IN/REF_CLK, are referred to either by the entire pin name or by a single function of the pin, for example, XTAL_I, when only that function is relevant.
Applications
- Industrial automation
- Process control
- Factory automation
- Robotics and motion Control
- Building automation
- Test and Measurement
- Industrial internet of things (IoT)
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
ADIN1200
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
User Guide
-
Application Note
-
Frequently Asked Question
-
Technical Articles
-
All
-
English
-
Japanese
-
Chinese
Data Sheet
3
User Guide
1
Application Note
12
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
WIKI
Frequently Asked Question
1
WIKI
Technical Articles
9
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
HTML
Documentation
Data Sheet 2
User Guide 1
Application Note 12
AN-2043: Configuring the ADIN1200 Ethernet PHY (Rev.0)
PHY Exchange Guide, DP83822 to ADIN1200 10/100Mb
PHY Exchange Guide, DP83825 to ADIN1200 10/100Mb
PHY Exchange Guide, KSZ8081RNB/MNX to ADIN1200 10/100Mb
ADIN1300 and ADIN1200 with Capacitive Coupling
PHY Exchange Guide, DP83822 to ADIN1200 10/100Mb
PHY Exchange Guide, DP83825 to ADIN1200 10/100Mb
PHY Exchange Guide, Marvell Alaska 88E1512 to ADIN1300 Gb
PHY Exchange Guide, Marvell Alaska 88E1510 to ADIN1300 Gb
PHY Exchange Guide, KSZ8081RNB/MNX to ADIN1200 10/100Mb
Configuring the ADIN1300 for Ethernet PHY Compliance Test Modes
Configuring the ADIN1200 for Ethernet PHY Compliance Test Modes
Technical Articles 3
Frequently Asked Question 1
Device Drivers 2
Solutions Bulletin & Brochure 2
Webcast 9
Analog Dialogue 1
Thought Leadership Page 4
Video
2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| ADIN1200BCP32Z |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADIN1200BCP32Z-R7 |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADIN1200CCP32Z |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| ADIN1200CCP32Z-R7 |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
- ADIN1200BCP32Z
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADIN1200BCP32Z-R7
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADIN1200CCP32Z
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- ADIN1200CCP32Z-R7
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 5, 2022
- 21_0271
Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
ADIN1200BCP32Z
PRODUCTION
ADIN1200BCP32Z-R7
PRODUCTION
ADIN1200CCP32Z
PRODUCTION
ADIN1200CCP32Z-R7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jul 5, 2022
- 21_0271
Qualification of an Alternate Adhesive Material and Molding Compound for Select LFCSP Packages
ADIN1200BCP32Z
PRODUCTION
ADIN1200BCP32Z-R7
PRODUCTION
ADIN1200CCP32Z
PRODUCTION
ADIN1200CCP32Z-R7
PRODUCTION
Software & Part Ecosystem
Device Drivers
ADIN1200/ADIN1300 Non Operating System Driver
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 2
DEMO-ADIN1100D2Z
10BASE-T to 10BASE-T1L Media Converter Including SPoE/APL, Featuring ADIN1100 and ADIN1200 Ethernet PHYs and LTC4296-1 PSE Controller
Product Detail
The DEMO-ADIN1100D2Z is a media converter board that provides connection between a standard 10BASE-T RJ45 Ethernet port and a 10BASE-T1L device.
The DEMO-ADIN1100D2Z includes a power sourcing equipment (PSE) controller and it can power the connected 10BASE-T1L or advanced physical layer (APL) device. The PSE controller is configurable for power over data line (PoDL)/single pair power over Ethernet (SPoE) power Class 10, Class 11, Class 12, Class 13, Class 14, and Class 15, and APL power Class A, Class C, and Class 3.
The board requires an external DC power supply with output voltage and maximum output current relevant to the selected power class. For a subset of power classes (Class 10, APL A, and APL C), the board can also be powered from a USB host.
The board requires a minor modification and external power coupling inductors when used for the highest power Class 15 and APL 3.
The DEMO-ADIN1100D2Z can be used as an autonomous device, configurable by a set of switches and jumpers, indicating its status on LEDs.
The DEMO-ADIN1100D2Z can also be connected via USB to a host PC. The 10BASE-T1L link status, power status, and diagnostics are then accessible using a simple set of text commands and messages exchanged over the USB COM port interface using a serial terminal software on a PC.
EVAL-ADIN1200
ADIN1200 Evaluation Board
Product Detail

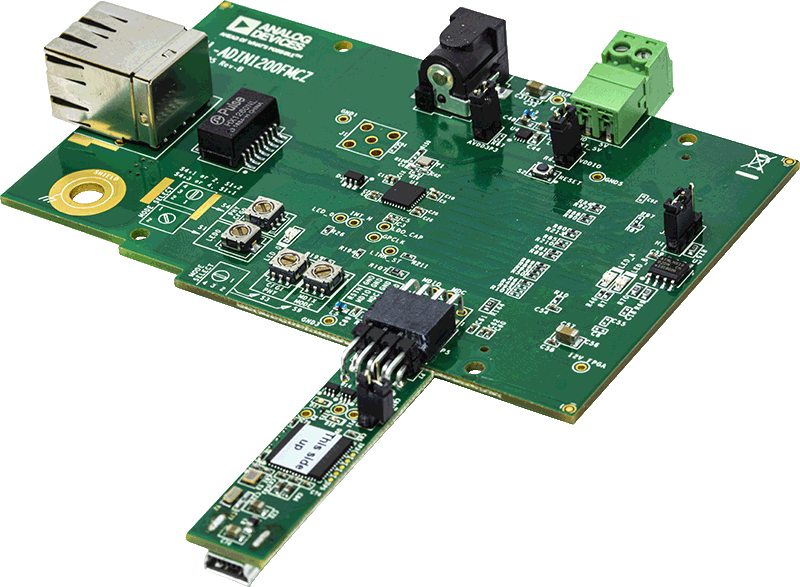

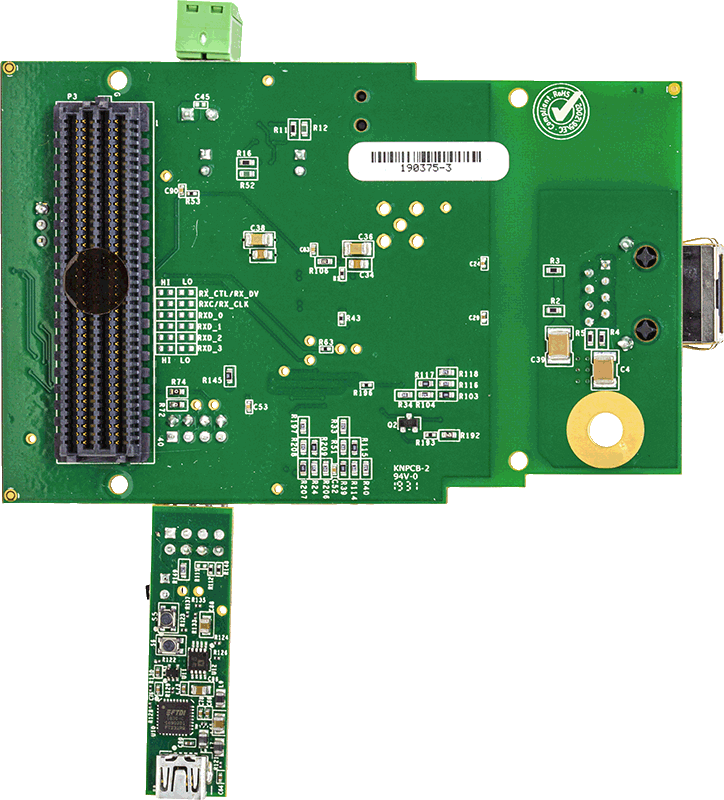

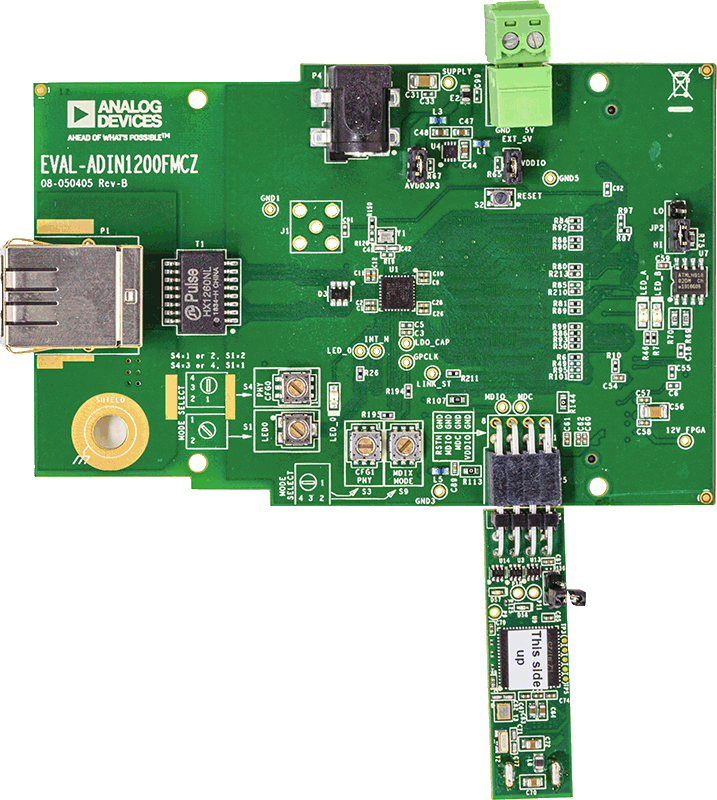

The EVAL-ADIN1200FMCZ allows simplified evaluation of the key features of the ADIN1200 robust, industrial, low power 10 Mbps and 100 Mbps Ethernet physical layer (PHY). The EVAL-ADIN1200FMCZ is powered by a single, external, 5 V supply rail that can be supplied either via the EXT_5V connector or via the P4 plug.
All chip supplies are regulated from the 5 V rail providing supply rails required for AVDD_3P3 and VDDIO.
The P3 field programmable gate array (FPGA) mezzanine card (FMC) connector is provided for connection to a master FPGA system for the media access control (MAC) interface and management data input/output (MDIO) control. The P5 connector provides an alternative means for MDIO control. The EVAL-ADIN1200FMCZ is fitted with a 25 MHz crystal (Y1).
For complete specifications for the ADIN1200 device, see the ADIN1200 data sheet, which must be consulted in conjunction with this user guide when using the EVAL-ADIN1200FMCZ.
