Overview
Features and Benefits
- 2.25 V to 5.5 V Operating Voltage Range
- Low Power Consumption (4 µA)
- Output Stages: Open-Drain with High Voltage (22 V) Tolerance
- 50 nA Input Bias Current
- 150 nA Input Offset Current
- 9 mV Input Offset Voltage
- Rail-to-rail Common-Mode Input Range
- Specified Over -40°C to +85°C Temperature Range
- 5-Lead SC70 Package
Product Details
The ADCMP370 / ADCMP371 are general purpose comparators with input offset voltages of 6mV (max). High performance over the -40°C to +85°C temperature range make them suitable for use in automotive and other thermally harsh applications, while low power consumption and space efficient SC70 packaging make them ideal for battery powered portable equipment.

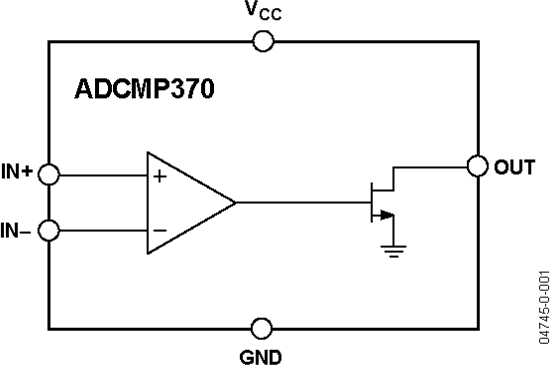

The ADCMP371 has a push-pull output stage, while the ADCMP370 has an open-drain output. The inputs on both parts and the output on the ADCMP370 can tolerate voltages up to 22 V, making them suitable for use as voltage detectors in portable equipment.
The devices are available in space-efficient, 5-lead SC70 packaging.
APPLICATIONS
- Voltage Detectors
- Battery Management Systems
- A/D Converters
- Low Voltage Applications
- Battery Powered Electronics
- Portable Equipment
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
FAQs7/26/2017
-
Comparators Product Brochure 20074/22/2008
Reference Designs (1)
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| ADCMP370AKSZ-REEL | Material Declaration | Reliability Data | 5-Lead SC70 | |
| ADCMP370AKSZ-REEL7 | Material Declaration | Reliability Data | 5-Lead SC70 | |
| Wafer Fabrication Data |
