Features
- 2.25 V to 5.5 V Operating Voltage Range
- Low Power Consumption (4 µA)
- Output Stages: Push-Pull
- 50 nA Input Bias Current
- 5-lead SC70 packaging
- 9 mV input offset voltage
- See data sheet for additional features
- Download ADCMP371-KGD Data Sheet
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

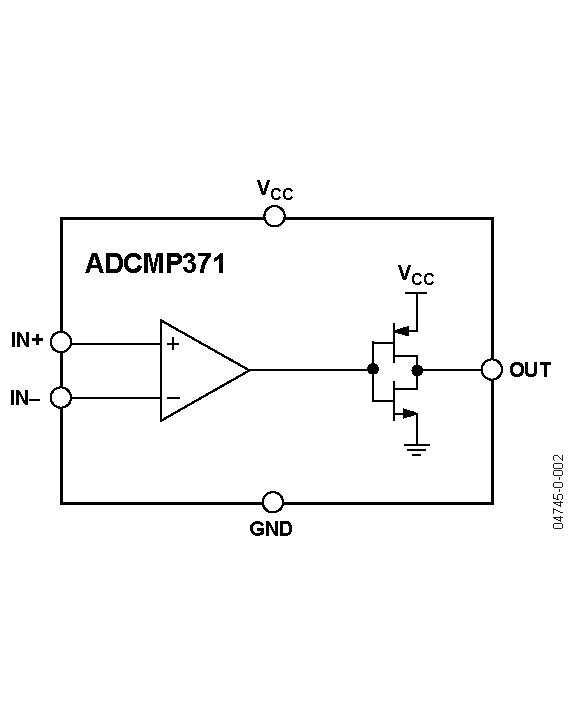

The ADCMP370 / ADCMP371 are general-purpose comparators with input offset voltages of 9 mV (max) and low power consumption, which make them ideal for battery-powered portable equipment. The ADCMP371 has a push-pull output stage, while the ADCMP370 has an open-drain output. The inputs on both parts and the output on the ADCMP370 can tolerate voltages up to 22 V, making them suitable for use as voltage detectors in portable equipment.

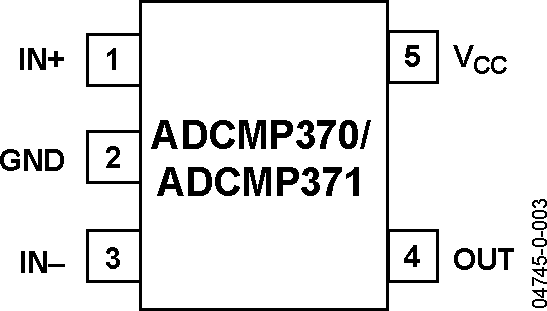

They are available in space-efficient 5-lead SC70 packaging.
APPLICATIONS
- Battery Management Systems
- A/D Converters
- Low Voltage Applications
- Battery Powered Electronics
- Portable Equipment
