Overview
Features and Benefits
- Micropower at high voltage (18 V): 22 μA maximum
- Low offset voltage: 350 µV maximum
- Low input bias current: 20 pA maximum
- Gain bandwidth product: 230 kHz at AV = 100 typical
- Unity-gain crossover: 230 kHz
- −3 dB closed-loop bandwidth: 305 kHz
- Single-supply operation: 2.7 V to 18 V
- Dual-supply operation: ±1.35 V to ±9 V
- Unity-gain stable
- Excellent electromagnetic interference immunity
Product Details
The AD8657/AD8659 are dual and quad micropower, precision, rail-to-rail input/output amplifiers optimized for low power and wide operating supply voltage range applications.
The AD8657/AD8659 operate from 2.7 V to 18 V with a typical quiescent supply current of 18 μA. The devices use the Analog Devices, Inc., patented DigiTrim® trimming technique, which achieves low offset voltage. The AD8657/AD8659 also have high immunity to electromagnetic interference.
The combination of low supply current, low offset voltage, very low input bias current, wide supply range, and rail-to-rail input and output make the AD8657/AD8659 ideal for current monitoring in process and motor control applications. The combination of precision specifications makes these devices ideal for dc gain and buffering of sensor front ends or high impedance input sources in wireless or remote sensors or transmitters.

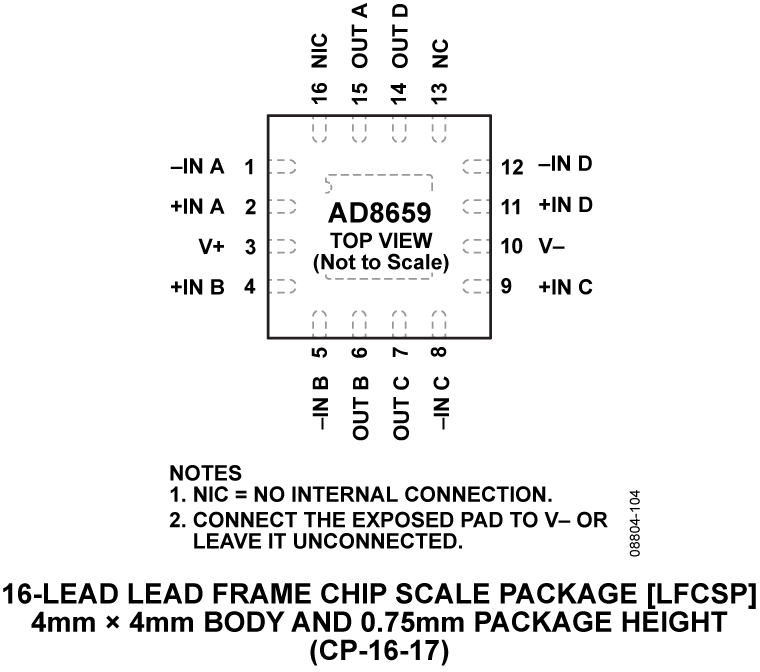

The AD8657/AD8659 are specified over the extended industrial temperature range (−40°C to +125°C). The AD8657 is available in an 8-lead MSOP package and an 8-lead LFCSP package; the AD8659 is available in a 14-lead SOIC package and 16-lead LFCSP package.
Applications
- Portable operating systems
- Current monitors
- 4 mA to 20 mA loop drivers
- Buffer/level shifting
- Multipole filters
- Remote/wireless sensors
- Low power transimpedance amplifiers
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
-
MT-047: Op Amp Noise2/14/2015PDF72 kB
-
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps2/14/2015PDF66 kB
-
CN-0179: Less Than 200 μA, Low Power, 4 mA-to-20 mA, Process Control Current Loop1/11/2011PDF156 kB
-
Don’t Get Caught Speeding1/1/2015
-
Exposed Paddles and Downbonds Improve Performance and Reduce Pin Count12/1/2014
-
The Diamond Plot7/1/2014
-
Overrange Flag Indicates Data Validity11/1/2013
-
Design Tools and Support Communities Make Analog Fun, not Fearful10/1/2013
-
EngineerZone Makes Getting Answers a Breeze9/1/2013
-
Soft Clipping vs. Hard Clipping8/1/2013
-
Do-it-Yourself ASICs7/1/2013
-
Crystal Radio Sets and Op Amps—Both Can Detect RF Signals6/1/2013
-
A Capaciticectomy? Sounds Awfully Painful!6/1/2008
Tools & Simulations
SPICE Models
CIR
AD8659 SPICE Macro Model
2.89 K
Design Tools
Analog Filter Wizard
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Analog Photodiode Wizard
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| AD8659ACPZ-R7 | Material Declaration | Reliability Data | 16-Lead LFCSP (4mm x 4mm w/ EP) | |
| AD8659ACPZ-RL | Material Declaration | Reliability Data | 16-Lead LFCSP (4mm x 4mm w/ EP) | |
| AD8659ARZ | Material Declaration | Reliability Data | 14-Lead SOIC | |
| AD8659ARZ-R7 | Material Declaration | Reliability Data | 14-Lead SOIC | |
| AD8659ARZ-RL | Material Declaration | Reliability Data | 14-Lead SOIC | |
| Wafer Fabrication Data |
