Features and Benefits
- Low Cost
- High Speed
325 MHz -3 dB Bandwidth
(G = +1)
1000 V/µs Slew Rate
Gain Flatness 0.1 dB to 28 MHz
- Low Power
5.4 mA/Amplifier Typical Supply Current @ 5V
- Low Noise
- Low Distortion
-85 dBc @ 5 MHz, RL = 1 kΩ
- Wide Supply Range 3 V to 12 V
- Small Packaging: SOIC-8 and MSOP
The AD8057, (single) and AD8058 (dual) are very high performance amplifiers with a very low cost. The balance between cost and performance make them ideal for many applications. The AD8057 and AD8058 will reduce the need to qualify a variety of specialty amplifiers.
The AD8057 and AD8058 are voltage feedback amplifiers with the bandwidth and slew rate normally found in current feedback amplifiers. The AD8057 and AD8058 are low power amplifiers having low quiescent current and a wide supply range from 3 V to 12 V. They have noise and distortion performance required for high end video systems as well as dc performance parameters rarely found in high speed amplifiers.
The AD8057 and AD8058 are available in standard SOIC packaging as well as tiny SOT-23-5 (AD8057) and MSOP (AD8058) packages. These amplifiers are available in the industrial temperature range of -40°C to +85°C.
AD8057 (Single) SOIC-8 and SOT-23-5
AD8058 (Dual) SOIC-8 and MSOP-8
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

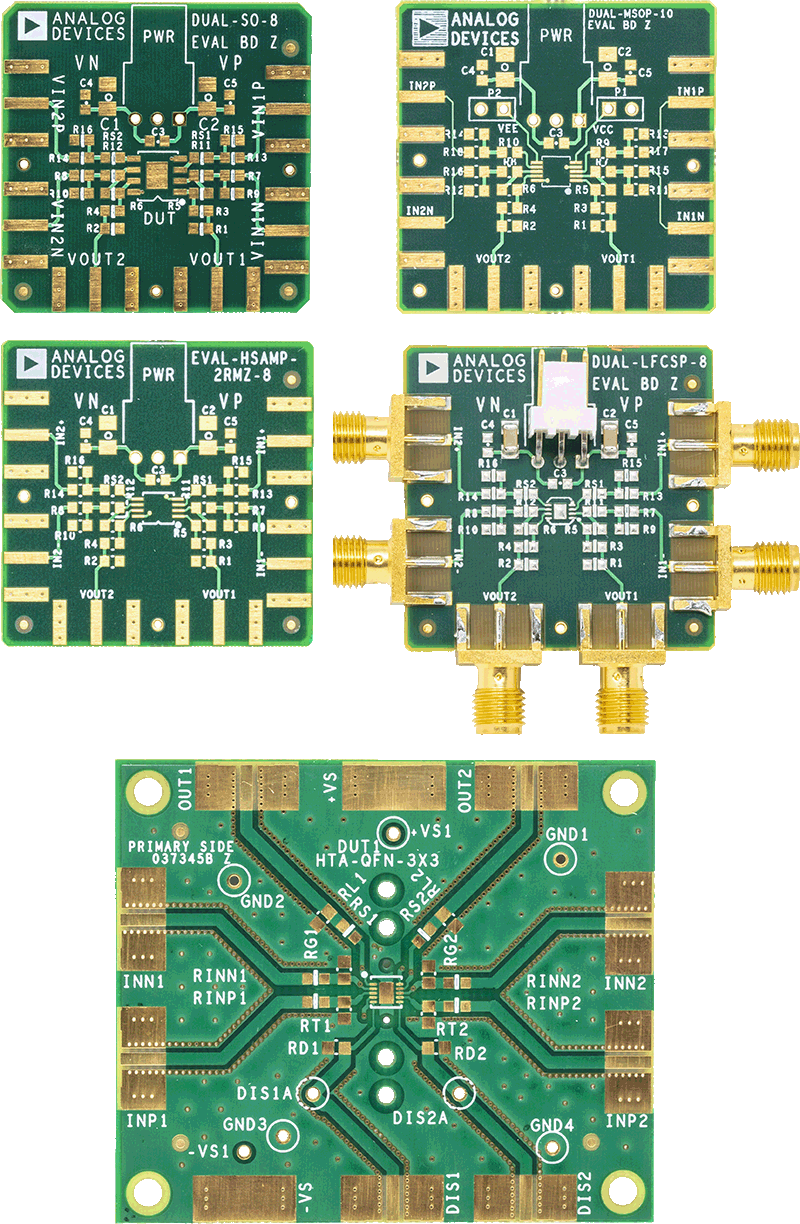

The Universal Dual High Speed Amplifier Evaluation Boards are bare boards that enables users to quickly prototype a variety of amplifier circuits, which minimizes risk and reduces time to market. These boards are all RoHs Compliant. See ordering guide below on what board to order by lead count and package.
UG-886: Universal Evaluation Board for Dual High Speed Op Amps Offered in 8-Lead MSOP155.96 K
UG-337: Universal Evaluation Board for Dual, High Speed Op Amps Offered in 10-Lead MSOP Packages284 kB
UG-267: Universal Evaluation Board for Dual High Speed Op Amps Offered in 8-Lead 3 mm × 3 mm LFCSP
Documentation & Resources
AN-402: Replacing Output Clamping Op Amps with Input Clamping Amps2/14/201555 kB
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications (Rev. 0)2/14/2015166 kB
UG-886: Universal Evaluation Board for Dual High Speed Op Amps Offered in 8-Lead MSOP10/26/2015155 K
UG-128: Universal Evaluation Board for Dual High Speed Op Amps in SOIC Packages4/19/2010208 kB
MT-053: Op Amp Distortion: HD, THD, THD + N, IMD, SFDR, MTPR2/14/2015104 kB
MT-052: Op Amp Noise Figure: Don't Be Misled2/14/201560 kB
MT-050: Op Amp Total Output Noise Calculations for Second-Order System2/14/201538 kB
MT-049: Op Amp Total Output Noise Calculations for Single-Pole System2/14/201540 kB
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth2/14/201581 kB
MT-047: Op Amp Noise2/14/201572 kB
MT-060: Choosing Between Voltage Feedback and Current Feedback Op Amps2/14/201562 kB
MT-059: Compensating for the Effects of Input Capacitance on VFB and CFB Op Amps Used in Current-to-Voltage Converters2/14/201569 kB
MT-033: Voltage Feedback Op Amp Gain and Bandwidth2/14/2015251 kB
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps2/14/201566 kB
MT-056: High Speed Voltage Feedback Op Amps2/3/2009109 kB
MT-032: Ideal Voltage Feedback (VFB) Op Amp12/11/200865 kB
High Speed Amplifiers Selection Table2/27/200877 kB
New High-Resolution Multiplying DACs Excel at Handling AC Signals9/1/2010 Analog Dialogue
Tools & Simulations
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
A utility to convert between standard units of power measurement and signal strength.
This tool estimates die temperature and power dissipation based on the supply voltages, ambient temperature, load characteristics, and package thermal data.
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|AD8058ACHIPS||Material Declaration||Reliability Data||none available|
|AD8058ARMZ||Material Declaration||Reliability Data||8-Lead MSOP|
|AD8058ARMZ-REEL||Material Declaration||Reliability Data||8-Lead MSOP|
|AD8058ARMZ-REEL7||Material Declaration||Reliability Data||8-Lead MSOP|
|AD8058ARZ||Material Declaration||Reliability Data||8-Lead SOIC|
|AD8058ARZ-REEL7||Material Declaration||Reliability Data||8-Lead SOIC|
|Wafer Fabrication Data|
