AD8054

PRODUCTION

Low Cost, High Speed, Rail-to-Rail Amplifier

Data Sheet (Rev. K) Product Selection Table
Viewing:

Overview

  • High speed and fast settling on 5 V
    110 MHz, −3 dB bandwidth (G = +1) (AD8051/AD8052)
    150 MHz, −3 dB bandwidth (G = +1) (AD8054)
    145 V/μs slew rate
    50 ns settling time to 0.1%
  • Single-supply operation
    Output swings to within 25 mV of either rail
    Input voltage range: −0.2 V to +4 V; VS = 5 V
  • Video specifications (G = +2)
    0.1 dB gain flatness: 20 MHz; RL = 150 Ω
    Differential gain/phase: 0.03%/0.03°
  • Low distortion
    −80 dBc total harmonic @ 1 MHz, RL = 100 Ω
  • Outstanding load drive capability
    Drives 45 mA, 0.5 V from supply rails (AD8051/AD8052)
    Drives 50 pF capacitive load (G = +1) (AD8051/AD8052)
  • Low power: 2.75 mA/amplifier (AD8054)
  • Low power: 4.4 mA/amplifier (AD8051/AD8052)

The AD8051 (single), AD8052 (dual) and AD8054 (quad) are low cost, high speed, voltage feedback amplifiers. The amplifiers operate on +3 V, +5 V or ±5 V supplies at low supply current. They have true single-supply capability with an input voltage range extending 200 mV below the negative rail and within 1 V of the positive rail.

Despite their low cost, the AD8051/AD8052/AD8054 provide excellent overall performance and versatility. The output voltage swings to within 25 mV of each rail, providing the maximum output dynamic range with excellent overdrive recovery.

The AD8051/AD8052/AD8054 are well suited for video electronics, cameras, video switchers, or any high speed portable equipment. Low distortion and fast settling make them ideal for active filter applications.

The AD8051/AD8052 in the 8-lead SOIC, the AD8052 in the MSOP, the AD8054 in the 14-lead SOIC, and the 14-lead TSSOP packages are available in the extended temperature range of −40°C to +125°C.

Applications

  • Active filters
  • Analog-to-digital drivers
  • Clock buffer
  • Consumer video
  • Professional cameras
  • CCD imaging systems
  • CD/DVD ROMs

    •
    AD8054
    Low Cost, High Speed, Rail-to-Rail Amplifier

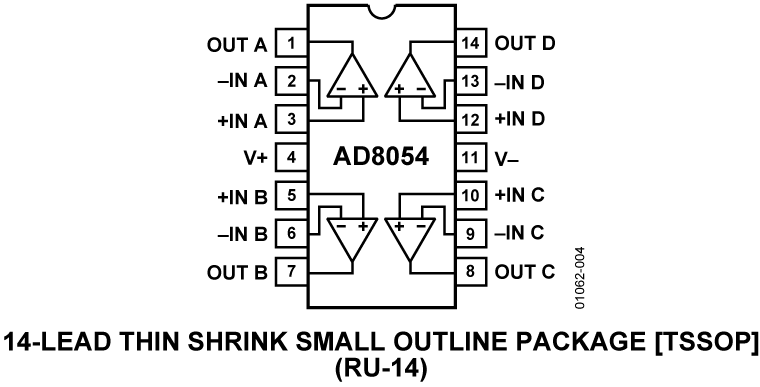

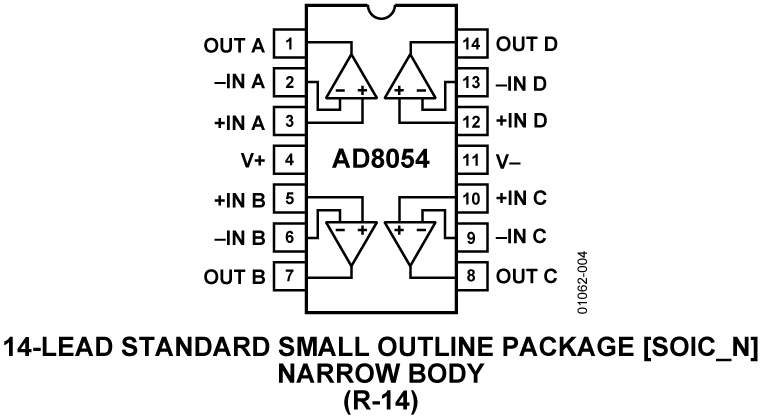

    AD8054 Functional Block Diagram AD8054 Pin Configuration AD8054 Pin Configuration
