ADA4807-4
3.1 nV/√Hz, 1 mA, 180 MHz, Rail-to-Rail Input/Output Amplifier
Top
Overview
Features and Benefits
- Low Noise
- 3.1 nV/√Hz at 100 kHz
- 0.7 pA/√Hz at 100 kHz
- Low Distortion (HD2/HD3)
- -141/-144 dBc at 1 kHz
- -112/-115 dBc at 100 kHz
- -84/-79 dBc at 1 MHz
- High speed performance
- -3dB bandwidth: 180 MHz
- Slew Rate: 225 V/µs
- 0.1% Settling Time: 47 ns
- Low input offset voltage and drift
- ±20 / ±175 µV (typical / max)
- 0.7 /3.7 µV/°C (typical / max)
- Low input offset current and drift
- 8 / 100 nA (typical / max)
- 30 / 250 pA/°C (typical / max)
- Rail-to-Rail Input and Output
- Low quiescent current: 1 mA at ±5V
- Wide supply range: 2.7 V to 11 V
- Small Packaging: 14-lead TSSOP
Product Details
The ADA4807-1 (single), ADA4807-2 (dual), and ADA4807-4 (quad) are low noise, rail-to-rail input and output, voltage feedback amplifiers. These amplifiers combine low power, low noise, high speed, and dc precision to provide an attractive solution for a wide range of applications from high resolution data acquisition instrumentation to high performance battery-powered and high component density systems where power consumption is of key importance.
With only 1.0 mA of supply current per amplifier, the ADA4807-1/ADA4807-2/ADA4807-4 feature the lowest input voltage noise among high speed, rail-to-rail input/output amplifiers in the industry and offer a wide bandwidth, high slew rate, fast settling time, and excellent distortion performance. Additionally, these amplifiers offer very low input offset voltage and drift performance, making them ideal for driving multiplexed and high throughput precision 16-/18-bit successive approximation registers (SARs) and 24-bit Δ-Σ ADCs.
These amplifiers are fully specified at +3 V, +5 V, and ±5 V supplies and can operate over the industrial −40°C to +125°C temperature range.
The ADA4807-1 is available in 6-lead SOT-23 and space-saving 6-lead SC70 packages. The ADA4807-2 is available in an 8-lead MSOP and a compact, 3 mm × 3 mm, 10-lead LFCSP. The ADA4807-4 is available in a 14-lead TSSOP package.
Applications
- High resolution analog-to-digital converter (ADC) drivers
- Portable and battery-powered instruments and systems
- High component density data acquisition systems
- Audio signal conditioning
- Active filters
Product Categories
Markets and Technologies
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

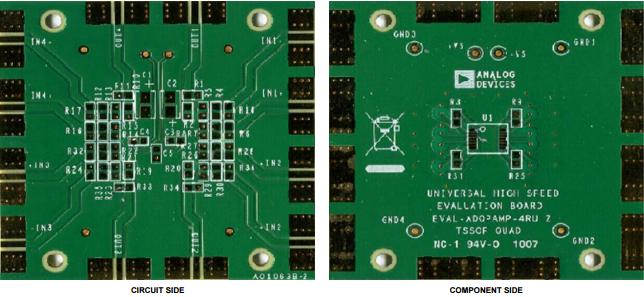

Evaluation Kits (1)
